woodmizer OS96 Guida
Operator Seat
Safety, Operation, Maintenance, &
Parts Manual
OS96 rev. A.00 - H.00
Safety is our #1 concern! Read and understand
all safety information and instructions before oper-
ating, setting up or maintaining this machine.
April 1997 Form #902
ii 96OS97doc020113Table of Contents
Table of Contents Section-Page
SECTION 1 OPERATION 1-1
1.1 Overview ................................................................................................1-1
1.2 Installation..............................................................................................1-2
1.3 Towing The Sawmill With Seat...........................................................1-10
1.4 Seat Roller ReplacementMaintenance..................................................1-12
SECTION 2 REPLACEMENT PARTS 2-1
2.1 Seat/Arm Rest.........................................................................................2-1
2.2 Upper Roller Bearings............................................................................2-2
2.3 Lower Roller Bearings ...........................................................................2-3
2.4 Seat Frame/Latch/Travel Pin..................................................................2-4
INDEX 1-I
TOC
Operation
Overview
Operation 96OS-969700doc020113 1-1
1
SECTION 1 OPERATION
1.1 Overview
The operator seat is compatible with all ‘92 through ‘96 model LT30, LT40, LT30HD,
LT40HD, LT60HD and LT70HD standard and super mills. The seat allows the operator to
be seated while traveling with the saw head. NOTE: The seat reduces maximum cutting
length by 25". The seat can be easily removed for full-size logs.
CAUTION! Seat capacity: 300 lb (136 kg). Overloading will
damage the feed system.
WARNING! Remove seat when not using with sawmill.
Unused seat creates possible pinch point with moving saw
carriage.
FIG. 1-1
Tool Box
Revision
Label
Foot Step
Lower Rollers
Seat Frame
Latch Hook
Latch Adjustment
Bolt
Travel
Lock Pin
Lower Roller
Adjustment Bolt (2)
3H0863-3B
Operation
Installation
1
1-2 96OS-969700doc020113 Operation
1.2 Installation
CAUTION! (Hydraulic Models Only). Move the saw car-
riage forward until the power supply contact button is disen-
gaged from the hydraulic power strip. Disconnect the
negative (-) battery cable before performing service near
the hydraulic power supply. Failure to disconnect the cable
could cause damage to the electrical system.
1. Bolt the seat to the frame using the four flat washers and lock nuts provided. Use the front
set of holes.
See Figure 1-2.
1. Back the two adjustment knobs on the lower bracket of the operator's seatlower roller
adjustment bolts all the way out.
2. Position the seat at the front of the mill on the operator’s side, facing the saw carriage.
Position the top rollers on the top bed rail. Position the lower rollers on each side of the
bottom bed rail.
FIG. 1-2
Install seat to
front set of
holes
3H0863-4B
Operation
Installation
Operation 96OS-969700doc020113 1-3
1
3. Remove the two step retaining pins and lower the foot step. Replace the retaining pins.
See Figure 1-3.
FIG. 1-3
FIG. 1-3
3H0104
3H0863-5B
Flip foot step
down
Remove
retaining pins
Install seat
to sawmill
Operation
Installation
1
1-4 96OS-969700doc020113 Operation
4. Secure the seat in place by tightening the lower roller adjustment bolts until the lower roll-
ers just touch the bottom bed rail. DO NOT OVERTIGHTEN! The seat should roll freely
when properly installed.
Operation
Installation
Operation 96OS-969700doc020113 1-5
1

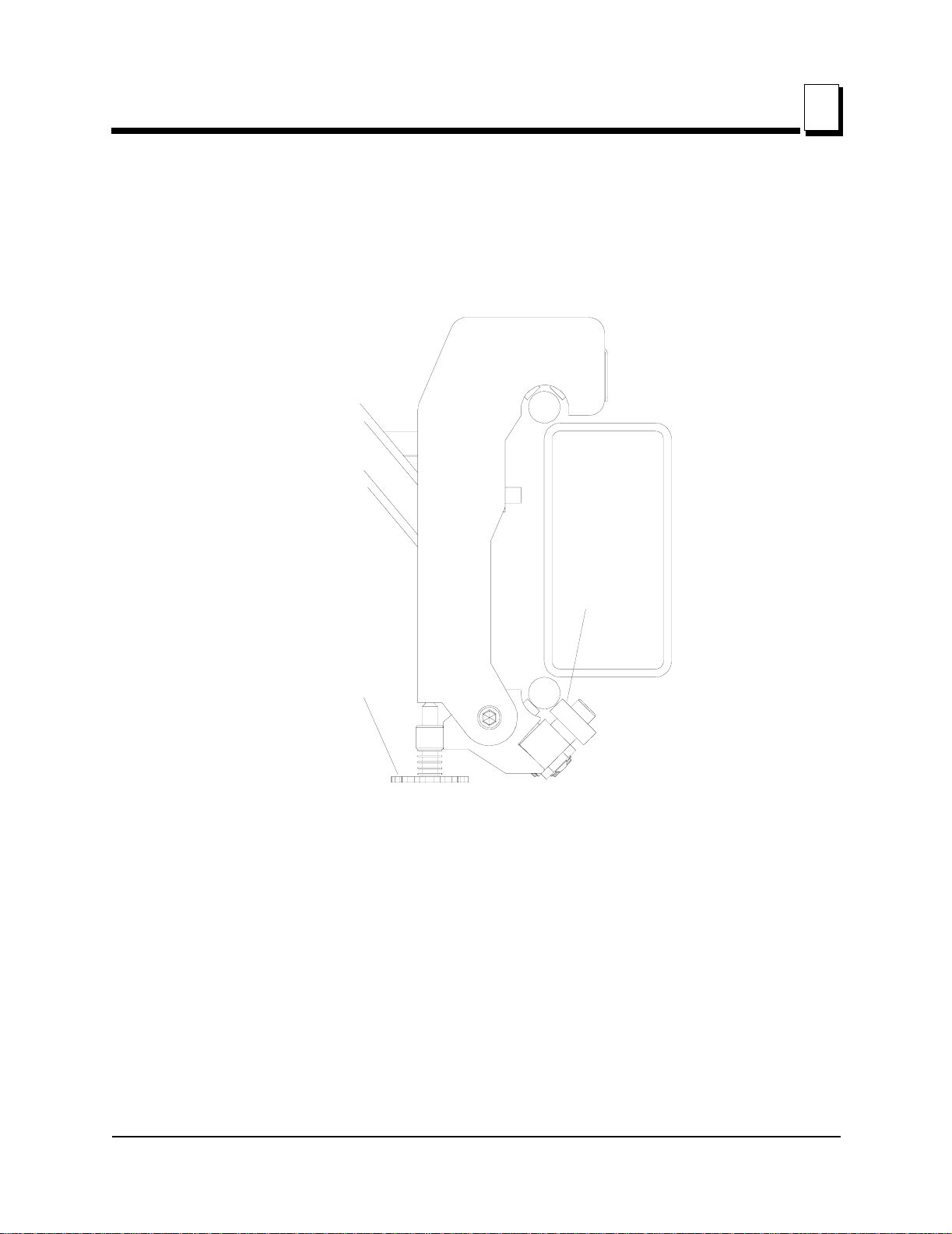

5. Position the lower rollers on each side of the bottom bed rail. Turn the seat adjustment
knobs in as far as they will go, then back them out 1/2 turn to prevent overtightening.
See Figure 1-4.
FIG. 1-4
A
djustment knob
Lower rollers
around bottom
track rail
3
H
0
1
05
Operation
Installation
1
1-6 96OS-969700doc020113 Operation
6. Remove the fender on the operator’s side of the sawmill.
FIG. 1-4
Loosen
Jam Nut
3H0531B
Adjustment
Bolt
Lower Rollers
touch bottom rail
Operation
Installation
Operation 96OS-969700doc020113 1-7
1
7. Check that both lower end rollers are touching the track and sharing the weight of the
seat evenly.
See Figure 1-5.
8. If one end roller has more pressure than the other, adjust the eccentric roller until both
end rollers have equal pressure.
9. Retighten the hand knobs and back off 1/2 turn.
NOTE: After adjustment, the lower center roller may be slightly touching or slightly off the
bottom rail.
FIG. 1-5
Adjust eccentric spacer
until both end rollers share load
3
H
0
1
06
Operation
Installation
1
1-8 96OS-969700doc020113 Operation
10. Connect the seat to the sawmill carriage. Lift up on the seat latch, and move the seat in
toward the carriage until the latch hook is underneath the track roller housing. Release
the latch.
See Figure 1-6. Make sure the seat is securely fastened to the carriage and there is no
looseness between the seat and the sawmill carriage. Use the latch adjustment bolt to
adjust the latch. Loosen the jam nut on the latch adjustment bolt. Turn the adjustment bolt
out as desired. Check the seat for looseness. Repeat as necessary until the seat is
securely fastened to the carriage. Retighten the jam nut.
11. An adjustment handle is provided to allow the operator to slide the seat forward or back.
Pull the handle to the side and adjust the seat as desired. Release the handle.
FIG. 1-6
3H0107
Latch adjustment bolt
Seat latch
