Woodmizer LX450DB-A Manuale utente

Debarker Option

Safety, Installation, Operation,

Maintenance & Parts Manual

LX450DB-A rev. C

Safety is our #1 concern! Read and understand

all safety information and instructions before oper-

ating, setting up or maintaining this machine.

October 2017

Form #2298

Used with all LX450 mill rev. A1.00 - A1.05

reproduced in any form by any photographic, electronic, mechanical or other means or used in

any information storage and retrieval system without written permission from

Wood-Mizer

8180 West 10th Street

Indianapolis, Indiana 46214

&DOLIRUQLD

3URSRVLWLRQ:DUQLQJ

:$51,1*%UHDWKLQJJDVGLHVHOHQJLQHH[KDXVWH[SRVHV\RXWRFKHPLFDOVNQRZQWR

WKH6WDWHRI&DOLIRUQLDWRFDXVHFDQFHUDQGELUWKGHIHFWVRURWKHUUHSURGXFWLYHKDUP

$OZD\VVWDUWDQGRSHUDWHWKHHQJLQHLQDZHOOYHQWLODWHGDUHD

,ILQDQHQFORVHGDUHDYHQWWKHH[KDXVWWRWKHRXWVLGH

'RQRWPRGLI\RUWDPSHUZLWKWKHH[KDXVWV\VWHP

'RQRWLGOHWKHHQJLQHH[FHSWDVQHFHVVDU\

)RUPRUHLQIRUPDWLRQJRWRZZZ3ZDUQLQJVFDJRY

:$51,1*'ULOOLQJVDZLQJVDQGLQJRUPDFKLQLQJZRRGSURGXFWVFDQH[SRVH\RXWR

ZRRGGXVWDVXEVWDQFHNQRZQWRWKH6WDWHRI&DOLIRUQLDWRFDXVHFDQFHU$YRLGLQKDOLQJ

ZRRGGXVWRUXVHDGXVWPDVNRURWKHUVDIHJXDUGVIRUSHUVRQDOSURWHFWLRQ

)RUPRUHLQIRUPDWLRQJRWRZZZ3:DUQLQJVFDJRYZRRG

Table of Contents Section-Page

Table of Contents LX450DB17doc072219 iii

SECTION 1 SAFETY 1-1

1.1 Installation and Maintenance..................................................................1-1

1.2 Operation and Towing............................................................................1-2

SECTION 2 DEBARKER INSTALLATION 2-1

2.1 Debarker Installation ..............................................................................2-1

2.2 Harness Installation ................................................................................2-5

2.3 Control Component Installation .............................................................2-8

SECTION 3 ALIGNMENT 3-1

SECTION 4 OPERATION AND MAINTENANCE 4-1

4.1 Locking Pin Operation ...........................................................................4-1

4.2 Control Overview ...................................................................................4-2

4.3 Operation ................................................................................................4-3

4.4 Maintenance ...........................................................................................4-5

4.5 Troubleshooting......................................................................................4-6

SECTION 5 ELECTRICAL INFORMATION 5-1

5.1 Electrical Component List......................................................................5-1

5.2 Electrical Wiring Diagram .....................................................................5-2

SECTION 6 DEBARKER PARTS 6-1

6.1 Mechanical Assembly ............................................................................6-1

6.2 Frame Assembly.....................................................................................6-2

6.3 Debarker Mount Arm Assembly ............................................................6-4

6.4 Debarker Pivot Arm Assembly ..............................................................6-6

6.5 Debarker Cutter Head Assembly............................................................6-7

6.6 Debarker Upper Pivot Assembly............................................................6-9

6.7 Control Kit............................................................................................6-11

INDEX I

Safety

Installation and Maintenance

1-1 DB17doc072219 Safety

SECTION 1 SAFETY

This symbol calls your attention to instructions concerning your personal safety. Be sure

to observe and follow these instructions. This symbol accompanies a signal word. The

word DANGER indicates an imminently hazardous situation which, if not avoided, will

result in death or serious injury. WARNING suggests a potentially hazardous situation

which, if not avoided, could result in death or serious injury. CAUTION refers to potentially

hazardous situations which, if not avoided, may result in minor or moderate injury to per-

sons or equipment. Read all safety instructions before operating this equipment and

observe all safety warnings!

1.1 Installation and Maintenance

DANGER! On electric mills, hazardous voltage inside the

disconnect box, starter box, and at the electric motor can

cause shock, burns, or death. Disconnect and lock out

power supply before performing debarker installation! Fol-

low all applicable electrical codes.

DANGER! Make sure all electrical installation, service

and/or maintenance work is performed by a qualified elec-

trician and is in accordance with applicable electrical codes.

Failure to do so will result in serious injury or death.

DANGER! Before performing any service to this equip-

ment, turn the key to the OFF position, remove the key, and

disconnect the sawmill battery ground terminal. Failure to

do so will result in serious injury or death.

WARNING! Before replacing the debarker blade, move the

sawmill blade guide arm in front of the sawmill blade to

cover the blade teeth. Failure to do so may result in serious

injury or death.

Safety

Operation and Towing

Safety DB17doc072219 1-2

1.2 Operation and Towing

DANGER! Make sure all guards and covers are in place

and secured before operating the debarker option. Failure

to do so may result in serious injury.

DANGER! Keep all persons out of the path of moving

equipment when operating the debarker. Failure to do so

will result in serious injury.

DANGER! Always remove the key from the control panel

before preparing the debarker for towing. Failure to do so

may result in serious injury.

WARNING! Debarker is ON when warning light is on. DO

NOT disconnect the warning light. Doing so may result in

serious injury.

WARNING! If the debarker continues to run with the key

switch in the OFF position, remove the negative battery ter-

minal from the battery post.

DO NOT continue to operate the mill if the main key switch

does not control debarker operation. Doing so could result

in serious injury. Call Wood-Mizer customer service for

more information.

Debarker Installation

2-1 DB17doc072219 Debarker Installation

SECTION 2 DEBARKER INSTALLATION

DANGER! On electric mills, hazardous voltage inside the

disconnect box, starter box, and at the electric motor can

cause shock, burns, or death. Disconnect and lock out

power supply before performing debarker installation! Fol-

low all applicable electrical codes.

DANGER! Before performing any service to this equip-

ment, turn the key to the OFF (0) position, remove the key,

and disconnect the sawmill battery ground terminal. Failure

to do so will result in serious injury or death.

CAUTION! Due to various design changes and past retro-

fits and options, you should very carefully look your mill

over to determine Debarker compatibility before beginning

Debarker installation.

2.1 Debarker Installation

DANGER! Always disengage the blade and shut off the

sawmill engine before installing the debarker. Failure to do

so will result in serious injury.

IMPORTANT! Sawmills are equipped with pre-drilled

Debarker mounting holes. Verify hole locations before

beginning Debarker installation. Proper hole location is

imperative for safe and effective Debarker operation.

1. Open the blade housing cover.

Debarker Installation

Debarker Installation DB17doc072219 2-2

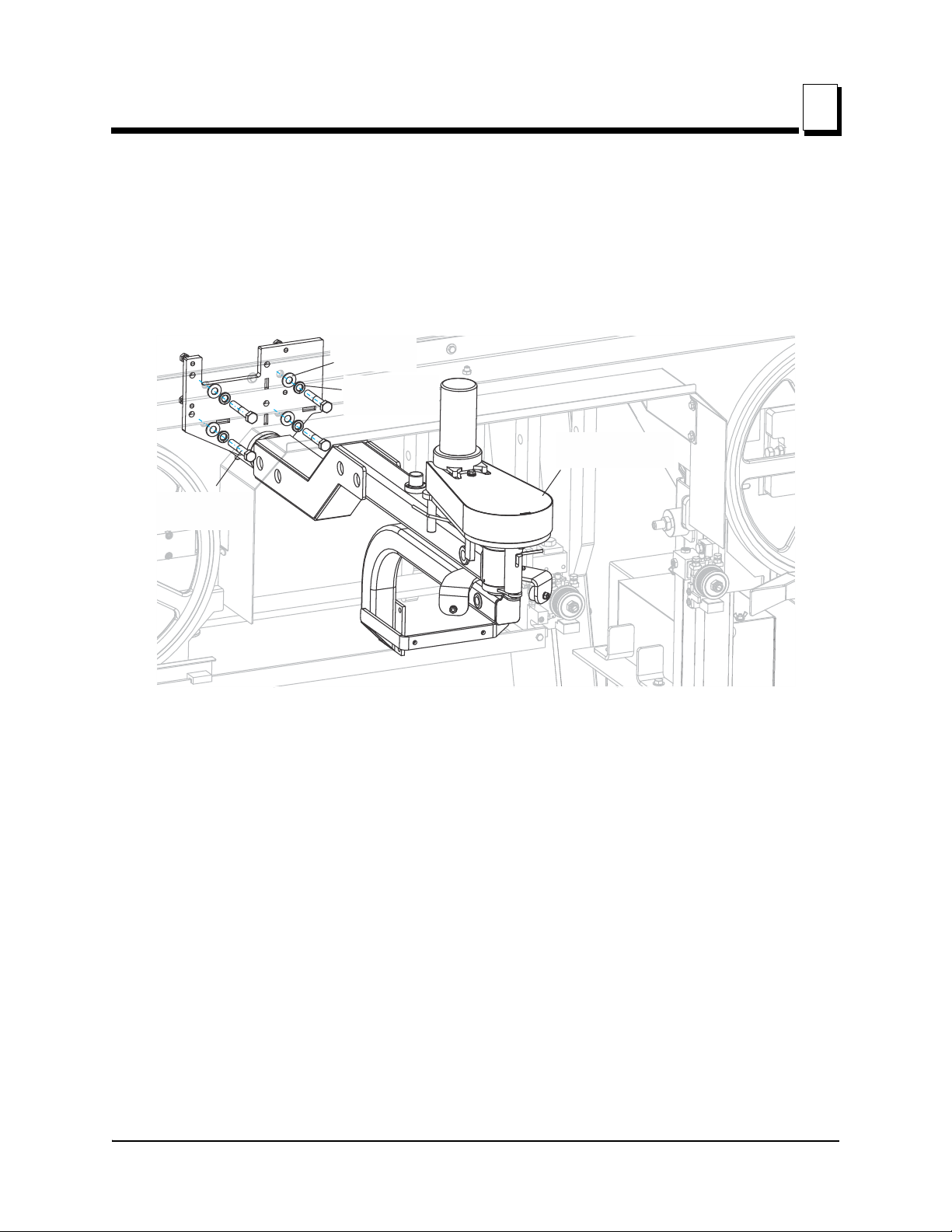

2. Assemble the debarker to the sawmill saw head. Align the mounting block holes and the

two debarker mounting holes in the saw head. Use the provided hex head bolts, split lock

and flat washers to secure in place. Make sure the debarker is square to the saw head

before tightening.

See Figure 2-1.

FIG. 2-1

LX0042-1

Debarker Frame

Assembly

Washer, ½

Split Lock (4)

Washer, ½

Flat (4)

Bolt, 1/2-13x3

Hex Head (4)

Debarker Installation

2-3 DB17doc072219 Debarker Installation

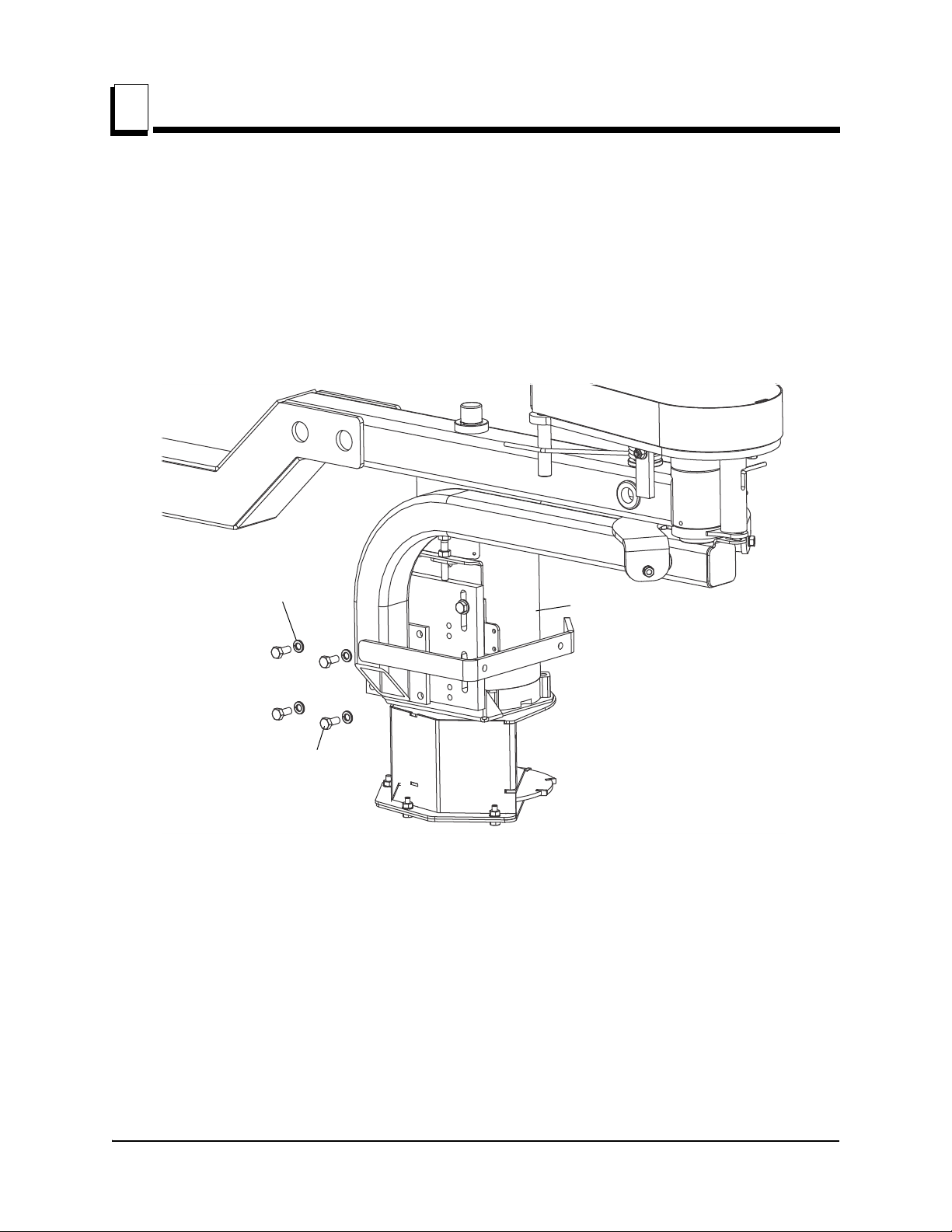

3. Assemble the debarker cutting head to the mount plate on the frame.

Use the four provided bolts and split lock washers to mount the cutting head to the

debarker frame. Use the lower set of four holes in the head mounting plate. The upper set

of holes are provided in the event the cutting head needs to be adjusted further down

than the slotted motor mount holes will allow.

See Figure 2-2.

FIG. 2-2

LX0042-2

5/16-18 x 3/4"

Hex Head Bolts (4)

5/16" Lock Washers (4)

Cutting Head

Debarker Installation

Debarker Installation DB17doc072219 2-4

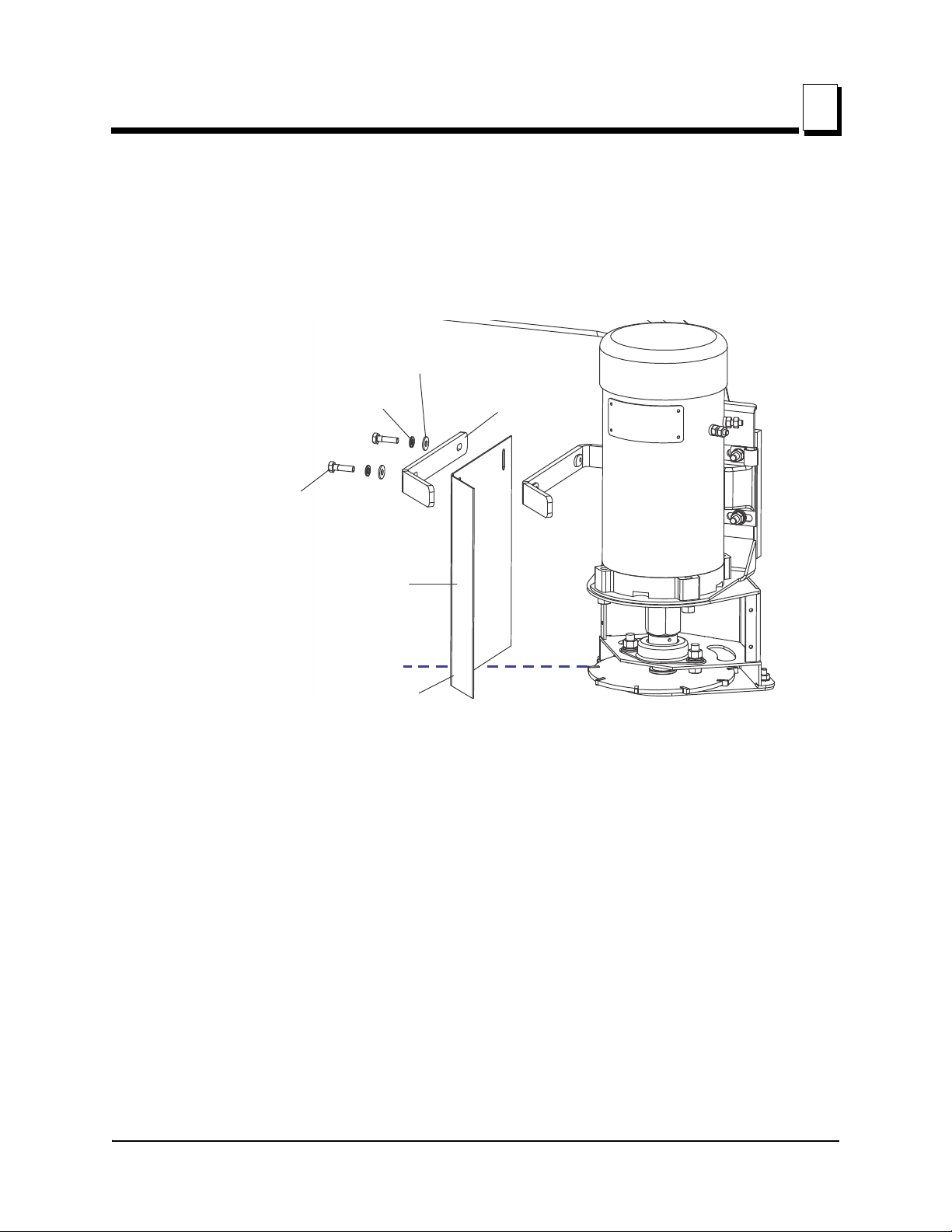

4. Install the blade guard bracket and flexible debris guard to the debarker head with two flat

washers, lock washers, and hex head bolts. Be sure the bottom of the debris guard is

even with the bottom of the debarker blade.

See Figure 2-3.

FIG. 2-3

LX0042-3

Debris

Guard

Bracket

1/4-20 x 1" Hex

head bolt (2)

1/4" Lock

washer (2)

1/4" Flat

washer (2)

Adjust bottom of debris guard

even with bottom of debarker blade

Debarker Installation

Harness Installation

2-5 DB17doc072219 Debarker Installation

2.2 Harness Installation

DANGER! Before performing any service to this equip-

ment, turn the key to the OFF (0) position, remove the key,

and disconnect the sawmill battery ground terminal. Failure

to do so will result in serious injury or death.

IMPORTANT! Avoid pinch and pivot points, unnecessary

wire bending and open spaces where the wire could get

caught by a log, etc. If you have any questions, call

Wood-Mizer customer service.

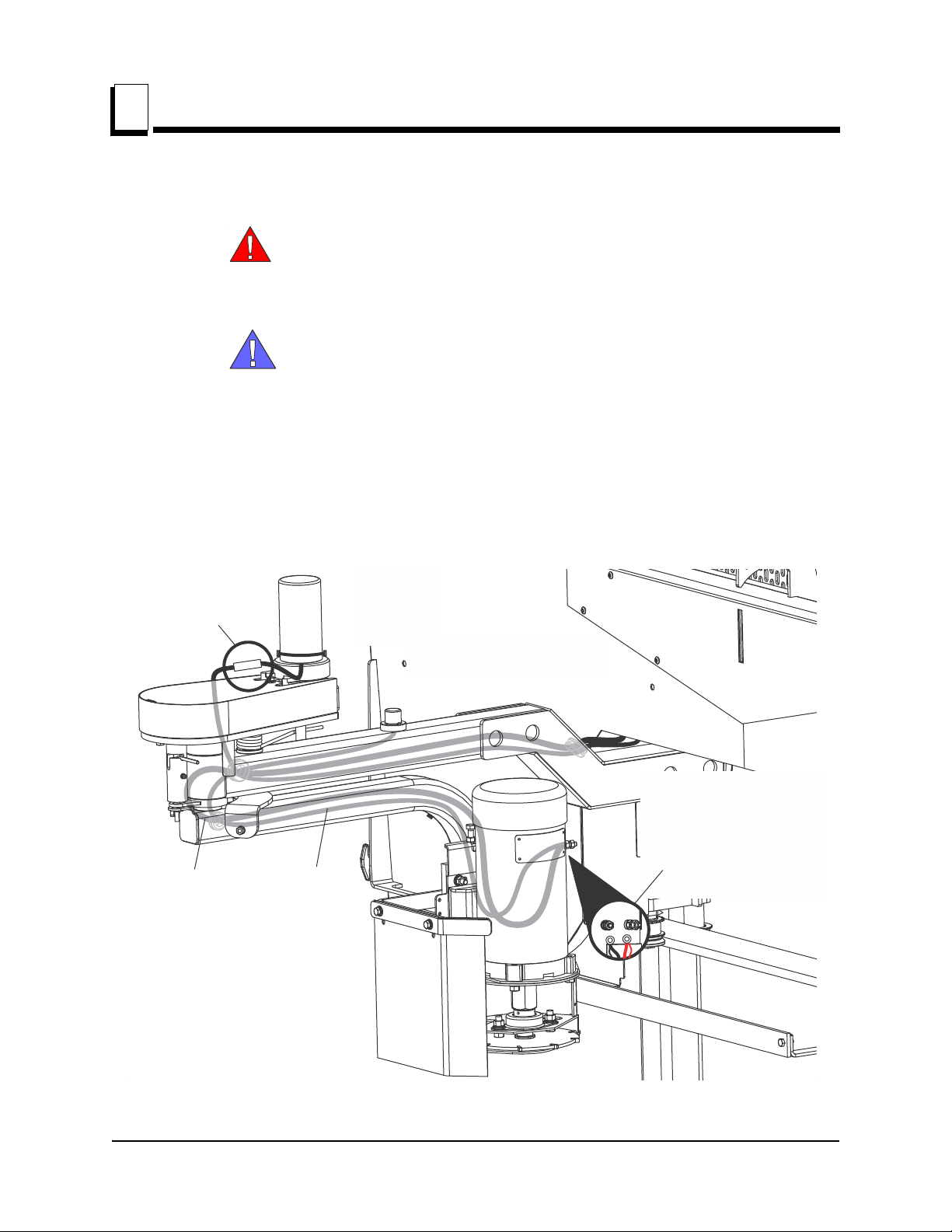

1. Route the harnesses through the saw head frame hole as shown. Continue routing the

long blade motor wire harness (large wires/ring terminals) inside the debarker frame

through the three holes with grommets.

See Figure 2-4.

FIG. 2-4

Blade

Motor

Wires

Warning Light

Wires

Connect In/Out

Motor Cable

To Debarker

Harness

Install Ring Terminals

To Warning Light Wires.

Install Boots Over

Light And Motor Wires

And Connect To Debarker

Blade Motor

Red/+, Black/-).

LX0042-4B
