Worx WG471E Manuale utente
WG471E WG471E.9
P07
P15
2x20V Snow Thrower EN
[9ȟțȓȑȜȜȥȖȟȠȖȠȓșȪ 58
6
3
4
5
1
2
8
7
14
10
9
11
12
13
A1
A4
A3
A2
A5 A6
C3
C1
B
C2
D2
D1
100%
0%
16
15
2
1
E1
G
F
E2
HI
17
M
K
J
L
N2
N1
8
Snow Thrower EN
PRODUCT SAFETY
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING Read all safety warnings,
instructions, illustrations and
specifications provided with this power
tool. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators.There is
an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from heat,
oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
e) When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current
device (RCD) protected supply. Use of an
RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while you
are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energising power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
e) Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in unexpected
situations.
f) Dress properly. Do not wear loose clothing
or jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
h) Do not let familiarity gained from frequent
use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause severe
injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application.The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools and accessories.
9
Snow Thrower EN
Check for misalignment or binding of moving
parts, breakage of parts and any other condition
that may affect the power tool’s operation. If
damaged, have the power tool repaired before
use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
g) Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to
be performed. Use of the power tool for
operations different from those intended could
result in a hazardous situation.
h) Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow
for safe handling and control of the tool in
unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified
by the manufacturer. A charger that is suitable
for one type of battery pack may create a risk of
fire when used with another battery pack.
b) Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it
away from other metal objects, like paper
clips, coins, keys, nails, screws or other
small metal objects, that can make a
connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
d) Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery
may cause irritation or burns.
e) Do not use a battery pack or tool that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behaviour
resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire
or excessive temperature. Exposure to fire or
temperature above 130 °C may cause explosion.
g) Follow all charging instructions and do not
charge the battery pack or tool outside
the temperature range specified in the
instructions. Charging improperly or at
temperatures outside the specified range may
damage the battery and increase the risk of fire.
6) Service
a) Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
b) Never service damaged battery packs.
Service of battery packs should only be
performed by the manufacturer or authorized
service providers.
Safety instructions for snowthrowers.
Training
1) Read the operating and service instruction
manual carefully. Be thoroughly familiar with the
controls and the proper use of the equipment.
Know how to stop the unit and disengage the
controls quickly.
2) Never allow children to operate the equipment.
Never allow adults to operate the equipment
without proper instruction.
3) Keep the area of operation clear of all persons,
particularly small children, and pets.
4) Exercise caution to avoid slipping or falling,
especially when operating in reverse.
Preparation
1) Thoroughly inspect the area where the
equipment is to be used and remove all
doormats, sleds, boards, wires, and other
foreign objects.
2) Do not operate the equipment without wearing
adequate winter garments. Wear footwear which
will improve footing on slippery surfaces.
3) Adjust the collector housing height to clear
gravel or crushed rock surface.
4) Never attempt to make any adjustments while
the motor is running (except where specifically
recommended by manufacturer).
5) The operation of any powered machine can
result in foreign objects being thrown into
the eyes. Always wear safety glasses or eye
shields during operation or while performing an
adjustment or repair.
Operation
1) Do not put hands or feet near or under rotating
parts, Keep clear of the discharge opening at all
times.
2) Exercise extreme caution when operating on
or crossing gravel drives, walks, or roads. Stay
alert for hidden hazards or traffic.
3) After striking a forging object, stop the motor,
remove battery pack from the machine,
thoroughly inspect the snowthrower for
any damage, and repair the damage before
restarting and operating the snowthrower.
4) If the machine starts to vibrate abnormally, stop
the motor and check immediately for the cause.
Vibration is generally a warning of trouble.
5) Stop the motor whenever you leave the
operating position, before unclogging the
collector/impeller housing or discharge guide,
and when making any repairs, adjustments, or
inspections.
6) When cleaning, repairing, or inspecting, make
certain the collector/impeller and all moving
10
Snow Thrower EN
parts have stopped. Remove battery pack from
the machine to prevent accidental starting.
7) Do not clear snow across the face of slopes,
Exercise extreme caution when changing
direction on slopes. Do not attempt to clear
steep slopes.
8) Never operate the snowthrower without proper
guards, plates or other safety protective devices
in place.
9) Never operate the snowthrower near glass
enclosures, automobiles, window wells, offs,
etc. without pro-per adjustment of the snow
discharge angle. Keep children and pets away.
10) Do not overload the machine capacity by
attempting to clear snow at too fast a rate.
11) Never operate the machine at high transport
speeds on slippery surfaces. Use care when
reversing.
12) Never direct discharge at bystanders or allow
anyone in front of the unit.
13) Disengage power to the collector/impeller when
snowthrower is transported or not in use.
14) Use only attachments and accessories approved
by the manufacturer of snowthrower (such as
wheel weights, counterweights, cabs, etc.).
15) Never operate the snowthrower without good
visibility or light. Always be sure of your footing,
and keep a firm hold on the handles. Walk; never
run.
Clearing a Clogged Discharge Chute
Hand contact with the rotating impeller inside the
discharge chute is the most common cause of injury
associated with snow throwers. Never use your
hand to clean out the discharge chute.

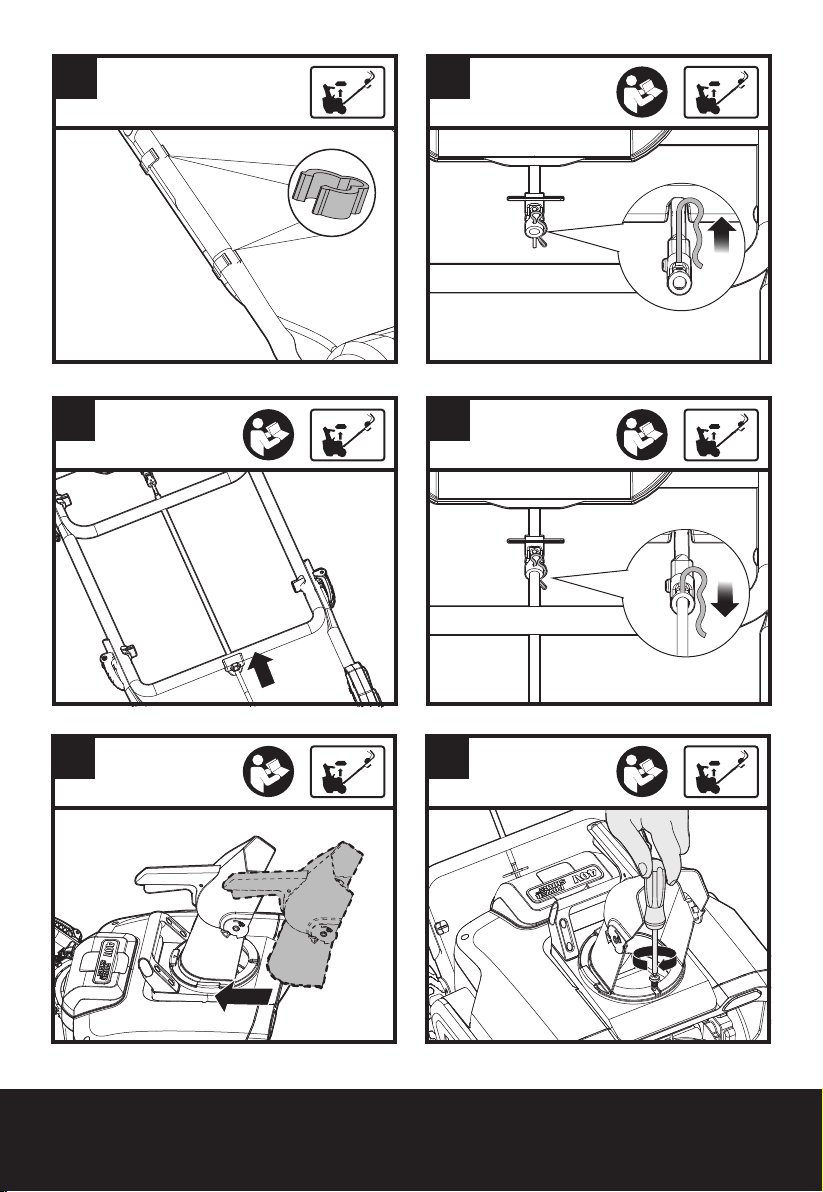

To clear the chute:
1. SHUTTHE MOTOR OFF!
2. Wait 10 seconds to be sure the impeller blades
have stopped rotating.
3. Always use a clean-out tool, not your hands.
Maintenance and storage
1) Check motor-mounted bolts, etc., at frequent
intervals for proper tightness to be sure the
equipment is in safe working condition.
2) Always refer to owner’s guide instructions for
important details if the snowthrower is to be
stored for an extended period
3) Maintain or replace safety and instructions
labels, as necessary.
4) Run the machine a few minutes after throwing
snow to prevent freeze-up of the collector/
Impeller.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred cells or
battery pack.
b) Do not short-circuit a battery pack. Do not
store battery packs haphazardly in a box or
drawer where they may short-circuit each
other or be short-circuited by conductive
materials. When battery pack is not in use,
keep it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire.
Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical
shock.
e) In the event of battery leaking, do not
allow the liquid to come into contact
with the skin or eyes. If contact has been
made, wash the affected area with copious
amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell
or battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a
clean dry cloth if they become dirty.

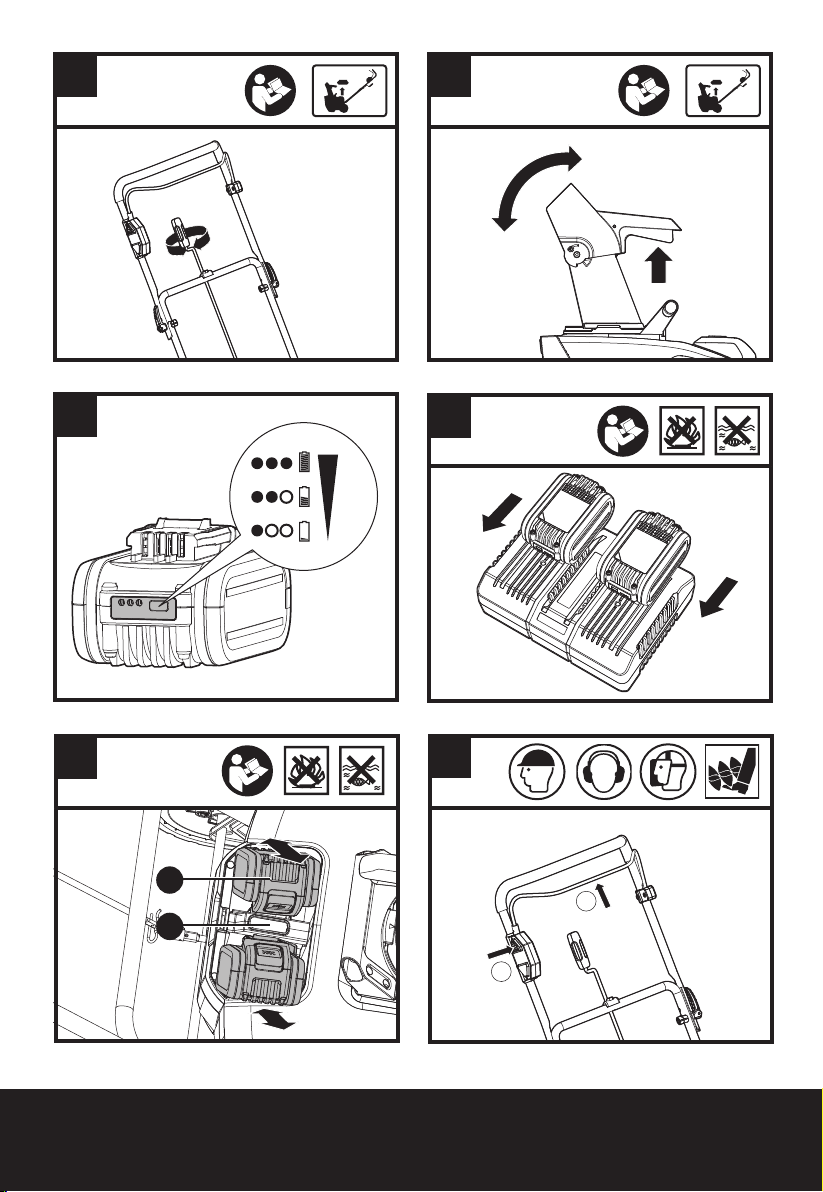

i) Battery pack needs to be charged before
use. Always refer to this instruction and
use the correct charging procedure.
j) Do not maintain battery pack on charge
when not in use.
k) After extended periods of storage, it may
be necessary to charge and discharge
the battery pack several times to obtain
maximum performance.
l) Battery pack gives its best performance
when it is operated at normal room
temperature (20 °C ± 5 °C).
m) When disposing of battery packs, keep
battery packs of different electrochemical
systems separate from each other.
n) Recharge only with the charger specified
by WORX.Do not use any charger other
than that specifically provided for use with
the equipment. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
o) Do not use any battery pack which is not
designed for use with the equipment.
p) Keep battery pack out of the reach of
children.
q) Retain the original product literature for
future reference.
r) Remove the battery from the equipment
when not in use.
s) Dispose of properly.
t) Do not mix cells of different manufacture,
capacity, size or type within a device.
u) Do not remove battery pack from its
original packaging until required for use.
v) Observe the plus (+) and minus (–) marks
on the battery and ensure correct use.
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Worx Spazzaneve
