13”Grass Trimmer/Edger EN

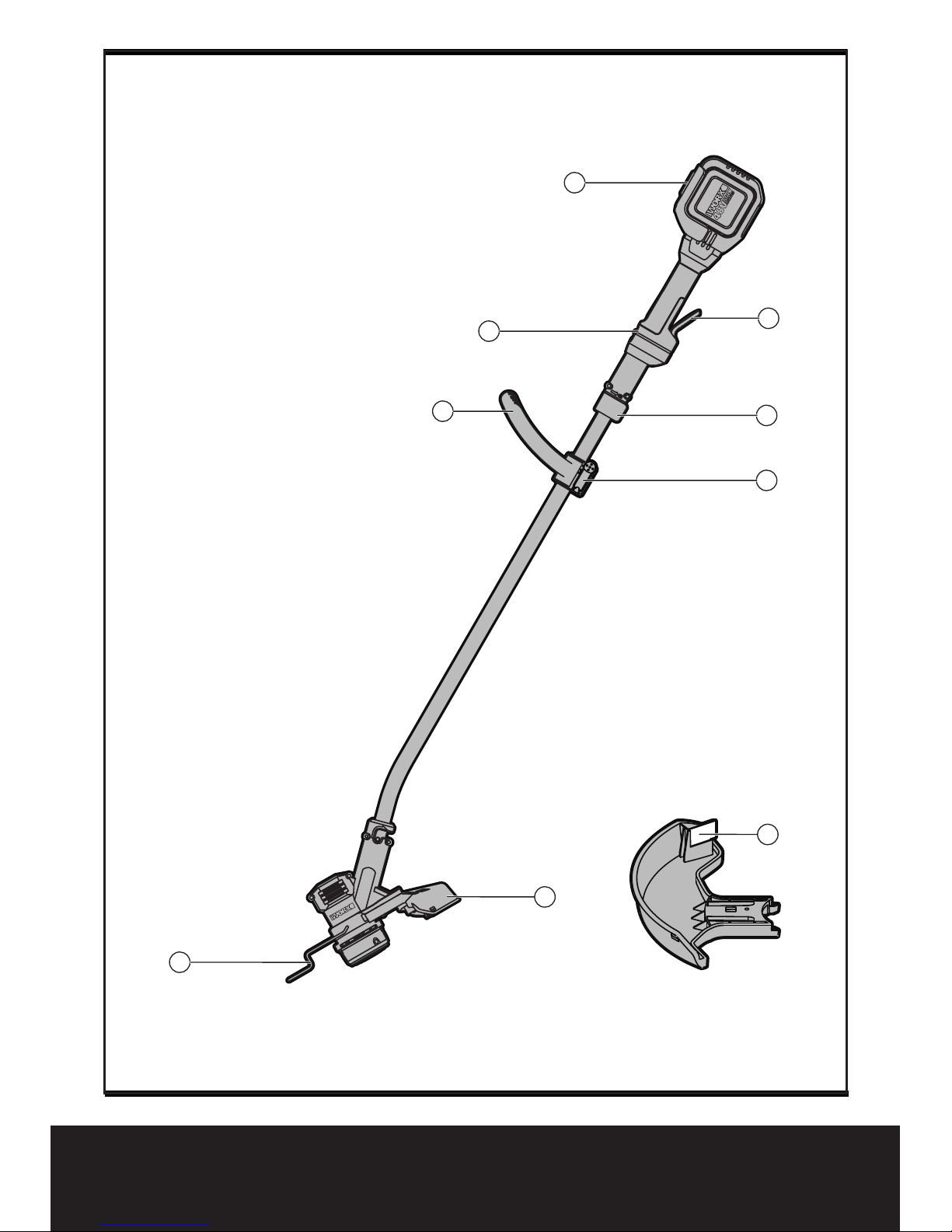

1. AUXILIARY HANDLE
2. LOCK OFF SWITCH
3. BATTERY PACK
4. VARIABLE SPEED CONTROL
5. SHAFT LOCKING KNOB
6. AUXILIARY HANDLE LOCKING CLAMP
7. SAFETY GUARD
8. EDGE GUIDE
9. LINE CUTTER

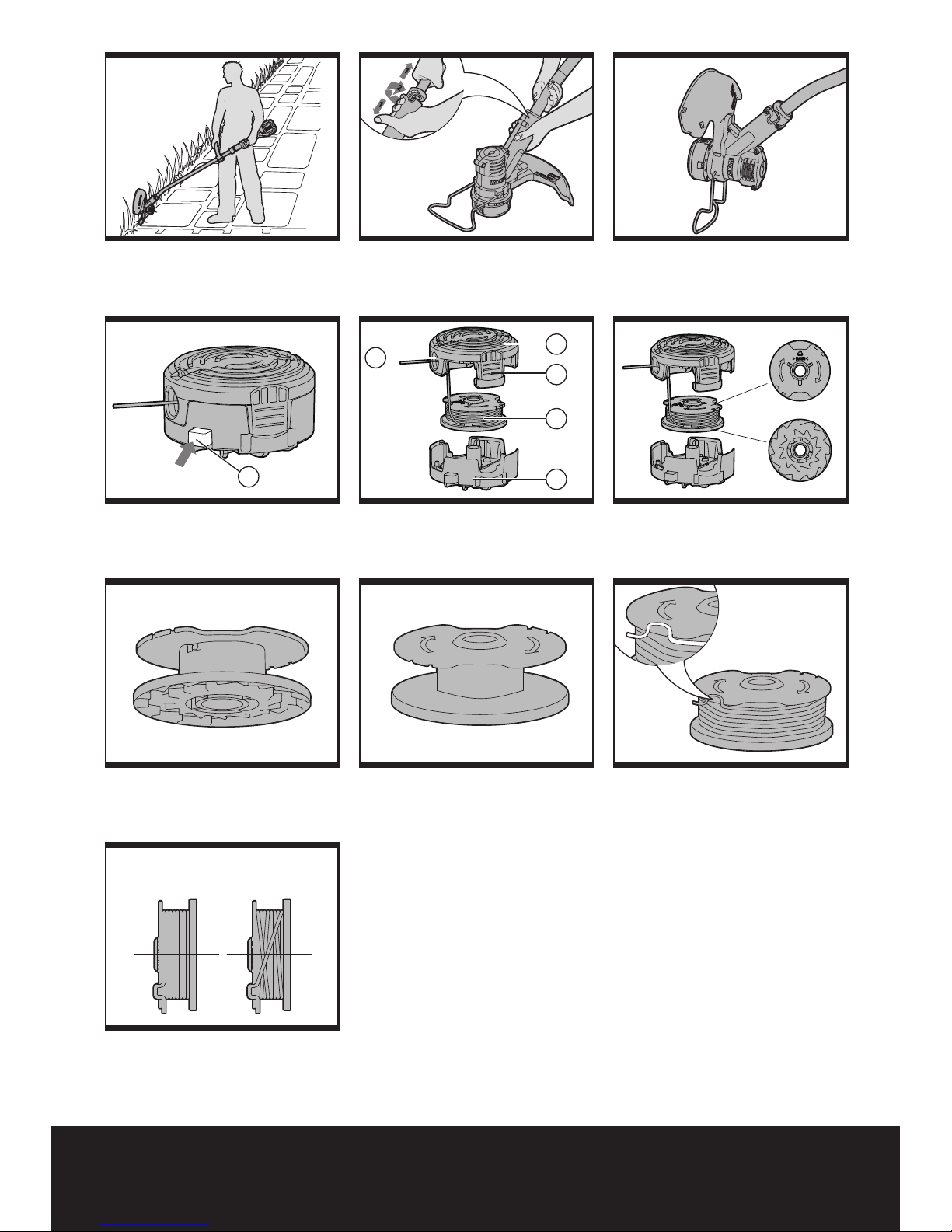

10. TRIMMER HEAD COVER (See Fig. H2)
11. CAP RELEASE LATCH (See Fig. H2)
12. SPOOL (See Fig. H2)
13. TRIMMER HEAD (See Fig. H2)
14. EYELET (See Fig. H2)
15. LINE FEED BUTTON (See Fig.H1)
Not all the accessories illustrated or described are included in standard delivery.
7
13”Grass Trimmer/Edger EN
TECHNICAL DATA
Voltage 48V Max*
No load speed 8300/min
Cutting diameter 13”(330mm)
Line diameter 0.08”(2.0mm)
Charging time 3hr
Machine weight 7.9 lbs(3.6kg)
* Voltage measured without workload. Initial battery voltage reaches maximum of 48 volts.
Nominal voltage is 43.2 volts.
ACCESSORIES
Charger (WA3741) 1
Battery pack (WA3538) 1
Spool (WA0014) 2
Spool/Cap Combo (WA0204) 1
We recommend that you purchase your accessories from the same store that sold you the tool.
Use good quality accessories marked with a well-known brand name. Choose the type according
to the work you intend to undertake. Refer to the accessory packaging for further details. Store
personnel can assist you and offer advice.
8
13”Grass Trimmer/Edger EN
IMPORTANT SAFETY
INSTRUCTIONS
WARNING! When using electric
gardening appliances, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock, and
personal injury, including the following:
WARNING: Read all instructions
WARNING: This product maybe
contains lead, phthalate or other
chemicals known to the State of
California to cause cancer, birth defects
and other reproductive harm. Please
wash your hands after use.
FOR ALL APPLIANCES
1) Avoid Dangerous Environment - Don’t use
appliances in damp or wet locations.
2) Don’t Use In Rain.
3) Keep Children Away - All visitors should be
kept at a distance from work area.
4) Dress Properly - Do not wear loose clothing
or jewelry.They can be caught in moving
parts. Use of rubber gloves and substantial
footwear is recommended when working
outdoors. Wear protective hair covering to
contain long hair.
5) Use Safety Glasses - Always use face or
dust mask if operation is dusty.
6) Use Right Appliance - Do not use appliance
for any job except that for which it is
intended.
7) Don’t Force Appliance - It will do the job
better and with less likelihood of a risk of
injury at the rate for which it was designed.
8) Don’t Overreach - Keep proper footing and
balance at all times.
9) Stay Alert - Watch what you are doing. Use
common sense. Do not operate appliance
when you are tired.
10)Store Idle Appliances Indoors - When not in
use, appliances should be stored indoors
in dry, and high or locked-up place - out of
reach of children.
11)Maintain Appliance With Care - Keep
line cutter sharp and clean for best
performance and to reduce the risk of
injury. Follow instructions for lubricating
and changing accessories. Keep handles
dry, clean, and free from oil and grease.
12)Check Damaged Parts - Before further use
of the appliance, a guard or other part that
is damaged should be carefully checked
to determine that it will operate properly
and perform its intended function. Check
for alignment of moving parts, binding of
moving parts, breakage of parts, mounting,
and any other condition that may affect
its operation. A guard or other part that is
damaged should be properly repaired or
replaced by an authorized service center
unless indicated elsewhere in this manual.
SAVE THESE INSTRUCTIONS
FOR ALL BATTERY – OPERATED
GARDENING APPLIANCES
1. The instruction manual for all battery-
operated gardening appliances shall
contain the following or equivalent
instructions:
1) Do not charge appliance in rain, or in wet
locations.
2) Do not use battery-operated appliance in rain.
3) When replacing batteries, all batteries
should be replaced at the same time.
Mixing fresh and discharged batteries
could increase internal cell pressure and
rupture the discharge battery(ies).
4) When inserting batteries into this product,
the proper polarity or direction must be
observed. Reverse insertion of batteries
can result in leakage or explosion.
Always remove or disconnect
battery pack before adjusting,
cleaning, servicing or transporting the
lawn trimmer.
2. The instruction manual for all
battery-operated products employing
a detachable or separable battery shall
contain the following or equivalent
instructions:
1) Use only the following type and size
battery(ies).WA3538
2) Do not dispose of the battery(ies) in a
fire.The cell may explode. Check with
local codes for possible special disposal
instructions or contact Call2Recycle at
1-800-822-8837.
9
13”Grass Trimmer/Edger EN
3) Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may
be toxic if swallowed.
4) Exercise care in handling batteries in order
not to short the battery with conducting
materials such as rings, bracelets, and
keys.The battery or conductor may
overheat and cause burns.
3. Avoid Unintentional Starting – Do not
insert battery with finger on switch. Be
sure switch is off when inserting battery.
SAVE THESE INSTRUCTIONS
ADDITIONAL SAFETY RULES FOR LAWN
TRIMMER AND EDGE TRIMMER
1. Keep guards in place and in working order.
2. Do not use this product without the guard
being fitted.
3. Keep hands and feet away from cutting
area.
4. Do not use heavier lines than
recommended in this manual.
5. Do not use line materials of other types –
for example, metal wire, rope, and the like.
SAVE THESE INSTRUCTIONS
GENERAL SAFETY WARNINGS FOR
BATTERY PACK
1) WARNING: Risk of fire and burns. Do
not disassemble, heat above 100°C
(212°F), or incinerate. Do not expose
cells or batteries to heat or fire.
Avoid storage in direct sunlight.
2) Dispose of used battery promptly.
When disposing of secondary cells
or batteries, keep cells or batteries
of different electrochemical systems
separate from each other.
3) Keep battery out of reach of children
and in original package until ready to
use.
4) Never put batteries in mouth. If
swallowed, contact your physician
or local poison control center.
5) CAUTION – The battery used in this
device may present a risk of fire or
chemical burn if mistreated. Replace
battery with (WORX) only. Use of
another battery may present a risk of
fire or explosion
6) Warning: Do not use a visibly
damaged battery pack or appliance
as applicable.
7) Warning: Do not modify or attempt
to repair the appliance or the battery
pack as applicable.
8) BATTERY MUST BE RECYCLED.
9) Do not short-circuit a cell or battery.
Do not store cells or batteries
haphazardly in a box or drawer
where they may short-circuit each
other or be short-circuited by
conductive materials.
10) Do not subject cells or batteries to
mechanical shock.
11) Keep cells and batteries clean and
dry. Wipe the cell or battery terminals
with a clean dry cloth if they become
dirty.
12) Do not maintain secondary cells and
batteries on charge when not in use.
13) Retain the original cell and battery
literature for future reference.
14) Do not use any charger other than
that specifically provided for use
with the equipment. Secondary cells
and batteries need to be charged before
use. Always use the correct charger and
refer to the manufacturer’s instructions
or equipment manual for proper charging
instructions.
15) When possible, remove the battery from
the equipment when not in use.
SAVE THESE INSTRUCTIONS
10
13”Grass Trimmer/Edger EN

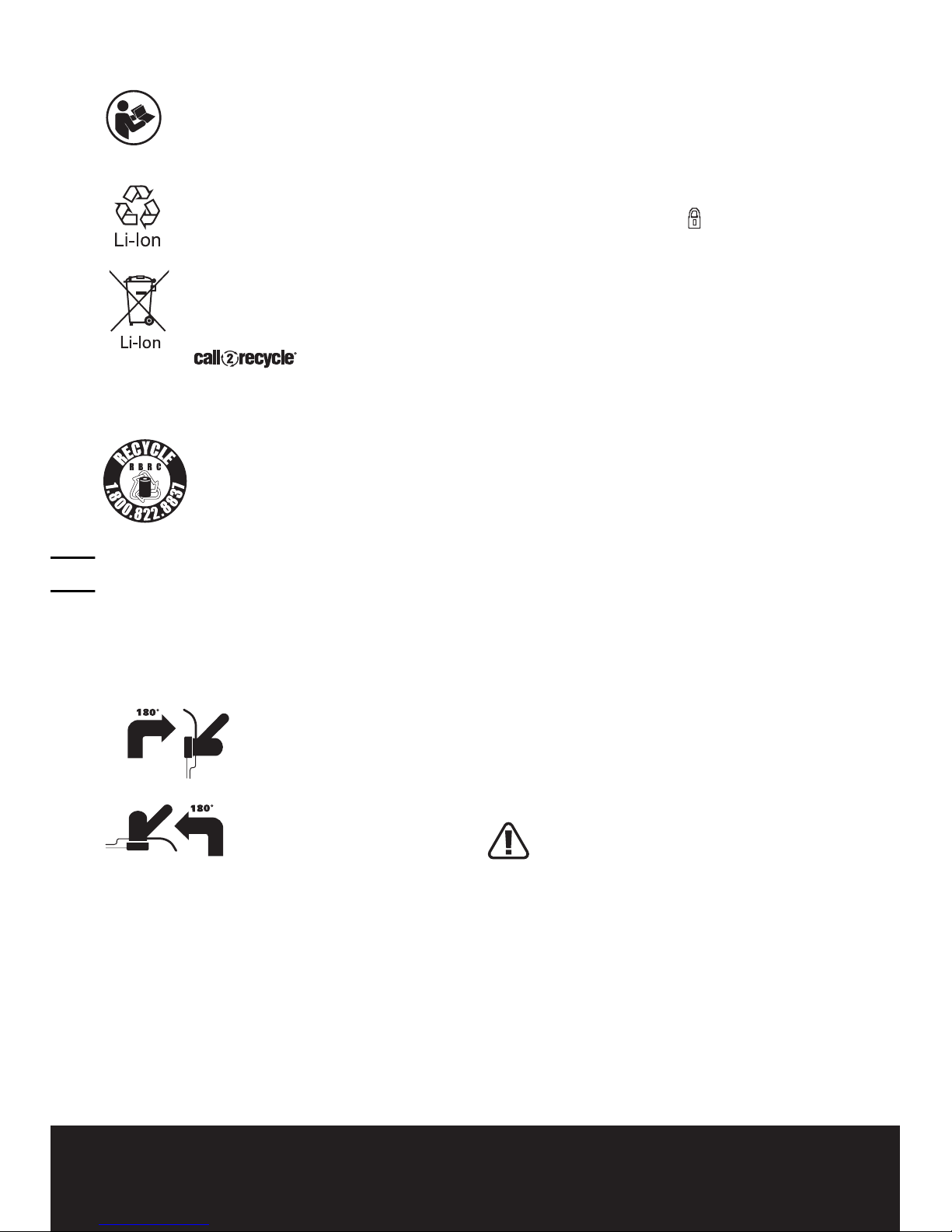

To reduce the risk of injury, user
must read instruction manual
Li-Ion battery. separate collection,
and battery must be recycled
POSITEC Inc. has established
a partnership with the RBRC
Corporation to recycle any
Positec batteries with the
RBRC-call2recycle seal. For
environmental protection, please
do not discard batteries in the
trash. After the batteries’ life
cycle is ended, then please call
1.800-822-8837 for a free service
that will properly dispose of the
battery.
Edging
Trimming
SYMBOLS ASSEMBLY

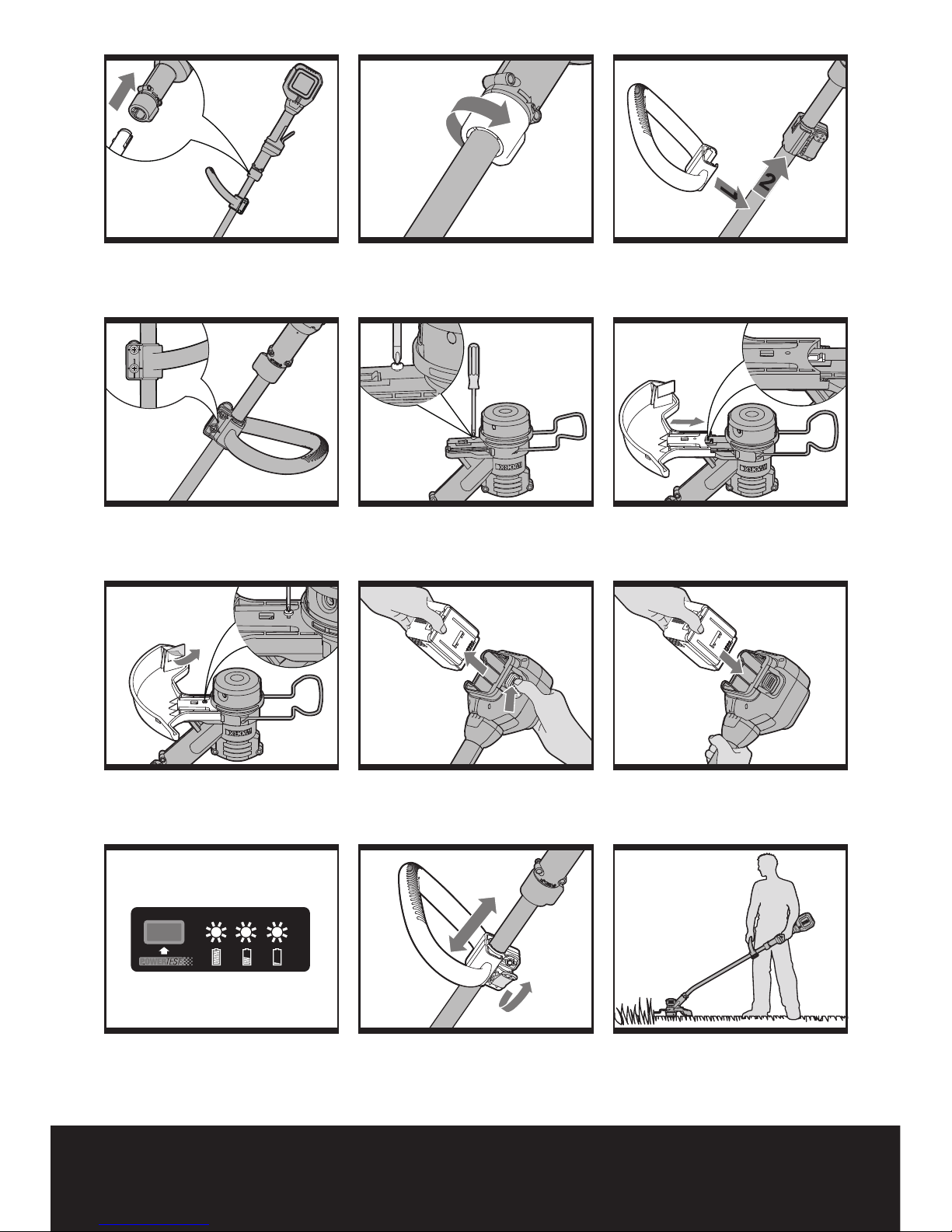

1. ASSEMBLY OF THE MAIN HANDLE
(See Fig. A1, A2)
Align and insert the shaft into the upper
housing until a click can be heard. Make sure
the grooves are correctly matched. (See Fig.
A1).Tighten the shaft locking knob in the
direction indicated to lock (See Fig. A2).
NOTE: Make sure that the handle is firmly
locked in place.
2.ASSEMBLY OF THE AUXILIARY
HANDLE (See Fig. B1, B2)
Slide the auxiliary handle onto the grooves
of auxiliary handle support until a click can
be heard. And make sure the auxiliary handle
locking clamp is closed. (See Fig. B1)
NOTE: Make sure the handle is firmly
secured in place.
If the handle is loose then tighten the 2 side
screws. (See Fig. B2)
3. ASSEMBLY OF THE SAFETY GUARD
(See Fig. C1, C2, C3)
Remove the screw from the bottom of the
trimmer head - then attach the safety guard to
the housing.
Secure the guard in place by the refitting of
the screw.
Remove the line cutter protection tape.
(See Fig. C3)
NOTE: Make sure the Guard is firmly
secured in place.
OPERATION INSTRUCTIONS
WARNING! The charger and battery
pack are specially designed to work
together so do not attempt to use any other
devices. Never insert or allow metallic objects
into your charger or battery pack connections
because of an electrical failure and hazard will
occur.
1. BEFORE USING YOUR CORDLESS
GRASS TRIMMER
The battery pack included is shipped
UNCHARGED.You must charge before first use.
The battery charger supplied was designed to
