INSTALLATION INSTRUCTIONS

HDRXSG01

High Definition Receiver Module

DESCRIPTION

The HDRXSG01 CAT5 receiver automatically senses and compensates for the both cable length and

wire quality for the simplest installation in the industry. It senses cable run length in 20-feet

increments and self-adjusts with no switches to set and no charts to consult, removing the guesswork

from high definition video distribution over CAT5 wire.

The HDRXSG01 receiver mounts in the zone up to 1000 feet from the HD44CC5 switcher, and

installs easily in a single-gang J-box. It contains a RJ45 input for the HD video and digital audio signal

as well as a standard IR pass through connection (requires separate wire run) and power connection.

Outputs include component video, digital audio via S/PDIF connection and IR signal.

The HDRXSG01 is to be used with either the HD44CC5 (video matrix transmitter) or HDTXSG01

(single transmitter module). Both the HD44CC5 and HDTXSG01 are sold separately.

SPECIFICATIONS

Size: 1 1/2” W x 2 1/4” D x 4” H

Weight: 0.38 lbs (0.17 kilos)

Bandwidth supports resolutions of 1080p, 1080i, 720p, 480p and 480i.

Includes external power supply (8VAC, 400mA, 50-60Hz)

Gold plated RCA connectors

08905063A - 2 -

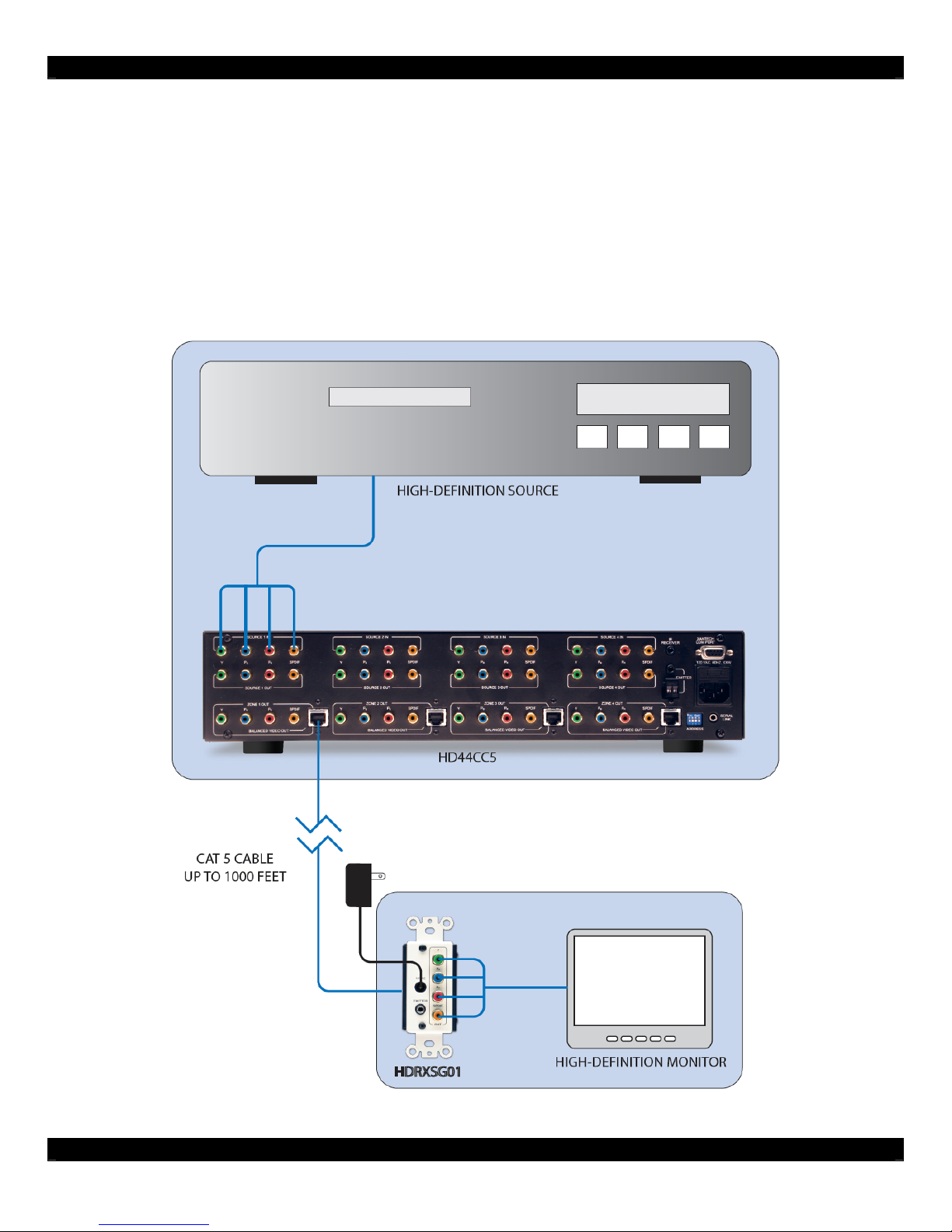

QUICK INSTALLATION: HD44CC5 and HDRXSG01

[1] Connect the High-Definition Source to the HD44CC5 or HDTXSG01. The figure below shows a

HD44CC5 (video matrix transmitter).

[2] Using CAT5 cable, connect the HD44CC5 zone output. Be sure to connect power to the

HD44CC5 first. Then connect power to the HDRXSG01.

[3] On the HD44CC5, set the correct source to zone to route the signal to the HDRXSG01 from the

connected High-Definition source. Refer to the HD44CC5 manual on how to use RS232 and IR

RC68+ controls for source to zone routing.

[4] Installation Complete! No adjustments needed!

08905063A - 3 -

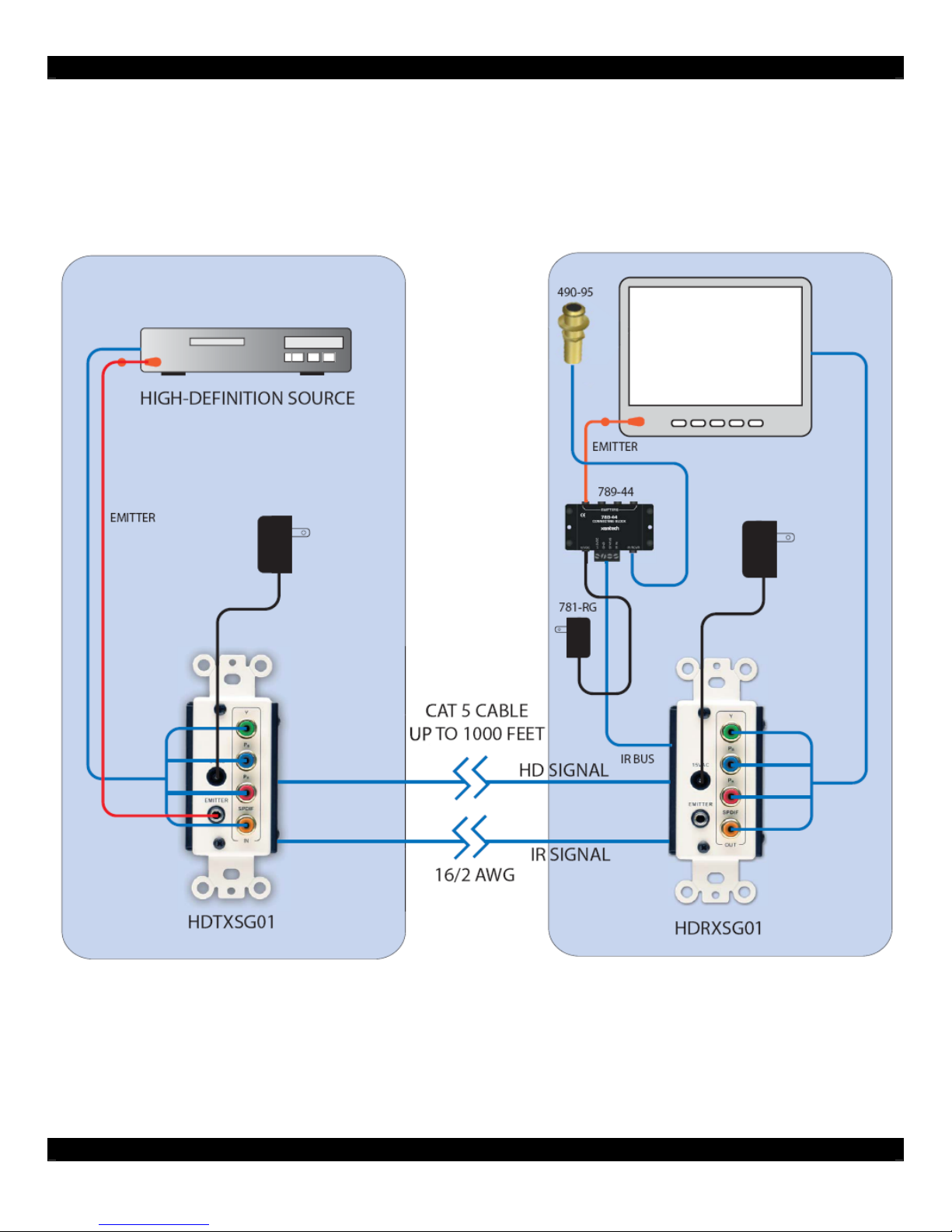

QUICK INSTALLATION: HDTXSG01 and HDRXSG01

[1] Connect the High-Definition Source to the HDTXSG01.

[2] Using CAT5 cable, connect the HDTXSG01 output to the HDRXSG01 input.

[3] Connect the High-Definition Display to the HDRXSG01.

[4] Installation Complete! No adjustments needed!

08905063A - 4 -

POWER SUPPLY

The HDRXSG01 is supplied with a 8VAC, 400mA power supply. Do not use any power supply other

than the one included with the HDRXSG01.

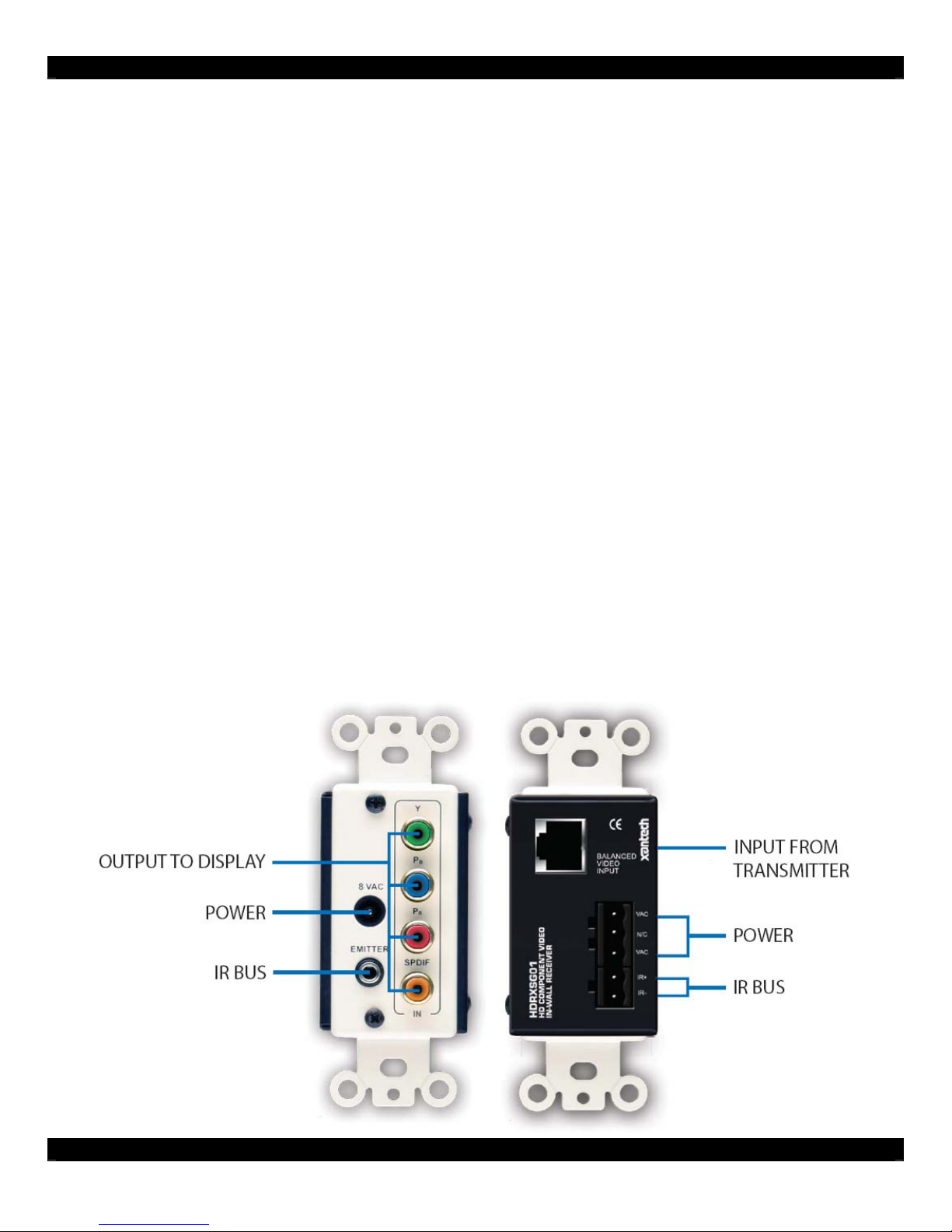

The HDRXSG01 can be powered from either the front on the unit (DIN connection) or the rear of the

unit (Screw Terminal connection). DO NOT USE FRONT AND REAR POWER SUPPLY

CONNECTIONS AT THE SAME TIME.

Do not install the HDRXSG01 in conditions where the temperature is greater than 55 Celsius (131

degrees Fahrenheit).

IMPORTANT NOTICE

After connecting the CAT5 cable to the receiver (HDRXSG01), the

power supply to the receiver should be unplugged for a few seconds

and then reconnected. This allows the receiver to go through the full

process of line length and line quality self-calibration.

As an alternate process to this procedure, the power may be cycled

off for a few seconds and reapplied to accomplish the same full self-

calibration process.

If for some reason the system losses power at the receiving end

(HDRXSG01), the transmitting end (HD44CC5 or HDTXSG01), or both

ends, the full self-calibration process will automatically occur.

Xantech Corporation

13100 Telfair Avenue, 2/F

Sylmar, CA 91342

www.xantech.com

Phone: (818) 362-0353, Fax: (818) 362-9506

This document is copyright protected. No part of this manual may be copied or reproduced in any form without prior

written consent from Xantech Corporation.

Xantech Corporation shall not be liable for operational, technical, or editorial errors/omissions made in this document.

Document Number 08905063A
