Remote Control Switchers

INSTALLATION INSTRUCTIONS

AC1

DC CONTROLLED SWITCHED AC OUTLET

The AC1 is a DC voltage controlled AC outlet, capable of switching up to 15 Amperes of continuous current

to a device or power strip. It is intended primarily to provide common and zone AC power management in

conjunction with the CO & STATUS ports of the ZPR68 and ZPR68-10. It is usable, however, in any

application where it is desired to have an AC outlet turned on and off by a DC control voltage.

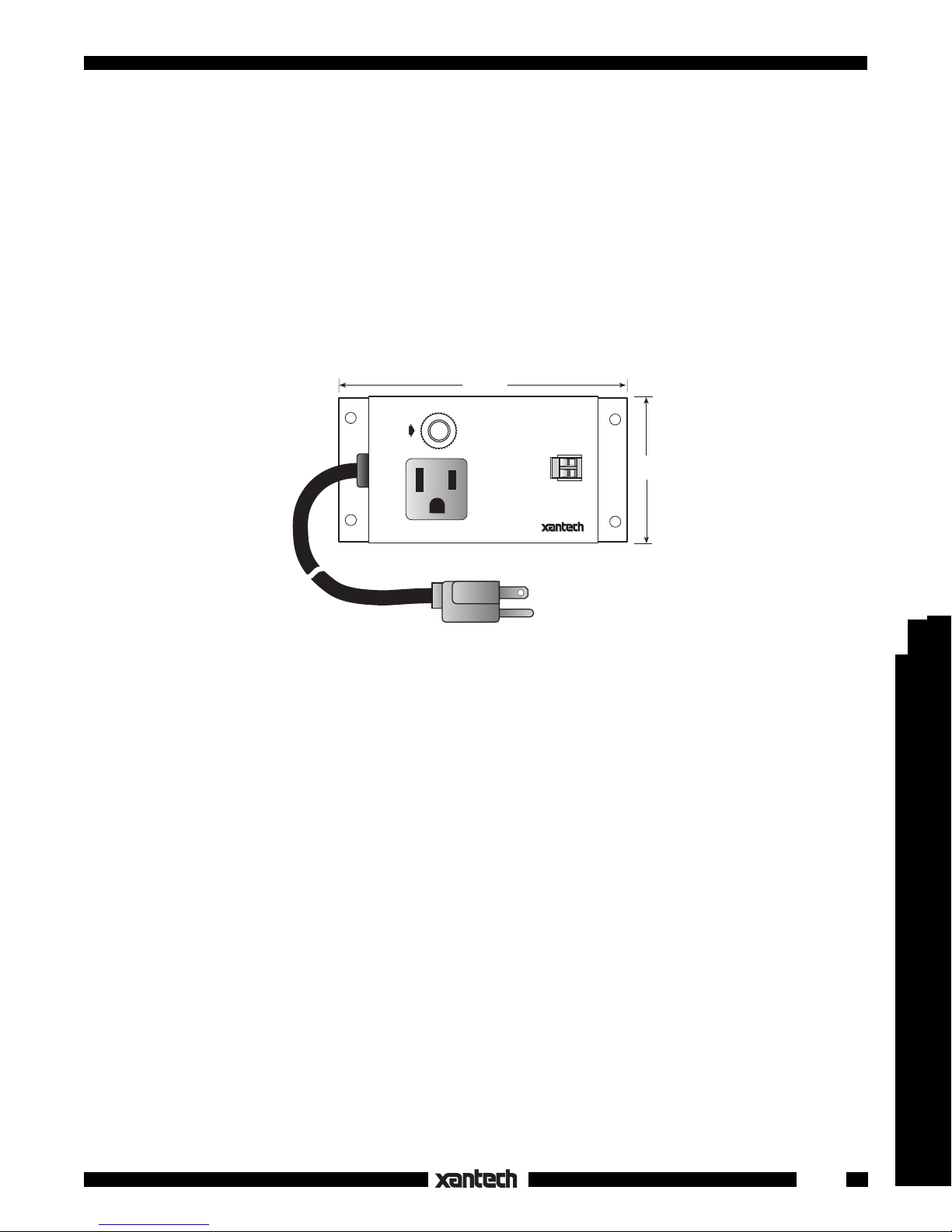

Fig. 1 The AC1

SPECIFICATIONS

•Maximum Switching Current: 15 Amps continuous, 30 Amps peak inrush, at 120 VAC, 60 Hz.

•AC Circuit Breaker: Opens if AC current exceeds 15 Amps. Push-to-Reset button.

•AC Power Cord: 120 VAC 16 gauge 5 ft., 3-conductor.

•Standby AC Line Current: < 2 mA (< .24 Watts).

•Control Input: Plug-in screw-type terminals for two-conductor connections. Handles wire sizes from 24

to 12 gauge.

• Control Input Turn-ON Voltage Range: 5 to 30 Volts DC, @1.5 mA/V.

•Control Input Turn-OFF Voltage: <2 Volts DC.

• Flanges, plus supplied screws, permit easy mounting to flat surfaces.

•Dimensions: 4-15/16" L x 2-1/2" W x 2-5/8" H (125mm x 64mm x 67mm)

INSTALLATION

The AC1 provides a convenient means to manage the power ON/OFF status of "Power Line Switchable"

components in a ZPR68-10 multi-zone system. Typical connections are shown in Fig. 2.

"Power Line Switchable" components are those that have manual power switches that can be left "ON" or

those that "remember" their "ON" condition when their power cords are unplugged.

4-15/16"

2-1/2 "

To 120 V AC

CONTROL

INPUT

120 VAC 60 HZ

1800 WATTS MAX.

AC1

SWITCHED AC OUTLET

5 to 30 Volts DC

Top View

–

RESET



2AC1

Fig. 2 Using AC1's in a ZPR68-10 System

The Fig. 2 example works as follows:

• The Zone power amplifier (and other zone dedicated components, if used) is switched ON when a ZPR68-

10 INPUT command turns a zone ON [STATUS terminal goes high (+12V)].

• The Zone power amplifier (and other zone dedicated components, if used) is switched OFF when a

ZPR68-10 OFF command turns a zone OFF [STATUS terminal goes low (0V)].

• The Common Source components are switched ON when the first ZPR68-10 zone is turned ON [CO

terminal goes high (+12V)].

• The Common Source components are switched OFF when the last ZPR68-10 zone is turned OFF [CO

terminal goes low (0V)].

Another excellent application for the AC1 is to switch components that draw more power than is available

from the switched AC outlet on the rear of A/V receivers, preamps, etc. Fig. 3 illustrates such a system:

Fig. 3 Switching Higher Power Units

2-13-01

Rev.C

CONTROL

INPUT

120 VAC 60 HZ

1800 WATTS MAX.

AC1

SWITCHED AC OUTLET

5 to 30 Volts DC

–

RESET

To 120 VAC

(unswitched)

AC1

SWITCHED

AC Outlet on

Pre-amp, etc.

High Power

Amplifier

786-00

Power

Supply

White Striped

Side

CONTROL

INPUT

120 VAC 60 HZ

1800 WATTS MAX.

AC1

SWITCHED AC OUTLET

5 to 30 Volts DC

–

RESET

CONTROL

INPUT

120 VAC 60 HZ

1800 WATTS MAX.

AC1

SWITCHED AC OUTLET

5 to 30 Volts DC

–

RESET

COMMON IR OUTPUTS

COMMON IR INDICATOR

VIDEO

AUDIO

VIDEO

AUDIO

ZONE CONTROL - IR INPUTS

12345678

COMMON IR LEVEL

SOURCE INPUTS ZONE OUTPUTS

1 2 3 4 5 6 7 8

ZONE IR OUTPUTS

12345678

123456

POWER

IR CONFIRM

POWER

SUPPLY

ZPR68-10

SIX ZONE EIGHT SOURCE REMOTE PREAMP

+12V

GND

STAT US

INPUT

COM

PORT

ZPR68-10

To 120 VAC

(unswitched)

CD Changer

Laser Disc

COMMON

SOURCES

AC Power

Strip

AC Cords for

"Power Line Switchable"

Common Sources

Cassette DecK

AC1

ZONE STEREO

POWER AMPLIFIERS

AC Cords for "Power Line Switchable"

Zone Amplifiers and/or Zone Dedicated

Source Components

Repeat this connection system

with additional AC1's for the

remaining zones as desired.

See ZPR68-10 "INSTALLATION

INSTRUCTIONS" for other typical

system connections.

To 120 VAC

(unswitched)
