Xerox Phaser 6180MFP Manuale operativo

multifunction printer

Phaser®6180MFP

Quick

Use Guide

www.xerox.com/office/6180MFPsupport

www.xerox.com/msds (U.S./Canada)

www.xerox.com/environment_europe

www.xerox.com/office/businessresourcecenter

English Rev A

www.xerox.com/office/6180MFPsupport

More Information

•Printer drivers and utilities

•Quick Start Tutorials

•User manuals and instructions

•Online Support Assistant

•Safety specifications (in User Guide)

Material Safety Data Sheets

Templates, tips, and tutorials

Printer Tour

Printing

Copying

Scanning

Faxing

Troubleshooting

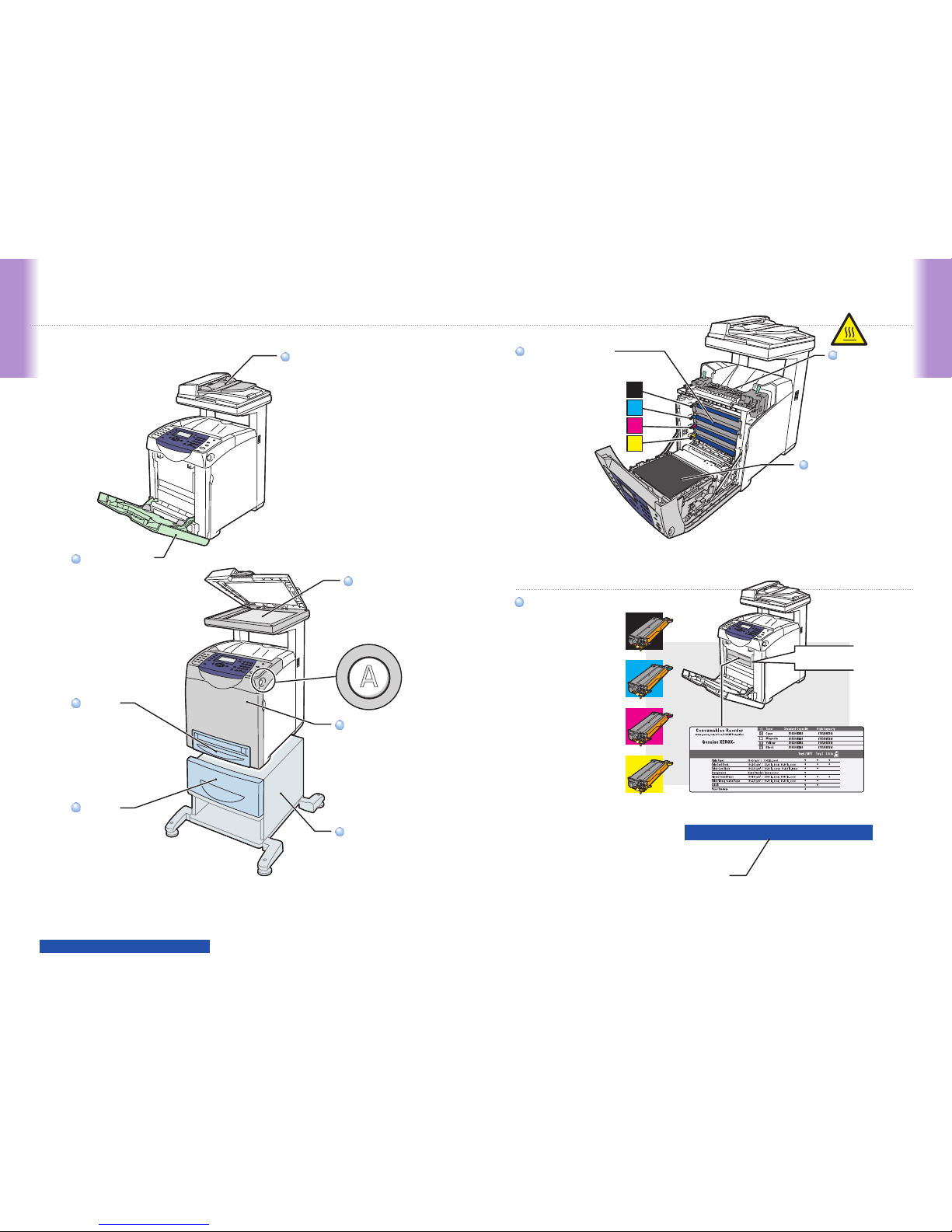

Printer Tour

www.xerox.com/office/6180MFPsupplies

www.xerox.com/office/6180MFPsupport

Printer Tour

Print CartridgesPrint Cartridges

See the label.

Automatic Document

Feeder (ADF)

Automatic Document

Feeder (ADF)

Tray 1 (MPT)Tray 1 (MPT)

Tray 2Tray 2

Tray 3Tray 3

ScannerScanner

Door ADoor A

550-Sheet Feeder550-Sheet Feeder

Transfer UnitTransfer Unit

Fuser

Print CartridgesPrint Cartridges

For ordering supplies, contact your

local reseller, or visit the Xerox Supplies

website.

Printer Tour

001 002

003 004

005 006

007 008

009 010

Copy

Fax

E-mail

Scan

Color Mode

B&W

Color

Job in Memory

Job Status

ABC

GHI

PQRS

Redial/

Pause Speed Dial

-_~

TUV WXYZ

JKL MNO

@:./

DEF

System

Manual Dial

1 2 3

45 6

Clear All

Error

Wake Up

Stop

Start

C M Y K

Ready

www.xerox.com/office/6180MFPsupport

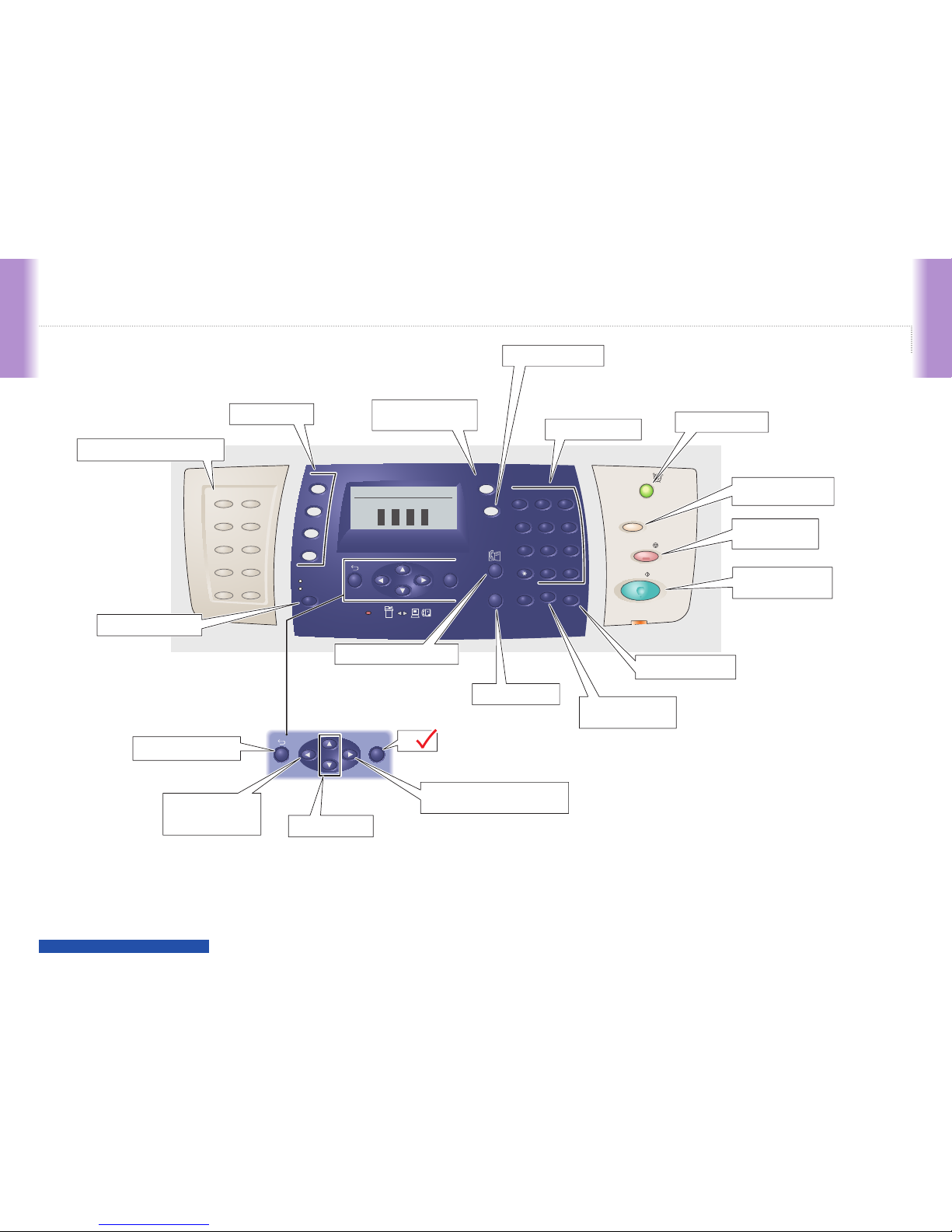

One touch Fax numbers 001 – 010

Selects a function.

Selects the color mode.

Alphanumeric keypad Power Saver wake up

Enters the Setup menu.

Displays the active jobs

or Walk-Up Features.

Starts a copy, scan, or

fax job.

Resets the job settings

to defaults.

Cancels the current

job.

Accesses fax numbers.

Deletes alphanumeric

characters.

Scrolls up or down.

Goes up one level, or

decreases a numeric

value.

Goes down one level, or increases

a numeric value.

Goes up one menu level.

Enters fax numbers.

Email and fax address book

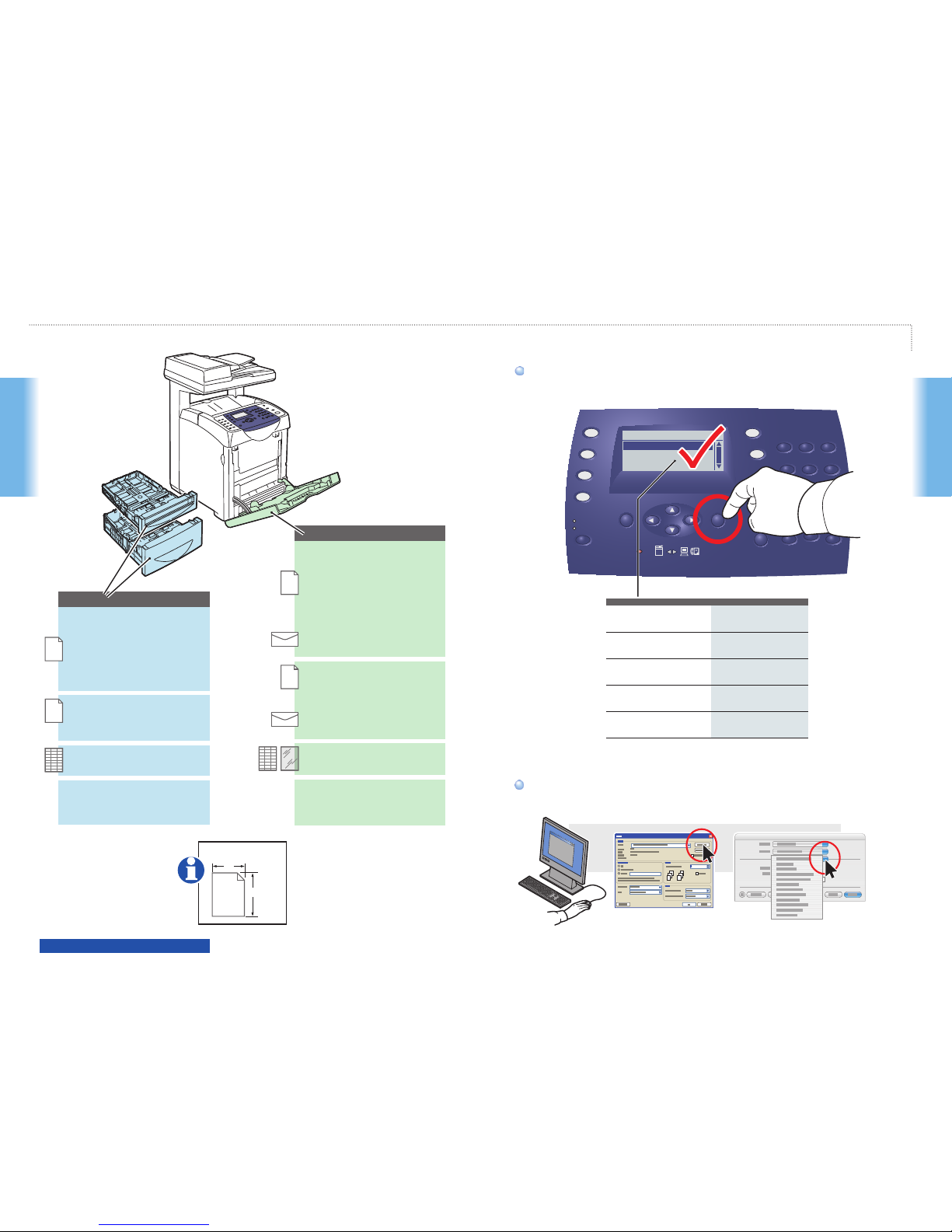

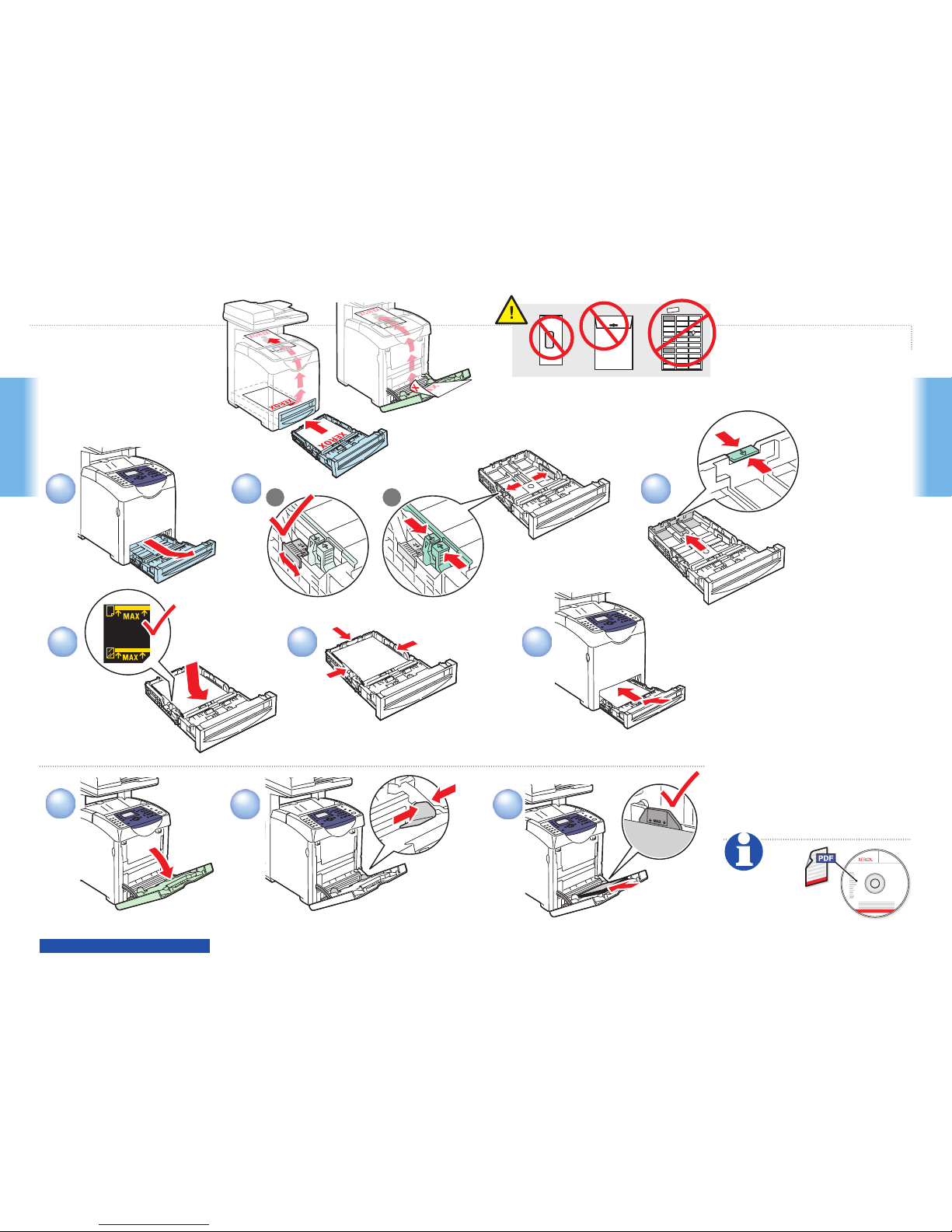

Printing

Tray 2, 3

Tray 1(MPT)

Mac

www.xerox.com/office/6180MFPsupport

Copy

Fax

E-mail

Scan

Color Mode

B&W

Color

Job in Memory

Job Status

ABC

GHI

PQRS

Redial/

Pause Speed Dial

-_~

TUV WXYZ

JKL MNO

@:./

DEF

System

Manual Dial

1 2 3

45 6

Tray 2

Paper Type Plain Paper

Paper Size.... Auto

65-120 g/m2

(17-32 lb. Bond)

100-163 g/m2

(28 lb. Bond – 60 lb. Cover)

100-160 g/m2

(28 lb. Bond – 60 lb. Cover)

160-220 g/m2

(60-80 lb. Cover)

160-220 g/m2

(60-80 lb. Cover)

Supported Papers

A/Letter......................... 8.5 x 11.0 in.

Legal.............................8.5 x 14.0 in.

Executive...................... 7.25 x 10.5 in.

Folio..............................8.5 x 13.0 in.

A4..................................210 x 297 mm

A5..................................148 x 210 mm

B5..................................176 x 250 mm

A/Letter......................... 8.5 x 11.0 in.

A4..................................210 x 297 mm

Custom..........................(SE) x (LE)

SE: 148 – 216 mm (5.8 – 8.5 in.)

LE: 210 – 355.6 mm (8.2 – 14.0 in.)

A/Letter......................... 8.5 x 11.0 in.

Legal.............................8.5 x 14.0 in.

Executive...................... 7.25 x 10.5 in.

Folio..............................8.25 x 13.0 in.

#10 Commercial........... 4.1 x 9.5 in.

Monarch....................... 3.8 x 7.5 in.

A4..................................210 x 297 mm

A5..................................148 x 210 mm

B5..................................176 x 250 mm

DL................................. 110 x 220 mm

C5..................................162 x 229 mm

A/Letter......................... 8.5 x 11.0 in.

A4..................................210 x 297 mm

Custom..........................(SE) x (LE)

SE: 76.2 – 220 mm (3.0 – 8.7 in.)

LE: 127 – 355.6 mm (5.0 – 14.0 in.)

65 – 220 g/m2

(17 lb. Bond – 80 lb. Cover)

65 – 220 g/m2

(17 lb. Bond – 80 lb. Cover)

Custom (SE) x (LE)

When Printing: Select properties. Use the Xerox

printer driver.

When Printing: Select properties. Use the Xerox

printer driver.

When loading paper: Select appropriate settings

on the control panel.

When loading paper: Select appropriate settings

on the control panel.

Plain Paper

Thin Card Stock

Thick Card Stock

Glossy Paper

Thick Glossy Paper

Printing

5 6

2.1 2.2

www.xerox.com/office/6180MFPsupport

063-0000-00a

Phaser®6180MFP Software and

Documentation CD-ROM

Printer Drivers

and Utilities

Installation Video

Windows®

Mac OS ®

Basic Printing

See Printing

Basics in the

User Guide for

more information.

Copying

65 – 120 g/m2

(17 – 32 lb. Bond)

WW: 148 – 216 mm (4.1 – 8.5 in.)

H: 210 – 355.6 mm (8.3 – 14 in.)

ABC

GHI

PQRS

-_~

TUV WXYZ

JKL MNO

@:./ DEF

1 2 3

45 6

Color Mode

B&W

Color

Ready to Copy Set 5

Paper Supply... Tray 2: Letter

Reduce/Enlarge.... 100%

Document Type... Text&Photo

Ready to Copy Set 5

Paper Supply... Tray 2: Letter

Reduce/Enlarge.... 100%

Document Type... Text&Photo

Start

www.xerox.com/office/6180MFPsupport

Copy

5.1

5.2

063-0000-00a

Phaser®6180MFP Software and

Documentation CD-ROM

Printer Drivers

and Utilities

Installation Video

Windows®

Mac OS ®

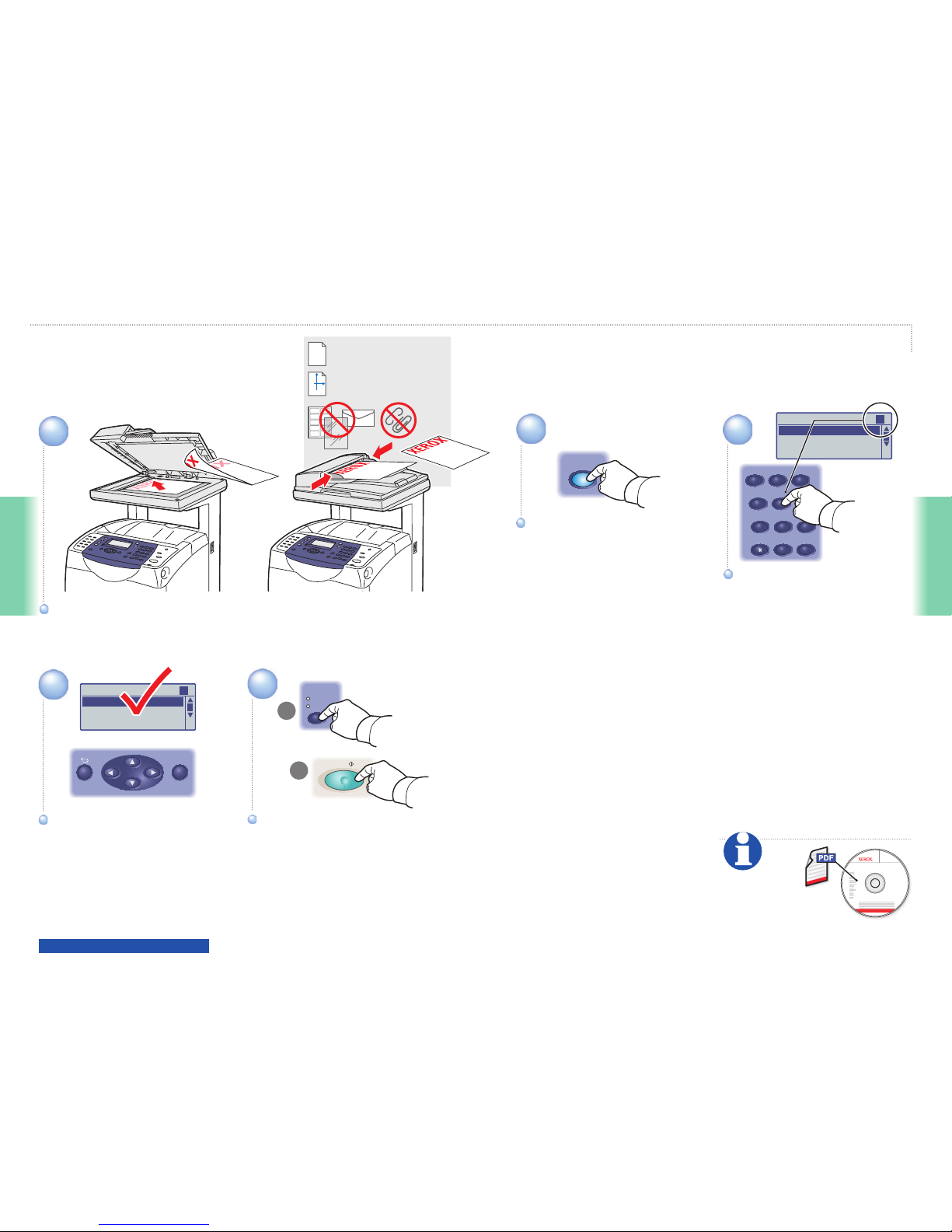

Basic Copying

Load the original.Load the original.

See Copying

in the User Guide for

more information.

Select the number of copies.Select the number of copies.

Select the Color Mode and then

press the Start button.

Select the Color Mode and then

press the Start button.

Navigate the menus for special

features or paper.

Navigate the menus for special

features or paper.

Press the Copy button.Press the Copy button.

Scanning

063-0000-00a

Phaser®6180MFP Software and

Documentation CD-ROM

Printer Drivers

and Utilities

Installation Video

Windows®

Mac OS ®

65 – 120 g/m2

(17 – 32 lb. Bond)

WW: 148 – 216 mm (4.1 – 8.5 in.)

H: 210 – 355.6 mm (8.3 – 14 in.)

USB Ethernet

www.xerox.com/office/6180MFPsupport

Scanning

Depending on the printer’s

connection (USB or Ethernet), you

can send scanned files directly from

the printer’s control panel to a

computer, an FTP server, or to

email. You can also scan directly

into an application from a

computer. To set up scanning for

your connection, see the Features

Setup Guide (printed booklet or

web) or Scanning in the User

Guide.

Depending on the printer’s

connection (USB or Ethernet), you

can send scanned files directly from

the printer’s control panel to a

computer, an FTP server, or to

email. You can also scan directly

into an application from a

computer. To set up scanning for

your connection, see the Features

Setup Guide (printed booklet or

web) or Scanning in the User

Guide.

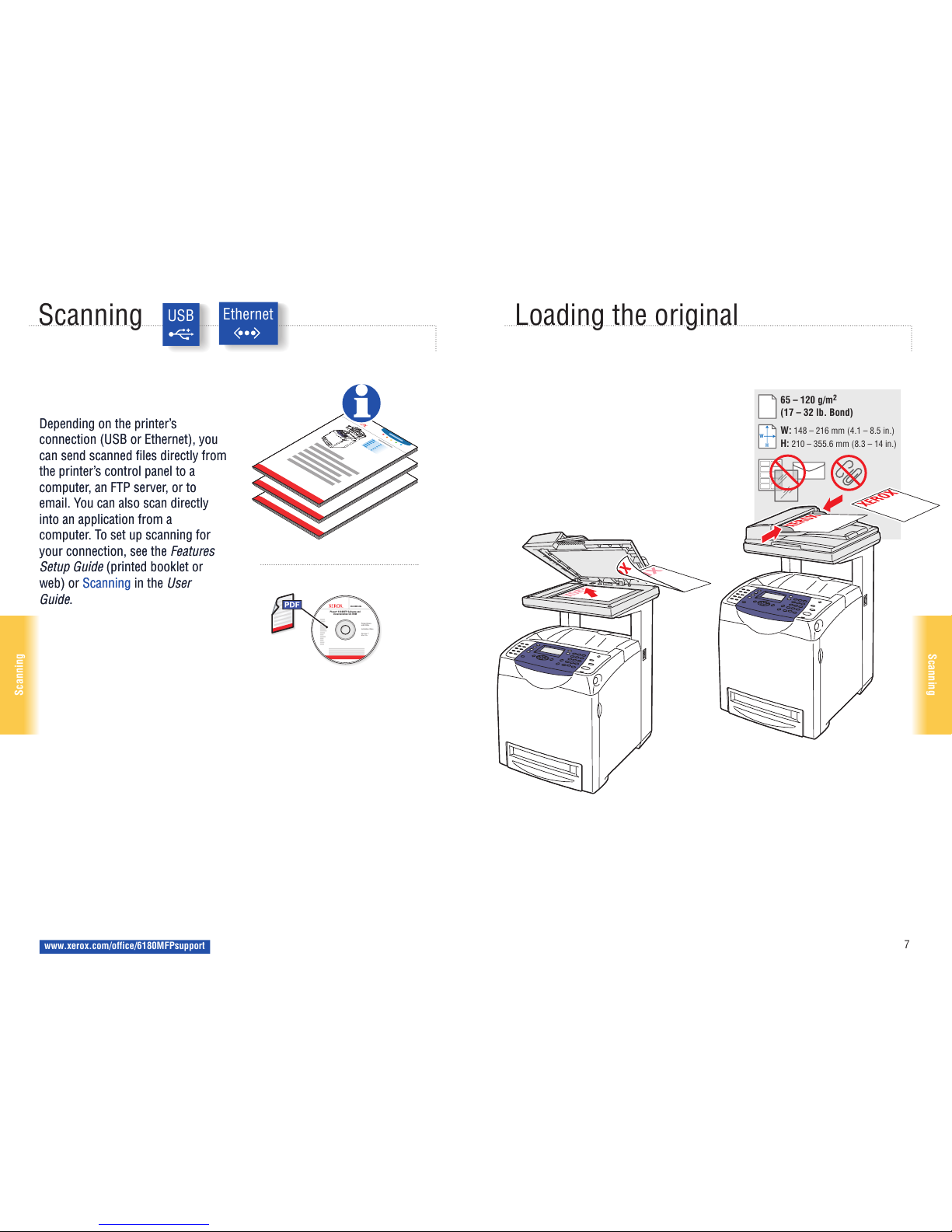

Loading the original

Scanning

3 4

PC PC

USB

Mac

Mac Mac

www.xerox.com/office/6180MFPsupport

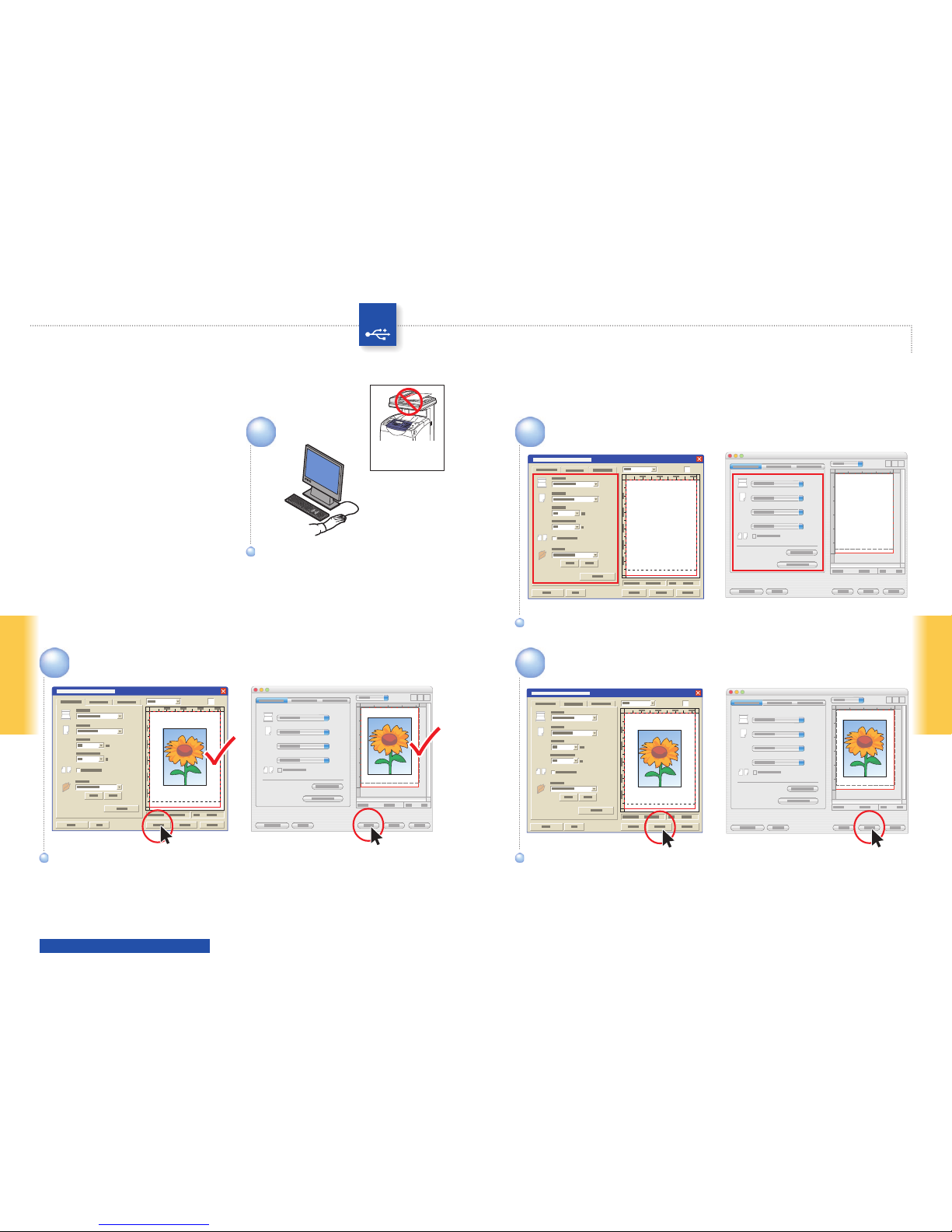

Scanning from a computer

Launch the application to

scan into (import method

varies by application).

Launch the application to

scan into (import method

varies by application).

Select the scan settings.Select the scan settings.

Click the Preview button for a preview.Click the Preview button for a preview. Click the Scan button.Click the Scan button.

The ADF cannot

preview.

Scanning

USB

5 6

Start

Scan

Copy

Fax

E-mail

Scan

Color Mode

B&W

Color

Job in Memory

Job Status

System

Manual Dial

Mac

Service

Computer (Network)...

Server (FTP)...

Computer (USB)...

File Format

TIFF

JPEG

PDF

BMP

6.1

6.2

063-0000-00a

Phaser®6180MFP Software and

Documentation CD-ROM

Printer Drivers

and Utilities

Installation Video

Windows®

Mac OS ®

www.xerox.com/office/6180MFPsupport

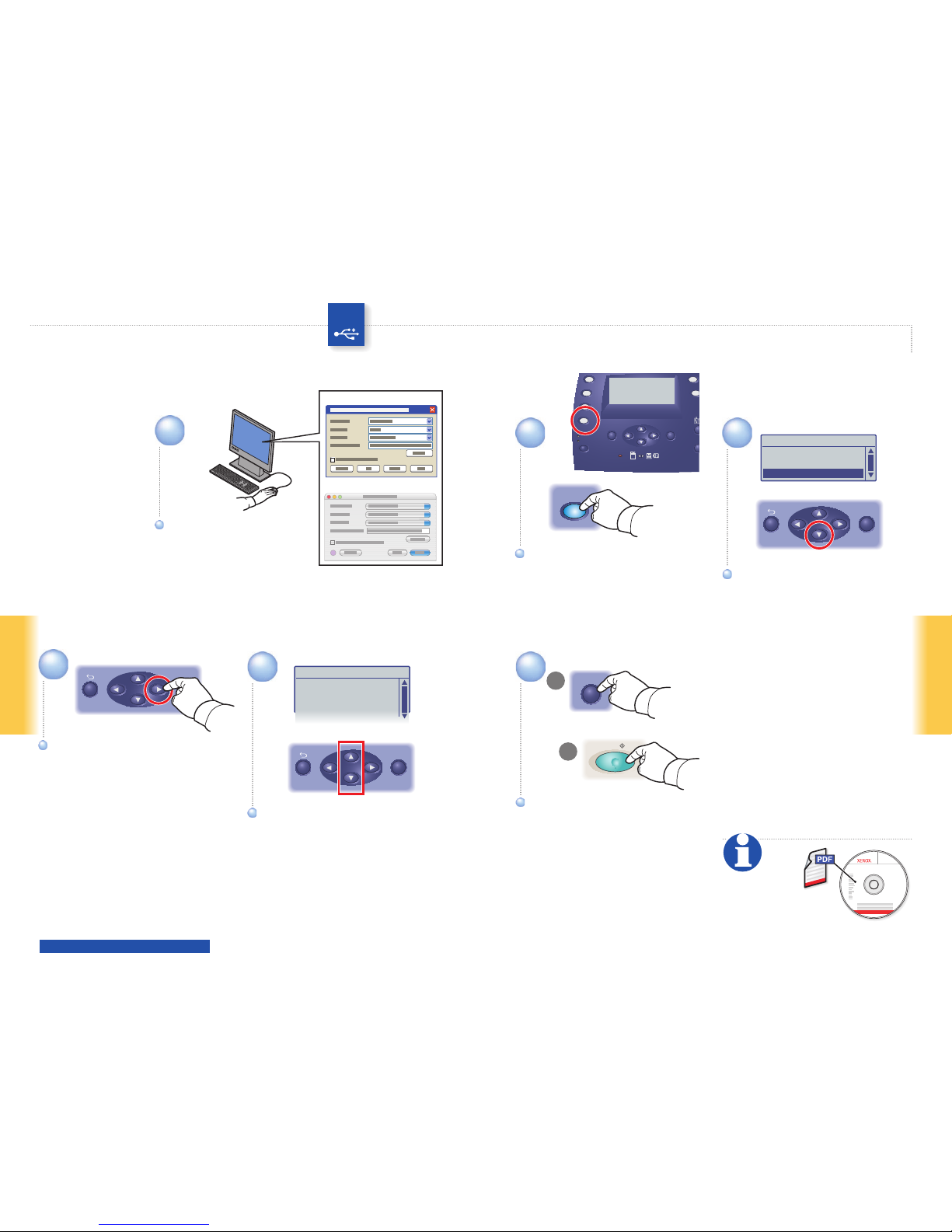

Scanning to a computer

Select settings in the

Express Scan Manager

(application).

Select settings in the

Express Scan Manager

(application).

Scroll to select the file format.Scroll to select the file format. Press OK, and then Start.Press OK, and then Start.

Press twice to display the file

format options.

Press twice to display the file

format options.

Scroll to select

Computer (USB)...

Scroll to select

Computer (USB)...

Press the Scan button.Press the Scan button.

See Scanning

in the User Guide

for more information.

Scanning

2 31

Ethernet

Start

Scan Service

Computer (Network)...

Server (FTP)...

Computer (USB)...

Service

Computer (Network)...

Server (FTP)...

Computer (USB)...

[ ] Detail, [Enter]: Save

01 MyComputer

02 Jack Computer

03 Lab Computer

[ ] Detail, [Enter]: Save

05 ftp.mycolor.com

09 ftp.maxserver

Ready to Scan: 01 MyComputer

Scan to: 01 MyComput...

File Format... MultipageTIFF

Resolution... 150 x 150

Ready to Scan: 05 ftp,mycolor.com

Scan to: 05 ftp.mycolo...

File Format... MultipageTIFF

Resolution... 150 x 150

Ready to Scan: 01 MyComputer

Scan to: MyComput...

File Format... MultipageTIFF

Resolution... 150 x 150

Ready to Scan: 05 ftp,mycolor

Scan to: 05 ftp.mycol...

File Format... MultipageTIFF

Resolution... 150 x 150

www.xerox.com/office/6180MFPsupport

063-0000-00a

Phaser®6180MFP Software and

Documentation CD-ROM

Printer Drivers

and Utilities

Installation Video

Windows®

Mac OS ®

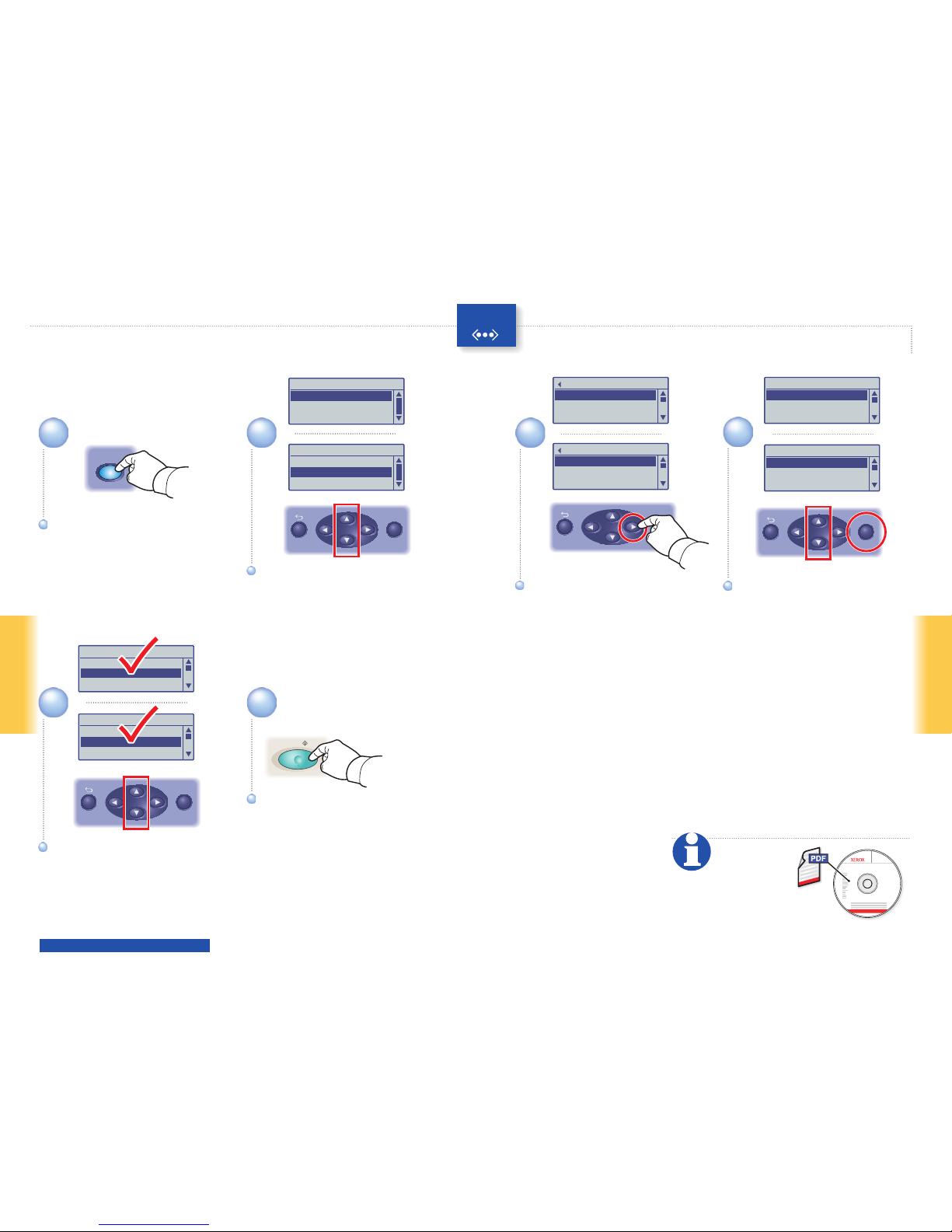

Scanning to a computer or FTP server

Scroll to select other settings.Scroll to select other settings.

Scroll to select an address, and

then press the OK button.

Scroll to select an address, and

then press the OK button.

Scroll to select

Computer (Network)...

or Server (FTP)...

Scroll to select

Computer (Network)...

or Server (FTP)...

Press twice to display the

address menu.

Press twice to display the

address menu.

Press the Scan button.Press the Scan button.

Press the Start button.Press the Start button.

See Scanning

in the User Guide for

more information.

Altri manuali per Phaser 6180MFP

Indice

Altri manuali Xerox Stampante tutto in uno

Xerox

Xerox DocuColor 240 Manuale utente

Xerox

Xerox Document WorkCentre 480cx Manuale tecnico

Xerox

Xerox VersaLink C505 Manuale utente

Xerox

Xerox Document Centre 240 DC Manuale utente

Xerox

Xerox Phaser 6110MFP Manuale utente

Xerox

Xerox WorkCentre 7232 Manuale utente

Xerox

Xerox Document Centre Series Manuale utente

Xerox

Xerox Phaser 6128 MFP Manuale utente

Xerox

Xerox B205 Manuale operativo

Xerox

Xerox WORKCENTRE 7425 Manuale utente

Xerox

Xerox WorkCentre Pro C2128 Manuale utente

Xerox

Xerox WorkCentre 7655 Manuale operativo e di manutenzione

Xerox

Xerox WorkCentre M24 Color Manuale utente

Xerox

Xerox C8130 Manuale utente

Xerox

Xerox WorkCentre 3615 Manuale operativo

Xerox

Xerox CopyCentre C20 Manuale utente

Xerox

Xerox WorkCentre 7300 Series Manuale operativo

Xerox

Xerox WorkCentre 5020 Manuale operativo e di manutenzione

Xerox

Xerox WorkCentre 6505 Manuale operativo

Xerox

Xerox WorkCentre 6655 Manuale utente

Xerox

Xerox Legacy 4112 Guida all'installazione

Xerox

Xerox FaxCentre FC2218 Manuale utente

Xerox

Xerox WorkCentre M55 Manuale del proprietario

Xerox

Xerox Wide Format 6030 Manuale di istruzioni

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Brother

Brother MFC-9760 Manuale utente

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente
