Xerox WorkCentre Xi70c Manuale utente

Xi70c User Guide

701P99508

4/99

FCC Compliance in the USA

WARNING: This equipment has been tested and found to comply with the

limits for a Class B digital device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment into an outlet on a different circuit than the

receiver.

•Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this equipment not specifically approved by the

Xerox Corporation may void the authority granted by the FCC to operate

this equipment.

Shielded cables must be used with this equipment to maintain compliance

with FCC regulations.

ENERGY STAR

As an ENERGY STAR® Partner, Xerox Corporation

has determined that this product meets the ENERGY

STAR® guidelines for energy efficiency.

material and information now allowed by statutory or judicial law or

hereinafter granted, including without limitation material generated from the

software programs that are displayed on the screen such as icons, screen

display looks, etc.

XEROX®, The Document Company®, and the stylized X are registered

trademarks of Xerox Corporation and Xerox Canada Ltd. is a licensee of all

the trademarks.

Product names used in this guide may be trademarks or registered

trademarks of their respective companies and hereby acknowledged.

ENERGY STAR is a U.S. registered mark.

Information

Service

In the USA and Canada

If you are unable to solve a WorkCentre Xi Series problem using this guide

or the Printer Driver Online Help, do one of the following:

Browse to: http://www.xerox.com

Call: 1 – 800 – TEAM – XRX (1 – 800 – 832 – 6979)

Call from a telephone near your PC and the WorkCentre. Make sure that

both your PC and your WorkCentre are turned on. Before calling, make

sure you have the following information:

•WorkCentre serial number

•Purchase date from your purchase receipt

•Description of the problem

•Windows operating system version (Windows 3.1, 95, 98 or NT4.0)

Supplies

To order supplies for your WorkCentre, call or visit your local retailer. If

your store does not stock these items, you may call:

Xerox SupplyNet toll free at:

1 – 800 – 822 – 2200

Black Cartridge – 8R7903

Color Cartridge – 8R7904

Information

How to obtain a French User Guide

Au Canada et aux États-Unis, pour obtenir la version française du présent

guide d´utilisation, veuillez composer:

1 – 800 – TEAM – XRX (1 – 800 – 832 – 6979)

À l´extérieur des États-Unis et du Canada, veuillez communiquer avec

votre représentant Xerox.

It's Illegal

In the USA

It is against US law to copy copyrighted material without permission of the

reproduction rights of the copyright law. Further information on these U.S.

provisions may be obtained from the Copyright Office, Library of Congress,

Washington, D.C. 20550, or telephone the Copyright Office at (202) 707-

9100 and ask for circular 21. Copying of other items may be prohibited. If

you have any questions, seek legal advice.

In Canada

In Canada it is against the law to copy copyrighted material without

permission of the copyright owner, unless the copying falls within the

private study, research or criticism provision of the copyright law. Copying

of other items may be prohibited. If you have any questions, seek legal

advice.

Table of Contents

Safety Notes................................................................................................1

Helpful Hints...............................................................................................3

Unpacking...................................................................................................4

Getting to Know Your WorkCentre...........................................................5

Installation ..................................................................................................7

Removing shipping material..................................................................7

Installing paper trays.............................................................................7

Loading paper.......................................................................................8

Connecting your WorkCentre...............................................................9

Choosing a language..........................................................................10

Installing print cartridges.....................................................................10

Aligning the print cartridges ................................................................12

Control Panel............................................................................................14

Buttons and light indicators.................................................................14

Liquid crystal display (LCD) ................................................................19

Software Installation................................................................................20

System requirements..........................................................................20

Software installation procedure (Windowsenvironment).................21

Loading application software...............................................................24

DOS environment ...............................................................................26

Uninstalling Software ..........................................................................28

Copy/Print Media......................................................................................29

Paper formats and types.....................................................................29

Driver settings.....................................................................................32

Precautions.........................................................................................33

Clearing paper jams............................................................................34

Using your WorkCentre as a Copier.......................................................35

Simple copying....................................................................................35

Customizing your copy output.............................................................36

Table of Contents

Copying extra-large documents..........................................................40

Xi70c BypassTray..............................................................................41

Using your WorkCentre as a Printer ......................................................42

Customizing your print output .............................................................42

Information about the driver settings...................................................43

Selecting WorkCentre as your output device......................................44

On-line Documentation.......................................................................45

Printer Monitor ....................................................................................46

Using your WorkCentre as a Scanner....................................................49

Scanner Screens ................................................................................49

Maintenance .............................................................................................50

General care.......................................................................................50

Print cartridge care and precautions...................................................50

Replacing the print cartridges.............................................................51

Cleaning the print cartridges...............................................................52

Moving your WorkCentre....................................................................54

Service................................................................................................54

Troubleshooting.......................................................................................55

Problemswith paper...........................................................................55

Problemswith print .............................................................................56

Problemswhen printing ......................................................................56

Problemswhen copying......................................................................59

Problemswhen scanning....................................................................61

Status and Error Messages.....................................................................62

Product Characteristics...........................................................................65

One Year Limited Hardware Warranty....................................................68

Safety Notes

Your WorkCentre and supplies have been designed and tested to meet

strict safety requirements. These include safety agency examination and

approval and compliance to established environmental standards. Please

read the following instructions carefully before operating the WorkCentre

and refer to them as needed to ensure the continued safe operation of your

WorkCentre.

Follow all warnings and instructions marked on or supplied with the

product.

Symbology: = High Voltage, != Warning

Unplug this WorkCentre from the wall outlet before cleaning. Always use

materials specifically designated for this WorkCentre. Use of other

materials may result in poor performance and could create a hazardous

situation.

Do not use aerosol cleaners. Follow the instructions in this User Guide for

proper cleaning methods. Always unplug from the electrical outlet prior to

cleaning.

Never use supplies or cleaning materials for purposes other than for which

they were intended. Keep all supplies and materials out of reach of

children.

Do not use this WorkCentre near water, wet locations, or outdoors.

Do not place this WorkCentre on an unstable cart, stand, or table. The

WorkCentre may fall, causing personal injury or serious damage to the

WorkCentre.

This product is equipped with a 3-wire grounding type plug (e.g., a plug

having a third grounding pin). This plug will fit only into a grounding-type

power outlet. This is a safety feature. To avoid risk of electric shock,

contact your electrician to replace the receptacle if you are unable to insert

the plug into the outlet. Never use a grounding adapter plug to connect the

WorkCentre to a power source receptacle that lacks a ground connection

terminal.

This WorkCentre should be operated from the type of power source

indicated on the marking label. If you are not sure of the type of power

available, consult your local power company.

Do not allow anything to rest on the power cord. Do not locate the

WorkCentre where persons will step on the cord.

Safety Notes

The ON/OFF switch does not electrically disconnect the machine from

the power supply. The power supply cord is the disconnect device for this

equipment. Insure that installation is near the outlet and is easily

accessible.

Your machine is equipped with an energy saving device to conserve

power when the machine is not in use. The machine may be left on

continuously.

Slots and Openings in the cabinet and in the back and sides of the

WorkCentre are provided for ventilation. To ensure reliable operation of

the WorkCentre and to protect it from overheating, these openings must

not be blocked or covered. The WorkCentre should never be located near

or over a radiator or heat register. This WorkCentre should not be placed

in a built-in installation unless proper ventilation is provided.

Never push objects of any kind into the slots of the WorkCentre as they

may touch dangerous voltage points or short out parts which could result in

a fire or electric shock.

Never spill liquid of any kind on the WorkCentre.

Never remove covers or guards that require a tool for removal. There are

no casual operator serviceable areas within these covers.

Never defeat interlock switches. Machines are designed to restrict

operator access to unsafe areas. Covers, guards and interlock switches

are provided to ensure that the machine will not operate with covers

opened.

Use of an extension cord with this WorkCentre is not recommended

or authorized.

Avoid direct viewing of the document lights. The lamps are bright and,

while not harmful, they may cause an annoying afterimage. Always keep

the document cover closed during operation and storage.

If you need safety information concerning the WorkCentre Xi or Xerox

supplied materials, you may call the following toll-free number.

In the United States or Canada: 1-800-828-6571

Helpful Hints

Care of your WorkCentre

•Avoid removing the ink jet cartridges from the WorkCentre unless

they are to be replaced.

•Do not place heavy objects on any surface of the WorkCentre.

•Take care not to place liquids on or near the WorkCentre.

•Avoid placing clips or staples on any WorkCentre surface.

Maintenance

•Clean the Document Glass daily and as required.

•Do not apply cleaning liquids or sprays directly to the WorkCentre;

apply to the cloth first.

•Store paper in a dry area, on a flat surface and in a closed cabinet.

•Wrap partially-used reams of paper tightly.

WorkCentre location

For reliable WorkCentre operation and copy quality, Xerox recommends:

•Place your WorkCentre in a well-ventilated room, positioning it so that

you do not block any ventilation slots or openings, as described in the

safety notes.

•Recommended environment:

– Temperature: 60°to 95°F / 15°to 35°C.

– Humidity: 20% to 80%.

•Place the WorkCentre on a flat, level surface.

•Avoid locations that subject the WorkCentre to:

– Direct sunlight.

– Extreme changes in temperature or humidity.

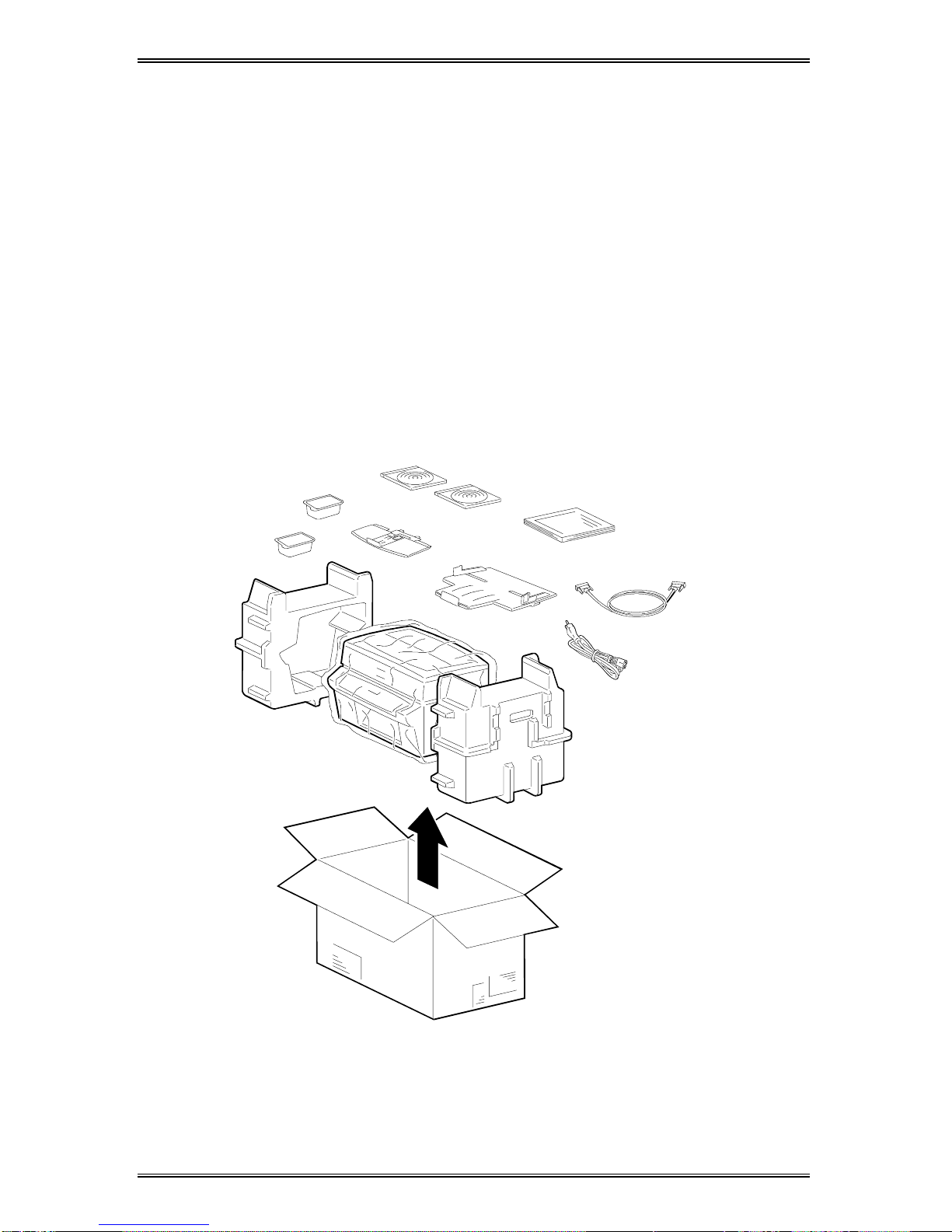

Unpacking

Important: Keep the carton and all the packing materials in case you have

to repack or ship your WorkCentre. As soon as you have unpacked your

WorkCentre and its accessories, check that all the parts have been

delivered and are undamaged. The packing carton should contain:

1Your WorkCentre

2Two print cartridges (color and black)

3Installation and software application CDs

4User documentation

5Input Tray

6Output Tray

7Parallel cable

8Power cord

If anything is missing or damaged, call 1-800-Team-XRX

(1-800-832-6979).

Indice

Altri manuali Xerox Stampante tutto in uno

Xerox

Xerox AltaLink B80 series Manuale utente

Xerox

Xerox 3300MFP - Phaser B/W Laser Manuale operativo e di manutenzione

Xerox

Xerox Phaser 6300 Manuale di installazione e d'uso

Xerox

Xerox WORKCENTRE C2424 Manuale utente

Xerox

Xerox 3210 - workcentre b/w laser Manuale utente

Xerox

Xerox AltaLink C81 Series Manuale utente

Xerox

Xerox WorkCentre 5865 Manuale utente

Xerox

Xerox CopyCentre C20 Manuale utente

Xerox

Xerox PHASER 8560MFP Manuale

Xerox

Xerox WorkCentre 7232 Manuale utente

Xerox

Xerox Wide Format 6030 Manuale utente

Xerox

Xerox WorkCentre 7328 Manuale utente

Xerox

Xerox C8130 Manuale utente

Xerox

Xerox 8860MFP - Phaser Color Solid Ink Manuale utente

Xerox

Xerox WorkCentre 6027 Manuale operativo

Xerox

Xerox WorkCentre Pro 275 Manuale utente

Xerox

Xerox 3210 - workcentre b/w laser Manuale utente

Xerox

Xerox WorkCentre 7220 Manuale utente

Xerox

Xerox WorkCentre 6025 Manuale operativo

Xerox

Xerox WorkCentre 6605 Manuale utente

Xerox

Xerox WorkCentre 5790 Series Manuale utente

Xerox

Xerox 4150 - WorkCentre B/W Laser Manuale utente

Xerox

Xerox 3635MFP - Phaser B/W Laser Manuale utente

Xerox

Xerox WORKCENTRE 7755 Manuale tecnico

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Brother

Brother MFC-9760 Manuale utente

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente
