Quick Use Guide

Table of Contents

Control Panel 2

Tray Settings 5

Booklet Creation 7

ID Card Copying 9

Simple Scan to Mailbox 13

Scan to Home 14

Auditron Setup 16

Billing Meter 20

Replacing the Toner Cartridge 22

Replacing the Drum Cartridge 25

Quick Use Guide

Control Panel

1. Brightness dial

Use this dial to adjust the contrast of the touch screen.

2. Touch screen

Displays messages and the buttons for various features. Touch the screen

to access the features.

3. <Log In/Out> button

Displays the log-in screen to enter the System Administrator mode or

when the Authentication/Accounting feature is enabled. Pressing this

button again after you have logged in will log you out immediately.

2 3 4 5

16 15 14 13 12 11

Quick Use Guide

Control Panel

4. Numeric keypad

Press these buttons to enter the number of copies, passwords, and other

numerical values.

5. <Language> button

Changes the language on the touch screen.

6. <Energy Saver> button/indicator

When the machine is left idle for a certain period of time, it enters the

Energy Saver mode to reduce power consumption. This indicator lights up

when the machine is in the Energy Saver mode. To exit the Energy Saver

mode, press this button.

7. <Clear All> button

Press this button to reset the status of all services to the default settings.

The machine will return to the default state after it is switched on.

8. <Interrupt> button

Press this button to temporarily interrupt a copy or print job and give

another job a higher priority. This button lights up while the priority job is

being processed. Press this button again after the priority job is finished to

resume the job that was interrupted.

9. <Stop> button

Suspends or cancels a job. When multiple jobs are being processed, all

the jobs will be suspended or cancelled. Selecting [Stop] on the [Job

Status] screen stops only the selected job.

Quick Use Guide

Control Panel

10.<Start> button

Press this button to start a job.

11.<Speed Dial> button

Allows you to enter speed dial codes.

12.<C> (clear) button

Deletes a numeric value or the last digit entered, or replaces the current

value with a default value. It also cancels a suspended job.

13.<Dial Pause> button

Inserts a pause while dialing a fax number.

14.<Machine Status> button

Displays a screen where you can check the machine status, the billing

meter, and the status of consumables, or print various reports. Use this

button also when accessing the System Administrator mode.

15.<Job Status> button

Displays a screen where you can check the progress of active jobs, or

displays the detailed information of completed jobs.

16.<Features> button

Returns the display to the previous copy, fax, or scan feature screen when

the [Job Status] screen or [Machine Status] screen is selected.

17.<All Services> button

Displays a screen where you can access the services available on the

machine.

Quick Use Guide

Tray Settings

The machine can be equipped with various paper trays. Tray 1, Tray 2 and

the Two Tray module (Trays 3 and 4) can be loaded with stock of standard

and non-standard sized paper. The High Capacity Tandem Trays (Trays 3

and 4) allow you to load up to 2,000 sheets of paper. The bypass tray

(Tray 5) allows you to use a variety of paper types. A tray extension is

provided to accommodate larger sized paper. The High Capacity Feeder

(Tray 6) allows you to load up to 2,000 sheets of paper. You cannot load

custom size paper into the High Capacity Feeder. The Envelope Tray

(Tray 1) allows you to stack up to 43 mm of envelopes.

Some trays are optional, or may not be available for your machine. For

details, contact your System Administrator.

When a paper tray is opened, your machine assumes that more paper is

to be loaded. Depending on the machine setup, the touch screen displays

a pop-up window, giving the option to change the paper and its attributes,

or load more of the same paper.

Before loading paper into the paper trays, fan the edges. This procedure

separates any sheets of paper that are stuck together and reduces the

possibility of paper jams.

Quick Use Guide

Tray Settings

The tray information screen will be displayed on the touch screen. If the

tray information is correct, select [Close]. Alternatively change the paper

size or paper type by selecting [Change Settings] on the touch screen.

That completes the procedure for loading the paper tray.

Quick Use Guide

Booklet Creation

The Booklet Creation feature enables the production of booklets or multi-

page copies from single or double-sided originals. The machine will scan

your originals and automatically reduce and arrange the images in the

correct sequence on your selected copy paper so that a booklet is created

when the copy set is folded in half.

Some models do not support this feature, and some models need to have

an optional finisher installed in order to use this feature. For details,

contact your System Administrator.

The Booklet Creation feature is found on the [Output Format] tab.

When Booklet Creation is enabled, you need to tell the machine whether

your originals are single or double-sided. When you have made your

selection you must select [Save] so that you can program any other

features you may require from the control panel.

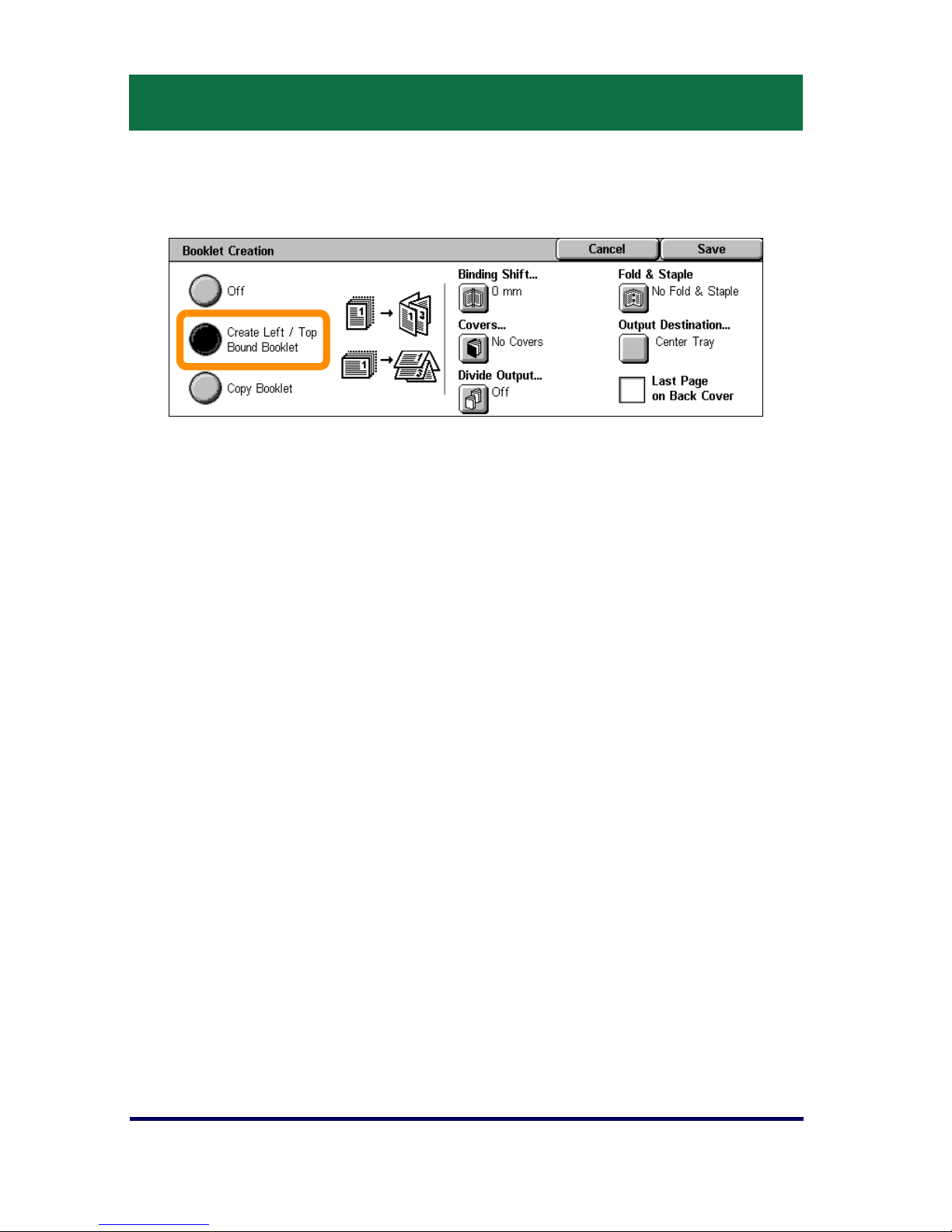

Enable Booklet Creation by selecting the [Output Format] tab, [Booklet

Creation] and [Create Left/Top Bound Booklet].

Quick Use Guide

Booklet Creation

There are 2 simple rules that must be followed when making booklets:

1. First select the tray that contains the paper you want to use.

2. Always load your documents with the long edge to the left.
