Instruction Sheet

4-Mbyte RAM SIMM Installation — (4690F4M)

Finding your printer's SIMM installation instructions

If your printer is a ... Then go to page ...

Phaser PX 2

Phaser PXi 2

Phaser II PX 6

Phaser II PXi (slide-in style image processor board) 6

Phaser II PXe 9

Phaser II PXi (bolt-down style image processor board) 9

Phaser III PXi and Phaser 300i 12

Phaser II SX/DX (slide-in style image processor board) 14

Phaser II SX/DX (bolt-down style image processor board) 17

Phaser IISD/SDX 20

Phaser 200i and 220i 23

Phaser 200e and 220e 23

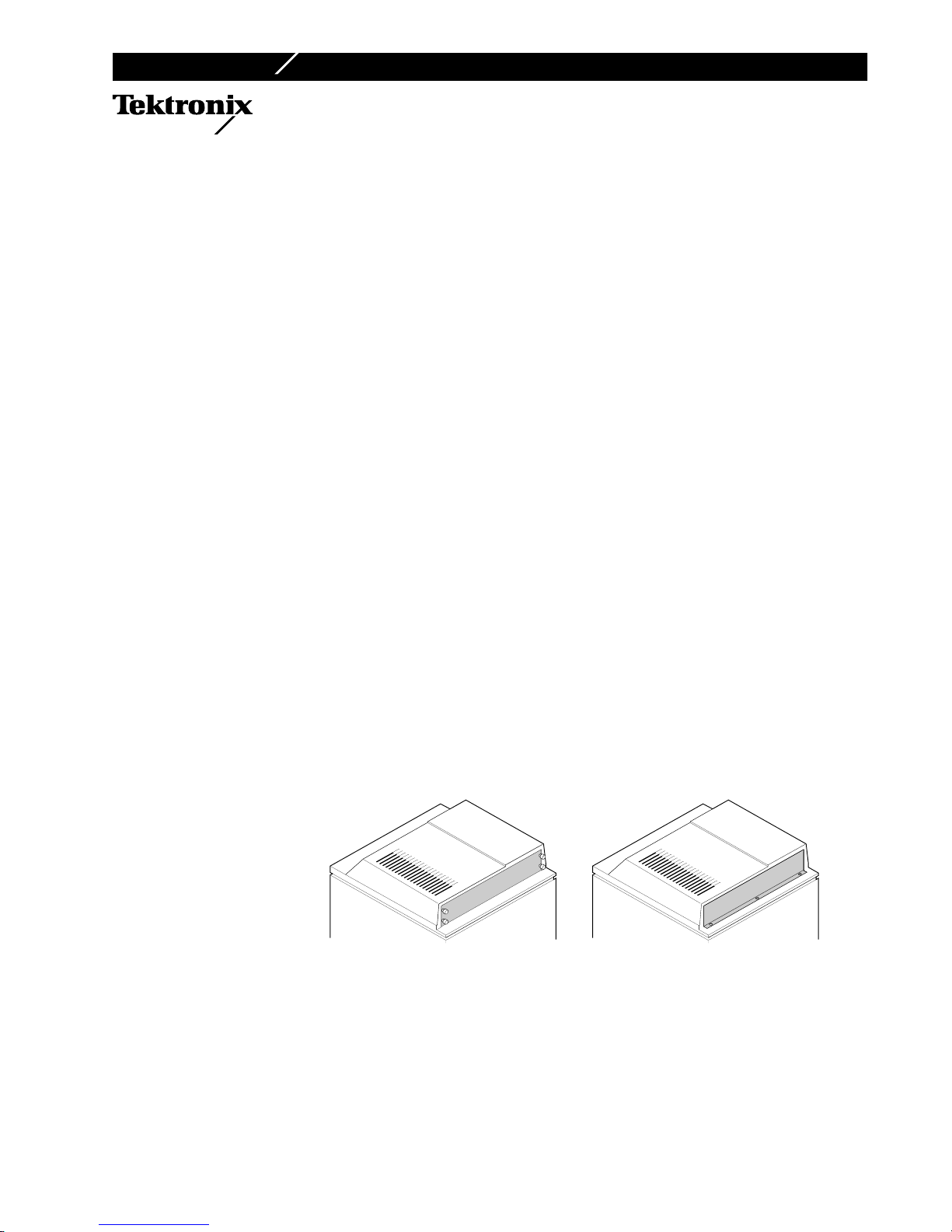

Slide-in style image processor board

(note the four thumbscrews) Bolt-down style

image processor board

Phaser™ PX

Phaser™ PXi

Phaser™ II PX

Phaser™ II PXi

Phaser™ II PXe

Phaser™ II SX/DX

Phaser™ IISD/SDX

Phaser™ III PXi

Phaser™ 300i

Phaser™ 200i and 220i

Phaser™ 200e and 220e

4-Mbyte RAM SIMM Installation — (4690F4M)

Static electricity precautions

■

Leave the printer plugged into its power outlet. This preserves a

ground path for static discharges.

■

Touch the printer's bare metal frame often to discharge static

electricity from your body.

■

Handle the circuit board(s) by their edges only.

■

Do not lay the board(s) on a metal surface.

■

Make the least possible movements to avoid generating static

electricity.

■

Avoid wearing nylon or polyester clothing; they generate static

electricity.

Phaser PX

Phaser PXi

Power down the printer. Do not unplug the printer; this preserves a

ground path to dissipate static charges. Disconnect the host interface

cables.

Remove the printer’s upper half cover by ﬁrst lifting the rear corners

of the cover and then the front corners.

4-Mbyte RAM SIMM Installation — (4690F4M)

Remove the EMI shield.

4-Mbyte RAM SIMM Installation — (4690F4M)

PX image processor:

Locate the RAM SIMM connector on the image

processor board. It is labeled J229 (on older-version boards it is

labeled J335).

Insert the RAM SIMM in J229 (or J335).

Angle the RAM SIMM into its connector; it should lock in place

when properly installed.

Insert SIMM

. . .and. . .

tilt back

until it

locks in

place

Front of printer

RAM chips

face to the

front of

printer

J7 (PXi)

J6 (PXi)

J229 or J335 (PX)

4-Mbyte RAM SIMM Installation — (4690F4M)

Note

For the PXi image processor: Install memory modules in the order J6

and then J7.

PXi image processor:

Insert a DRAM SIMM in connector J6 (or in J7 if

J6 is already ﬁlled) (

), and tilt the module upright until it locks in

place (

). Repeat Step 4 to install additional memory modules.

When properly inserted, a tab on each end of the connector slips into a

hole on each end of the RAM SIMM. Also, a pawl on each end of the

connector latches around each end of the RAM SIMM to lock it

in place.

Reinstall the EMI shield and the top panel.

Reconnect the host interface cables. Turn on the printer and make a

print to ensure that the printer functions correctly.

J6 J7 J8

AppleTalk®

Input

Serial

(RS-232) Status

SCSI Disk

Parallel

Reset Extended

Power Up

Run

Metric

American Variable

12345 6 7

Diagnostics Paper Size

1200

Baud Rate

Skip

Run

Startjob

PHASER II PXi

MODEL 4694PXI

4-Mbyte RAM SIMM Installation — (4690F4M)

Phaser II PX

Phaser II PXi

(slide-in style image processor board)

Power down the printer. Do not unplug the printer; this preserves a

ground path to dissipate static charges. Disconnect the host interface

cables.

Unscrew the four thumbscrews securing the image processor board's

rear panel to the printer. Slide the image processor board out of the

printer.

4-Mbyte RAM SIMM Installation — (4690F4M)

Locate the SIMM connectors:

■

Labeled J160 on the PX image processor board

■

Labeled J6 on the PXi image processor board

PX image processor:

Insert a memory module in connector J160 (

and tilt the module upright until it locks in place (

Note

For the PXi image processor: Install memory modules in the order J6

and then J7.

PXi image processor:

Insert a memory module in connector J6 (or in

J7 if J6 is already ﬁlled) (

), and tilt the module upright until it locks in

place

(b).

Repeat Step 4 to install additional memory modules.

J6 J7 J8

AppleTalk®

Input

Serial

(RS-232) Status

SCSI Disk

Parallel

Reset Extended

Power Up

Run

Metric

American Variable

12345 6 7

Diagnostics Paper Size

1200

Baud Rate

Skip

Run

Startjob

PHASER II PXi

MODEL 4694PXI

4-Mbyte RAM SIMM Installation — (4690F4M)

When properly inserted, a tab on each end of the connector slips into a

hole on each end of the RAM SIMM. Also, a pawl on each end of the

connector latches around each end of the RAM SIMM to lock it

in place.

Reinstall the image processor board in place and secure with the

thumbscrews.

Reconnect the host interface cables. Turn on the printer and make a

print to ensure that the printer functions correctly.

4-Mbyte RAM SIMM Installation — (4690F4M)

Phaser II PXe and Phaser II PXi

(bolt-down style image processor board)

Power down the printer. Do not unplug the printer; this preserves a

ground path to dissipate static charges. Disconnect the host interface

cables.

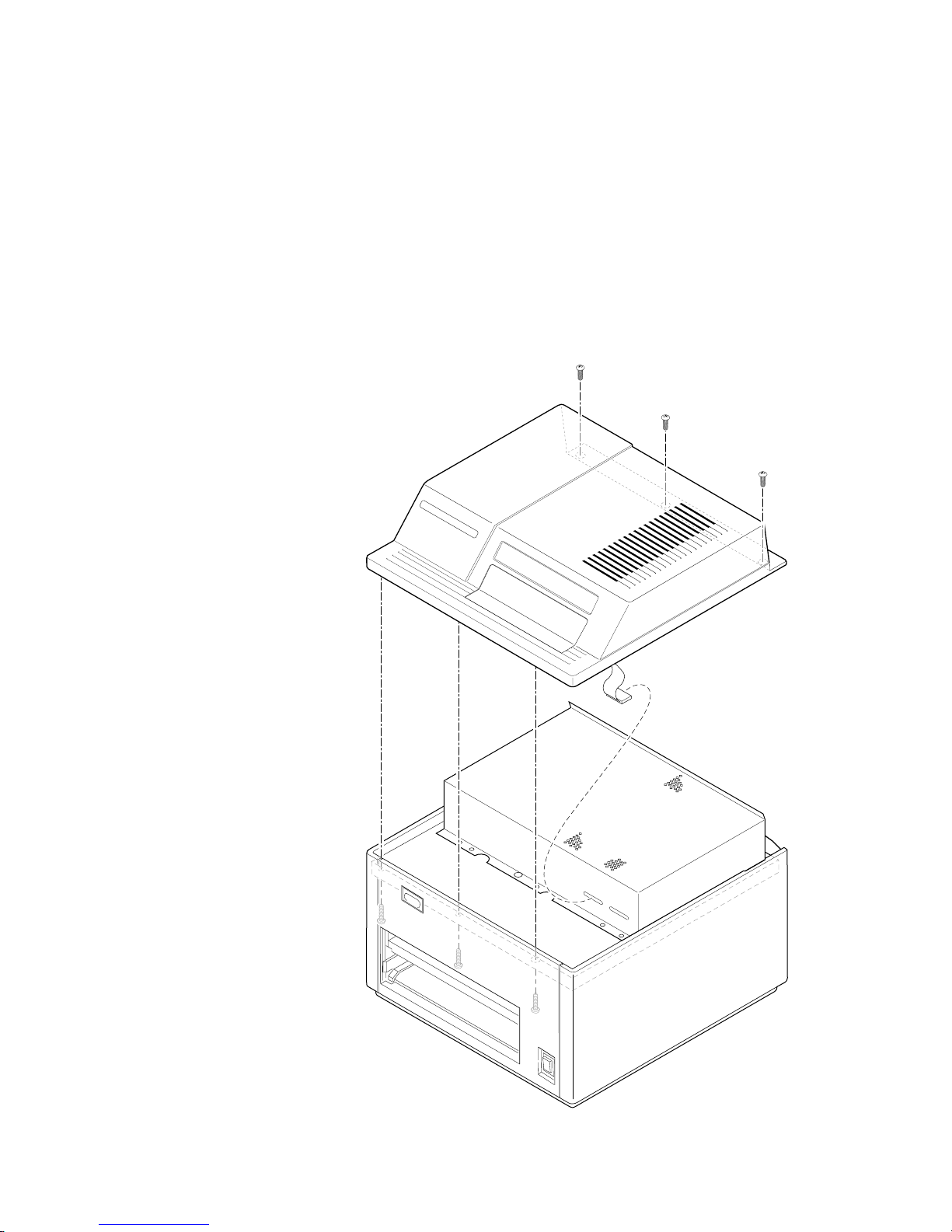

Remove the top panel. (Lift it carefully; the front panel LED cable is

still connected.)

Disconnect the front panel LED connector.

4-Mbyte RAM SIMM Installation — (4690F4M)

Remove the two screws securing the front of the EMI shield. Tilt the

shield up and remove it.

Locate the DRAM SIMM module connector J6.

PXe image processor:

Insert the DRAM SIMM in connector J6 (

) and

tilt the module upright until it locks in place (

8196-14

8196-15

6ab
