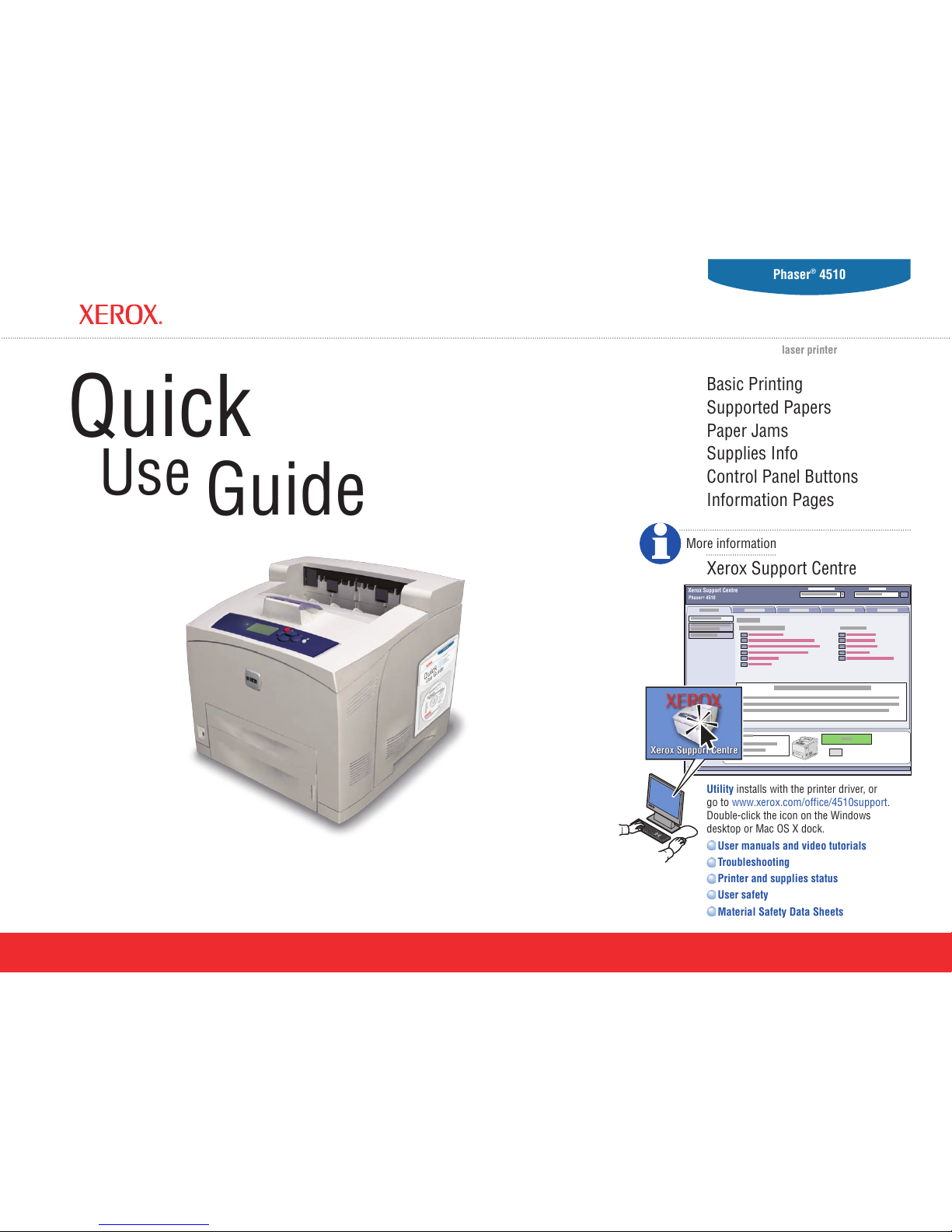

Xerox Phaser 4510 Manuale operativo
laser printer
Phaser® 4510
Quick
Use Guide
Phaser
®
4510
Xerox Support Centre
Utility installs with the printer driver, or
go to www.xerox.com/office/4510support.
Double-click the icon on the Windows
desktop or Mac OS X dock.
User manuals and video tutorials
Troubleshooting
Printer and supplies status
User safety
Material Safety Data Sheets
Xerox Support Centre
More information
Basic Printing
Supported Papers
Paper Jams
Supplies Info
Control Panel Buttons
Information Pages
3
4
1
2
12
4
3
5
LE > 297 mm (11.7 in.)
5
1.1
1.2
6
Custom
US Folio
Legal
PC Mac
LE+
Tray 2 Paper
Letter LEF (8.5 x 11.0 in.)
Plain Paper
Use current setup
Change setup...
A5................................ 148 x 210 mm
A4................................ 210 x 297 mm
DL Envelope.................... 110 x 220 mm
Letter............................ 8.5 x 11.0 in.
US Folio......................... 8.5 x 13.0 in.
Legal............................ 8.5 x 14.0 in.
#10 Commercial Envelope... 9.5 x 14.12 in.
A6................................ (105 x 148 mm)
ISO B5........................... (176 x 250 mm)
B5 JIS........................... (182 x 257 mm)
DL Envelope.................... (110 x 220 mm)
C5 Envelope.................... (162 x 229 mm)
B5 Envelope.................... (176 x 250 mm)
Custom.......................... (SE) x (LE)
Index Card...................... (3.0 x 5.0 in.)
Statement....................... (5.5 x 8.5 in.)
Executive....................... (7.25 x 10.5 in.)
Monarch Envelope............ (3.87 x 7.5 in.)
#10 Commercial Envelope... (9.5 x 14.12 in.)
User-Selected sizes
Auto-Sensed sizes
www.xerox.com/office/4510support
Basic Printing
When Printing: Select properties. Use Xerox printer driver.When Printing: Select properties. Use Xerox printer driver.
When loading paper: Select appropriate settings on the control panel.When loading paper: Select appropriate settings on the control panel.
Tray 1-4
A6.................. 105 x 148 mm
A5.................. 148 x 210 mm
A4.................. 210 x 297 mm
ISO B5............. 176 x 250 mm
B5 JIS..............182 x 257 mm
Index Card........ 3 x 5 in.
Statement.........5.5 x 8.5 in.
Executive......... 7.25 x 10.5 in.
Letter.............. 8.5 x 11.0 in.
US Folio........... 8.5 x 13.0 in.
Legal.............. 8.5 x 14.0 in.
DL..................110 x 220 mm
C5.................. 162 x 229 mm
B5.................. 176 x 250 mm
#10 Commercial. 4.12 x 9.5 in.
Monarch.......... 3.87 x 7.5 in.
Custom............ (SE) x (LE)
64 – 216 g/m2
(17 lb. Bond – 80 lb. Cover)
1
2
3
4
Tray 2
-
4
LE > 297 mm / 11.7 in.
2-4
≤ 550
1
≤ 150
LE
SE
Tray 1
LE+
LE+
76 – 216 mm
(3.0 – 8.5 in.)
127 – 356 mm
(5.0 – 14.0 in.)
89 – 216 mm
(3.5 – 8.5 in.)
140 – 356 mm
(5.5 – 14.0 in.)
Custom
LE
SE
Letterhead
Labels
Trays 2-4
Tray 1
SE
LE
98 – 216 mm
(3.9 – 8.5 in.)
98 – 216 mm
(3.9 – 8.5 in.)
148 – 356 mm
(5.8 – 14.0 in.)
148 – 356 mm
(5.8 – 14.0 in.)
2-4
49 mm
(1.92 in.)
1
17 mm
(0.66 in.)
SE
LE
SE
LE
www.xerox.com/office/4510support
Print the Paper Tips page
for more information.
See the Printing Basics chapter
in the User Guide.
Supported Papers
Envelope
OK
OK
www.xerox.com/office/4510supplies
www.xerox.com/office/4150support
Supplies Info
Press Help Button
for jam clearing procedures.
View PrintingScoutTM message
or see the Troubleshooting chapter in
the User Guide.
Press Help Button
for jam clearing procedures.
View PrintingScoutTM message
or see the Troubleshooting chapter in
the User Guide.
Paper Jams
For Supplies Information:
See the Supplies Info menu and
print the Supplies Usage page.
See the Supplies tab in the Xerox
Support Centre, contact your local
reseller, or visit the Xerox Supplies
website.
Ready To Print
Press for help
Walk-Up Features
Information
Paper tray Setup
Printer Setup
Information
Menu Map
Printer Identification
Information Pages
Sample Pages
Supplies Info
Walk-Up Features
Information
Paper Tray Setup
Printer Setup
Ready To Print
Press ? for help
Jam At Exit;
Open Top Cover
To Clear
Press
www.xerox.com/office/4510support
HelpHelp
Information
Provides information about the
printer.
Paper Tray Setup
Use these tools to setup
Information
Provides information about the
printer.
Paper Tray Setup
Use these tools to setup
1
2

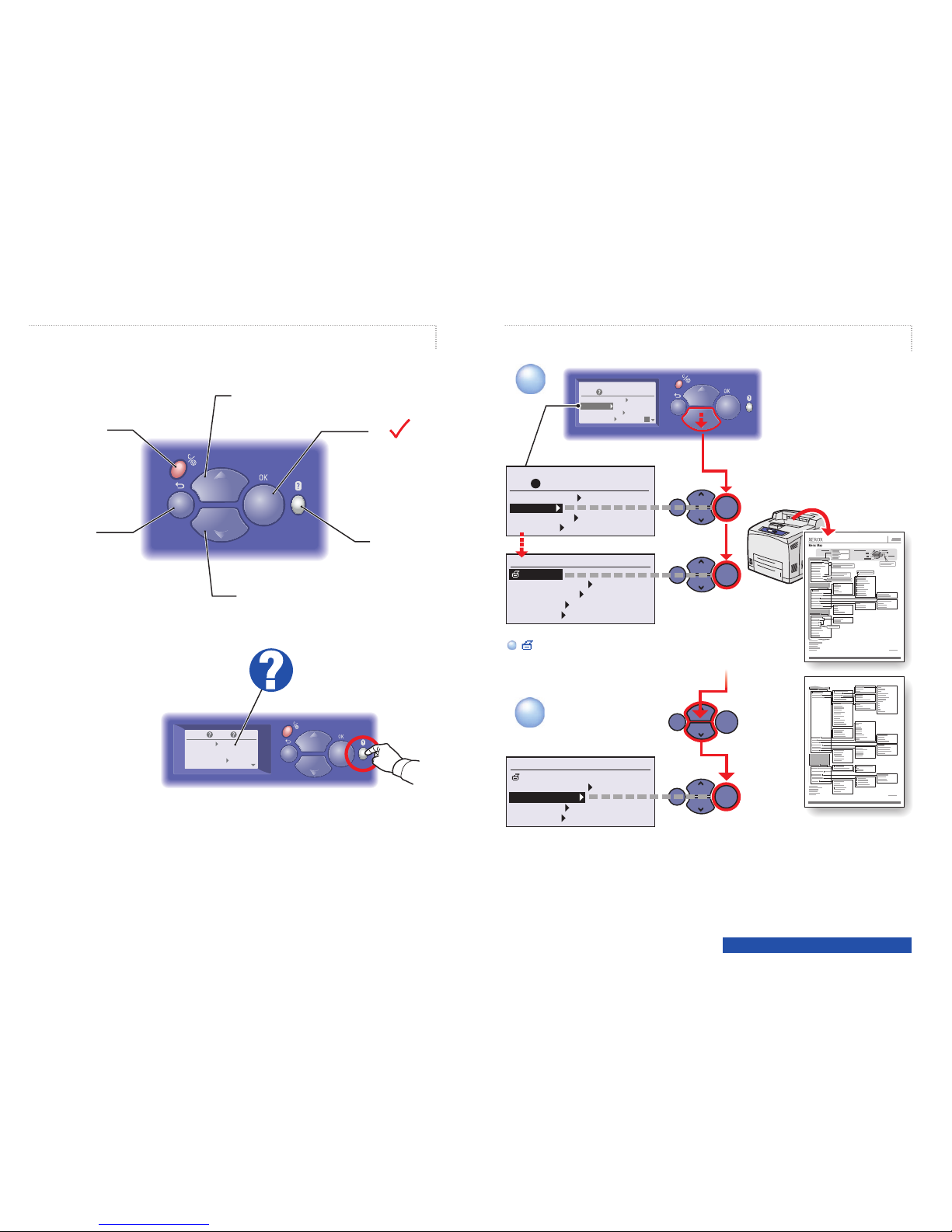

Control Panel Buttons
Up ArrowUp Arrow
OKOK
Down ArrowDown Arrow
CancelCancel
BackBack HelpHelp
Help Button: Press at any time
to display additional information about
the message or menu.
Information Pages
Information
Information
Walk-Up Features
Information
Paper Tray Setup
Printer Setup
Ready To Print
Press ? for help
Menu Map
Printer Identification
Information Pages
Sample Pages
Supplies Info
Menu Map
Printer Identification
Information Pages
Sample Pages
Supplies Info
= Prints an information page. = Prints an information page.
Ready To Print
Press for help
Walk-Up Features
Information
Paper tray Setup
Printer Setup
