Xilinx ML630 Si570 Manuale utente

ML630 Si570 Fixed Frequencies

March 2012

XTP120

XILINX, the Xilinx logo, the Brand Window and other designated brands included herein are trademarks of Xilinx, Inc. All other trademarks are the property of

their respective owners.

NOTICE OF DISCLAIMER: The information disclosed to you hereunder (the “Information”) is provided “AS-IS” with no warranty of any kind, express or implied.

Xilinx does not assume any liability arising from your use of the Information. You are responsible for obtaining any rights you may require for your use of this

Information. Xilinx reserves the right to make changes, at any time, to the Information without notice and at its sole discretion. Xilinx assumes no obligation to

correct any errors contained in the Information or to advise you of any corrections or updates. Xilinx expressly disclaims any liability in connection with technical

support or assistance that may be provided to you in connection with the Information. XILINX MAKES NO OTHER WARRANTIES, WHETHER EXPRESS,

IMPLIED, OR STATUTORY, REGARDING THE INFORMATION, INCLUDING ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE, OR NONINFRINGEMENT OF THIRD-PARTY RIGHTS.

Revision History

Date Version Description

03/16/12 13.4 Updated for 13.4

10/26/11 13.3 Updated for 13.3.

08/30/11 13.2 Initial version.

ML630 Si570 Fixed Frequency Overview

Xilinx ML630 Board

Software Requirements

Setup for the ML630 Si570 Fixed Frequency

ML630 Si570 Fixed Frequency

Changing an Si570 from 156.25 to 19.440 MHz

Other Fixed Frequencies

References

Note: This presentation applies to the ML630

ML630 Si570 Fixed Frequency Overview

Description

–The ML630 board has six Silicon Labs Si570 Programmable Oscillators that

default to 156.25 MHz. Via a series of bitstreams, the frequency of these

devices can be changed. This tutorial shows how to change the output

frequency of these devices.

Note: Presentation applies to the ML630

Xilinx ML630 Board

Note: Presentation applies to the ML630

ISE Software Requirements

Xilinx ISE 13.4 software

Note: Presentation applies to the ML630

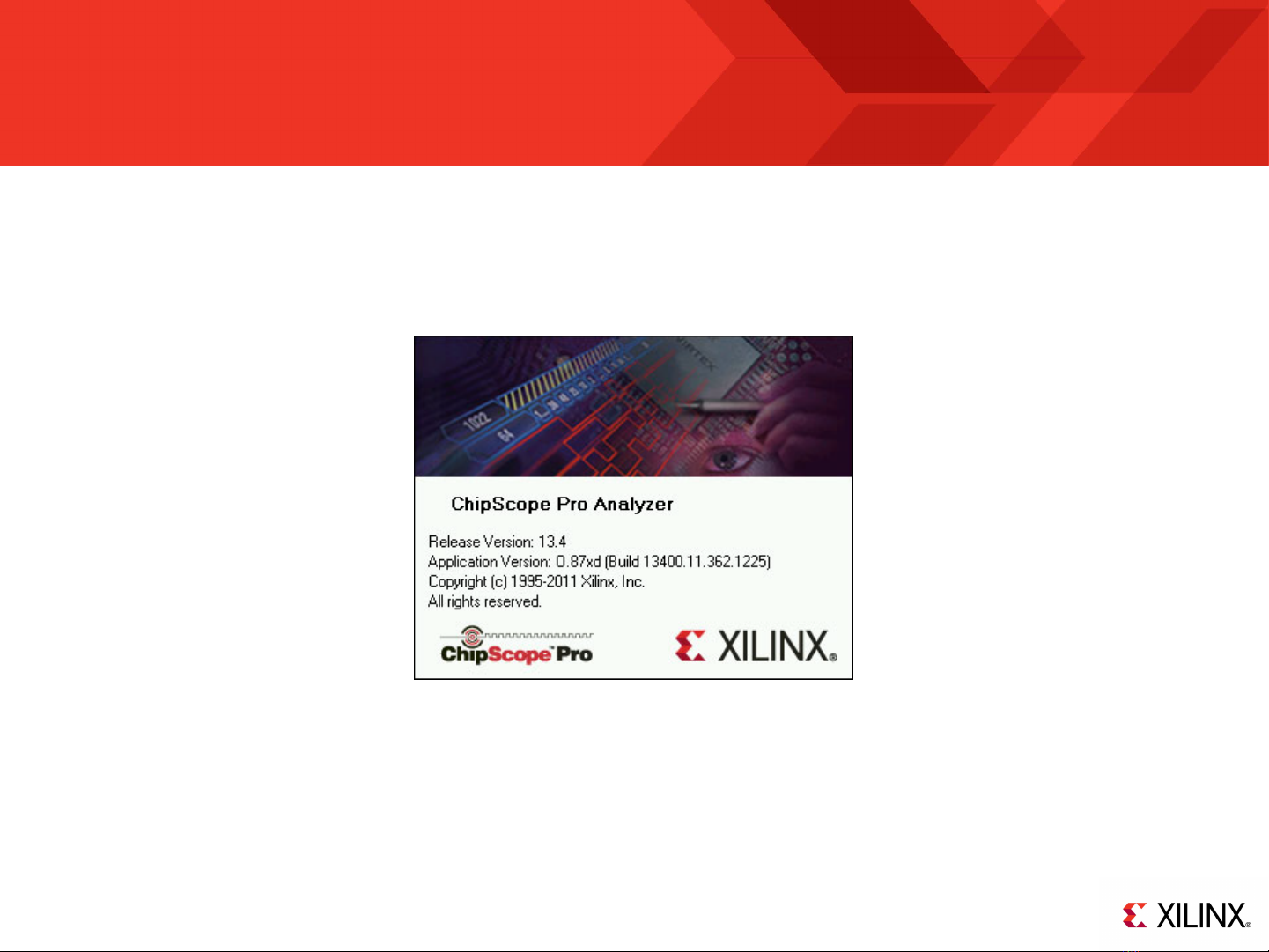

ChipScope Pro Software Requirement

Xilinx ChipScope Pro 13.4 software

Note: Presentation applies to the ML630

ML630 Setup

Install USB UART Drivers

–CP210x_VCP_Win_XP_S2K3_Vista_7.exe

Note: Presentation applies to the ML630

ML630 Setup

Reboot your PC if necessary

Right-click on My Computer

and select Properties

–Select the Hardware tab

–Click on Device Manager

Note: Presentation applies to the ML630

ML630 Setup

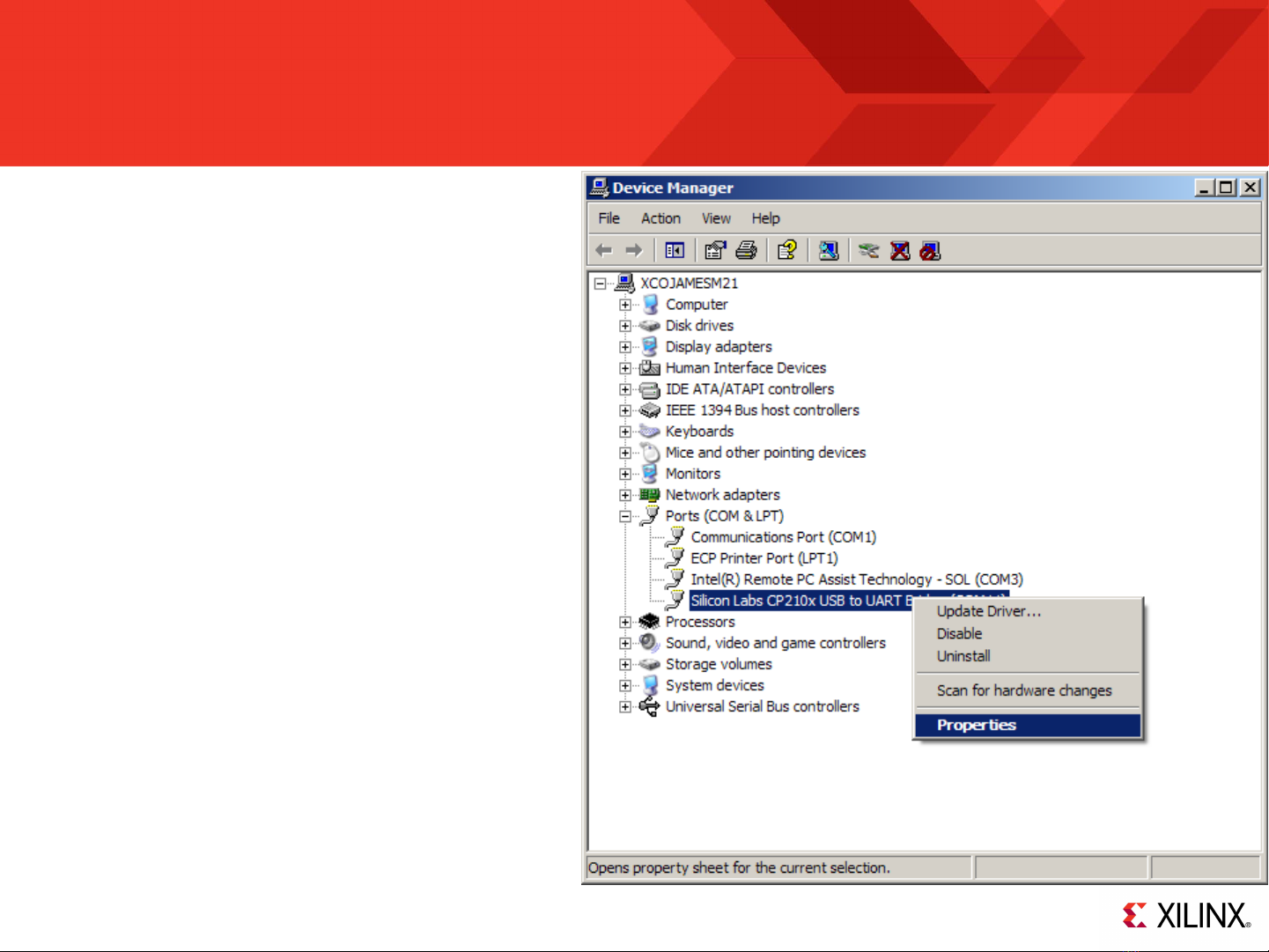

Expand the Ports

Hardware

–Right-click on Silicon Labs

CP210x USB to UART

Bridge and select Properties

Note: Presentation applies to the ML630
