XtendLan DPC-D218ID Manuale utente

DPC-D218ID

D oor Station

User Manual

CARD

1 2

4 5

7 8

1.Parts and Functions

350

EB+

EB-

N.O

LK+

LK-

+12V

Camera Lens

Night View LED

Speaker

LCD Screen

Adjustable Camera

ID Card Window

RF CARD

1 2 3

3 2 1 Connectiong Port

Digital Keypad

4 5 6

7 8 9

Microphone

0 #

128

With rainy cover

2. Terminal Descriptions

SD Card Slot L1

CN-LK

T/R

-T/R+

3 2

Bus

RF CARD

3 2 1

J/KMB

JP-LK

1 2 3

4 5 6

7 8 9

0 #

• +12V: 12VDC power output.

• LK-(GND): power ground.

• LK+(COM): common contact of the Relay .

• NO.:normally open contact of the Relay(refer to 2-wire technical guide for Lock

connection detail information).

• EB+: Exit button connection port.

• EB-: Exit button connection port.

• JP-LK: For electronic lock safety type setting(refer to Door Station Lock Connections).

• T/R-: USB-RS485 communication terminal negative.

• T/R+: USB-RS485 communication terminal positive.

• Bus(L1,L2): non-polarity bus line.

3.Door Station Mounting

Drill a hole and attach the

rainy cover to it

The view for rainy

cover after mounted

Camera

angle

Adjust the camera angle and attach the

metal to the panel and wire correctly.

Attach screws to fix the

metal box

Attach the unit to the rainy

cover correctly

Attach the baffle to protect

the unit from dropping

The last view for all mounting

4. Door Lock Connections

1. Internal Power Supply Mode

Use the power of the system to supply for the electronic lock, so that the lock can be

connected to the door station directly, without an additional power supply for the electronic lock.

Note that the door station can only output 12Vdc power, therefore the kind of lock is limited.

• The rated power of the lock must be less than 12Vdc 300mA when using internal power

supply mode

• The GND must connect to the negative of the lock, and the COM connect to the positive .

• Jumper set to 1-2 position for Power-to-Unlock safety type(Normally open mode); set

to 2-3 position for Power-off-to -Unlock type(Normally closed mode).Note that the

unlock relay mode is set on the Parameter tab of DT CONFIG software.

• If different unlocking time is needed to be configured, the DT CONFIG software can be

used to change the Unlock Timing on the Parameter tab(see the program section).

A. Connection for Power-to-Unlock type:

12V 300mA

+12V

LK - (GND)

LK+(COM)

N.O.

EB+

EB -

set to Normally open on the

Unlock Relay mode on DT-config

software.

Jumper set to 1-2 position

JP_LK

B. Connection for Power--off-to-Unlock type:

12V 300mA

+12V

LK - (GND)

LK+(COM)

N.O.

EB+

EB -

set to Normally Closed on the

Unlock Relay mode on DT-config

software.

Jumper set to 2-3 position

JP_LK

2. External Power Supply Mode

When the electronic lock is over 12 Vdc, additional power supply for the lock is needed.

• The power supply for the lock must be less than 48Vdc 1.5A.

• The Jumper must be removed when using external power supply. The default setting is

Power-to-Unlock type(Normally open mode), if use Power-off-to-Unlock type, change

the Unlock Relay mode to Normally closed mode .Note that the unlock relay mode is

set on the Parameter tab of DT CONFIG software.

• If different unlocking time is needed to be configured, please use the DT CONFIG

software to change the setting on the Parameter tab(see the program section).

C. Connection for Power-to-Unlock type:

+12V

+ LK -

(GND)

LK+(COM)

N.O.

EB+

set to Normally Open on the

Unlock Relay mode on DT-config

software.(default)

Note: Cut off this line when

Remove the Jumper

JP_LK

using external power supply

D. Connection for Power--off-to-Unlock type:

+12V

+ LK - (GND)

LK+(COM)

N.O.

EB+

EB -

set to Normally Closed on the

Unlock Relay mode on DT-config

software.

Note: Cut off this line when

Remove the Jumper

JP_LK

using external power supply

5. Door Station Configurations

1. About room code(address):

Room Code(also called room address) is a code assigned to each monitor, to identify different

monitors; each monitor have a unique room code in one buidling.The room Code is stored in

each Monitor’s inner EEPROM memory, and does not lose even the monitor is power off.

2. About Debug State:

The Debug State is your starting point for using all the applications on DPC-D218.

> > D e b u g S t a t e < <

0 - # R e d i a l

RF CA R D

1 2 3

1 - # To o l s

4 5 6

7 8 9

0 #

[ 9 0 0 8 ]

2 - # E x i t s

Please Input Password

When Door Station is in

standby, press '#' key

input '9008', then input the

Admin Code.(66666666 by

default)

Debug State menu is launched

Press "2#" key to exit out the debug state.

3. About Debug Tools:

During working at Debug State, press "1#" to enter tools page, Debug Tools overviews is

shown as below:

> > D e b u g S t a t e <

0 - #

e d

1 - # To o

2 - # E x

Tools

Pres NO.

to select

*Back

1 . I n s t a

e r S e t u

2 . S e t u

3 . C a r d M e m o r

4 . O n

n e M o n

t o r

5 . O n

n e D e v

c e

6 .

t a g e M e a s u r

Table 1:

Item

Submenu

1. Installer Setup

1. ID Code [1]

2. Unlock Timing [05]

3. Unlock Output [0]

4. Card Memory [0]

5. Doorplate Mode

6. Audio Options ...

7. Parameters ...

8. Installer Code ...

9. Default ...

2. Setup

1. Language [1]

2. Tone Select [03]

3. Tone Volume [08]

4. Unlock Code [1111]

5. Display Mode

6. Clock ...

7. Setup Code ...

8. About ...

9. Default ...

3. Card Manage

1. Add Card ...

2. Delete By Card

3. Delete By M.code

4. Cards Information

5. Format

4. Online Monitors

To search the online monitors,input the monitor code

number to search

5. Online Devices

To search the online door stations.Max.4 door station

can be searched

6. Voltage Measure

To check the voltage of the monitor,note that the

monitor must be online.

Basic Tools Detail:

Table 2(Installer Setup):

Item

Description

Factory

set

ID Code

If only one door station is installed in this building, set

to 1;

If multi door stations are installed, primary door station

must be set to 1, and other slave door stations must

be set from 2 to 4. Note that max. 4 door stations is

available in one building

[1]

Single

Unlock Timing

To set the time that how long the door keeps open

when door is released. Range from 01 to 99 seconds.

[05]

5 seconds

Unlock Output

To set the unlock mode to match the corresponding

lock.Rand from 0 to 1

Card Manage

To set the card location.If set to 0,the card is saved in

door station.If set to 1, the card is saved in DPA-D2-IPC

Doorplate Mode

To set the calling mode.If set to 0,it's the auto

mode,that means the calling will be activated directly

after inputting 2 digits code.If set to 1,it's the manual

mode,that means you should press "#" button to

activate the calling after inputting the code.

[0]

Auto mode

Audio Options ...

To set the talking mode.If set to 0,hands free mode is

activated.If set to 1,handset mode is activated.

Parameters ...

To show the parameters,please refer to table 2.1

Installer Code ...

To change door station administrator code

[66666666]

Default ...

Note this operation is irreversible. Once restore is

activated, all parameters will return to factory default

setting except the information of access card.

Table 2.1(Parameters):

Item

Description

Factory

set

Monitor Timing

To show the monitor time,Range from 6s to 600s

30s

Switch Timing

To show the surveillance time for each Door Station or

CCTV camera.Range from 6s to 600s

40s

Wait Timing

To show the calling wait time,Rang from 10s to 600s

30s

Talk Timing

To show the limitation time of talking,Range from 10s

to 600s

90s

Monitor & Speack

To enable Indoor Monitor under monitoring state can

speak to Door Station at same time. If set to 1, talk

enabled; set to 0, disabled.

Monitor & Unlock

To enable Monitors under monitoring state can open

the door at the same time.If set to 0, unlock function

is disabled; Set to 1, unlock is enable;Set to 2,unlock

is enable and close at once;Set to 3,unlock is enable

and close in 5s.

[1]

Ring Numbers

To show ring times when door station calls monitor.4

options for choice. If set to 0, ring once. If set to 1,ring

twice. If set to 2, ring three times.If set to 3,cycle ring

[1]

NameList Display

Mode

To show the namelist display mode.If set to 0,it's the

DT-Config display mode.If set to 1,it's the Simulate

display mode

[0]

Working Mode

To show the working mode.If set to 0,it's the apartment

system mode.If set to 1,it's the villa mode.

[0]

Note: this section is set on DT-Config software, for more detail informations, please refer to the

DT-Config software user instructions.

Table 3(Setup):

Item

Description

Factory

set

Language

To change language.the code format is 4 digits.Please refer

to part 5,section 10(change door station language) for more

detail informations.

Tone Select

Select the chime of Door Station in calling wait state, 12

chord tunes are available, key in 01 to 12 to select.

Tone Volume

Adjust the tone volume for dooor station in calling.Rang from

01~15

Unlock Code

To change unlock code in Common Code Unlock mode, in

4-digits format. 1111 is the default unlock code.

[1111]

Display Mode

To select the Door Station screen menu .If set to 0,the

screen displays the visitor's image when talking.If set to 1,the

screen displays icons when talking.

[0]

Clock ...

To set date and time.

Date format:if set to 0,date format is DD/MM/YY,if set to

1,date format is MM/DD/YY.

Time format: if set to 0,time format is 24 hour standard.If set

to 1,time format is12 hour standard.

Setup Code

To change the Program Code.

[88888888]

About ...

1. Hardware version---To show the Door Station(including

ACS) hardware information

2. Software version ---To show the Door Station(including

ACS) software information

3. Manufacture Date---To show the manufacturing date

4. Dialing Counts---To show the call operation counts

5. Calls Counts---To show the established calling counts

6. Unlock Counts---To show the unlock operation counts

7. Standby Voltage---To show the voltage that the door

station in standby.

8. Working Voltage---To show the voltage that the door

station in working.

9. Video Standard---PAL or NTSC standard

10. UI_CODE---To show the UI byte counts and check box

11. MCM-VER---To show the version and language for MCM

12. Updated---To show the updated time for UI

Default ...

Restore all Setup parameters to factory default setting,Please

note that this operation is an irreversible

Indice

Altri manuali XtendLan Sistema di interfono

XtendLan

XtendLan DPM-D2101TMD Manuale utente

XtendLan

XtendLan DPM-473M Manuale utente

XtendLan

XtendLan DPA-D2-GSM Manuale utente

XtendLan

XtendLan DPP-D203 Manuale utente

XtendLan

XtendLan DPC-518ID Manuale utente

XtendLan

XtendLan DPC-434 Series Manuale utente

XtendLan

XtendLan DPC-D248-K Manuale utente

XtendLan

XtendLan DPC-511 Manuale utente

XtendLan

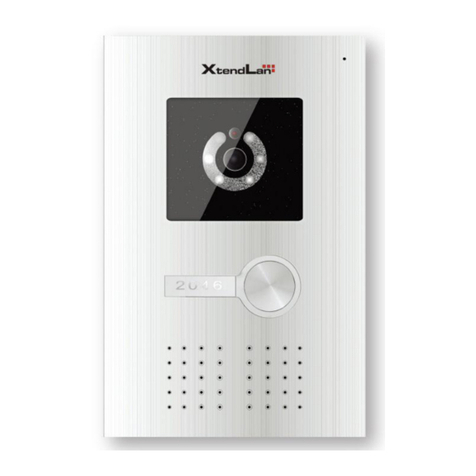

XtendLan DPC-IP100 Manuale utente

XtendLan

XtendLan CAT-5 wired Guida rapida

XtendLan

XtendLan DPC-D246A Manuale utente

XtendLan

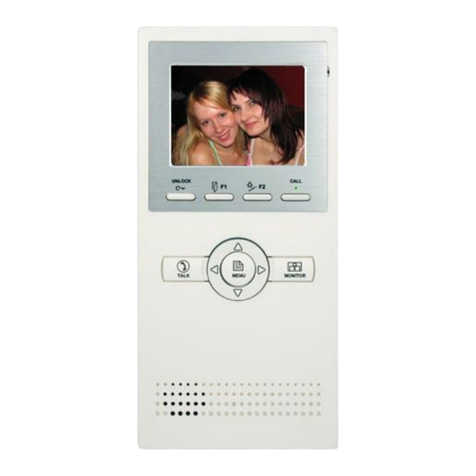

XtendLan DPM-535 Manuale utente

XtendLan

XtendLan DPC-D250 series Manuale utente

XtendLan

XtendLan PM-IP-701TMD Manuale utente

XtendLan

XtendLan DPC-D248-R Manuale utente

XtendLan

XtendLan DPC-536 Manuale del proprietario

XtendLan

XtendLan DT607 Series Manuale utente

XtendLan

XtendLan DPC-D247 Manuale utente

XtendLan

XtendLan XL-DM327G Manuale utente

XtendLan

XtendLan DPM-571 Manuale utente

XtendLan

XtendLan DPC-D244-R Manuale utente

XtendLan

XtendLan DPM-IP700 Manuale utente

XtendLan

XtendLan GSM DPC-G100 Manuale utente

XtendLan

XtendLan DPM-D271TMD Manuale utente

Manuali Sistema di interfono popolari di altre marche

Bticino

Bticino LINEA 3000 Manuale utente

MSI

MSI MSI-140 Manuale utente

golmar

golmar Stadio Plus Manuale utente

CyberData

CyberData 011211 series Manuale

Vidos

Vidos duo M1021 Manuale utente

Vimar

Vimar ELVOX 7539/E Manuale utente

SSS Siedle

SSS Siedle BTSV 850-03 Manuale utente

Dahua

Dahua VTO Series Manuale utente

Elvox

Elvox 5651 Manuale utente

Videx

Videx VIDEOKIT Series Manuale utente

Rocom

Rocom Doortello Business FW T2.05W2.04 Manuale utente

Viking

Viking E-35-EWP Manuale utente

Safeguard Supply

Safeguard Supply LRA-EX1000 Manuale utente

SSS Siedle

SSS Siedle BFCV 850 Series Manuale utente

GRD

GRD MAX V2 Manuale utente

Alecto

Alecto ADI-250 Manuale utente

Aiphone

Aiphone IE-8MD Manuale utente

Perel

Perel EDB4 Manuale utente
