Xterra UB120 Manuale utente

UB120 Upright Bike

OWNER’S MANUAL

PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW UPRIGHT BIKE.

Table Of Contents

WARRANTY COMPLIANCE

THIS UPRIGHT BIKE IS INTENDED FOR RESIDENTIAL USE ONLY AND IS

WARRANTED FOR THE APPLICATION. ANY OTHER APPLICATION VOIDS THIS

WARRANTY IN ITS ENTIRETY.

Product Registration

Important Safety Instructions

Important Operation Instructions

Exploded View and Parts Lists

UB120 Assembly Instructions

Final Considerations

Exploring Your New Bike

Troubleshooting

Manufacturer’s Limited Warranty

UB120 UPRIGHT BIKE

Record Your Serial Number

Please record the Serial Number of this tness product

in the space provided below.

Serial Number

The self-addressed product registration card must be completed in full and returned to

XTERRA Fitness. You can also go to www.xterratnessstore.com/warrantyreg.html

to register online.

Thank you for your purchase of this quality Upright Bike. Your new Upright Bike has been

manufactured by one of the leading tness manufacturers in the world and is backed by one

of the most comprehensive warranties available. XTERRA Fitness will do all we can to make

your ownership experience as pleasant as possible for many years to come.

If you have questions, or if parts are missing or damaged, or you require customer service,

call (870) 333-5500. Please have your model number and serial number handy when you call.

Please take a moment to record where you purchased your machine, as well as the date of

purchase for future reference. We appreciate your condence in XTERRA Fitness and we

will always remember that you are the reason that we are in business. Please complete and

mail your registration card today and enjoy your new Upright Bike.

Yours in Health,

XTERRA Fitness

Congratulations On Your New Upright Bike and Welcome to the XTERRA Fitness Family!

Product Registration

UB120_20191011

Version 4.0

Purchase Location

Purchase Date

UB120 UPRIGHT BIKE

WARNING - Read all instructions before using this appliance.

1. Use this equipment only for its intended use as described in this manual. Do not

attempt to ride this bike at high pedal speeds until you have ridden the bike for some

time and are comfortable riding at slower pedal speeds.

2. Serious injury or death may occur from over-training. Consult a medical doctor or

qualied tness instructor to determine an exercise program appropriate for your level

of tness.

3. Do not attempt to turn the pedal cranks by hand. Do not touch any driving mechanism

while it is in motion as possible injury could occur.

4. In a home setting, keep children away from the bike when it is not in use. Keep

children and pets away from the unit while it is in use.

5. Do not attempt to perform dip movements on handlebars.

6. Never drop or insert any object into any opening of the bike.

7. Only use the bike on a stable, level oor.

8. Follow instructions for safe use of the equipment including proper seat position,

handlebar position, and use of foot positioning system of pedals. For safe operation,

allow for at least 1 foot (30cm) of free space to either side of the unit and 2 feet (60cm)

of free space to the rear of the unit.

9. Weight Limit: 250 lbs.

Regularly examine the bike for damage and wear. Inoperable components should be

replaced immediately or the equipment should not be used until it is repaired.

Failure to follow all guidelines may compromise the effectiveness of the exercise

experience, expose yourself (and possibly others) to injury, and reduce the longevity

of the equipment.

SAVE THESE INSTRUCTIONS - THINK SAFETY!

Important Safety Instructions

WARNING: This product can expose you to chemicals including Toluene and Acrylamide which

are known to the State of California to cause cancer and birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov

UB120 UPRIGHT BIKE

1. Obtain a complete physical examination from your medical doctor and enlist a health/

tness professional’s aid in developing an exercise program suitable for your current

health status.

2. When working out for the rst time, start out slowly for a minimum of ve minutes.

After your muscles are warmed up, gradually increase the pedaling speed and/or

resistance.

3. The speed and duration of your exercise program should always be subject to how

you feel. Never permit peer pressure to exceed your personal judgment while

exercising.

4. This exercise equipment is not intended for use by persons with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge.

5. Overweight or severely de-conditioned individuals should be particularly cautious

when using the equipment for the rst time. Even though such individuals may not

have histories of serious physical problems, they may perceive the exercise to be far

less intense than it really is, resulting in the possibility of overexertion or injury.

6. Proper installation and regular maintenance are required to ensure user’s safety.

Maintenance is the sole responsibility of the owner.

Important Operation Instructions

WARNING - AS THE OWNER OF THIS EXERCISE EQUIPMENT, YOU SHOULD

INSIST THAT ALL USERS FOLLOW THE SAME GUIDELINES: YOU SHOULD MAKE

THIS MANUAL AVAILABLE TO ALL USERS.

UB120 UPRIGHT BIKE

48 19

11 07

50 33

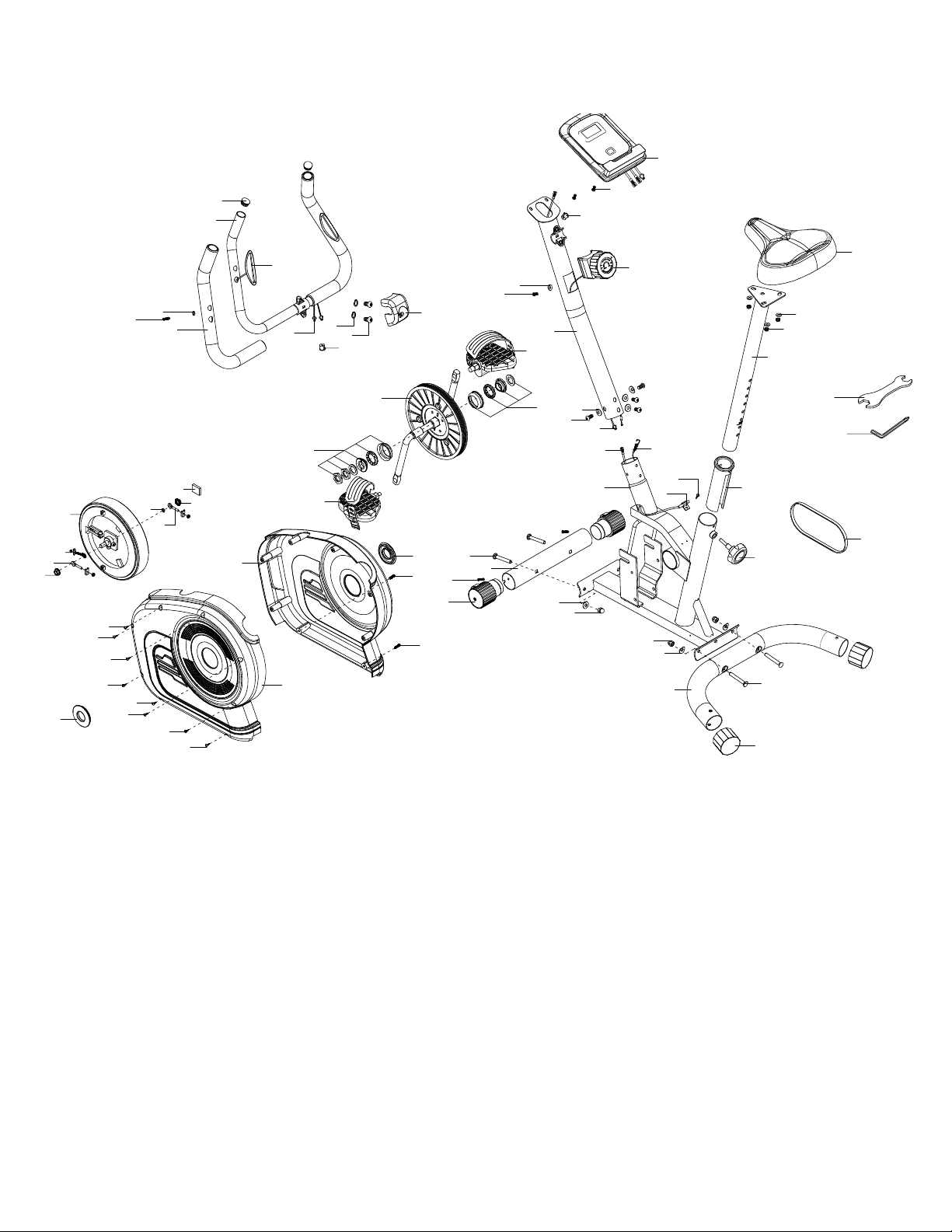

UB120 Exploded View Diagram

UB120 UPRIGHT BIKE

UB120 Parts List

Part

No. Serial No. Description Q’TY

1 UB120-BK1036-PART01 Main Frame 1

2 UB120-BK1036-PART02 Front Post 1

3 UB120-BK1036-PART03 Seat Post 1

4 UB120-BK1036-PART04 Handlebar 1

5 UB120-BK1036-PART05 Front Stabilizer 1

6 UB120-BK1036-PART06 Rear Stabilizer 1

7 UB120-BK1036-PART07 Extension Sensor Wire 1

8 UB120-BK1036-PART08 Crank w/ Pulley 1

9 UB120-BK1036-PART09 Carriage Bolt M8x60L 4

10 UB120-BK1036-PART10 Allen Screw M8x30L 2

11 UB120-BK1036-PART11 Allen Screw M8x15L 4

12 UB120-BK1036-PART12 Sensor Wire 1

13 UB120-BK1036-PART13 Lower Tension Wire 1

14 UB120-BK1036-PART14 Seat Cushion KX6614 1

15 UB120-BK1036-PART15 Flat Washer φ8.5xφ20x1.5t 3

16 UB120-BK1036-PART16 Crossed Head Screw M5x10L 2

17 UB120-BK1036-PART17 Nylon Locknut M8x8.0t 3

18 UB120-BK1036-PART18 Console 1

19 UB120-BK1036-PART19 Arc Washer φ8.5xφ20x1.5t 8

20 UB120-BK1036-PART20 8-Level Tension Knob 1

21 UB120-BK1036-PART21 Spring Washer M8 2

22 UB120-BK1036-PART22 Domed Nut M8x16t 4

23 UB120-BK1036-PART23 Pedal L (1/2" axle) 1

24 UB120-BK1036-PART24 Pedal R (1/2" axle) 1

25 UB120-BK1036-PART25 Cover for Handlebar 1

26 UB120-BK1036-PART26 Club Knob M12 1

27 UB120-BK1036-PART27 Pulse Wire 2

28 UB120-BK1036-PART28 Grommet 2

29 UB120-BK1036-PART29 Chain Cover R 1

30 UB120-BK1036-PART30 Cover for Crank 2

31 UB120-BK1036-PART31 End Cap For Handlebar 2

32 UB120-BK1036-PART32 Flywheel Adjustor Assembly φ18x58L 1

33 UB120-BK1036-PART33 Seat Post Bushing 1

UB120 UPRIGHT BIKE

UB120 Parts List

34 UB120-BK1036-PART34 Transportation Wheel 2

35 UB120-BK1036-PART35 Leveling End Cap 2

36 UB120-BK1036-PART36 Flywheel Assembly 1

37 UB120-BK1036-PART37 Crossed Head Self-Tapping Screw st4.2x12L 2

38 UB120-BK1036-PART38 Curved Washer φ5.5xφ20x1.5t 1

39 UB120-BK1036-PART39 Crossed Head Self-Tapping Screw ST3.2x12L 1

40 UB120-BK1036-PART40 Crossed Head Self-Tapping Screw st4.2x20L 8

41 UB120-BK1036-PART41 Foam Grip For Handlebar 2

42 UB120-BK1036-PART42 Belt 310J J5 1

43 UB120-BK1036-PART43 EVA Pad 38Lx18Wx3t 1

44 UB120-BK1036-PART44 Self-Tapping Screw st4.2x20L 4

45 UB120-BK1036-PART45 Crossed Head Screw M5x40L 1

46 UB120-BK1036-PART46 Flat Washer φ12.5xφ20x1.5t 1

47 UB120-BK1036-PART47 Flange Nut M10 2

48 UB120-BK1036-PART48 Bearing Assembly 1

49 UB120-BK1036-PART49 Flywheel Adjustor 2

50 UB120-BK1036-PART50 Sensor Bracket 1

51 UB120-BK1036-PART51 Chain Cover L 1

52 UB120-BK1036-PART52 Flat Washer φ4.3xφ12x1t 2

53 UB120-BK1036-PART53 Pulse Sensor 2

54 UB120-BK1036-PART54 Allen Key 80Lx30W 1

55 UB120-BK1036-PART55 Multifunctional Wrench 1

UB120 UPRIGHT BIKE

UB120 Assembly Pack Checklist

#19.

8.5 x 20 x

1.5t (4 pcs)

#09.

M8 x 60L

(4 pcs)

#21.

M8 (2 pcs)

#25.

(1 pc)

#26.

(1 pc)

#10.

M8 x 30L

(2 pcs)

#55.

(1 pc)

#54.

5mm

(1 pc)

#22.

(4 pcs)

No. Description Q’ty

09 Carriage bolt M8*60L 4

10 Allen screw M8*30L 2

19 Curved washer φ8.5xφ20x1.5t 4

22 Domed nut M8 4

25 Cover for handlebar 1

26 Club knob 1

54 Allen key 5mm 1

55 Wrench 1
