TREADMILL TL200
OWNER’S MANUAL
2018/5/4V1.0+V1.01
Content
1. Overview Drawing....................................................................................................... 2
2. SAFETY INSTRUCTION ............................................................................................ 3
2.1. Power Requirement ......................................................................................... 6
2.2. Level Adjustment.............................................................................................. 7
2.3. Power Switch ................................................................................................... 7
2.4. Running Belt Adjustment.................................................................................. 8
2.5. Machine movement.......................................................................................... 9
3. Assembly Instructions............................................................................................... 10
3.1. Pre-Assembly Check List ............................................................................... 10
3.2. Hardware Pack .............................................................................................. 11
3.3. Assembly steps .............................................................................................. 12
4. COMPUTER OPERATION INSTRUCTION .............................................................. 17
4.1. Computer structure ........................................................................................ 17
5. Heart Rate Exercise.................................................................................................. 20
5.1. Heart Rate Exercise ....................................................................................... 20
5.2. Pulse Detection System ................................................................................. 21
6. Exercise Program ..................................................................................................... 22
7. Troubleshooting ........................................................................................................ 36
8. Metric/ imperial conversion ....................................................................................... 39
2018/5/4V1.0+V1.02

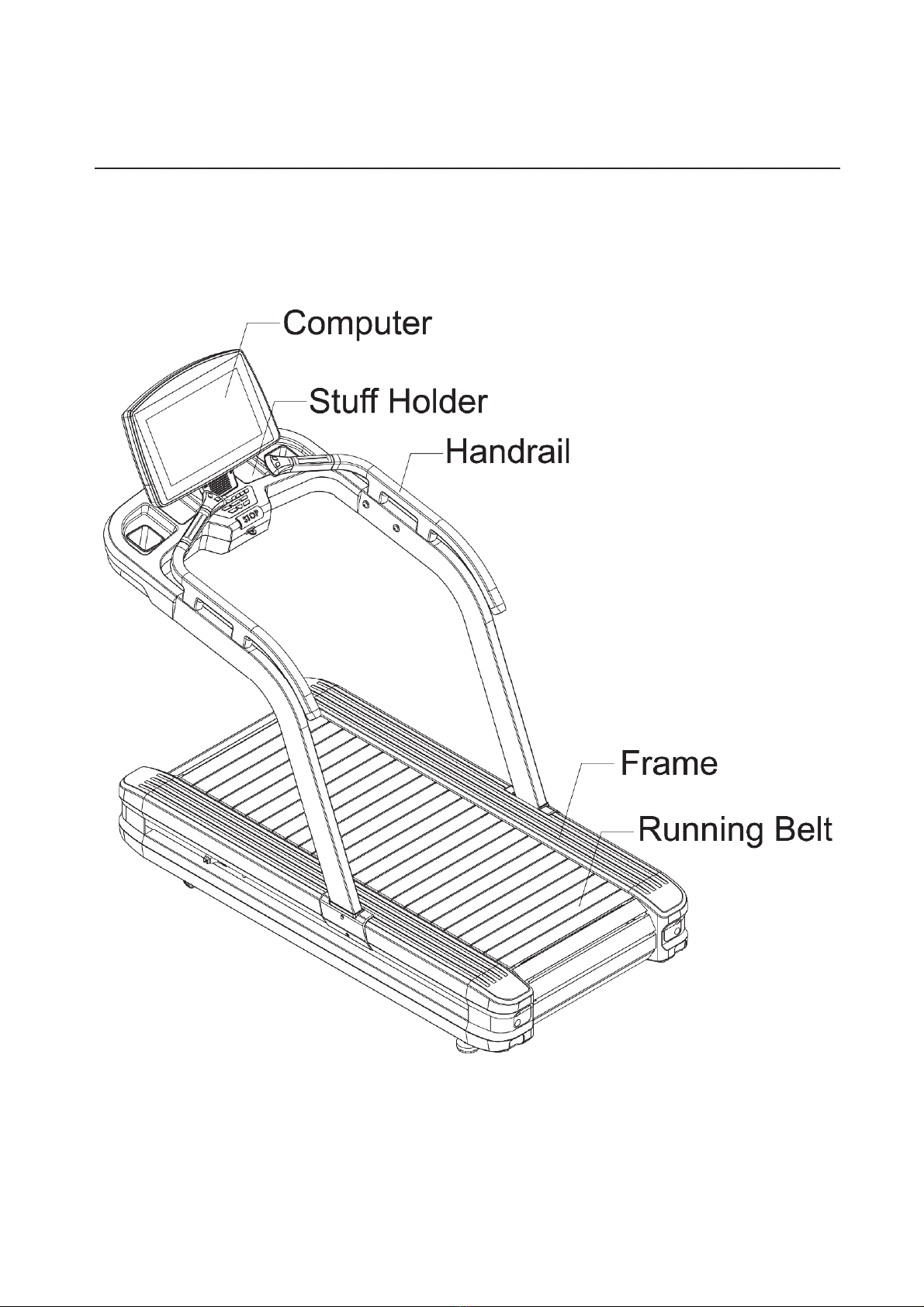

1. Overview Drawing
2018/5/4V1.0+V1.03
2. SAFETY INSTRUCTION
When using this product, basic precautions should always be followed, including the
following:
Please read the instruction carefully before starting to use this product.
DANGER – To reduce the risk of electric shock：
1 Always unplug this product from the electrical outlet immediately after using and
before cleaning.
WARNING – To reduce the risk of burns, fire, electric shock, or physical injury：
1 The product should never be left unattended while plugged in. Unplug the product from
the outlet when not in use.
2 Close supervision is necessary when this product is used by or near children, invalids,
or disabled persons.
3 Be sure to use the product only for its intended use as described in this manual. Do not
use any attachment not recommended by the manufacturer in order to avoid any danger
or accidents.
4 Never operate the product if it has a damaged cord or plug, if it is not working properly,
if it has been damaged, or dropped into water. Please return the product to the service
center of seller for examination and repair.
5 Do not carry this product by the supply cord or use the cord as a handle.
6 Keep the cord away from hot surfaces or ground.
7 Never operate the product with the air vents blocked. Keep the air vents free of lint,
hair, etc.
8 Never drop or insert any objects into any openings.
9 Do not use or operate outdoors.
10 Do not operate where aerosol (spray) products are being used or where oxygen is
2018/5/4V1.0+V1.04
thin.
11 Before turning the product power off, turn all controls to the off position then remove
the plug from the outlet.
12 Connect the product to a properly grounded outlet only.
13 If the power cord is damaged, be sure to ask the manufacturer for replacement to
avoid accidents. The seller and correlative qualified professionals are as well as eligible.
14 This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
15 Incorrect or excessive training may cause injuries t health may results.
16 The equipment shall be installed on stable base and properly leveled.
17 A shall be safety area of 2,000mm x 1,000mm behind the equipment.
18 Maximum user weight is 180 Kgs.
19 When this treadmill is being used, it can not be folded at the same time.
Required to confirm the device completely stopped before folding
20 the safety level of the equipment can be maintained only if it is examined regularly for
damage and wear.
21 any of the adjustment devices that could interfere with the user's movement should not
be left projecting.
22 Users correct ergonomic position on the equipment shown in Figure
2018/5/4V1.0+V1.05
23 Before using this product, you should step on the it then turn on the product. Do not
turn on the treadmill before step on it.
24 Running surface Width dimensions 560*1475mm
25 Customer Address
2018/5/4V1.0+V1.06
2.1. Power Requirement
This treadmill needs special power supply:
Power Voltage（V）Frequency（HZ）Rated Current（A）
100 50/60 15
120 50/60 15
200 50/60 8
220 50/60 8
230 50/60 8
240+ 50/60 8
Wirings should be transported according to the electric law of the local country. High
pressure wires, low pressure wires and underground wires should be transported
separately and can’t connect with or twist other wires.
Improper connection of the grounding plug can result in the risk of electric shock. Check
with a qualified electrician or serviceman if you are in doubt as to whether the products are
properly grounded. Do not modify the plug provided with the product – If it will not fit the
outlet, have a proper outlet installed by a qualified electrician.

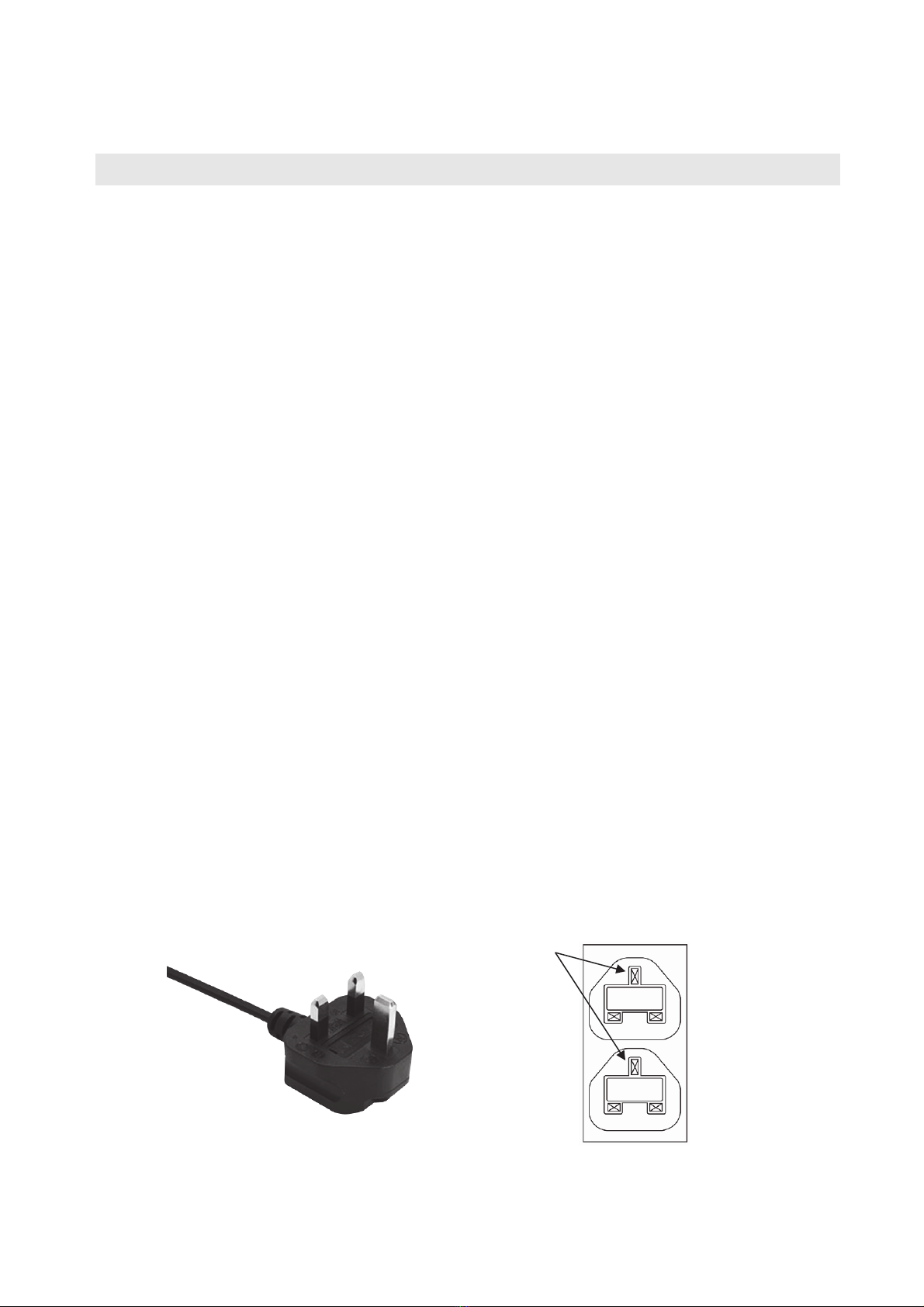

Figure
Grounding methods
GROUNDED
OUTLET
2018/5/4V1.0+V1.07
2.2. Level Adjustment
The treadmill will wobble during workout and the incline angles will be affected if it is
placed on uneven ground.
The level adjustment method is as follows:
1 Turn A counter-clockwise to loosen it
2 Adjust B to the proper height
3 Turn A clockwise to tighten it.
4 The left side adjustment method is the same with the right side
2.3. Power Switch
The Power Switch is on the bottom panel of the treadmill. 1 means on, 0 means off.
2018/5/4V1.0+V1.08
2.4. Running Belt Adjustment
If you need to adjust the running belt tightness, please follow these steps:
1 After assembling and stabilizing the treadmill, check whether the running belt is
running properly.
First, determine that the power supply meets the requirements. After the power is
plugged in, start the treadmill, press the QUICK START button, and then press the
up-speed key to increase the speed to 4.0 miles per hour (MPH), or 6.4 k km/h (KPH).
2 When you need to tighten it, rotate both sides by 1/4 turn clockwise.
When you need to loosen, rotate both sides by 1/4 turn counterclockwise.
2018/5/4V1.0+V1.09
2.5. Machine movement
When the machine is moving, you can put the handling tube (K) into the back of the box to
move the machine.
