Yale Keyfree Connected Manuale utente

User Guide

Keyfree

Connected

KFCON-UG Rev. 001

DO NOT FIT KE FREE UNTIL DOOR INSTALLATION IS COMPLETE.

PLEASE READ THE INSTRUCTIONS BEFORE USING KE FREE.

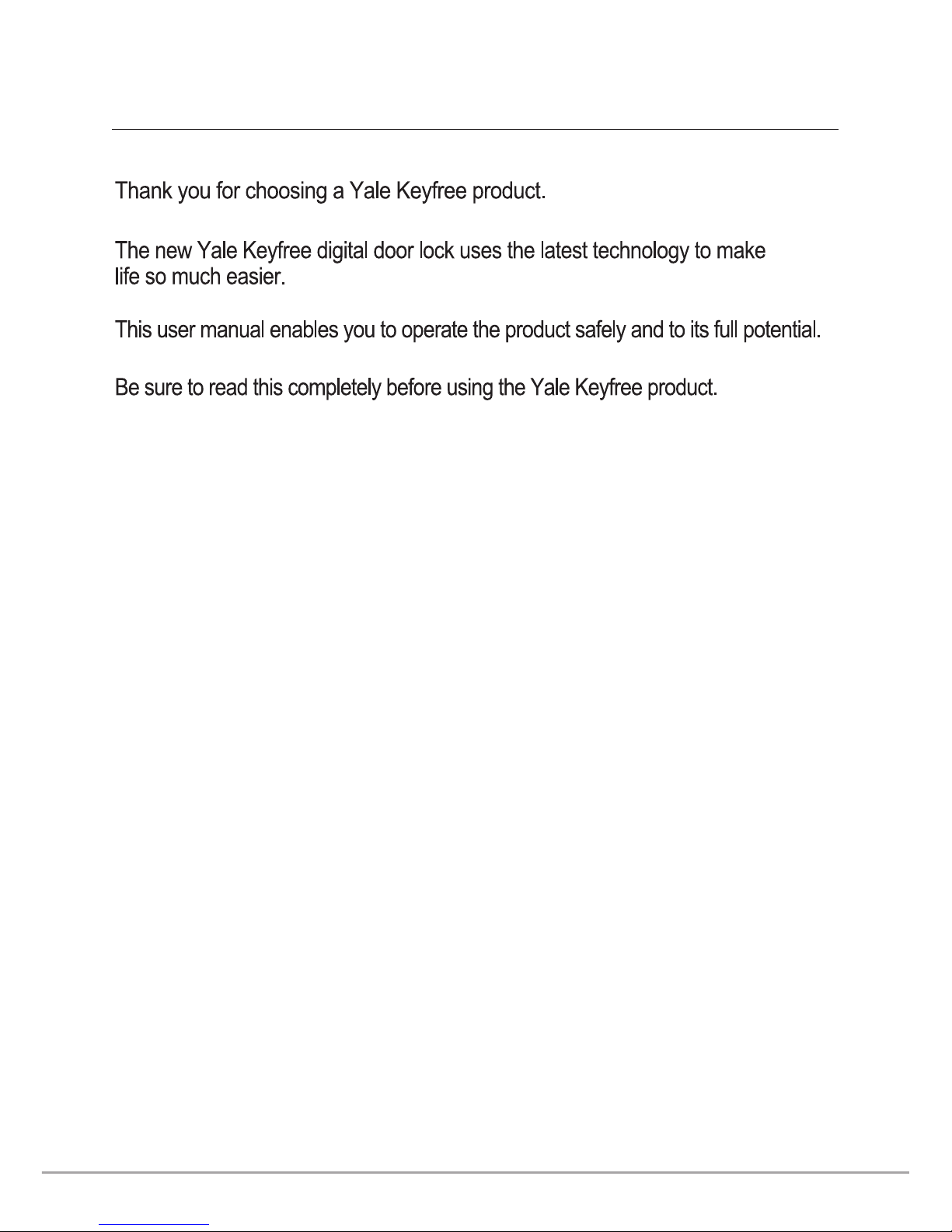

INTRODUCTION

Keyfree Helpine:

01902 364606

Email:

smartlocks@yale.co.uk

Website:

www.yale.co.uk

CONTENTS

Safety Precautions 4

Product Features 5

Lock Overview 7

Set/Change Master Code 8

Set/Delete User Code 9

Opening and locking 11

Set One Day Codes 12

Change Relock Time 16

Silent Mode On/Off 18

Connecting to a Home Automation System 20

Passage Mode 22

Child Safety Mode 22

Handle Alarm 22

Intrusion Alarm 23

Incorrect PIN Lockout 24

Emergency Power 25

User Code Log 29

ey Fob log 30

Introduction

Getting Started

Extra Features

Smart Home

Safety recautions

When you leave your home be sure to

lift up the handle in the given time so

the door is fully secure.

For total peace of mind, please store

your back up key in a safe &

convenient place.

To maintain the high quality finish,

clean regularly with a soft

damp cloth taking care not to

scratch the finish.

Do not use any chemicals when

cleaning as this may affect

your warranty.

Be careful not to let any unauthorized

users discover your PIN code.

Please keep your PIN code safe.

Press button & lift inner handle until.

Red LED will show.

If the inner handle is not lifted to securely

lock your door, the door is held on the latch

only.

Please ensure the button is fully

depressed when opening or locking

your door from the inside.

If the button does not pop up when you

release the lever, please slightly lift up

the inside lever to make the button pop

up for the best security.

Make sure to follow the above instructions to avoid any injuries or damage to the product .

Caution

lease read this carefully

Locking from the outside

Locking from the inside

roduct Features

Electronic PIN Code System

You can open the door conveniently with up 20 configurable PIN codes, allowing eyfree access.

Smart Home Connectivity (Optional)

By adding the corresponding module, your eyfree lock can be integrated with your home automation system.

ey Fob Entry (Optional)

A Yale key fob can be assigned to allow the lock to be unlocked remotely.

Emergency Backup

In the event of power failure in the lock, a 9 volt battery (PP3) can be connected to the front of the lock

to provide backup power

Alarmed Door Lock

The eyfree lock has a built in damage alarm, if the keypad area is damaged an 80dB alarm will sound

Basic Security Locking

The outside handle will automatically disengage once you have entered your home to prevent anyone from

following in behind you.

Emergency Escape Feature

In the event of an emergency the inside handle will always be engaged, allowing escape without first having to unlock

the door.

Introduction

Front (Front Body)

ey Fob

(Optional)

Back (Main Body) Cylinder

User Guide

Keyfree

Connected

KFCON-UG Rev. 001

DO NOT FIT KE FREE UNTIL DOOR INSTALLATION IS COMPLETE.

PLEASE READ THE INSTRUCTIONS BEFORE USING KE FREE.

User Guide

Lock Overview

¨Basic Contents

¨Optional Accessories

The contents of this product may be subject to change without notice for performance or quality improvement.

Basic Contents

Home Automation

Module (Optional)

Getting Started

Pull down Emergency Cover 1 eypad (10- ey)

2 Enter button

3 Lever Handle

4 button

5Emergency Power Supply

Terminal

6 Reset button

eyhole

Battery Cover

2 LED Indicator

3 Lever Handle

4 Speaker Hole

5 Screw Hole

6Slot for Remote control

module (Optional)

7I button

Passage Mode/Button

1.5V AA Alkaline Batteries

Lock case

Latch Bolt

Dead Bolt to securely lock

Emergency Cover

Lock Overview

(Front Body, install on the outside of the door)

9V Emergency

battery

(Sold separately)

Push Button

Front

Back (Back Body, installed on the inside of the door)

(Front Body, installed on the outside of the door)

Changing Master Code

The master code is the main password to the lock. As well as allowing entry through the door, it is also used to

configure the lock including adding and removing users.

Registration

Step Icon Expected Feedback Description

Press any button Press any button on the

keypad to begin

Enter the master code, 2 tone beep If you are setting the code

followed by # key for the first time the default is

123456.

Select the [1] button 2 tone beep You are now in the lock’s menu,

followed by # key choose option number 1 to

change the master code.

Enter a new master code The master code must be

6 digits

Press the # button Voice saying “completed” This completes the master

code setup.

Getting Started

Setting a User Code

Enter the master code,

followed by # key

You are now in the lock’s menu, choose option

number 2 to select the user code setup.

If you have forgotten the master code please

see the resetting the lock section of the

manual.

Press any button Press any button on the keypad to begin

Select the [2] button followed

by # key

Option number 1 adds or modifies a user

code

Press the [1] button and then #

This is the number of the slot in memory

where the code will be saved (1-20)

The lock can hold up to 20 unique user codes, each one has a slot in the locks memory from 1 to 20. If a new code is

written to a slot that already holds a code it will overwrite it. Because of this it is important to record which codes are stored

in each slot. Please use the section in the back of the book to record this.

Step Icon Expected Feedback Description

2 tone beep

Enter the slot number for the

user code followed by # key

2 tone beep

The user code can be between 4-10 digits

Enter the new user code

followed by # key

The user code will now be added to the lock.

Press the # button to finish.

3 tone ascending beep

Voice saying “completed”

To add multiple codes please complete the above instructions, record that the memory slot has been filled in the user

code log at the back of this guide, then repeat this process.

Deleting a User Code

Enter the master code,

followed by # key

You are now in the lock’s menu, choose option

number 2 to select the user code setup.

If you have forgotten the master code please

see the resetting the lock section of the

manual.

Press any button Press any button on the keypad to begin

Select the [2] button followed

by # key

Option number 2 deletes a user code

Press the [2] button and then #

This is the number of the slot in memory

where the code will be saved (1-20)

To stop a user having access their code will need to be deleted. Before doing this you will first need to know which slot in

the locks memory their code is in. Please see the user code log at the back of the guide.

Step Icon Expected Feedback Description

2 tone beep

Enter the slot number for the

user code followed by # key

2 tone beep

The user code will now be deleted from the

lock.

Press the # button to finish. Voice saying “completed”

3 Tone Ascending beep
