nexTouch™ Keypad Access Exit Trim Lock
Touchscreen and Push Button
Installation and Programming Instructions
WARNING
This product can expose
you to lead which is
known to the state of
California to cause cancer
and birth defects or other
reproductiveharm.For
more information go to
www.P65warnings.ca.gov.
08/2018
80-8470-0900-000 04-21
Part of ASSA ABLOY
Before You Begin
280-8470-0900-000 04-21
Part of ASSA ABLOY
AA
AA
AA
AA
Optional
Network Module
template
#3 & #2
1/2"3/4"
Left Hand
Reverse Right Hand
Reverse
Face a door swinging open
toward you.
If it swings open to the right, it is
a right hand reverse door. If it
swings opens to the left, it is a left
hand reverse door.
Exterior
Outswinging Door
Interior
Optional
Privacy DPS Switch
Fire
Guard
Tools Needed
3
1
80-8470-0900-000 04-21
Part of ASSA ABLOY
Prepare Door
Drill holes 1/2 way thru
door then complete
from other side to
prevent splitting.
DPS Option
for Privacy Function
Wood Door:
3/8" Dia. Thru to
Hole in Door Face
*Metal Door:
3/4" Dia. Thru to
Hole in Door Face
*Metal Door Installations
Supplied plastic collar
MUST be installed for DPS
to function properly.
template
Door Position Switch Option
O
optional
Privacy DPS Switch
With Door Position Switch installed and
door closed, all keypad functions can be
disabled by Privacy Button.
2
80-8470-0900-000 04-21
Part of ASSA ABLOY
Test Cylinder
Test cylinder by turning key counter-clockwise to unlock trim.
If there is any binding then cylinder is not at correct depth
and needs to be threaded further into escutcheon.
If using cylinder other than 1-1/8", a new collar must
be used that is sized appropriately for cylinder length.
Install Cylinder
Tighten
counter-clockwise
to secure lock.
Use key to thread
cylinder. Pull key
out of cylinder to
first blade cut for
best operation.
X
4
3
There is a
spring inside
spindle. Be
sure to keep
spring for
reassembly.
Set screw should be
located on same
side as lever arm.
1
2
2
1
1
2
1
2

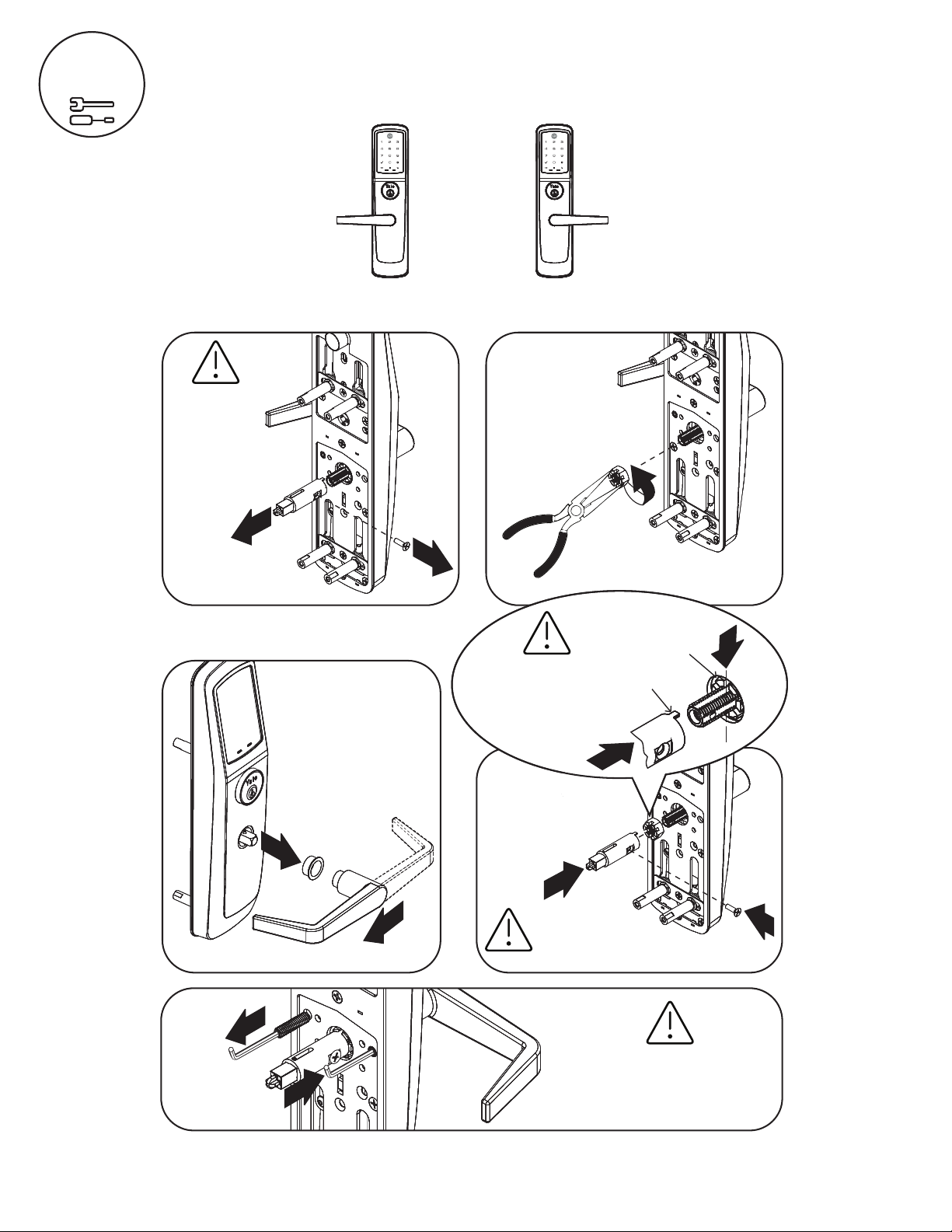

Change Hand of Trim (if necessary)
Right Hand ReverseLeft Hand Reverse
Tighten nut then
loosen just enough
that spindle tab
aligns with top of
hole.
Be sure spring
is inside spindle.
Spindle
Tab
Nut
580-8470-0900-000 04-21
Part of ASSA ABLOY
6

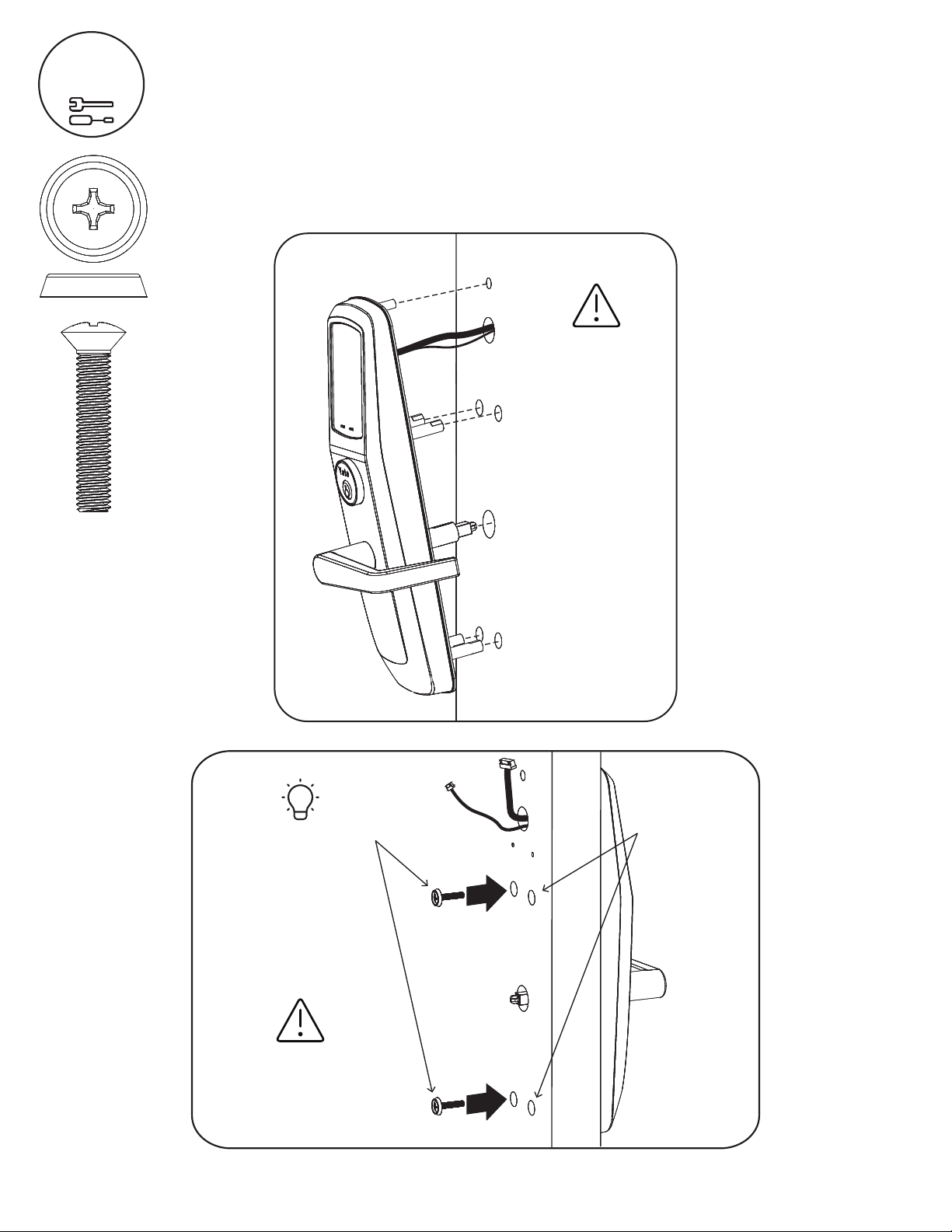

4Install Outside Trim Assembly
#10-32 x 1" OHPMS
x2
80-8470-0900-000 04-21
Part of ASSA ABLOY
Do not take
apart outside
assembly.
Do not tighten
screws until
exit device
installation -Step 5.
2 hinge side screws
hold outside trim
assembly until exit
device is installed.
All 4 screws MUST
be used for proper
installation.
1
2
Exit Device
Mounting
Holes
7
5
80-8470-0900-000 04-21
Part of ASSA ABLOY
Test Mechanical Lock Function by
Key, Lever and Keypad
Install Exit Device
x2
#10-32 x 1" PHMS
Tighten all screws.
3
4
Refer to exit device installation instructions
for details of device installation.
8
6
80-8470-0900-000 04-21
Part of ASSA ABLOY

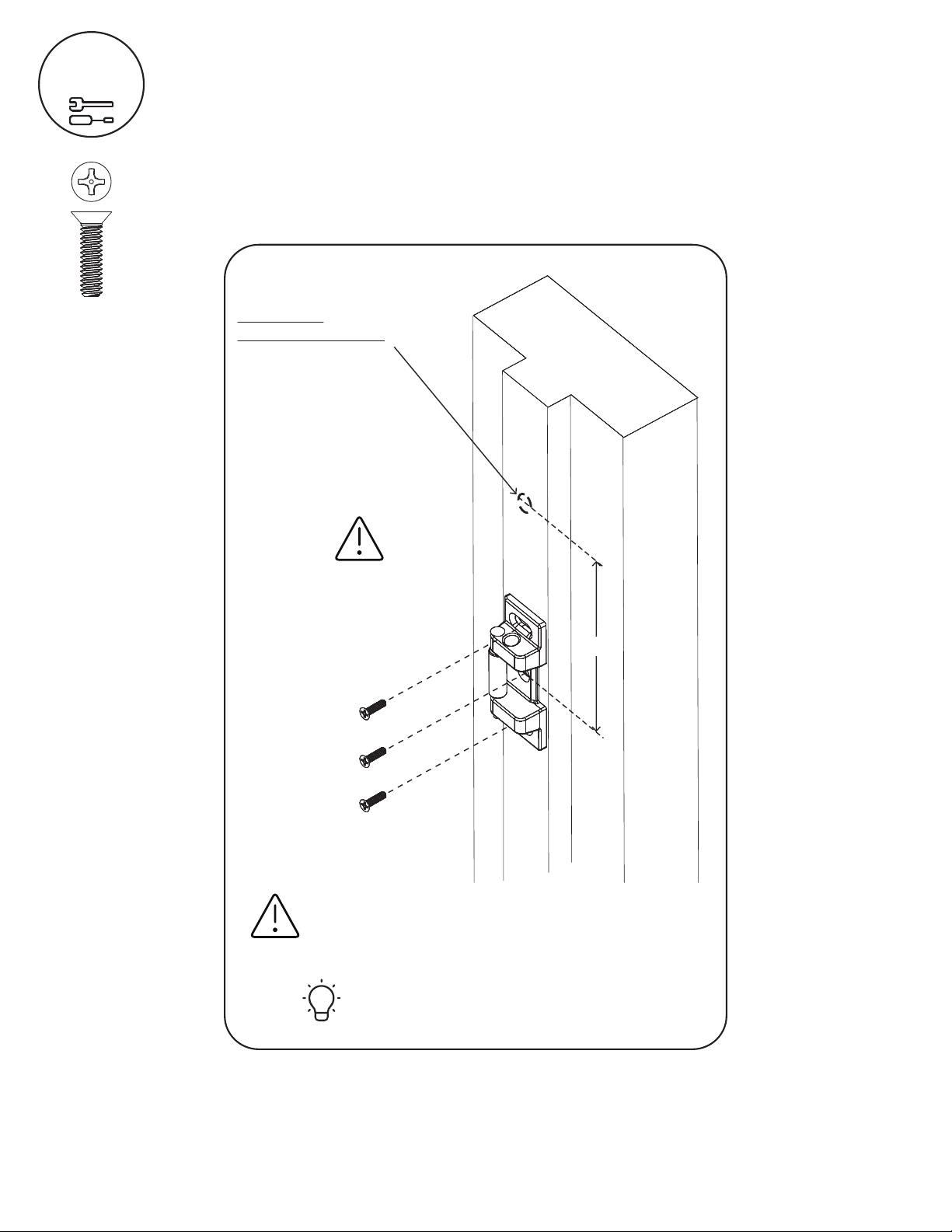

Install Strike and Optional DPS
x3
#10-24 PFHMS
Refer to exit device installation instructions
for details of strike installation.
3-1/2"
DPS Option
for Privacy Function
*Metal Frame:
3/4" Dia. x 1"
See Instructions with DPS Kit
*Supplied plastic collar MUST
be installed for DPS to
function properly.
Frame
Strike must be centered with exit device bolt. For
proper engagement, door should remain latched
and not rattle when pushed, pulled or shaken in/out.
2
Inside of Door
Optional
DPS
1
9
7
80-8470-0900-000 04-21
Part of ASSA ABLOY
x1
#10-32 x 1-1/2"
THPMS
Install Inside Mounting Plate
x2
#8 x 3/8" PRH
Sheet Metal
OR
#8 x 1/2" PHWS
Wood
x2
10
8
80-8470-0900-000 04-21
Part of ASSA ABLOY
Attach Cables to Inside Lock
Optional
DPS
Connection
Motor
Connection
Keypad
Connection
Reset
Button
External
Power
