Yale Real Living YRD156 Specifiche tecniche

P/N - - Rev AAYRD 156-INST FUL

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO

THE PRODUCT AND VOID THE FACTORY WARRANTY

Yale Real Living®YRD156

Key Free Touchscreen Deadbolt with Z-Wave Plus

Installation and Programming Instructions

x2 Silver

#8-32 x 5/16"

Machine screws

#7 wood & #8-32

machine x 20mm

Combination screws

M6x55mm

PPHMS

(2-1/4" )

x2 Black

M6x44mm

PPHMS

(Standard 1-3/4" - 2" )

x2 Gold

M6x36mm

PPHMS

(1-3/8" )

Before you begin

for step-by-step installation

instructions & to register

your product

DOWNLOAD

THE BILT APP

P/N - - Rev AAYRD 156-INST FUL

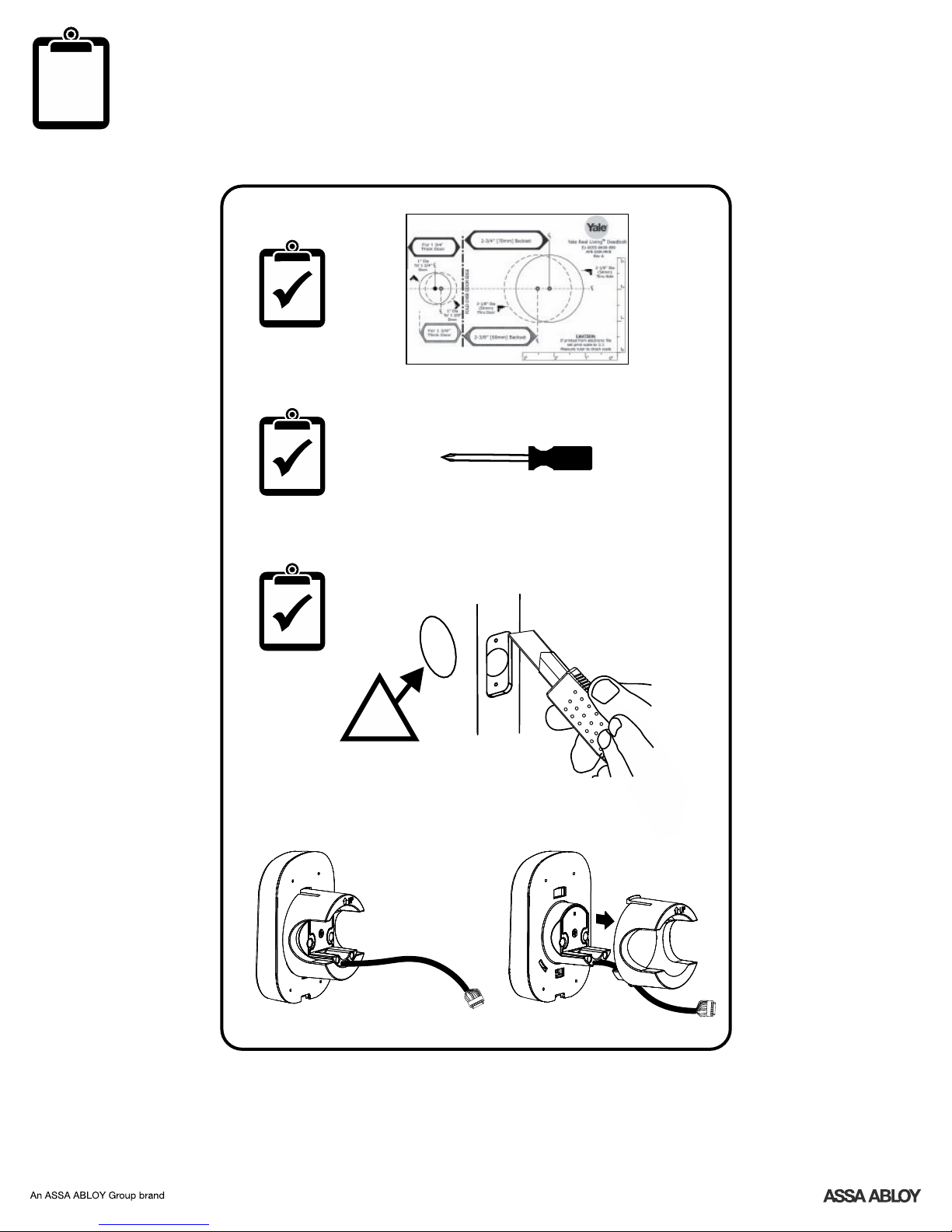

Preparing Door and Touchscreen Escutcheon

Cup must be removed from

escutcheon if bore hole is

less than 2-1/8".

2-1/8" Application <2-1/8" Application

P/N - - Rev AAYRD 156-INST FUL

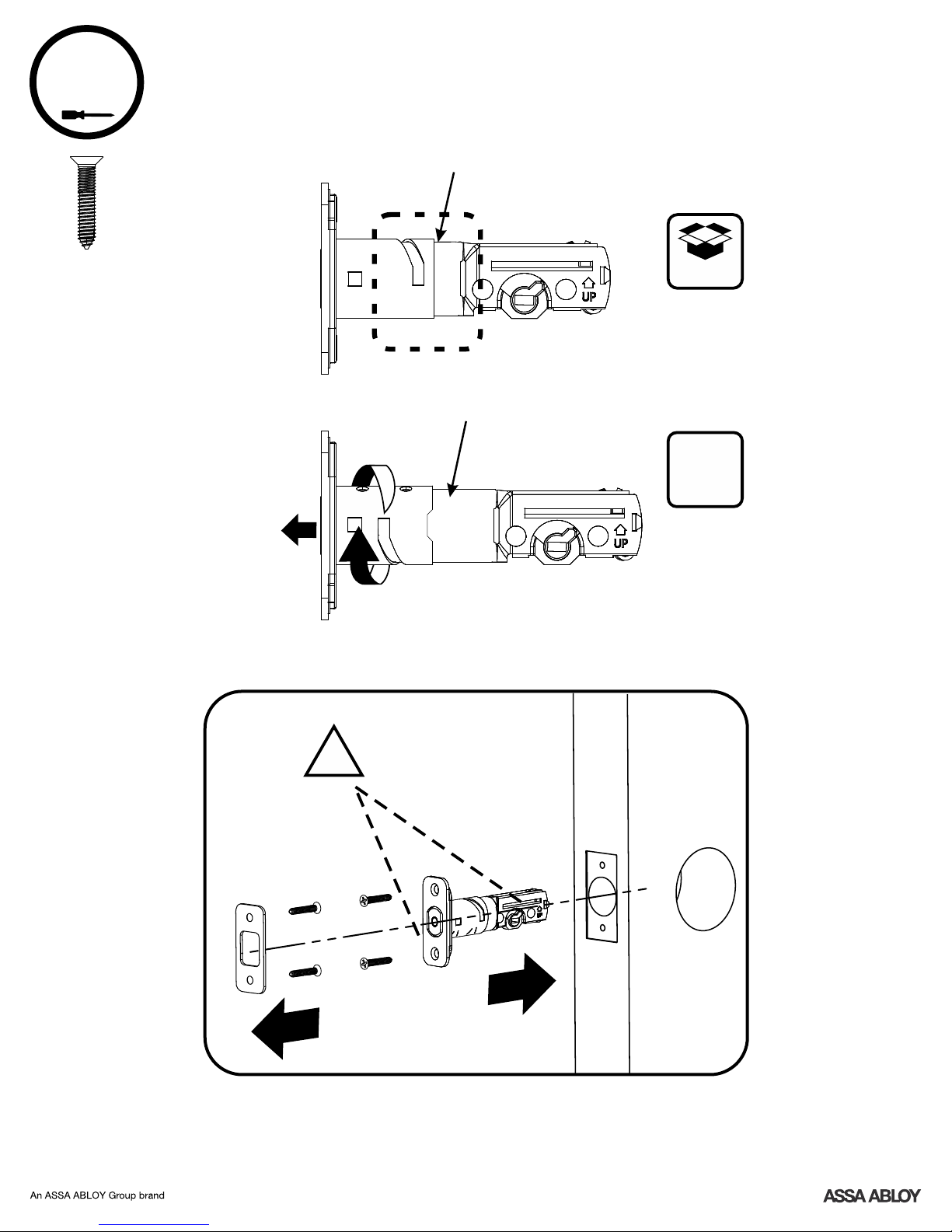

1Installing Latch & Strike Plate

Rotate

2-3/8" position

2-3/4" position

optional

Bolt must be in retracted

(unlocked) position. UP

arrow must be facing

upwards.

default

2- /

P/N - - Rev AAYRD 156-INST FUL

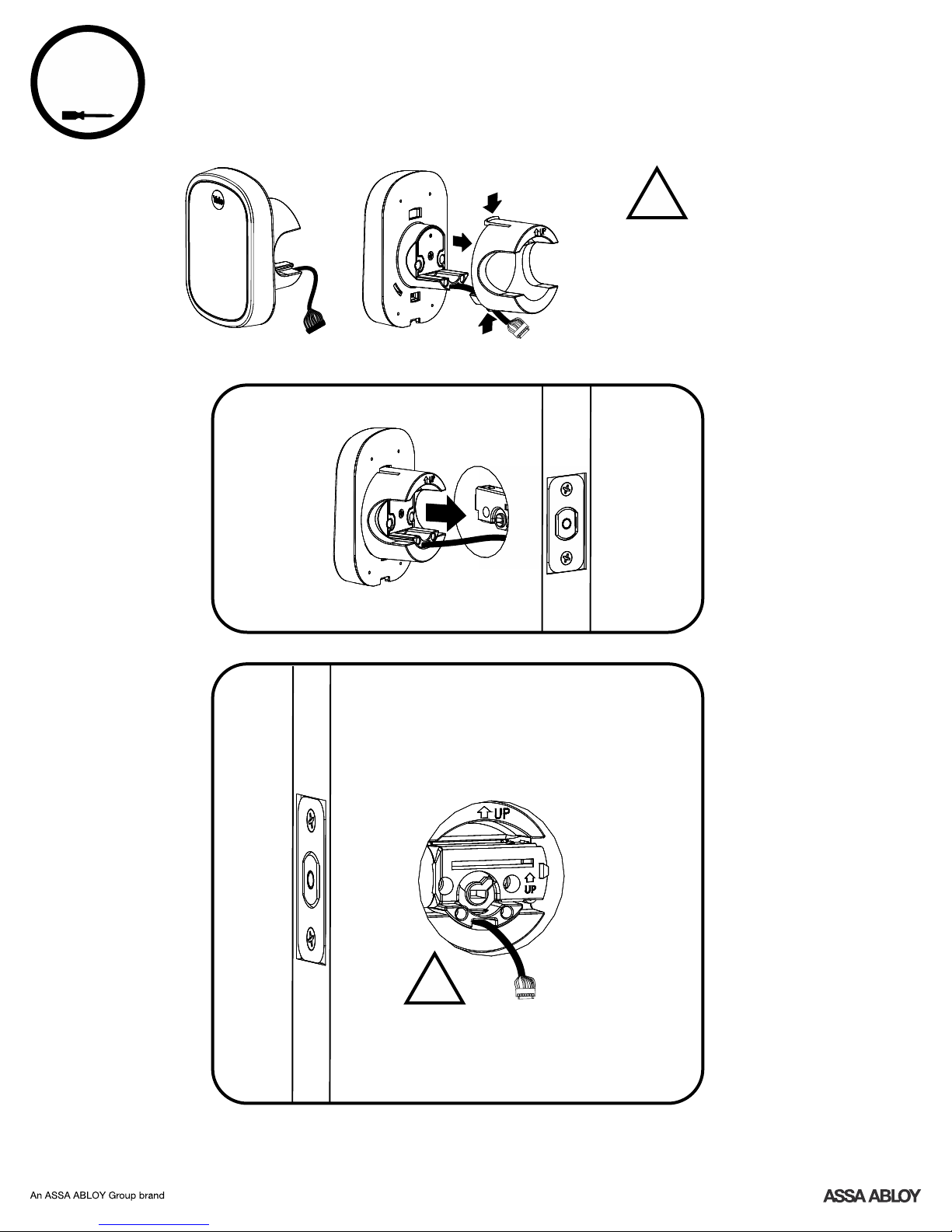

2Installing Touchscreen Escutcheon

Outside of Door

Ensure cable is

routed under the

deadbolt.

If bore hole is less

than 2-1/8", remove

cup by gently

compressing two

tabs while pulling.

P/N - - Rev AAYRD 156-INST FUL

3Installing Interior Mounting Plate

Choose

through bolt

appropriate for

your door

thickness.

4Attaching the Cable Assembly

P/N - - Rev AAYRD 156-INST FUL

5Installing Interior Escutcheon

Thumbturn

should be in

vertical

position.

P/N - - Rev AAYRD 156-INST FUL

Testing Operation

Deadbolt should

extend and retract

smoothly. If not, go

back to step 2.

Bolt must be in

retracted

(unlocked)

position before

installing AA

batteries.

P/N - - Rev AAYRD 156-INST FUL

Initial Programming

Press .

Enter new Master PIN

code (4-8 digits).

Press to complete.

Lock will not operate

until gear is pressed

and Master PIN code

is set.

After entering the Master PIN

code, press any key to complete

handing.

P/N - - Rev AAYRD 156-INST FUL

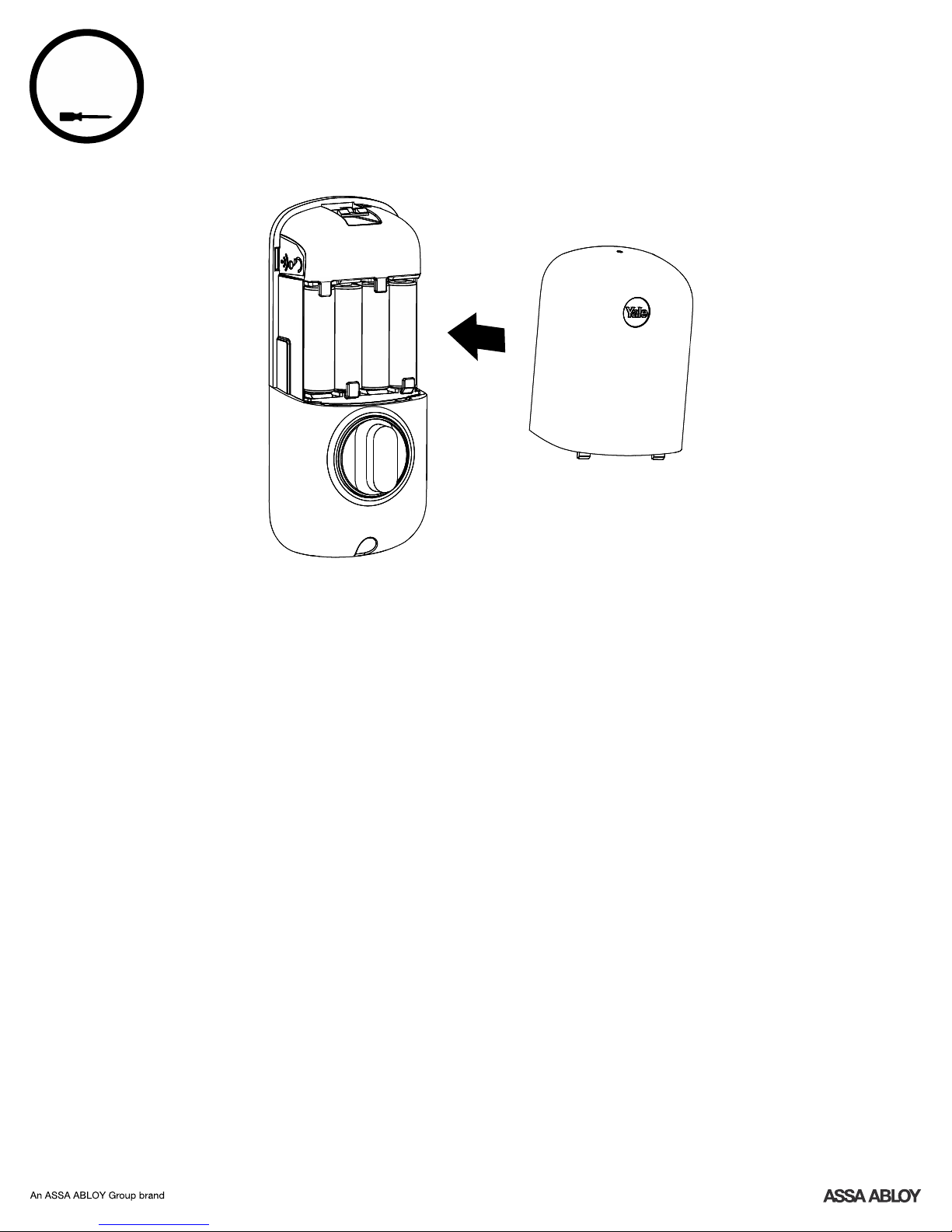

6Installing Cover

Congratulations, you've installed the Yale Real Living®

YRD156 Key Free Touchscreen Deadbolt with Z-Wave Plus!

Continue with Programming Instructions to customize your product.
