Yale Luna Pro+ Manuale utente
Installation Guide
Part of ASSA ABLOY STC-Luna-49S00236
Yale Luna Pro+ / Pro
Yale Luna Pro+
FaceScan / CPU card /
Fingerprint / PIN code / Key
Yale Luna Pro
CPU card / Fingerprint / PIN
code / Key
Part of ASSA ABLOY
Yale Luna Pro / Luna Pro+ 3D人脸推拉锁 安装指导书
材质：封面126g铜版纸，内页100g双胶纸 双面单色印刷 装订册
尺寸：205*140mm 24页
* The pictures in this installation manual are for illustration purposely,
and the actual product or parts may vary. *
Table of contents
1 Preparation before installation
2 Product installation
1.1 Product parts list
1.2 Optional accessories
1.3 Door direction confirmation
1.4 Mortise installation preparation
1.5 Fixing handing direction
1.6 Reversing handing direction (if needed)
1.7 Installation of threaded pull tube, positioning plug
and transmission plate
1.8 Main body handle cover removal
1.9 Door holes opening
2.1 Mortise installation
2.2 Front body installation
2.3 Main body plate installation
2.4 Main body installation
2.5 Striker plate and striker box installation
2.6 Key installation
2.7 Acceptance test
................................
................................
................................
................................
................................
................................
................................
................................
................................
01
03
05
06
07
09
11
12
12
................................
................................
................................
................................
................................
................................
................................
13
14
15
16
17
18
19
1.1 Product parts list
Product main parts
Mortise, striker plate, Striker box, screws
Front body
1x
Left / right decorative panel
(1x each)
Main body plate
1x
Main body
1x
Mortise
1x
Mortise screw
Wooden door
striker plate
* Select the appropriate striket plate
according to the application
1x
Steel door
striker plate
1x
Striker box
1x 10x
Preparation before installation
The battery type may vary depending on the model.
Please do not use or test the mechanical key override before the completion of installation to avoid potential complications
and damages.
Note
CPU card 2x
Lithium battery 1x
(Yale Luna Pro+)
Alkaline AA battery 8x
(Yale Luna Pro)
Type-C USB cable 1x
(Yale Luna Pro+)
Installation Accessories Kit
Accessories
Mechanical key override 2x
1. Threaded pull tube
30mm/50mm/70mm
3x each
5. Transmission plate 100mm
1x
4. Positioning plug 100mm
2x
2. Pull screw
35mm/50mm/70mm
3x each
3. Spindle
35mm/45mm/60mm/80mm
1x each
6. Round head screw M4x8
10x
7. Round head screw ST2.9x8
5x
(for installation of decorative panel)
8. Screw cap 10x
Cover the screw at the back of
the front body
2
9. Cotter pin 1x
(for fixing of transmission plate)
10. Spindle Retaining Ring 1x
(For securing spindle position)
11. Cover plate 1x
(For covering the interior cables)
1
1.2 Optional accessories
Exterior
Round head screws
Interior
Exterior Interior
Remarks:
①Door thickness is the actual total thickness of the door.
②The default factory accessories package is only suitable for 35-100mm door thickness; other
door thicknesses require customized accessories package
Note
3 4
Length=35mm
Length=45mm
Length=60mm
Length=80mm
L1≥17mm
Remark
L1≥23mm
35-44
45-59
60-79
80-100
Spindle
Door
thickness
(mm)
Table 1.2.2 Selection of spindle
1
4
5
1
3
1
2
2
3
2
The distance from the mortise center line to the outdoor door edge is L1
cut 7 sections
cut 6 sections
cut 4 sections
cut 3 sections
cut 5 sections
cut 3 sections
Please refer to
Table 1.2.2
35-50
51-70
71-90
91-100
30 35
50 35
70 50
70 70
Threaded pull tube Pull screw Spindle Positioning plug Transmission plate
Door
thickness
(mm)
Table 1.2.1 Selection and customization of installation accessories
1 2 3 4 5
door thickness
L1
Spindle
Mortise
center line
1.3 Door direction confirmation 1.4 Mortise installation preparation
Striker plate
Screw
Note
left opening door right opening door
Outward door - Door is pulled outwards.
Inward door - Door is pushed inward.
Interior
Left inward-opening Right inward-opening
Left outward-opening Right outward-opening
Exterior
Interior
Exterior
Rotate
180°
2
door open/close direction
Latch bolt reversing guide as below
1
3
Interior
Exterior
Interior
Exterior
5 6
Recommended door gap for installation: 3mm≤door gap≤8mm
This product can be applied to doors with four opening directions: left inward-opening, left
outward-opening, right inward-opening, right outward-opening. Take the person standing
outside facing the door as the standard: if the hinge of the door is installed on the left side, then
the door is a left opening door, and if the hinge on the door is installed on the right side, then the
door is a right opening door.
The latch bolt direction is determined by the door opening direction, either left
inward-opening, right inward-opening, left outward-opening or right outward-opening
To determine the latch direction by checking the door opening direction, either left inward-open-
ing, left outward-opening, right inward-opening, right outward-opening, this is to ensure that
when the door is closed, the latch bolt can be retracted under the pressure of door frame.
Step 1. Use a tool to remove screws as show in picture, and disassemble striker plate from
mortise.
Step 2. Remove by pulling out the latch bolt, change the latch bolt direction by rotating 180°
manually, and reinsert the latch bolt to the mortise.
Step 3. After reversing, reinstate the striker plate and screws.
Check and adjust the latch
bolt direction accordingly to
ensure the straight edge of
the latch bolt is perpendicu-
lar to the door opening
direction.

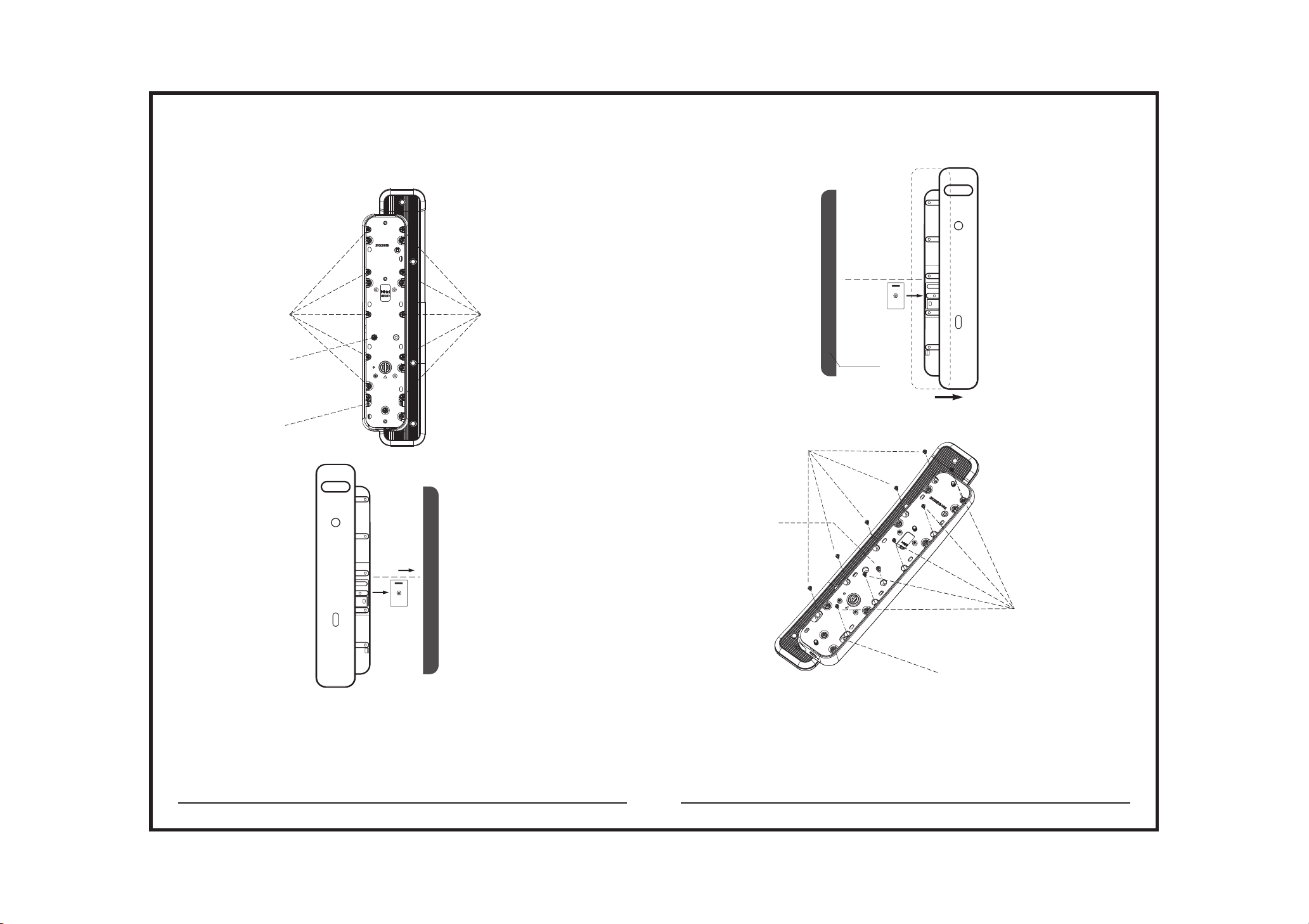

1.5 Fixing handing direction
For right-opening door, slide the handle to the right; for left-opening door, slide the handle
to the left.
Note
Decorative
panel (right)
1
. Handle
Front body
Cover plate
5
. Round head screws
(ST2.9) for handing fixing
6
. Round head screws
(M4) for handing fixing
3
. Round head screws
(M4) for securing cover plate
4
. Decorative
panel buckle
Handle direction to be determined by door handing direction..
3
2
4
Screw holes at the back panel,
to put on screw caps
7 8
Step 1. Handle is positioned at the center by default.
Step 2. Slide the handle to the desired position based on the door handing direction.
Step 3. Secure the cover plate with round head screws (M4).
Step 4. Ensure the decorative panel is secured into the decorative panel.
Step 5. Secure the corresponding decorative panel with round head screws (ST2.9).
Step 6. Secure the handle with the round head screws (M4)
1.6 Reversing handing direction (if needed)
5
. Cover plate
5
. Round head screws (M4)
for securing cover plate
4
6
. Decorative
panel (left)
2
. Decorative
panel buckle
6
. Decorative
panel buckle
8
. Handing fixing
screws (M4)
3
.
decorative panel and cover plate
9 10
If you need to change the door opening direction due to ie. changing of the door,
you will need to reverse the door handing direction.
Step 1. Unscrew the handing fixing screws and the cover plate screw at the back of the front
body.
Step 2. Push out the decorative panel from the buckle.
Step 3. Disassemble the decorative panel and cover plate.
Step 4. Slide the handle to the opposite position.
Step 5. Secure the cover plate with round head screw (M4).
Step 6. Ensure the decorative panel is secured into the decorative panel buckle.
Step 7. Secure the corresponding decorative panel with round head screw (ST2.9)
Step 8. Secure the handing fixing screws (M4)
1
. round head
screws (ST2.9)
1
. round head
screws (M4)
1
. round head
screws (M4)
7
. round head
screws ST2.9
1.7 Installation of threaded pull tube,
positioning plug and transmission plate
1.9 Door holes opening
1.8 Main body handle cover removal
Lock body hole template
screw hole
Mortise hole-opening template
Threaded pull tube
Threaded pull tube
Threaded pull tube
Positioning plug
Cotter pin
Transmission plate
Gasket
12
Step 1. Insert transmission plate
Step 2. Bend the cotter pin with a tool to secure the transmission plate.
Step 3. Cut the positioning plug to the required length according to Table 1.2.1 in section 1.2
11 12
Before installation, use a flat-headed screw driver to detach the handle cover on
the main body as shown in the picture above to expose the screw holes for
installation later.
Bore holes on the door using the installation template. Do not close the door
during the installation of the product.
Step 1. Make hole on the door according to the template provided, insert mortise into door
panel.
Step 2. Ensure the mortise cable is pulled out gently to the interior side of the door
through the top hole.
Step 3. Secure the mortise with the two mortise screws.
Step 1. Pull through the front body cable assembly through the top hole as shown in the
Step 2. Align the positioning plug and threaded pull tube to the respective holes, and
ensure the front body gasket is tightly secured on the door panel.
2.1 Mortise installation
2.2 Front body installation
Mortise cable assembly
Exterior Interior
Exterior Interior
1
3
2
Mortise screw
Product installation
13 14
1
2
1
3
3
4
2
Step 1. Pull both cable assembly through the main body plate
Step 2.1. Place the spindle retaining ring to the hole as shown in the picture.
Step 2.2. Insert the spindle into the mortise through the spindle retaining ring
Step 3. Secure the main body plate with the pull screws
Step 4. Remove the spindle retaining ring and the spindle
Step 5. Cut the transmission plate to the required length according to Table 1.2.1 in section 1.2
Insert the spindle into the main body
and ensure the positioning pin is
aligned and inserted to the designated
hole as shown in the picture
Step 1. Insert the spindle into the main body. Make sure the positioning pin is aligned and
inserted to the designated hole to secure the spindle
Step 2. Connect the cable assemblies to the respective connectors on the main body.
Tuck the excess cables into the door panel
Step 3. Secure the main body with the round head screws (M4)
Step 4. Install the handle cover then the battery
2.3 Main body plate installation 2.4 Main body installation
InteriorExterior
5
2.1
2.2
Pull screw
Pull screw
Spindle
Retaining Ring
positioning plug
Spindle Retaining Ring
Main body plate
Spindle
Spindle
Pull screw
Cut the positioning plug and transmission
plate according to Table 1.2.1 in section 1.2
Lever
handle cover
Mortise connector (right)
Front body connector (left)
1
16
4
3
Spindle Retaining Ring
1
15
Mortise
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Yale Serratura
Yale
Yale YRD246 Specifiche tecniche
Yale
Yale Assure Lock SL Specifiche tecniche
Yale
Yale SL7000 Series Manuale utente
Yale
Yale Real Living YRD240 Manuale di installazione
Yale
Yale 5400LN SERIES Manuale utente
Yale
Yale nexTouch Specifiche tecniche
Yale
Yale Assure Lock YRD426 Specifiche tecniche
Yale
Yale Nest x Yale Lock Istruzioni operative
Yale
Yale Doorman Manuale utente
Yale
Yale Keyfree Connected Smart Lock Manuale utente
Yale
Yale YRCB-490-BLE-WSP Manuale utente
Yale
Yale Real Living Touchscreen Lever Guida all'installazione
Yale
Yale Brighton Manuale utente
Yale
Yale Assure Lock YRL216 Specifiche tecniche
Yale
Yale Real Living YAYRL220ZWx Specifiche tecniche
Yale
Yale Assure Lock YRD216 Specifiche tecniche
Yale
Yale nexTouch Specifiche tecniche
Yale
Yale YDR323 Manuale utente
Yale
Yale Assure Lock Lever Touchscreen YRL226 Specifiche tecniche
Yale
Yale 5300LN Grade 2 Manuale utente
