nexTouch™Keypad Access Cylindrical Lock

Touchscreen and Push Button

Installation and Programming Instructions

Optional

3/32"

Optional

80-9150-0080-010 04-21

Part of ASSA ABLOY

Determine Handing

The hand of a door is determined from the secure side of the door.

The term "secure" means the side from which you initially unlock

and enter.

Left Hand “LH”, Hinges Left.

Open Inward.

Left Hand Reverse "LHR", Hinges Left.

Open Outward.

Right Hand "RH", Hinges Right.

Open Inward.

Right Hand Reverse "RHR", Hinges Right.

Open Outward.

280-9150-0080-010 04-21

Part of ASSA ABLOY

Prepare Door

Drill holes 1/2 way

thru door then

complete from other

side to prevent

splitting.

DPS Option

Wood Door:

3/8" Dia. Thru to

Hole in Door Face

*Metal Door:

3/4" Dia. Thru to

Hole in Door Face

*Metal Door Installations

Supplied plastic collar MUST be

installed for DPS to function properly.

380-9150-0080-010 04-21

Part of ASSA ABLOY

Prepare Frame

DoorFrame

1" Dia. x

1/2" Deep

Frame

Inside

of Door

Frame

3-1/2"

DPS Option

Wood Frame:

3/8" Dia. x 1"

*Metal Frame:

3/4" Dia. x 1"

See Instruction

A7983B

7-16 / 8-32 x 1" UNCWS

*Metal Door Installations

Supplied plastic collar MUST be

installed for DPS to function properly.

480-9150-0080-010 04-21

Part of ASSA ABLOY

Prepare Inside Lock

Do not take apart the

keypad.

580-9150-0080-010 04-21

Part of ASSA ABLOY

Curved edge of latchbolt

faces direction door closes.

Install Latchbolt

Inside of Door

7-16 / 8-32 x 1" UNCWS

2-3/8" Latchbolt for thin doors sold separately.

See Installation Options.

Remove Battery Cover

680-9150-0080-010 04-21

Part of ASSA ABLOY

Install Keypad

Inside of Door

View from Outside of Door

"T" Tabs

Retractor Pocket

Mounting Flange

Two moving "T" tabs

must be fully captured

in retractor pocket.

Mounting Flanges

must be in Mounting

Flange Pockets.

Mounting Flange Pocket

Mounting

Flange

Mounting Flange Pocket

Thin door gaskets sold separately.

See Installation Options.

Optional DPS

780-9150-0080-010 04-21

Part of ASSA ABLOY

10-32 x 2-1/2" PFHMS

Install Inside Support

x2 Do Not

Overtighten Screws

Inside of Door

Optional DPS

880-9150-0080-010 04-21

Part of ASSA ABLOY

Attach Cables to Inside Lock

Optional

DPS

Connection

Motor

Connection

Keypad

Connection

980-9150-0080-010 04-21

Part of ASSA ABLOY

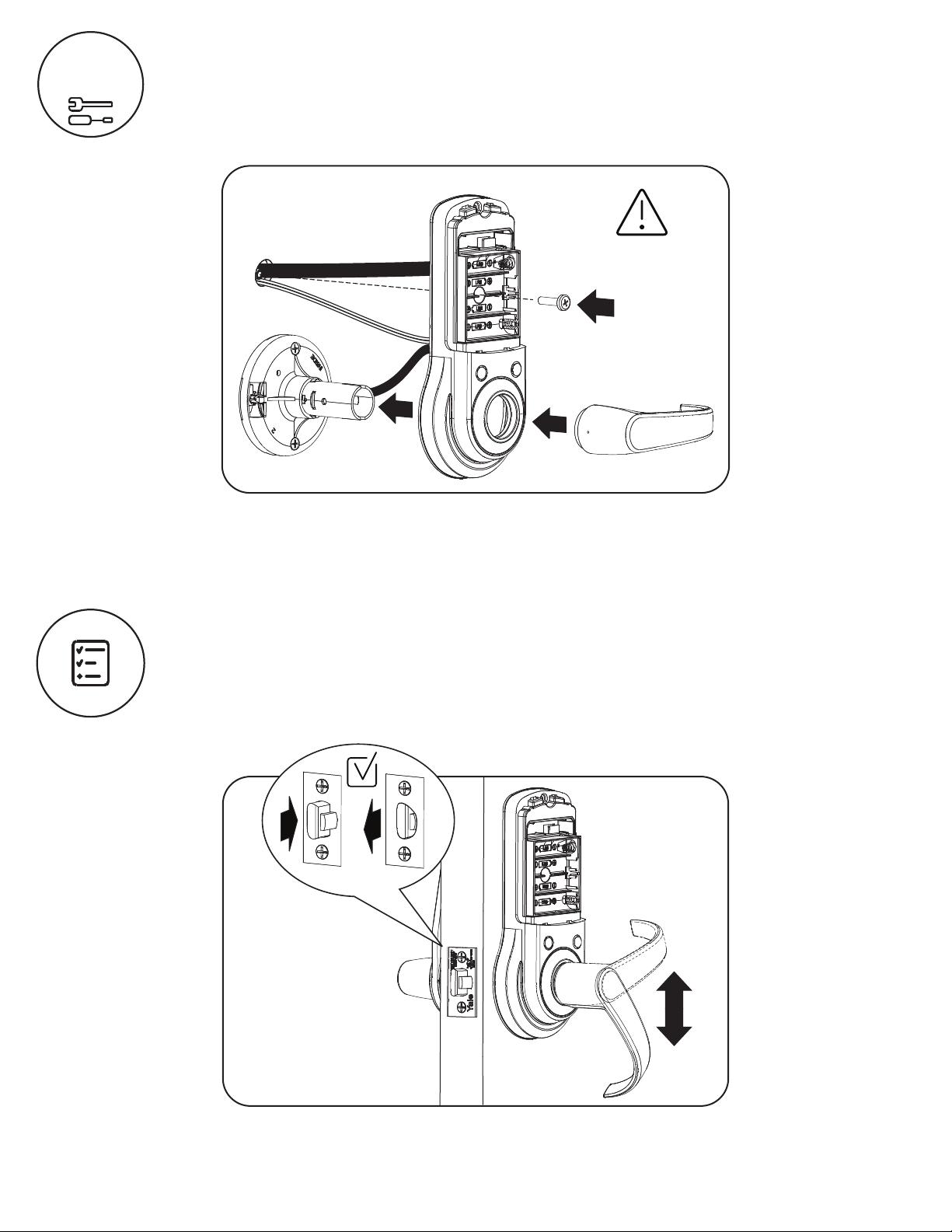

Install Inside Lock

Test Inside Lever Operation

Avoid Crimping

Cables

Thin door gaskets sold separately.

See Installation Options.

10 80-9150-0080-010 04-21
