Yamaha A-S1100 Manuale utente

Integrated Amplifier

Amplificateur Intégré

OWNER’S MANUAL

MODE D’EMPLOI

2En

A Living Tradition in Sound

A piano comes into this world through the perfect synergy of advanced technical

skill and artistry. Such a piano can create sound that truly reflects the player’s

feelings.

The final stage in piano production is called “voicing”. It is here that the

instrument is given its soul.

A highly skilled expert concentrates his mind and sensitivity on the sound of each

key, finely adjusting the dynamic feel of the hammers, bringing the tone and

vibrancy of all 88 keys together perfectly; a truly stunning achievement.

It is a quality of sound that can only be determined by an astute, sensitive ear. We

apply this very same concept to the manufacture of our audio products. The

technician performs exhaustive listening tests and every component is considered,

in order to finally achieve the ideal sound.

Yamaha’s tradition of audio quality stretches back over 125 years, and continues to

live on in all Yamaha products today.

3En

NP-S2000

Soavo-1

NS-10M

A-S3000

CD-S3000

NS-20

CA-1000

NS-690

B-1

PX-2

C-2

NS-1000M

A-1

B-6

B-2x

MX-10000

CX-10000

Excellence in Audio Achievement

First HiFi System introduced in 1920

We introduced numerous HiFi components

(turntables, FM/AM tuners, integrated

amplifiers, preamplifiers, power amplifiers

and speakers) in 1955 - 1965.

Natural Sound Speaker Series introduced

in 1967

NS-20 Monitor Speaker

CA-1000 Integrated Amplifier

Featuring A-Class operation, the CA-1000 set

the standard for integrated amplifiers.

NS-690 Natural Sound Speaker

NS-1000M Monitor Speaker

A truly legendary speaker still revered by HiFi

enthusiasts.

B-1 Power Amplifier

An innovative power amp that used vertical FETs in all

stages.

C-2 Control Amplifier

Received top prize at the Milan International Music

and HiFi Show.

NS-10M Studio Monitor Speaker

Became of the most popular studio monitors

in the world.

A-1 Integrated Amplifier

PX-2 Turntable

Yamaha’s first straight arm turntable.

B-6 Power Amplifier

Pyramid-shaped power amplifier.

GT-2000/L Turntable

First CD Player (CD-1) introduced in 1983

B-2x Power Amplifier

MX-10000 Power Amplifier and

CX-10000 Control Amplifier

Redefined the capabilities of separate components.

AX-1 Integrated Amplifier

GT-CD1 CD Player

MX-1 Power Amplifier and

CX-1 Preamplifier

Soavo-1 and Soavo-2 Natural Sound

Speaker Systems

A-S2000 Integrated Amplifier and

CD-S2000 CD Player

NP-S2000 Network Player

A-S3000 Integrated Amplifier and

CD-S3000 CD Player

4En

◆Floating & Balance power amplifier circuit

◆Parallel volume and tone control

◆Large power supply with four separate circuits

◆Left-right symmetrical design with rigid, stable construction

◆Discrete phono amplifier

■Supplied accessories

Please check that you have received all of the following parts.

• Remote control

• Batteries (AAA, R03, UM-4) (×2)

• Power cable

• SAFETY BROCHURE

■About this manual

•yindicates a tip for your operation.

• Photographs and illustrations are for explanatory purposes, and may differ from the actual unit.

• Read the “SAFETY BROCHURE” before using this unit.

Contents

Controls and functions.......................................................................................................................................... 6

Connections.......................................................................................................................................................... 16

Appendix. ............................................................................................................................................................. 24

Troubleshooting. ............................................................................................................................................... 28

5En

Controls and

functions

In this chapter, you will learn the controls and functions of A-S1100.

CONTROLS AND FUNCTIONS

6En

Controls and functions

■Front panel (pages 6 to 9)

1STANDBY/ON, OFF switch

Turns on or off this unit.

STANDBY/ON (upper position): With this switch

position, pressing the pAMP key on the remote

control toggles the power between STANDBY and

ON.

OFF (lower position): The power of this unit is

turned off.

• When you turn on this unit, it will take a few seconds

before this unit can reproduce sound.

• If you disconnect the power cable from the AC outlet and

connect it again when this unit is in STANDBY mode, the

power of the unit is turned on. If the unit is not to be

operated for a long time, set the STANDBY/ON, OFF

switch to OFF.

2STANDBY/ON indicator

Lit brightly: Shows that the power of the unit is ON.

Lit dimly: Shows that the unit is in STANDBY mode.

Off: Shows that the power of the unit is OFF.

3PHONES jack

Connects your headphones.

• When headphones are plugged in:

– Both speaker sets connected to the SPEAKERS L/R CH

terminals are turned off.

– No signals are output at the PRE OUT jacks.

– You cannot select MAIN DIRECT as the input source.

• If headphones are plugged into the PHONES jack while

MAIN DIRECT is selected as the input source, no audio is

output at the PHONES jack.

123 4567 8 9

Notes

7En

4SPEAKERS selector

Turns on or off the sets of speakers connected to the

SPEAKERS L/R CH A and/or B terminals on the rear

panel, as follows.

OFF: Both sets of speakers are off.

A/B: The set of speakers connected to the A or B

terminals is on.

A+B BI-WIRING: Both sets of speakers are on.

If you use two sets (A and B), the impedance of each speaker

must be 8 or higher.

5METER selector

Switches the meter function as follows:

OFF: Turns off the meter and the illumination.

PEAK: The meter functions as a peak level meter.

The peak level meter shows a momentarily highest

audio output level.

VU: The meter functions as a VU (Volume Unit) level

meter. The VU level meter shows an effective

audio output value that is similar to human senses.

6Meters (LEFT/RIGHT)

Show the audio output level of the left (LEFT) and

right (RIGHT) channels in VU or PEAK meter mode.

The VU or PEAK meter can be selected by the

METER selector.

7BASS control

Adjusts the volume level of the bass range.

Control range: –10 dB to 0 to +10 dB

8TREBLE control

Adjusts the volume level of the treble range.

Control range: –10 dB to 0 to +10 dB

9BALANCE control

Adjusts the audio output balance of the left and right

speakers to compensate for sound imbalances caused

by speaker locations or listening room conditions.

• When both the BASS and TREBLE controls are set to the 0

position, audio signal bypasses the tone control circuitry.

• Adjusting the BASS, TREBLE, and BALANCE controls does

not affect input signals at the MAIN IN jack and output signals

at the LINE 2 REC jack.

Caution

Notes

English

8En

Controls and functions

■Front panel (pages 6 to 9)

0Remote control sensor

Receives signals from the remote control.

AINPUT selector/indicator

Selects the input source. The indicator of the input

source selected with the INPUT selector lights. The

audio signals of the selected input source are also

output at the LINE 2 REC jacks.

MAIN DIRECT: Selects the component connected to

the MAIN IN jacks. When MAIN DIRECT is

selected as the input source, the audio signals are

not output at the PRE OUT, LINE 2 REC and

PHONES jacks.

LINE 1/LINE 2: Selects the component connected to

the LINE 1 or LINE 2 jacks.

CD: Selects the CD player connected to the CD jacks.

TUNER: Selects the tuner connected to the TUNER

jacks.

PHONO: Selects the turntable connected to the

PHONO jacks.

When LINE 2 is selected, the audio signals are not output at

the LINE 2 REC jacks.

Note

9En

BAUDIO MUTE switch

Press downward to reduce the current volume level by

approximately 20 dB. Press again to restore the audio

output to the previous volume level.

You can also rotate the VOLUME control on the front panel

or press the VOLUME + or – key on the remote control to

resume the audio output.

CAUDIO MUTE indicator

Lights when the mute function is turned on with the

AUDIO MUTE switch.

DVOLUME control

Controls the volume level. This does not affect the

output level at the LINE 2 REC jacks.

The VOLUME control does not affect when you select

MAIN DIRECT as the input source. Adjust the volume level

using the volume control on the external amplifier connected

to the MAIN IN jacks.

C D

Note

English

10 En

Controls and functions

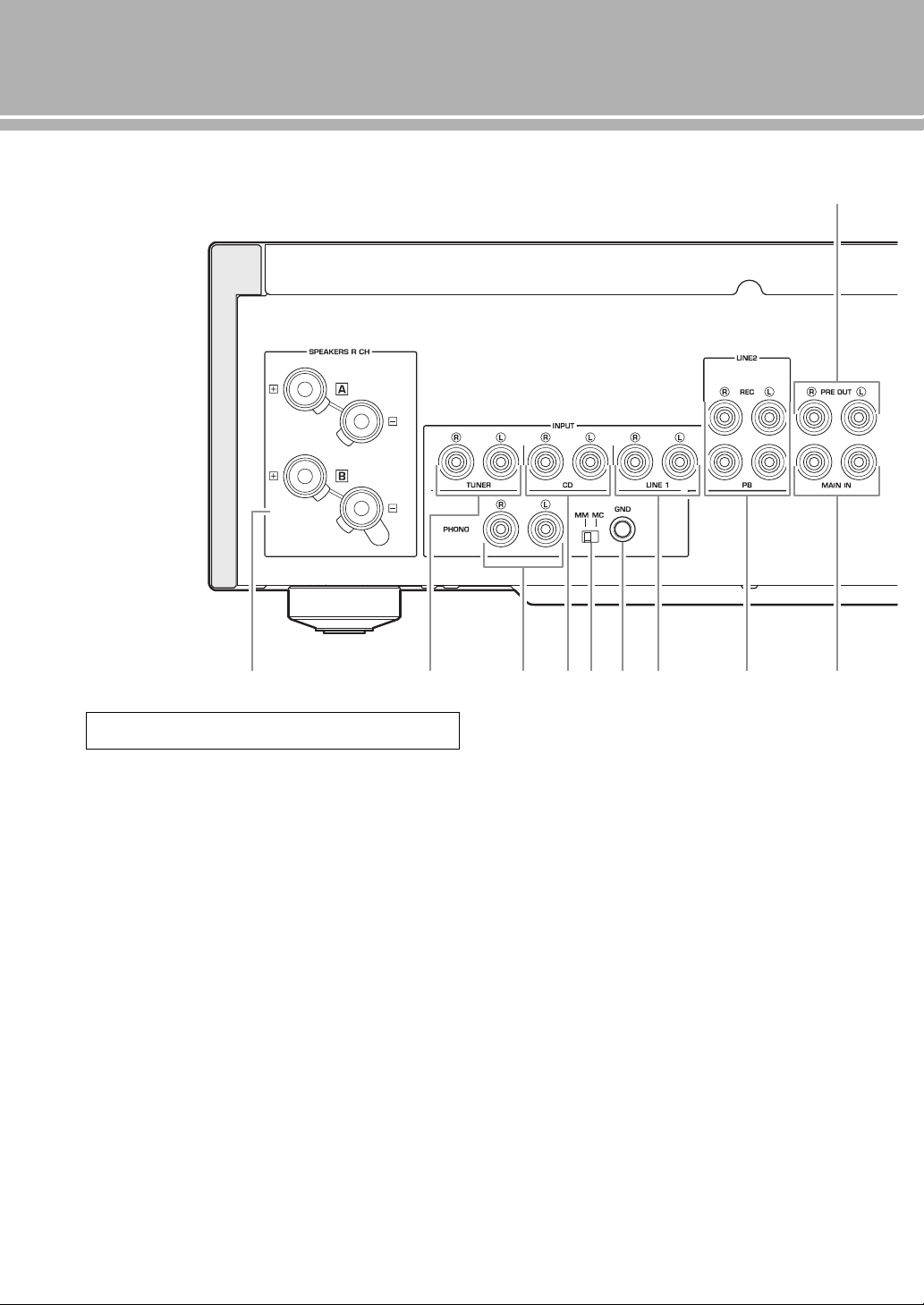

■Rear panel

1PRE OUT jacks

• The PRE OUT jacks output the same channel signal as the

SPEAKERS L/R CH terminals.

• When you connect a stereo cable to the PRE OUT jacks to

drive the speakers using an external amplifier, it is not

necessary to use the SPEAKERS L/R CH terminals.

• The signal output at the PRE OUT jacks are affected by the

BASS and TREBLE control settings.

2SPEAKERS L/R CH terminals

3TUNER input jacks

4PHONO input jacks

5CD input jacks

6MM/MC switch

Selects the type of cartridge of the turntable connected

to the PHONO jacks.

MM: Choose this setting if the connected turntable

uses an moving magnet (MM) cartridge.

MC: Choose this setting if the connected turntable

uses an moving coil (MC) cartridge.

When you replace the cartridge, be sure to turn off this unit.

7GND (Ground) terminal

8LINE 1 input jacks

9LINE 2 jacks

PB (playback) input jacks and REC (recording) output

jacks are provided.

24768590

See page 16 for connection information.
