User Guide
CDR
100/102
EX
2 Introduction
Yamaha CDR100/102
Introduction
Welcome
Thank you for purchasing, and welcome to — theYamaha
CDR100/102. Before using CDR100/102, please read through
this
Operation Guide
.
WhatisCDR100/102?
TheYamaha CDR100/102 allows you to record data onto
Compact Disc Recordable (CD-R) discs. It can also be used to
play discs just like a typical CD-ROM drive
*
. CD-ROM is an
acronym for Compact Disc Read Only Memory, which is a
read-only medium, so you can read data, but you cannot
record new data.
CDR100/102 uses a special kind of disc for recording. Its
appearance is similar to that of a typical CD-ROM, however,
the base material, manufacturing techniques, and recording
principles are different. CDR100/102 uses a laser to write data
to disc. Once the laser light hits the disc, the color and
reflective qualities of the disc change. Since this reflective
quality cannot be changed after initial exposure, the data
cannot be erased or changed.
Now that multimedia, which encompasses text, graphics,
audio, and video, has become a reality, CD-ROM, with its
550MB to 650MB storage capacity, has an important
supporting role to play.
* CDR100/102 will not play commercially made discs whose
center-hole location does not conform to the Orange book
specification.
CDR100/102 Features 3
Yamaha CDR100/102
CDR100/102Features
4xSRecording&Reading(CDR100)
2xSRecording&4xSReading(CDR102)
CDR100 is the first CD-ROM recorder capable of recording at
quad speed (4xS). This means a significant time saving for
CD-ROM production. Both the CDR100 and CDR102 can
record at double speed (2xS) and normal speed (1xS), and read
discs at quad speed (4xS). CDR100 records at a maximum
speed of 4xS. CDR102 records at a maximum speed of 2xS.
DualUse:RecordandPlay
As well as recording CD-ROM and CD-DA format discs,
CDR100/102 can play them, too. For these two formats,
CDR100/102 functions just like a typical CD-ROM drive.
Compactbody
A compact size - approximately the size of an internal 5.25
inch floppy disk drive (half-height type) - allows you to build
the unit into your system architecture easily.
SCSI2forHigh-Volume,High-SpeedData
Transfer
CDR100/102 features SCSI2–the Second generation SCSI
interface for connecting computers and peripheral devices.
SCSI2 provides high-speed transmission for large volume
data, especially important when working with image data.
4 Introduction
Yamaha CDR100/102
OrangeBookPart2Compatible3-Mode
Recording
CDR100/102 conforms to the three recording modes outlined
in the Orange Book Part 2: TrackAt Once, Multisession and
Disc At Once.
TrackatOnce
In this mode, data can be recorded to disc a track at a time.
However, the disc cannot be played until the final recording is
made.
Multisession
In this mode, data can be recorded to disc one track at a time,
and the disc can be played in-between recording sessions.
DiscAtOnce
In this mode, data can be recorded to an entire disc in one go.
To use this mode, your software must support Disc At Once
recording.
CD-R Discs 5
Yamaha CDR100/102
CD-RDiscs
Yamaha have developed two discs, use the discs below, or
conventional CD-R discs that conform to the Orange Book
Standard.
• CDM12Y63 (12-cm)
• CDM12Y74 (12-cm)
Using discs developed and manufactured byYamaha will
minimize the occurrence of errors during writing operation,
and will ensure compatibility when you read data from the
disc using another manufacturer’s CD-ROM drive.
When using the “TRACKAT ONCE” recording mode, do not
try to play the disc until it has been finalized (i.e., until the
lead in/out information has been written), otherwise errors or
malfunctions may occur. Likewise, trying to play a blank disc
(i.e., a disc that has not yet been recorded) in a CD-ROM
drive, CD player, or CD-I player may cause malfunctions and
disc scratches.
ControllingSoftware
CDR100/102 is a platform independent software controlled
device. It can be used in MS-DOS, Windows, Macintosh, and
UNIX environments. Before purchasing software, make sure
that it supports CDR100/102 and your computer platform.
6 Introduction
Yamaha CDR100/102
CDCaddyand8-cmdiscadaptor
(Option)
Use aYamaha CD Caddy designed for the CDR100/102, or an
equivalent caddy marked with the logo . Using another
type of CD caddy may prevent the drive from operating at
optimal performance and may cause malfunction.
Also, use a dedicatedYamaha disc adaptor (item number:ADP
08) for the CDR100/102. Using another type of disc adaptor
may prevent the drive from operating at optimal performance.
Use the disc adaptor only for 8-cm Compact Discs and CD
Write-Once Discs.
• 8-cm disc adaptor (option)
Note:
The disc adaptor is dedicated to the CDR100/102. Use
of the adaptor on other devices may cause malfunction.
Touring Around CDR100/102 7
Yamaha CDR100/102
Chapter1–TouringAround
CDR100/102

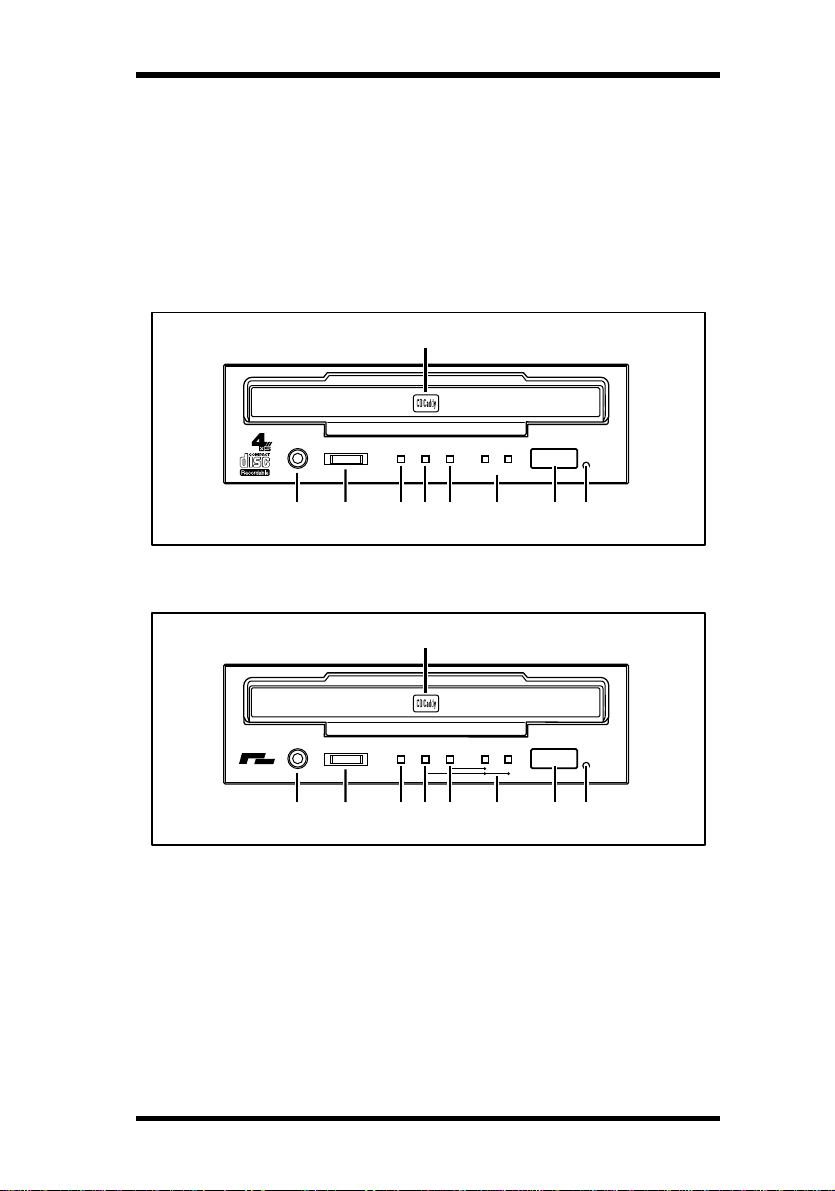

FrontPanel
CDR100
CDR102
1
PHONES jack
This stereo mini jack allows you to connect headphones.
2
VOLUME control
This control adjusts the volume level of the PHONES output.
9
EJECT×4
×2
WRITE
READDISC
346785
VOLUMEPHONES
MIN MAX
12
9
WRITE
READ
2
4
EJECT×4
×2
WRITE
READDISC
346785
VOLUMEPHONES
MIN MAX
12
8 Chapter 1 – Touring Around CDR100/102
Yamaha CDR100/102
3
DISC indicator
This indicator flashes when loading and ejecting. It remains on
when CDR100/102 contains a disc. If a disc is not inserted
into the caddy correctly, or the caddy does not contain a disc,
the DISC indicator stops flashing and the caddy is ejected.
4
READ indicator
This indicator flashes when data is being accessed. It remains
on when disc data is being read, and when CDR100/102 is
ready to record.
5
WRITE indicator
This indicator lights up when recording to disc. In Test mode,
it flashes.
6
X2/X4 indicators
These indicators show the speed: 2xS or 4xS. When both are
off, the speed is 1xS. When CDR100/102 is reset, these
indicators first go out, then both come on for an instant, then
the X2 indicator goes out, leaving just the X4 indicator on.
7
EJECT button
This button is used to eject the caddy.
8
Manual eject hole
This is used to manually eject a caddy that cannot be ejected in
the normal way. It is for emergency use only.
9
CD Caddy insertion slot
The CD Caddy is inserted here. A protective flap covers the
slot.
Note:
DISC and READ indicators flashing together indicates
an error.
Operation 9
Yamaha CDR100/102
Chapter2–Operation
InsertingaDiscintotheCaddy
Discs must be inserted into the CD Caddy before they can be
used by CDR100/102.

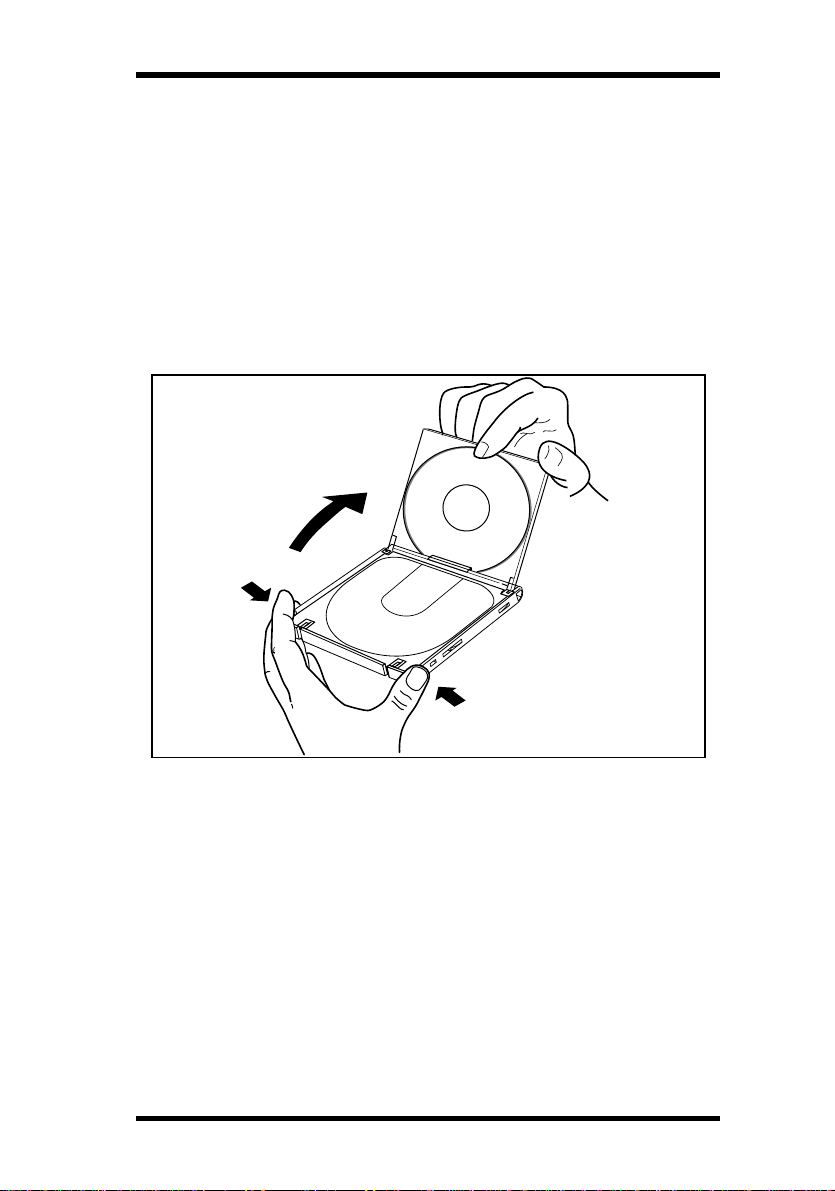

1. To open the caddy, squeeze the OPEN levers
together with one hand, and lift up the plastic lid
with the other hand.
10 Chapter 2 – Operation
Yamaha CDR100/102

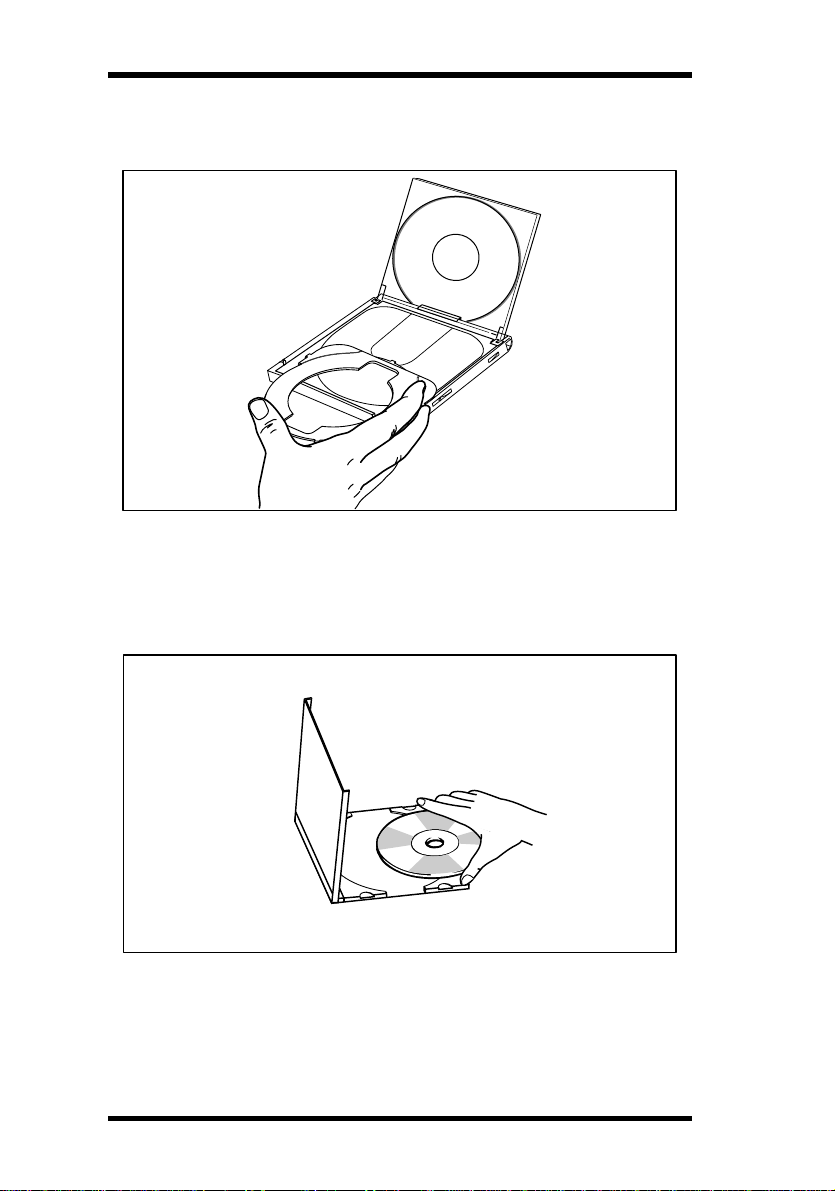

2. If you are using an 8-cm disc, insert the adaptor
(option) into the caddy.
3. Remove the CD-R disc from its jewel case.
Note:
The adaptor (option) is designed for exclusive use with
CDR100/102. It may not work correctly with other devices.
Important:
Take great care when handling CD-ROM discs.
They are more sensitive to damage than audio CDs, and the
slightest scratch can render a disc useless. Do not expose
discs to dust, dirt, or moisture.
