Yamaha CDS1000 - SACD Player Manuale utente

BLACK

DIC 2181s*

Printed in Malaysia WN63170

YAMAHA ELECTRONICS CORPORATION, USA 6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A.

YAMAHA CANADA MUSIC LTD. 135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA

YAMAHA ELECTRONIK EUROPA G.m.b.H. SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, GERMANY

YAMAHA ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE

YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD18 7GQ, ENGLAND

YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN

YAMAHA MUSIC AUSTRALIA PTY. LTD. LEVEL 1, 99 QUEENSBRIDGE STREET, SOUTHBANK, VIC 3006, AUSTRALIA

UCAB

OWNER’S MANUAL

MODE D’EMPLOI

HiFi Began with Yamaha

Yamaha’s involvement with and passion for music goes back

more than a century, to when we built our first reed organ in

1887. Now we are the world’s leading producer of pianos and

other musical instruments, and are involved with music in many

other ways as well. We manufacture professional recording

equipment, we design concert halls and we assist artists at

concerts with set up and sound tuning.

This knowledge and experience benefits our production of

audio components in many ways. We introduced our first HiFi

(High Fidelity) turntable in 1955. Thereafter we were one of the first

to offer mass-produced, high quality audio equipment,

and introduced many legendary stereo components.

We hope you enjoy the genuine HiFi experience of

Yamaha Natural Sound.

CA-1000NS-20

NS-1000M

NS-10M

GT-2000

C-2

NS-690

B-1

B-6

GT-CD1AX-2000

Soavo-2Soavo-1

PX-1

Excellence in Audio Achievement

1922: We introduced a high-quality hand-

wound phonograph.

Since 1955, we have released many HiFi

components, including turntables, tuners,

integrated amplifiers, control amplifiers,

power amplifiers and speakers.

NS-20 Monitor Speaker

CA-1000 Integrated Amplifier

Featuring A-Class operation, the CA-1000 set

the standard for integrated amplifiers.

NS-690 Monitor Speaker

NS-1000M Monitor Speaker

A truly legendary speaker still revered by HiFi enthusiasts

B-1 Power Amplifier

An innovative power amp that used FETs in all stages

C-2 Control Amplifier

Received top prize at the Milan International Music

and HiFi Show.

NS-10M Studio Monitor Speaker

Became of the most popular studio monitors in the world.

A-1 Integrated Amplifier

PX-1 Turntable

Yamaha’s first linear tracking turntable

B-6 Power Amplifier

Pyramid-shaped power amplifier with X power supply and

X amplifier

GT-2000/L Turntable

Ultra-precise heavyweight player embodying GT concept

CD-1 CD Player

First CD Player introduced in 1983

B-2x Power Amplifier

MX-10000 Power Amplifier and

CX-10000 Control Amplifier

Amplifier that redefined the capabilities of separate

components

100th anniversary model

AX-2000 Integrated Amplifier

High S/N ratio (128 dB), digital direct function equipped

GT-CD1 CD Player

Top-loading type player with integrated separate structure

MX-1 Power Amplifier and CX-1 Control

Amplifier

Soavo-1 and Soavo-2 Natural Sound

Speaker Systems

A-S2000 Stereo Amplifier and

CD-S2000 Super Audio CD Player

A-S1000 Stereo Amplifier and

CD-S1000 Super Audio CD Player

4En

◆Symmetrical circuitry using independent left and right power supply

circuits and a twin DAC structure for fully independent left and right

channels

◆Separate power-transformer windings for digital and analog circuitry

◆Exclusive Yamaha loading mechanism with superior quietness

◆PURE DIRECT

◆Super sound from Super Audio CDs

◆Newly developed heavyweight feet to suppress vibrations

■Supplied accessories

Please check that you have received all of the following parts.

• Power cable

• Remote control

• Batteries (AA, R6, UM-3) (×2)

• Audio pin cable

• Safety brochure

■About this manual

•yindicates a tip for your operation.

• This manual is printed prior to production. Design and specifications are subject to change in part as a result of improvements, etc. In

case of differences between the manual and the product, the product has priority.

• The color of images in this manual may vary from the original.

• Read the “Safety brochure” before using this unit.

Contents

Controls and functions.......................................................................................................................................... 6

Connections.......................................................................................................................................................... 14

Specifications ....................................................................................................................................................... 18

Playable disc format............................................................................................................................................ 19

Troubleshooting................................................................................................................................................... 21

01EN_CD-S1000_UCAB.book Page 4 Wednesday, February 4, 2009 10:51 AM

Black process 45.0° 240.0 LPI

CONTROLS AND FUNCTIONS

5En

Controls and functions

In this chapter, you will learn the controls and functions of CD-S1000.

6En

Controls and functions

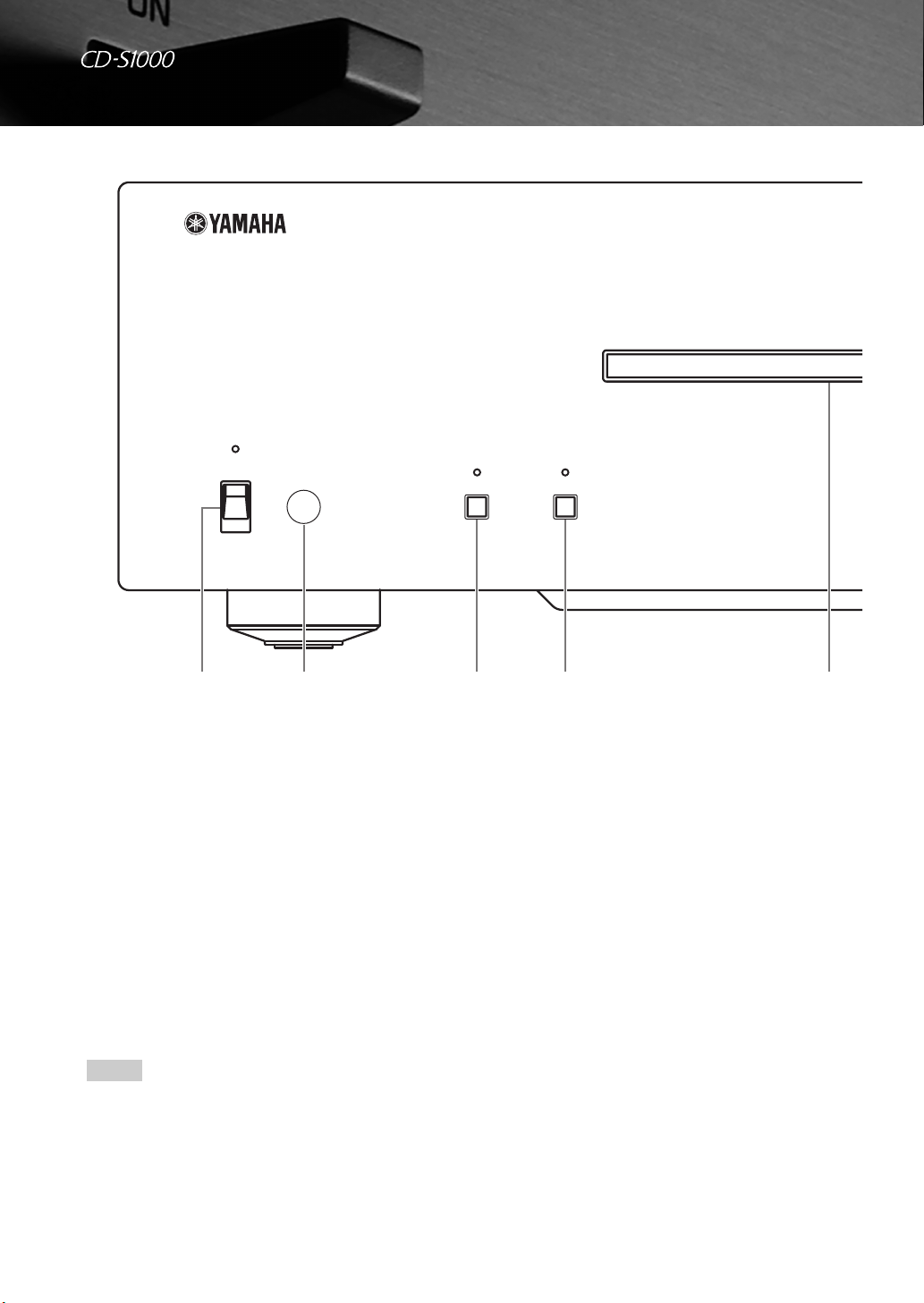

■Front panel

1POWER

Press upward or downward to turn on or off this unit.

• The POWER indicator above lights up when this unit is turned

on.

• Playback starts automatically if the power is turned on while a

disc is set in the disc tray.

2Remote control sensor

Receives signals from the remote control.

3SA-CD/CD

Switches the playback layer of a hybrid SA-CD between

SA-CD and CD (see page 19).

• The SA-CD/CD indicator above lights up when the SA-CD

layer is selected.

• This setting is retained even if you turn off this unit.

• Audio signals are only output from the ANALOG OUT jacks

while the Super Audio CD layer is selected.

• Audio signals recorded in DSD multi-channel format cannot be

played on this unit.

4PURE DIRECT

Turns on the PURE DIRECT mode to improve audio

quality.

When this unit is in the PURE DIRECT mode:

• The PURE DIRECT indicator above lights up.

• Audio signals are not output at the OPTICAL

DIGITAL OUT jack and the COAXIAL DIGITAL

OUT jack (see page 8).

• The front panel display is turned off and only the

minimum required indicators and messages are

displayed.

• Press again to turn off the PURE DIRECT mode.

• This setting is retained even if you turn off this unit.

5Disc tray

Loads a disc.

POWER

OFF

SA-CD/CD PURE DIRECT

312 4 5

Notes

7En

6(Open/Close)

Opens or closes the disc tray.

You can also close the disc tray by:

• pressing (Play) on the front panel or on the remote control

or by pushing the front edge of the disc tray gently.

• pressing a numeric button on the remote control.

7(Skip/Search backward),

(Skip/Search forward)

: Skips to the next track.

: Skips back to the beginning of the current track.

(twice): Skips to the previous track.

Press and hold or to search backward/

forward.

Each time you press and hold or , the search

speed increases by 4 levels.

8(Play)

Starts playback.

9(Pause)

Pauses playback. Press or to resume playback.

0(Stop)

Stops playback.

APlayback status indicator

Lights up when this unit is in the play or pause mode.

BDisc type indicator

Indicates the type of disc set in the disc tray.

CTime display mode indicator

See “DISPLAY” (page 11) for details.

DPlayback mode indicator

See “REPEAT” (page 10), “RANDOM” (page 11), and

“PROGRAM” (page 11) for details.

EMulti-information display

ALLOFFRANDOM

REMAINTOTALTRACK

SREPPROGWMAMP3SA-CD

9876

AB C D E

See pages 20 for more information on MP3/WMA

playback.

English

8En

Controls and functions

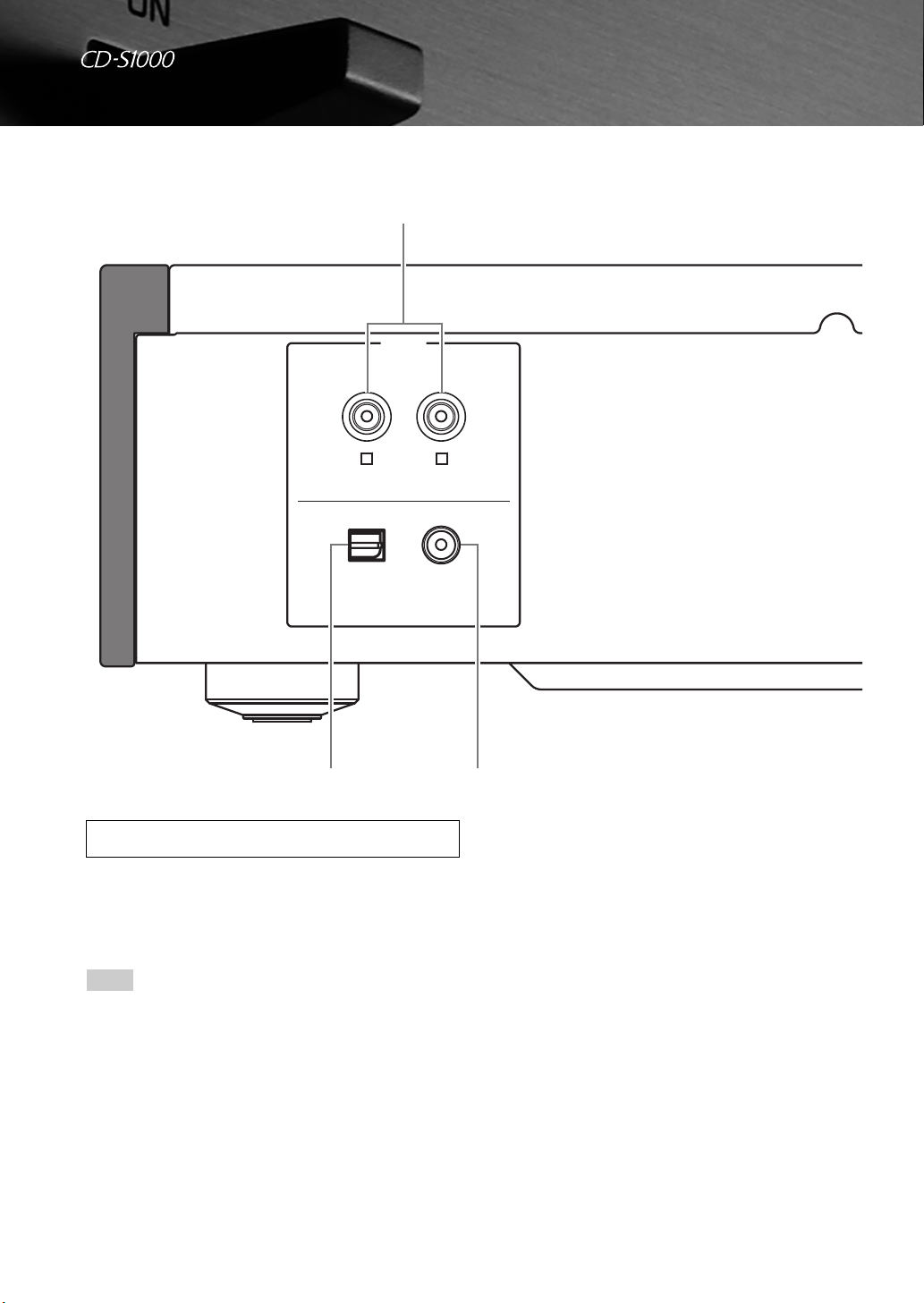

■Rear panel

1ANALOG OUT jacks

2OPTICAL DIGITAL OUT jack

3COAXIAL DIGITAL OUT jack

The audio signals are only output from the ANALOG OUT jacks

while the Super Audio CD layer is selected or when the PURE

DIRECT mode is on.

COAXIALOPTICAL

OUTPUT

ANALOG OUT

DIGITAL OUT

See page 14 for connection information.

Note

9En

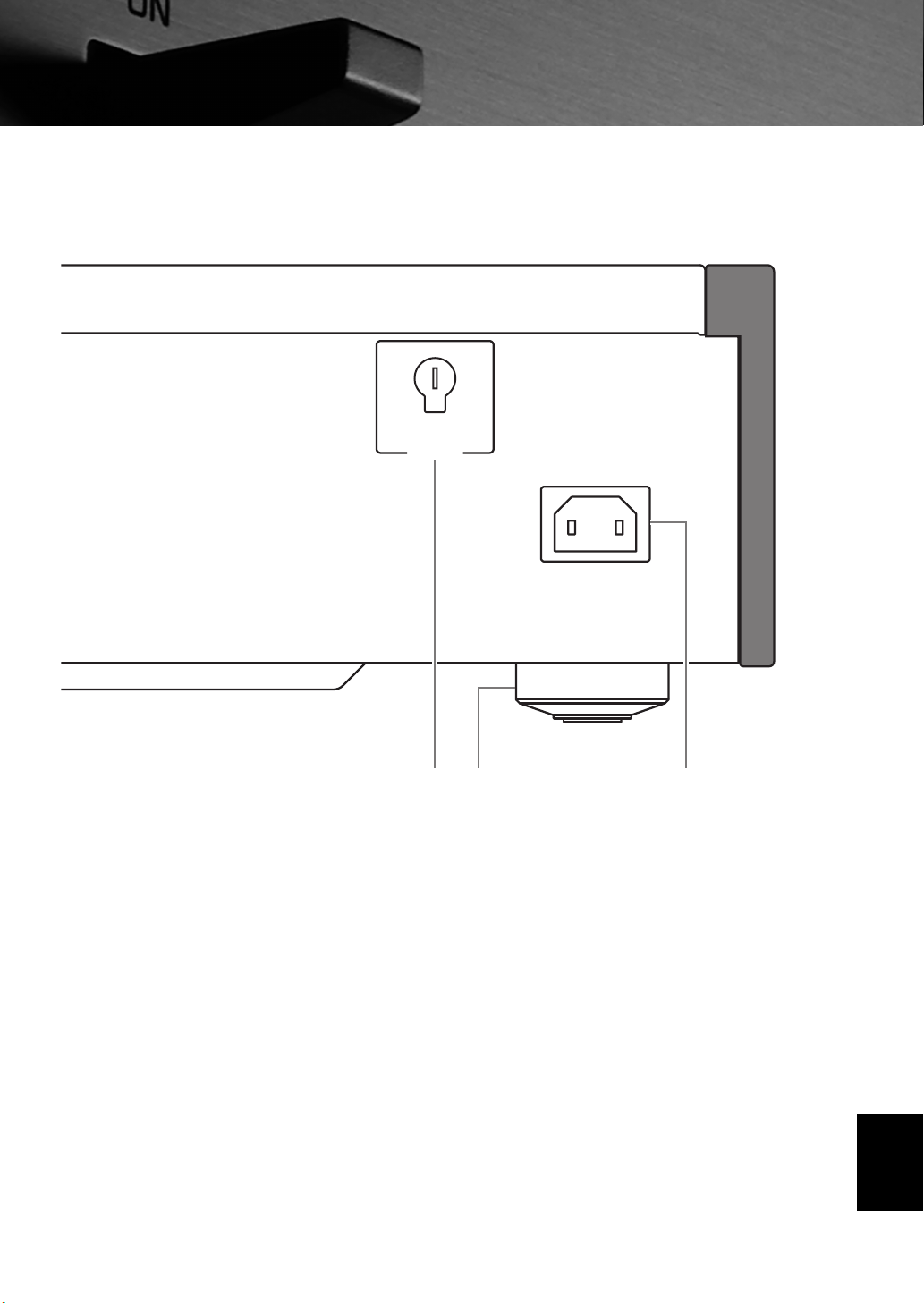

4VOLTAGE SELECTOR

(Asia and General models only)

The VOLTAGE SELECTOR on the rear panel of this unit

must be set for your local main voltage BEFORE plugging

the power cable into the AC wall outlet.

See page 15 for further information.

5Foot

If this unit is unstable, you can adjust the foot height by

rotating it.

6AC IN

Use this inlet to plug in the supplied power cable.

See page 15 for connection information.

AC IN

VOLTAGE

SELECTOR

54 6

(Asia and General models)

English

10 En

Controls and functions

■Remote control 1Infrared signal transmitter

Sends infrared signals to this unit.

2SA-CD/CD

Switches the playback layer of a hybrid SA-CD between

SA-CD and CD (see page 19).

• The SA-CD/CD indicator on the front panel lights up when the

SA-CD layer is selected.

• This setting is retained even if you turn off this unit.

• Audio signals are only output from the ANALOG OUT jacks

while the Super Audio CD layer is playing.

• Audio signals recorded in DSD multi-channel format cannot be

played on this unit.

3DIMMER

Selects brightness level for the front panel display. Each

time you press DIMMER, the brightness level changes in

the following order.

This setting is retained even if you turn off this unit.

4Numeric buttons

Use to select a track directly.

This operation is ineffective for MP3 or WMA discs.

5REPEAT

Repeats playback of a single track or all tracks. Each time

you press REPEAT during playback, the repeat playback

mode changes as follows:

• REP S (single repeat playback): On reaching the end of

the current track, playback repeats from the beginning

of the current track.

• REP ALL (all repeat playback): On reaching the end of

the last track, playback repeats from the beginning of

the first track.

This operation is ineffective for MP3 or WMA discs.

654

321

RANDOMREPEAT PROGRAM

CLEARENTER

DISPLAYDIMMER

OPEN/CLOSEPURE DIRECTSA-CD/CD

Notes

Note

→Brightest →Bright (default)

Darkest ←Dark ←
