Yamaha FZS1000N Manuale utente

EAS00001

FZS1000N (C)

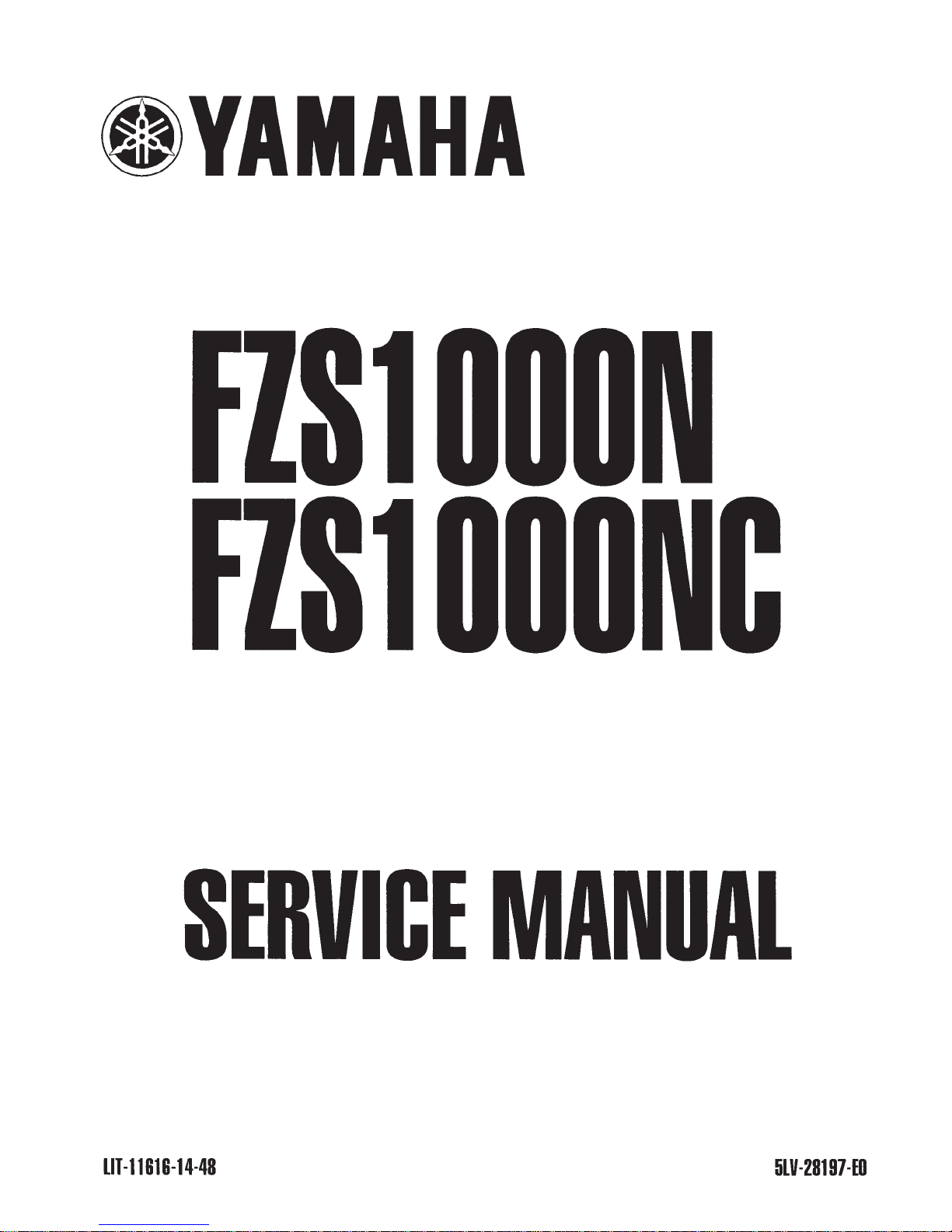

SERVICE MANUAL

2001 by Yamaha Motor

Corporation, U.S.A.

First edition, January 2001

or unauthorized use without the written

permission of Yamaha Motor Corporation,

U.S.A. is expressly prohibited.

Printed in U.S.A.

P/N LIT-11616-14-48

NOTE:

CAUTION:

EAS00003 NOTICE

This manual was produced by the Yamaha Motor Company, Ltd. primarily for use by Yamaha dealers

andtheirqualifiedmechanics.Itisnotpossibletoincludealltheknowledgeofamechanicinonemanu-

al. Therefore, anyone who uses this book to perform maintenance and repairs on Yamaha vehicles

shouldhaveabasicunderstandingofmechanicsandthetechniquestorepairthesetypesofvehicles.

Repair and maintenance work attempted by anyone without this knowledge is likely to render the ve-

hicle unsafe and unfit for use.

This model has been designed and manufactured to perform within certain specifications in regard to

performance and emissions. Proper service with the correct tools in necessary to ensure that the ve-

hicle will operate as designed. If there is any question about a service procedure, it is imperative that

you contact a Yamaha dealer for any service information changes that apply to this model. This policy

isintendedto providethecustomerwiththe mostsatisfactionfromhisvehicleandtoconformwith fed-

eral environmental quality objectives.

YamahaMotorCompany,Ltd.iscontinuallystrivingtoimproveallitsmodels.Modificationsandsignifi-

cant changes in specifications or procedures will be forwarded to all authorized Yamaha dealers and

will appear in future editions of this manual where applicable.

SThis Service Manual contains information regarding periodic maintenance to the emission control

system. Please read this material carefully.

SDesigns and specifications are subject to change without notice.

EAS00004

IMPORTANT INFORMATION

Particularly important information is distinguished in this manual by the following.

The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR

SAFETY IS INVOLVED!

FailuretofollowWARNINGinstructions couldresultinsevereinjury ordeathto

themotorcycleoperator,abystanderorapersonchecking or repairing the mo-

torcycle.

ACAUTIONindicatesspecialprecautionsthatmustbetaken to avoid damage

to the motorcycle.

NOTE: A NOTE provides key information to make procedures easier or clearer.

EAS00007 HOW TO USE THIS MANUAL

This manual is intended as a handy, easy-to-read reference book for the mechanic. Comprehensive

explanations of all installation, removal, disassembly, assembly, repair and check procedures are laid

out with the individual steps in sequential order.

1The manual is divided into chapters. An abbreviation and symbol in the upper right corner of each

page indicate the current chapter. Refer to “SYMBOLS” on the following page.

2Each chapter is divided into sections. The current section title is shown at the top of each page,

except in Chapter 3 (“Periodic Checks and Adjustments”), where the sub-section title(-s) appears.

(In Chapter 3, “Periodic Checks and Adjustments”, the sub-section title appears at the top of each

page, instead of the section title.)

3Sub-section titles appear in smaller print than the section title.

4To help identify parts and clarify procedure steps, there are exploded diagrams at the start of each

removal and disassembly section.

5Numbers are given in the order of the jobs in the exploded diagram. A circled number indicates a

disassembly step.

6Symbols indicate parts to be lubricated or replaced (see “SYMBOLS”).

7A job instruction chart accompanies the exploded diagram, providing the order of jobs, names of

parts, notes in jobs, etc.

8Jobs requiring more information (such as special tools and technical data) are described sequen-

tially.

24 25

2321

19 2018

16 1715

1413

11 12

GEN

INFO SPEC

ENG

CARB

ELECCHAS

COOL

CHK

ADJ

TRBL

SHTG

EAS00008

SYMBOLS

The following symbols are not relevant to every

vehicle.

Symbols 1to 9indicate the subject of each

chapter.

1General information

2Specifications

3Periodic checks and adjustments

4Engine

5Cooling system

6Carburetor(-s)

7Chassis

8Electrical system

9Troubleshooting

Symbols 10 to 17 indicate the following.

10 Serviceable with engine mounted

11 Filling fluid

12 Lubricant

13 Special tool

14 Tightening torque

15 Wear limit, clearance

16 Engine speed

17 Electrical data

Symbols 18 to 23 intheexplodeddiagramsindi-

cate the types of lubricants and lubrication

points.

18 Engine oil

19 Gear oil

20 Molybdenum disulfide oil

21 Wheel bearing grease

22 Lithium soap base grease

23 Molybdenum disulfide grease

Symbols 24 to 25 intheexplodeddiagramsindi-

cate the following:

24 Apply locking agent (LOCTITER)

25 Replace the part

GENERAL INFORMATION

SPECIFICATIONS

PERIODIC CHECKS AND

ADJUSTMENTS

ENGINE

COOLING SYSTEM

CARBURETORS

CHASSIS

ELECTRICAL SYSTEM

TROUBLESHOOTING

GEN

INFO 1

SPEC 2

ENG 4

COOL 5

CARB 6

CHAS 7

ELEC 8

TRBL

SHTG 9

CHK

ADJ

EAS00012 TABLE OF CONTENTS

GEN

INFO

CHAPTER 1

GENERAL INFORMATION

MOTORCYCLE IDENTIFICATION 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

VEHICLE IDENTIFICATION NUMBER 1-1. . . . . . . . . . . . . . . . . . . . . . . . .

MODEL CODE 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

IMPORTANT INFORMATION 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PREPARATION FOR REMOVAL AND DISASSEMBLY 1-2. . . . . . . . . .

REPLACEMENT PARTS 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GASKETS, OIL SEALS AND O-RINGS 1-2. . . . . . . . . . . . . . . . . . . . . . . .

LOCK WASHERS/PLATES AND COTTER PINS 1-2. . . . . . . . . . . . . . . .

BEARINGS AND OIL SEALS 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CIRCLIPS 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CHECKING THE CONNECTIONS 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPECIAL TOOLS 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GEN

INFO

1-1

MOTORCYCLE IDENTIFICATION GEN

INFO

EAS00014

GENERAL INFORMATION

MOTORCYCLE IDENTIFICATION

EAS00017

VEHICLE IDENTIFICATION NUMBER

Thevehicleidentificationnumber 1isstamped

into the right side of the steering head.

EAS00018

MODEL CODE

The model code label 1is affixed to the frame.

This information will be needed to order spare

parts.
