INTRODUCTION

EAU10102

Welcome to the Yamaha world of motorcycling!

As the owner of the YZF-R15, you are benefiting from Yamaha's vast experience and newest technology regarding the de-

sign and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.

Please take the time to read this manual thoroughly, so as to enjoy all advantages of your YZF-R15. The Owner's Manual

does not only instruct you in how to operate, inspect and maintain your motorcycle, but also in how to safeguard yourself and

others from trouble and injury.

In addition, the many tips given in this manual will help keep your motorcycle in the best possible condition. If you have any

further questions, do not hesitate to contact your Yamaha dealer.

The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!

Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most cur-

rent product information available at the time of printing, there may be minor discrepancies between your motorcycle and this

manual. If there is any question concerning this manual, please consult a Yamaha dealer.

EWA10031

WARNING

Please read this manual carefully and completely before operating this motorcycle.

EAU10050

54CF8199E1.book Page 1 Thursday, April 1, 2010 1:24 PM

IMPORTANT MANUAL INFORMATION

EAU10132

Particularly important information is distinguished in this manual by the following notations:

This is the safety alert symbol. It is used to alert you to potential personal injury

hazards. Obey all safety messages that follow this symbol to avoid possible injury

or death.

A WARNING indicates a hazardous situation which, if not avoided, could result in

death or serious injury.

A NOTICE indicates special precautions that must be taken to avoid damage to the

vehicle or other property.

A TIP provides key information to make procedures easier or clearer.

WARNING

NOTICE

TIP

EAU10122

54CF8199E1.book Page 1 Thursday, April 1, 2010 1:24 PM

IMPORTANT MANUAL INFORMATION

EAUE0010

YZF-R15

OWNER’S MANUAL

1st edition, August 2010

Any reprinting or unauthorized use

without the written permission of

India Yamaha Motor Pvt. Ltd.

is expressly prohibited.

Printed in India.

54CF8199E1.book Page 2 Thursday, April 1, 2010 1:24 PM

TABLE OF CONTENTS EAU10210

LOCATION OF IMPORTANT

OPERATION AND IMPORTANT Adjusting the clutch lever free

play.............................................7-17

LABELS ............................................1-1 RIDING POINTS

Checking the front brake lever

Starting the engine.......................... 6-1

SAFETY INFORMATION ..................2-1 free play......................................7-18

Shifting............................................ 6-2

DESCRIPTION ...............................3.1 Adjusting the brake pedal free

Tips for reducing fuel

Left view ........................................ 3-1 play.............................................7-19

consumption.................................6-2

Right view ...................................... 3-2 Engine break-in............................... 6-3

Controls and instruments .............. 3-3 Parking............................................ 6-3

Checking the front and rear

brake pads................................. 7-19

Checking the brake fluid level ...... 7-20

INSTRUMENT AND CONTROL Changing the brake fluid............... 7-21

FUNCTIONS

PERIODIC MAINTENANCE AND

ADJUSTMENT

Main switch/steering lock ............... 4-1 Owner’s tool kit................................7-1 Drive chain slack........................... 7-21

Cleaning and lubricating the

Indicator and warning lights............ 4-2 Periodic maintenance chart for drive chain..................................7-22

Tachometer..................................... 4-3 the emission control system.........7-2 Checking and lubricating the

cables........................................ 7-23

Multi-function display.......................4-3 General maintenance and

Handlebar switches.........................4-4 lubrication chart............................7-3

Clutch lever..................................... 4-6 Removing and installing the

Shift pedal .......................................4-6 cowlings and panel.......................7-6

Brake lever...................................... 4-6 Checking the spark plug................. 7-7

Brake pedal..................................... 4-7 Engine oil and oil filter

Fuel tank cap...................................4-7 element.........................................7-9

Fuel ................................................ 4-8 Coolant..........................................7-11

Catalytic converter.......................... 4-9 Cleaning the air filter element........7-13

Seat.................................................4-9 Adjusting the engine idling

Helmet holder................................4-10 speed......................................... 7-13

Sidestand...................................... 4-11 Adjusting the throttle cable free

Ignition circuit cut-off system........4-11 play............................................ 7-14

Valve clearance.............................7-14

FORYOUR SAFETY – Tires.............................................. 7-15

PRE-OPERATION CHECKS ............ 5-1 Cast wheels...................................7-17

Checking and lubricating...............7-23

throttle grip and cable................ 7-23

Checking and lubricating the

brake and shift pedals................ 7-24

Checking and lubricating the

brake and clutch levers.............. 7-24

Checking and lubricating the ........7-25

Lubricating the swingarm pivots ...7-26

Checking the front fork ................ 7-26

Checking the steering ...................7-27

Checking the wheel bearings ....... 7-27

Battery...........................................7-28

Replacing a headlight bulb............7-30

Replacing the fuse.........................7-29

TABLE OF CONTENTS

Replacing a turn signal light

bulb.............................................7-31

Replacing an auxiliary light bulb... 7-31

Supporting the motorcycle............ 7-31

Front wheel................................... 7-32

Rear wheel.................................... 7-34

Troubleshooting............................ 7-35

Troubleshooting charts..................7-36

MOTORCYCLE CARE AND

STORAGE....................................... 8-1

Matte color caution..........................8-1

Care.................................................8-1

Storage............................................8-4

SPECIFICATIONS............................. 9-1

CONSUMER INFORMATION.......... 10-1

Motorcycle noise regulation

Identification numbers................... 10-1

(for Australia) ............................ 10-2

INDEX ............................................ 11-1

Replacing the tail/brake light

bulb............................................ 7-30

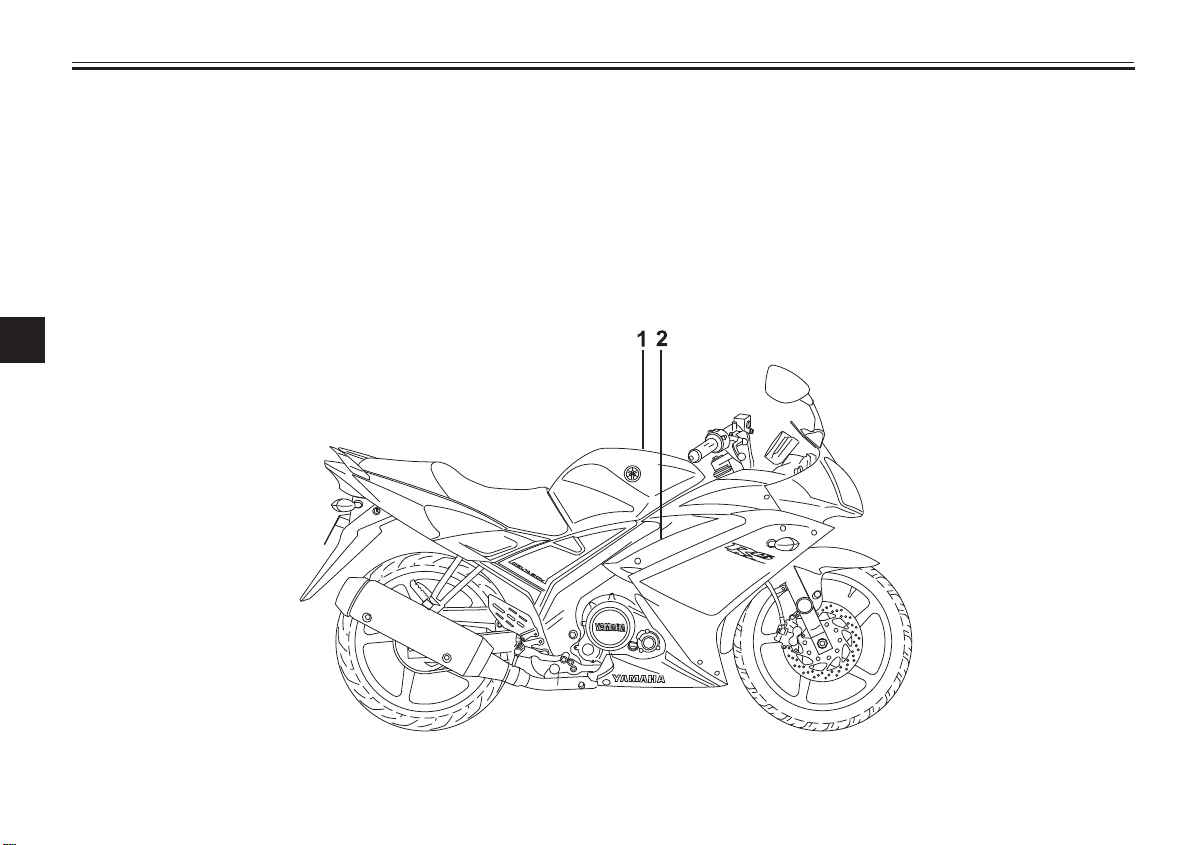

LOCATION OF IMPORTANT LABELS

EAU4576

Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of

your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label

is available from your Yamaha dealer.

1-1

LOCATION OF IMPORTANT LABELS

1-2

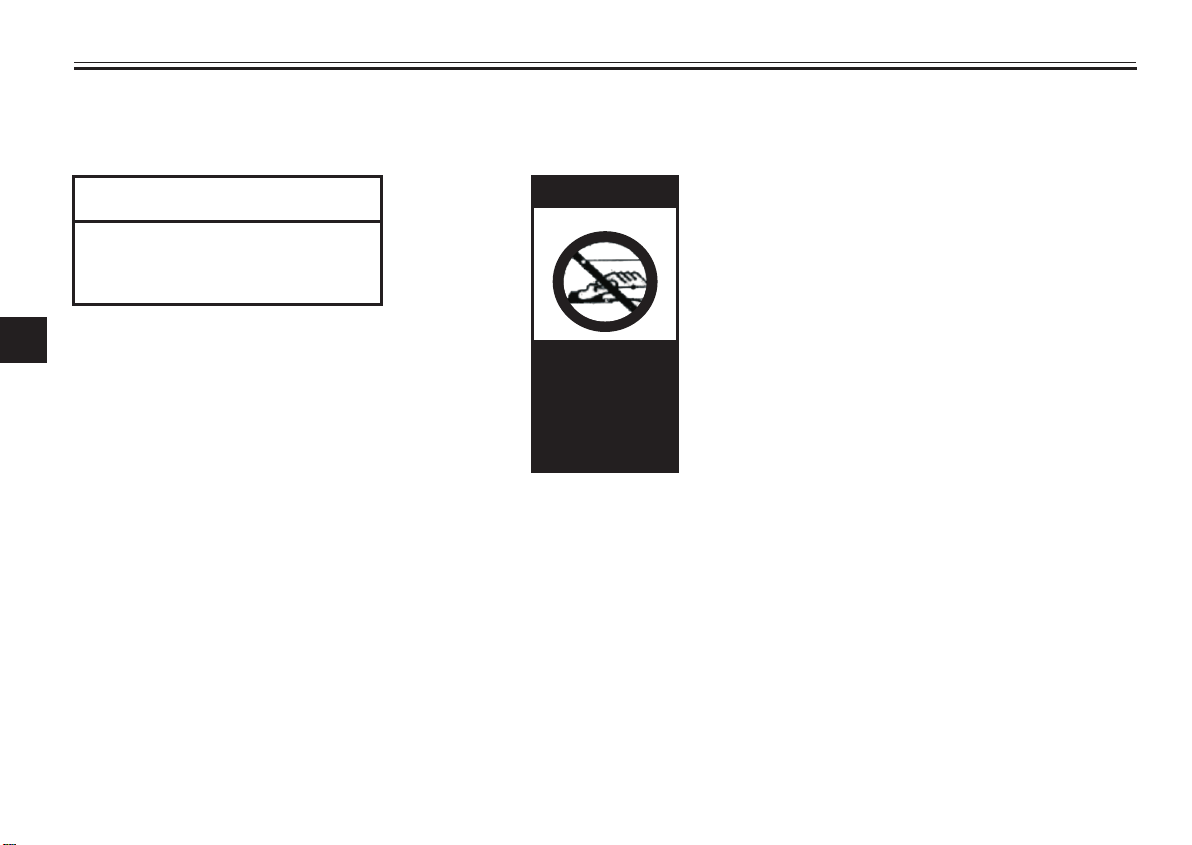

WARNING

Before you operate this vehicle,

read the owner's manual.

NOTICE

Do not place any

combustible

material like

cloth, paper, etc. near

the AIR SCOOP

2-1

SAFETY INFORMATION

EAU10286

Be a Responsible Owner

As the vehicle’s owner, you are re-

sponsible for the safe and proper op-

eration of your motorcycle.

Motorcycles are single-track vehicles.

Their safe use and operation are de-

pendent upon the use of proper riding

techniques as well as the expertise of

the operator. Every operator should

know the following requirements be-

fore riding this motorcycle.

He or she should:

●Obtain thorough instructions from

a competent source on all as-

pects of motorcycle operation.

●Observe the warnings and main-

tenance requirements in this

Owner’s Manual.

●Obtain qualified training in safe

and proper riding techniques.

●Obtain professional technical ser-

vice as indicated in this Owner’s

Manual and/or when made nec-

essary by mechanical conditions.

Safe Riding

Perform the pre-operation checks

each time you use the vehicle to make

sure it is in safe operating condition.

Failure to inspect or maintain the vehi-

cle properly increases the possibility

of an accident or equipment damage.

See page 5-1 for a list of pre-operation

checks.

●This motorcycle is designed to

carry the operator and a passen-

ger.

●The failure of motorists to detect

and recognize motorcycles in traf-

fic is the predominating cause of

automobile/motorcycle acci-

dents. Many accidents have been

caused by an automobile driver

who did not see the motorcycle.

Making yourself conspicuous ap-

pears to be very effective in re-

ducing the chance of this type of

accident.

Therefore:

• Wear a brightly colored jacket.

• Use extra caution when you are

approaching and passing

through intersections, since in-

tersections are the most likely

places for motorcycle accidents

to occur.

• Ride where other motorists can

see you. Avoid riding in another

motorist’s blind spot.

●Many accidents involve inexperi-

enced operators. In fact, many

operators who have been in-

volved in accidents do not even

have a current motorcycle li-

cense.

• Make sure that you are quali-

fied and that you only lend your

motorcycle to other qualified

operators.

• Know your skills and limits.

Staying within your limits may

help you to avoid an accident.

• We recommend that you prac-

tice riding your motorcycle

where there is no traffic until

EAU10222

54CF8199E1.book Page 1 Thursday, April 1, 2010 1:24 PM
