Yamaha YSP-1 Manuale utente

DIGITAL SOUND

PROJECTOR

YSP-1

multi-channel SURROUND SOUND

ENJOYMENT FROM A single component...

simplify your home theater

The Yamaha Digital Sound Projector (YSP-1) is an

exciting breakthrough in home theater technology.

Now you can get optimum multi-channel sound

directivity to enjoy the full benefits of home

theater all from one easily installed component.

No more multiple speakers, no more clutter, no

more hiding wires... just the pure excitement of

bringing your movies and music to life.

The YSP-1 is designed to be an ideal, slim

design match for your video display set.

Although it is only one component, there are

actually 42 speaker drivers inside that project

precisely focused beams of sound aimed for

optimum surround sound effect.

wallspace

utilize revolutionize your

projecting reflecting

EASY TO SET UP

The time delay of each speaker driver is controlled by a Digital Sound Processing circuit,

enabling the system to project "beams" of sound which are precisely aimed for optimum

surround sound effect. The direct and reflected sound waves produce true multi-channel

surround sound.

High quality two-channel (stereo) sound can also be reproduced by superimposing

multiple beams of sound as pictured above.

Setting up the Yamaha digital sound projector is easier than

conventional home theater systems because multiple speakers

and wiring are eliminated. Placement is versatile, with the YSP-1

able to be positioned in the front center or either front corner of

the room. It can also be wall or table mounted for flat panel TVs,

or even placed next to, or on top of, your video display.

DELAY CONTROL

DIGITA L AMPLIFIERS DIGITAL AMPLIFIERS

AIMING OF SOUND BEAM

SPEAKER DRIVER ARRAY

FOCUSED SOUND BEAM

(STEREO MODE)

sound the source for multi-channel enjoyment

AN EASY BLEND

The YSP-1 employs multiple small speakers, each with it's own digital

amplifier, and our unique projection technology to control the orientation

of the sound. By focusing the sound into ”beams” and controlling the

speaker delay times, the listener perceives the sounds to be coming

from additional speakers placed throughout the room, when in fact there

is only the Yamaha Digital Sound Projector.

It’s not just about how it sounds... it’s also about

style, and how well the YSP-1 complements a wall or

stand-mounted plasma , LCD or rear-projection video

display. With slim, contemporary design, the YSP-1

becomes an elegant statement of the latest in home

theater technology. And, since it can be used as an

on-wall system, you can take the YSP-1 with you if

you move!

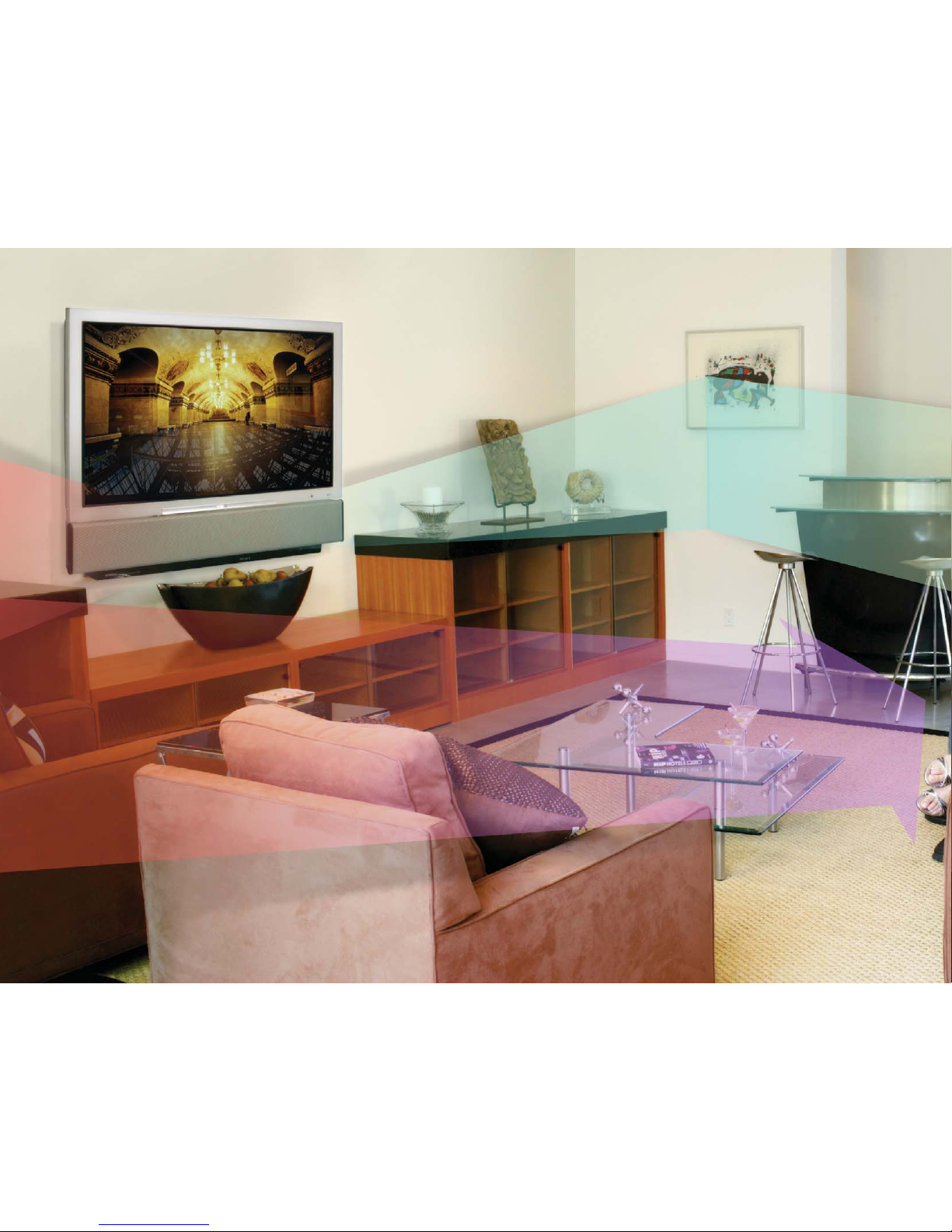

Five-Beam: All five channels--L , R, C, Ls and Rs--are given

separate orientations. Sound is beamed off the walls to create

the effect of a surround system with rear speakers. Stereo: The

left and right woofers, with the multiple beam speakers acting as

tweeters, reproduce the effect of conventional stereo speakers.

Stereo + Three-Beam: The L and R channels are produced

using stereo mode while C, Ls and Rs are produced using

beaming. This mode is effective when the YSP-1 placed in a

corner. Three-Beam: Three beams are produced: L+ Ls, R+

Rs and C. A surround sound effect is created by reflecting

the sound off the walls.

Multi-Channel Surround Sound... Plus!

FIVE-BEAM STEREO THREE-BEAMSTEREO + THREE-BEAM

technically sophisticated

A subtle blue LCD keeps you informed of your

current surround setting and volume level without

interfering with your viewing enjoyment.

Connecting the YSP-1

to other sources, video

monitors and optional

subwoofer couldn't be

any easier.

SPM-K1 : Optional Wall Mounting Bracket

The YSP-1 rear panel offers

2 optical and 1 coaxial

digital inputs, 2 analog

inputs, subwoofer output,

and RS-232C interface for

custom applications.

• Easy Set Up Setting:

Room Type - Shape of the room

Speaker Position - Where is the YSP placed

Room Size - How big is the room

• Adjustable Surround Mode and

Manual Setup

• Dolby Digital & DTS Surround Sound Compatibility

Dolby Pro Logic II - (Movie, Music and Game)

DTS Neo:6 (Cinema and Music)

• Three User Memory Positions

• Night Listening Mode

• Room Equalizer

• Parameter Settings

• Horizontal/Vertical Angle Adjustment

• Preset Remote Control

on screen display

1-5/8” (4cm) x 40 drivers

4-3/8” (11cm) x 2 woofers

120 W total power:

2 W x 40 + 20 W x 2

40-9/16” x 7-5/8” x 4-5/8”

1,030 x 194 x 118 mm

28.7 lbs.; 13 kg

Speakers Section

Digital Amplifier

Dimensions

(W x H x D)

Weight

PRODUCT SPECIFICATIONS

SPECIAL FEATURES

YSP-1 DIGITAL SOUND PROJECTOR

highlysimplified

THESE WALLS CAN TALK

Clear movie dialog, well-placed sound effects

and perfect background music... all for your

personal enjoyment, courtesy of Yamaha and

your own walls. Able to be used with DVD,

satellite or cable TV broadcasts, the YSP-1 even

offers built-in surround sound decoders for

Dolby Digital, DTS, Dolby Pro Logic II, plus an

on-screen menu that provides easy access to a

wide range of customizable features.

While there is a dazzling amount of advanced technology contained in the YSP-1,

its main purpose is still to provide easy, non-intrusive multi-channel home

theater enjoyment. The YSP-1 Digital Sound Projector, another revolutionary

approach from Yamaha for bringing life-like movie and music entertainment into

your home. Bouncing off the walls just took on a whole new meaning.

bouncing off the wall ... redefined

Yamaha Electronics Corporation, USA 6660 Orangethorpe Avenue Buena Park, CA90620 www.yamaha.com

for more product information,

applications and features please visit

www.yamaha.com/home

YSP-1 DIGITAL SOUND PROJECTOR

Dolby, Pro Logic and Double D are trademarks of Dolby Laboratories Corporation.

DTS is a trademark of Digital Theater Systems, Inc.

Product designs and specifications are subject to change without notice.
