TECHNICAL GUIDE
AFFINITY
MODELS: PS9
GAS-FIRED
CONDENSING / HIGH EFFICIENCY
UPFLOW SINGLE STAGE FURNACES
92% AFUE
NATURAL GAS
40 - 135 MBH INPUT
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at www.york.com for the most
up-to-date technical information.
Additional rating information can be found at
www.gamanet.org.
EFFICIENCY
RATING
CERTIFIED
ISO 9001
Certified Quality
Management System
036-21578-002 Rev. B (0205)
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
DESCRIPTION
These Category IV, highly efficient, compact, condensing
type furnaces are designed for residential and commercial
installations in a basement, closet, alcove, recreation room
or garage where the ambient temperature is above 32°F, or
higher. They may be either side wall or thru-roof vented
using approved plastic type combustion air and vent piping.
All units are factory assembled, wired and tested to assure
dependable and economical installation and operation.
WARRANTY
Lifetime limited warranty on both heat exchangers to the
original purchaser; a 20-year limited warranty from original
installation date to subsequent purchaser.
10-year warranty on the heat exchanger in commercial appli-
cations.
5-year limited parts warranty.
FEATURES
• Compact, easy to install, ideal height 40" cabinet
• Blower-off delay for cooling SEER improvement.
• Easy to connect power/control wiring.
• Built-in, high level self diagnostics with fault code display.
• Low unit amp requirement for easy replacement applica-
tion.
• Integrated control module for reliable, economical opera-
tion.
• High velocity filter and side -return filter rack provided for
easy field installation.
• May be installed as either two-pipe (sealed combustion)
or single pipe vent (using indoor combustion air)
• Top intake & vent connection allows installation in narrow
locations.
• Electronic Hot Surface Ignition saves fuel cost with
increased dependability and reliability.
• Induced combustion system with inshot main burners for
quiet, efficient operation.
• No special vent termination kit required.
• 100% shut off main gas valve for extra safety.
• PSC -four speed, direct drive motor with large, quiet
blower.
• 24V, 40 VA control transformer and blower relay supplied
for add-on cooling.
• Hi-tech tubular aluminized steel primary heat exchanger.
• Secondary (condensing) heat exchanger of 29-4C high-
grade stainless steel.
• Timed on, adjustable off blower capability for maximum
comfort.
• Solid removable bottom panel allows easy application.
• Easy access from front of unit for cleaning, maintenance
or service.
• Protection from intake, exhaust or condensate blockage.
• Insulated blower compartment for quiet operation.
• Independent door removal for greater durability and ease
of access.
036-21578-002 Rev. B (0205)
2Unitary Products Group
.
Three elbows (two in vent pipe and one in the air intake pipe) are already accounted for and need not be included in the elbow count from the Table above.
NOTE: If installing furnace at altitudes between 2000 - 4500 ft. (609.6 - 1371.6m), intake and vent pipe length must be reduced by 10 ft. (3.05 m). If the instal-
lation requires the maximum allowable intake and vent pipe length, the furnace must be converted for high altitude operation. Refer to the proper high altitude
application instruction for details.
30-7/8
21-1/2
13-7/8
7
11
7/8
23-3/4
7/8
30-1/8
26-1/2
24-5/8 A
40
26-1/2
25-3/8
28-3/8
21-1/2
11
8
26-3/4
1-3/81-1/4
C
24-3/8
20 5/8
5/8
B
24-7/16
2
D
1-1/2” GAS
PIPE ENTRY
7/8” JUNCTION
BOX HOLE
T-STAT WIRING
7/8” K.O.
CONDENSATE
DRAIN 7/8” K.O.
OPTIONAL RETURN AIR
CUT-OUT (either side)
FOR USE WITH
EXTERNAL FILTER
FRAME
LEFT SIDE
FRONT RIGHT SIDE
BOTTOM IMAGE
RETURN END TOP IMAGE
SUPPLY END
1-1/2” GAS
PIPE ENTRY
7/8” JUNCTION
BOX HOLE
T-STAT WIRING
7/8” K.O.
CONDENSATE
DRAIN 7/8” K.O.
DIMENSIONS
Models Nominal
CFM Cabinet
Size Cabinet Dimension
A (in.) B (in.) C (in.) D (in.)
PS9A12N040UP11 1200 A 14-1/2 13-1/4 12-1/8 6-1/4
PS9B12N060UP11 1200 B 17-1/2 16-1/4 15-1/8 8-1/2
PS9B12N080UP11 1200 B 17-1/2 16-1/4 15-1/8 8-1/2
PS9C16N080UP11 1600 C 21 19-3/4 18-1/2 8-7/8
PS9C20N080UP11 2000 C 21 19-3/4 18-1/2 8-7/8
PS9C16N100UP11 1600 C 21 19-3/4 18-1/2 8-7/8
PS9C20N100UP11 2000 C 21 19-3/4 18-1/2 8-7/8
PS9D20N120UP11 2000 D 24-1/2 23-1/4 21-7/8 10-5/8
PS9D20N135UP11 2000 D 24-1/2 23-1/4 21-7/8 10-5/8
COMBUSTION AIR SUPPLY AND VENT PIPING
MAXIMUM ELBOWS AND VENT LENGTHS
Models Input
BTUH Pipe Size
Inches Maximum Number of Elbows* Minimum
Length
12345678
40,000 1-1/2 30 25 20 10 N/A N/A N/A N/A 5
40,000 2 7065605550453525 5
60,000 1-1/2 30 25 20 10 N/A N/A N/A N/A 5
60,000 2 6055504540302010 5
60,000 3 85 80 75 70 65 60 50 40 20
80,000 1-1/2 20 15 N/A N/A N/A N/A N/A N/A 5
80,000 2 6055504540302010 5
80,000 3 85 80 75 70 65 60 50 40 20
100,000 2 25 20 15 N/A N/A N/A N/A N/A 5
100,000 3 85 80 75 70 65 60 50 40 20
120,000 3 75 70 65 60 55 45 35 25 5
135,000 3 75 70 65 60 55 45 35 25 5
036-21578-002 Rev. B (0205)
Unitary Products Group 3
* ESP (External Static Pressure) .5" WG is at furnace outlet ahead of cooling coil.
Annual Fuel Utilization Efficiency (AFUE) numbers are determined in accordance with DOE Test procedures.
Wire size and over current protection must comply with the National Electrical Code (NFPA-70-latest edition) and all local codes.
The furnace shall be installed so that the electrical components are protected from water.
NOTES:
1. For altitudes above 2000 ft. reduce capacity 4% for each 1000 ft. above sea level.
2. Wire size based on copper conductors, 60°C, 3% voltage drop.
3. Continuous return air temperature must not be below 55°F.
4. All filters must be high velocity cleanable type.
5. Air flows above 1800 CFM require either return from two sides or one side plus bottom.

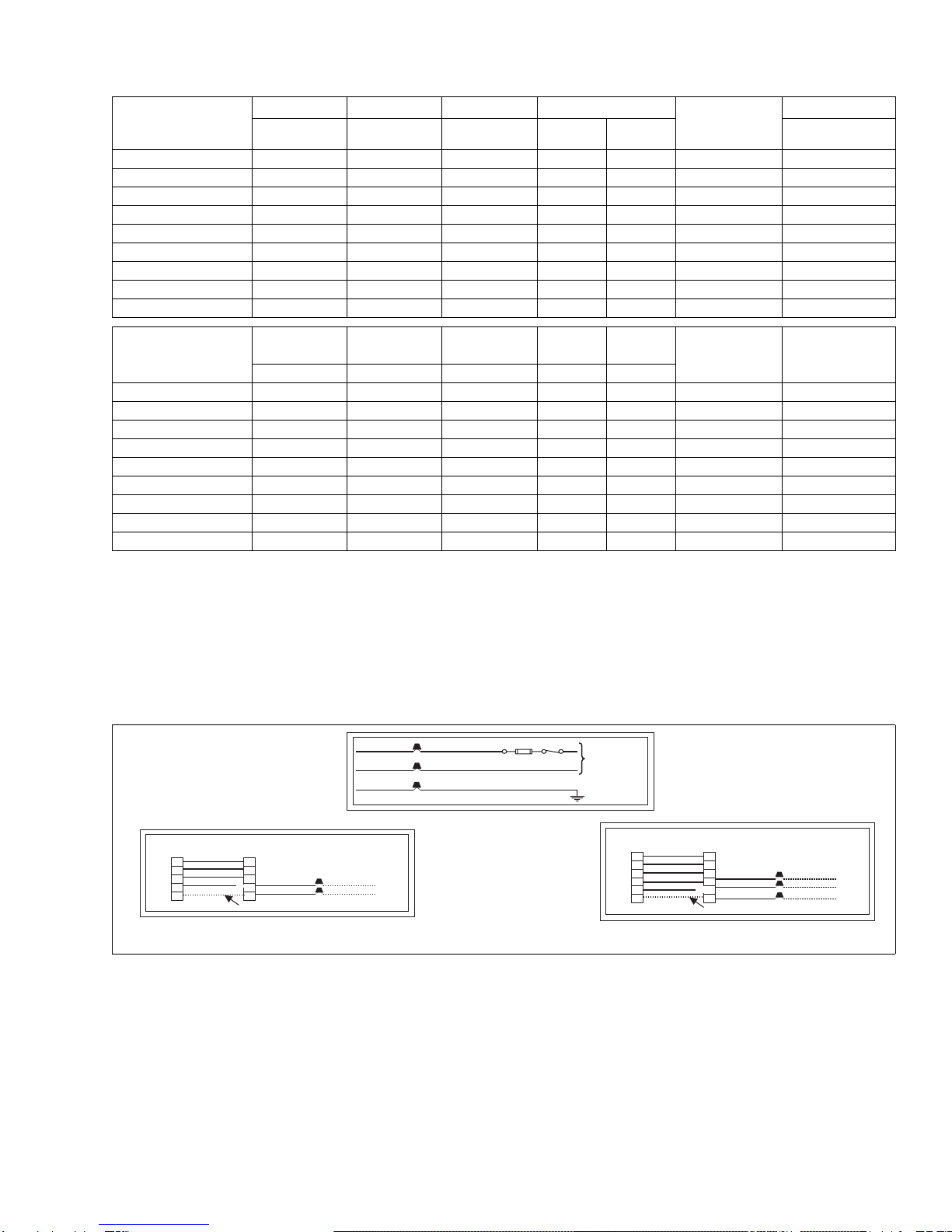

ELECTRICAL AND PERFORMANCE DATA
Model Input/Cabinet Output Blower Size Blower Max.
Over-current
Protect
Air Temp. Rise
MBH MBH In. HP Amps °F
PS9A12N040UP11 40 38 11 x 8 1/2 7.0 20 35 - 65
PS9B12N060UP11 60 56 11 x 8 1/2 7.0 20 40 - 70
PS9B12N080UP11 80 74 11 x 8 1/2 7.0 20 45 - 75
PS9C16N080UP11 80 75 11 x 10 3/4 10.2 20 45 - 75
PS9C20N080UP11 80 75 11 x 11 1 12.7 20 40 - 70
PS9C16N100UP11 100 93 11 x 10 3/4 10.2 20 45 - 75
PS9C20N100UP11 100 93 11 x 11 1 12.7 20 40 - 70
PS9D20N120UP11 120 112 11 x 11 1 12.7 20 40 - 70
PS9D20N135UP11 135 127 11 x 11 1 12.7 20 45 - 75
Model Max. Outlet
Air Temp. Nominal
Airflow Cabinet
Width Total Unit AFUE Min. Wire Size
(awg) @ 75 ft.
One Way
Approximate
Operating Weight
°F CFM In. Amps %
PS9A12N040UP11 165 1200 14-1/2 9 94.0 14 121
PS9B12N060UP11 170 1200 17-1/2 9 92.0 14 135
PS9B12N080UP11 175 1200 17-1/2 9 92.0 14 142
PS9C16N080UP11 175 1600 21 12 92.0 14 157
PS9C20N080UP11 170 2000 21 14 92.0 12 159
PS9C16N100UP11 175 1600 21 12 92.0 14 162
PS9C20N100UP11 170 2000 21 14 92.0 12 164
PS9D20N120UP11 170 2000 24-1/2 14 92.0 12 180
PS9D20N135UP11 175 2000 24-1/2 14 92.0 12 180
BLK
WHT
GRN
BLK (HOT)
WHT (NEUTRAL)
GRN
NOMINAL
120 VOLT
LINE WIRING CONNECTIONS
HEATING AND COOLING
THERMOSTAT CONNECTIONS
HEATING AND TWO-STAGE COOLING
THERMOSTAT CONNECTIONS
ROOM
THERMOSTAT
FURNACE
CONTROL
CONDENSING
UNIT
TO AIR CONDITIONER
CONTROLS
R
W
G
Y1
C
R
G
C
COMMON T’STAT CONNECTION
Y2
Y1
W
Y/Y2
ROOM
THERMOSTAT
FURNACE
CONTROL
CONDENSING
UNIT
TO AIR CONDITIONER
CONTROLS
R
W
G
Y
C
R
W
G
C
COMMON T’STAT CONNECTION
Y/Y2
036-21578-002 Rev. B (0205)
4Unitary Products Group
NOTES:
1. Airflow expressed in standard cubic feet per minute.
2. Return air is through side opposite motor (left side).
3. Airflows above 1800 CFM require either return from two sides or one side plus bottom.
4. Motor voltage at 115 V.
5. NR = Operation at this static pressure is not recommended.
FILTER PERFORMANCE
The airflow capacity data published in the “Blower Perfor-
mance” table listed above represents blower performance
WITHOUT filters. To determine the approximate blower per-
formance of the system, apply the filter drop value for the fil-
ter being used or select an appropriate value from the “Filter
Performance” table shown below.
NOTE: The filter pressure drop values in the “Filter Perfor-
mance” table shown below are typical values for the type of
filter listed and should only be used as a guideline. Actual
pressure drop ratings for each filter type vary between filter
manufacturer.
BLOWER PERFORMANCE CFM
AIRFLOW WITH BOTTOM OR ONE SIDE RETURN
MODELS Speed
Tap
EXTERNAL STATIC PRESSURE, INCHES W.C. (kPa)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM CFM CFM CFM CFM CFM CFM CFM CFM CFM
PS9A12N040UP11
HIGH 1635 1590 1535 1480 1415 1340 1280 1185 NR NR
M-HI 1245 1225 1205 1185 1160 1110 1065 995 NR NR
M-LO 1005 1000 995 975 955 925 885 825 NR NR
LOW 775 770 765 750 725 680 655 620 NR NR
PS9B12N060UP11
PS9B12N080UP11
HIGH 1650 1605 1570 1525 1465 1410 1350 1275 1170 1060
M-HI 1165 1185 1175 1165 1150 1140 1100 1050 970 875
M-LO 895 915 935 940 940 920 905 860 815 750
LOW 710 725 725 725 720 700 685 660 625 560
PS9C20N080UP11
PS9C20N100UP11
HIGH 2300 2210 2120 2020 1930 1830 1715 1595 1480 1350
M-HI 1950 1900 1830 1755 1680 1595 1500 1390 1270 1155
M-LO 1610 1545 1490 1440 1390 1315 1230 1155 1050 920
LOW 1325 1270 1225 1175 1105 1045 990 905 890 790
PS9C16N080UP11
PS9C16N100UP11
HIGH 1960 1955 1925 1890 1830 1765 1695 1615 1600 1485
M-HI 1565 1560 1560 1575 1545 1530 1475 1425 1365 1260
M-LO 1230 1275 1285 1300 1310 1300 1280 1245 1190 1070
LOW 930 945 965 975 975 975 975 950 910 850
PS9D20N120UP11
PS9D20N135UP11
HIGH 2560 2485 2410 2320 2220 2135 2035 1920 1785 1650
M-HI 2090 2050 1990 1970 1885 1820 1760 1675 1545 1405
M-LO 1695 1675 1665 1615 1565 1510 1460 1385 1285 1140
LOW 1175 1150 1135 1110 1085 1055 1005 980 970 845
AIRFLOW WITH TWO SIDE RETURNS OR WITH BOTTOM AND ONE SIDE RETURN
MODELS Speed
Tap
EXTERNAL STATIC PRESSURE, INCHES W.C. (kPa)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
CFM CFM CFM CFM CFM CFM CFM CFM CFM CFM
PS9C20N080UP11
PS9C20N100UP11
HIGH 2465 2380 2295 2195 2095 1995 1875 1760 1620 1470
M-HI 2085 2035 1960 1880 1800 1705 1605 1485 1360 1235
M-LO 1725 1625 1595 1540 1485 1405 1315 1235 1125 995
LOW 1420 1360 1310 1255 1180 1120 1070 970 950 845
PS9D20N120UP11
PS9D20N135UP11
HIGH 2615 2535 2450 2385 2285 2175 2075 1945 1825 1670
M-HI 2055 2045 2015 1985 1932 1855 1785 1730 1605 1470
M-LO 1690 1650 1620 1600 1570 1525 1470 1395 1300 1200
LOW 1345 1335 1335 1285 1250 1230 1180 1115 1010 850
036-21578-002 Rev. B (0205)
Unitary Products Group 5
* Washable Fiber Filters are the type supplied with furnace.
APPLYING FILTER PRESSURE DROP TO
DETERMINE SYSTEM AIRFLOW
To determine the approximate airflow of the unit with a filter in
place, follow the steps below:
1. Select the filter type.
2. Select the number of return air openings or calculate the
return opening size in square inches to determine the
proper filter pressure drop.
3. Determine the External System Static Pressure (ESP)
without the filter.
4. Select a filter pressure drop from the table based upon
the number of return air openings or return air opening
size and add to the ESP from Step 3 to determine the
total system static.
5. If total system static matches a ESP value in the airflow
table (i.e. 0.20, 0.60, etc,) the system airflow corre-
sponds to the intersection of the ESP column and Model/
Blower Speed row.
6. If the total system static falls between ESP values in the
table (i.e. 0.58, 0.75, etc.), the static pressure may be
rounded to the nearest value in the table determining the
airflow using Step 5 or calculate the airflow by using the
following example.
Example: For a 120,000 Btuh furnace with 2 return openings
and operating on high speed blower, it is found that total sys-
tem static is 0.58" w.c. To determine the system airflow, com-
plete the following steps:
1. Obtain the airflow values at 0.50" & 0.60" ESP.
Airflow @ 0.50": 2285 CFM
Airflow @ 0.60": 2175 CFM
2. Subtract the airflow @ 0.50" from the airflow @ 0.60" to
obtain airflow difference.
2175 - 2285 = -110 CFM
3. Subtract the total system static from 0.50" and divide this
difference by the difference in ESP values in the table,
0.60" - 0.50", to obtain a percentage.
(0.58 - 0.50) / (0.60 - 0.50) = 0.8
4. Multiply percentage by airflow difference to obtain airflow
reduction.
(0.8) x (-110) = -88
5. Subract airflow reduction value to airflow @ 0.50" to
obtain actual airflow @ 0.58" ESP.
2288 - 88 = 2197
FILTER PERFORMANCE - PRESSURE DROP INCHES W.C. AND (KPA)
Airflow Range Minimum Opening Size Filter Type
Disposable WASHABLE FIBER* Pleated
1 Opening 2 Openings 1 Opening 2 Opening 1 Opening 2 Opening 1 Opening 2 Opening
Sq. in. Sq. in. In w.c. In w.c. In w.c. In w.c. In w.c. In w.c.
0 - 750 230 0.01 0.01 0.15
751 - 1000 330 0.04 0.03 0.20
1001 - 1250 330 0.08 0.07 0.20
1251 - 1500 330 0.08 0.07 0.25
1501 - 1750 380 658 0.14 0.08 0.13 0.06 0.30 0.17
1751 - 2000 380 658 0.17 0.09 0.15 0.07 0.30 0.17
2001 & Above 463 658 0.17 0.09 0.15 0.07 0.30 0.17
036-21578-002 Rev. B (0205)
6Unitary Products Group
ACCESSORIES
PROPANE (LP) CONVERSION KIT -
1NP0347 - 40,000 - 120,000 models
1NP0349 - 135,000 model
This accessory conversion kit may be used to convert natural
gas (N) units for propane (LP) operation. Conversions must
be made by qualified distributor or dealer personnel.
CONCENTRIC VENT TERMINATION -
1CT0302 (2")
1CT0303 (3")
For use through rooftop, sidewall. Allows combustion air to
enter and exhaust to exit through single common hole.
SIDEWALL VENT TERMINATION KIT - 1HT0901
For use on sidewall, two-pipe installations only. Provides a
more attractive termination for locations where the terminal is
visible on the side of the home.
CONDENSATE NEUTRALIZER KIT - 1NK0301
Neutralizer cartidge has a 1/2" plastic tube fittings for installa-
tion in the drain line. Calcium carbonate refill media is also
avaiable from the Source 1 Parts (p/n 026-30228-000).
EXTERNAL BOTTOM RACK W/FILTER -
Provides a cleanable, high velocity type filter and rack.
Attaches to the bottom of the furnace.
1BR0314 - For 14-1/2” cabinets
1BR0317 - For 17-1/2" cabinets
1BR0321 - For 21" cabinets
1BR0324 - For 24-1/2" cabinets
EXTERNAL SIDE RETURN FILTER RACK -
1SF0101 - Fits all cabinet sizes
Attaches to side of furnace cabinet in side return applications.
Holds any 16x25x1 permanent or disposable filter.
HIGH ALTITUDE PRESSURE SWITCHES -
These accessory kits may be used to convert units for high
altitude operation. Conversion must be made by qualified dis-
tributor or dealer personnel.
NOTE: For high altitude conversion, an orifice change may also be
required. See application instructions.
ROOM THERMOSTATS - A wide selection of compatible
thermosets are available to provide optimum performance
and features for any installation.
1 Heat Stage only, manual, mechanical thermostat. Add sub-
base for 1H/1C.
1H/1C, manual change-over electronic non-programmable
thermostat.
1H/1C, auto/manual changeover, electronic programmable,
deluxe 7-day, thermostat.
1H/1C, auto/manual changeover, electronic programmable.
* For the most current accessory information, refer to the
price book or consult factory.
HIGH ALTITUDE PRESSURE SWITCH APPLICATION
Pressure Switch Kits Furnace Models
4,500 Ft to 10,000 Ft.
40 1PS0322
60 1PS0309
80 1PS0307
100 1PS0307
120 1PS0309
135 1PS0322
036-21578-002 Rev. B (0205)
Unitary Products Group 7
NOTES
Subject to change without notice. Printed in U.S.A. 036-21578-002 Rev. B (0205)
Copyright © by York International Corp. 2005. All rights reserved. Supersedes: 036-21578-002 Rev. A (0904)
Unitary 5005 Norman
Products York OK
Group Drive 73069
NOTES
Questo manuale è adatto per i seguenti modelli
8
Indice
Altri manuali York Forno
York
York P2MP Series Manuale utente
York
York TM9V*C Manuale utente
York
York G8C Series Manuale utente
York
York P4UCB30N12206 Manuale utente
York
York YP9C Series Guida rapida
York
York TP9C Series Guida
York
York DGAA056BDTA Manuale utente
York
York GY9 Manuale utente
York
York PCMU Series Manuale utente
York
York P3DN Guida
