YUHAO 1073AL Manuale utente
Model No.: 1073AL
Ceiling Fan
Installation Instructions
THANK YOU
We appreciate the trust and confidence you have placed in us through the purchase
of this ceiling fan.We strive to continually create quality products designed to
enhance your home.Thank you for choosing us!
Visit www.pmwfan.com
for further assistance.
.1.
Table of contents
Table of contents 1
2
4
4
Safety Precautions
Pre-Installation
Warranty

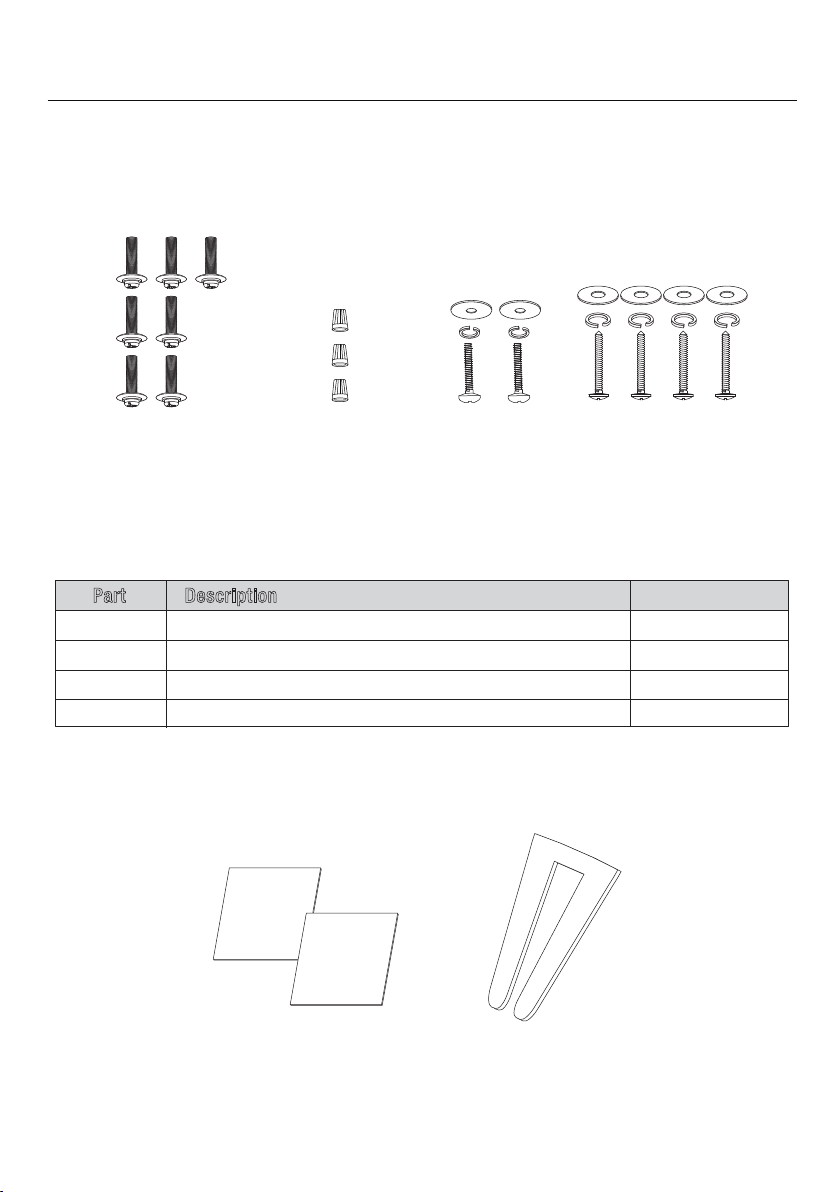

Installation kit
Blade balancing kit
3
3
Tools needed
5
6
7
9
11
12
13
Installation
Step 1 (Ceiling bracket installation )
Step 2 (Receiver and wiring installation)
Step 3 (Light kit installation)
Remote Control ( Emitter ) Operation
TroubleShooting
Balancing
Specification
10
Step 5(Switch on and ceiling fan works)
.2.
Safety Precautions
1. For your safety, all electrical connections and disconnections should be performed by a
qualified electrician.
2. Any action performed for the electrical connection of the device must be carried out after
ensuring that the general power supply is disconnected,by removing the corresponding fuse or
disarming the protective switch in order to ensure total isolation of the power supply.
3. When deciding where to mount the fan, be sure that there is at least 30 inches(76 cm) of space
between the fan and any wall or other obstruction that the fan blades could collide with. The
greater this distance, the more effective the air flow produced.After the fan is mounted, be sure
that the blades are no less than 7ft(2.1 m) above the ground.
4 . The anchor point for the fan must be able to support a weight of at least 100 pounds(45 kg). If
mounting on a ceiling junctionbox, be sure that the fan is adequately supported to prevent
loosening or turning.
5. The fan’s electrical connection must be “grounded” (the fan’s ground cable connected to the
installation’s grounding network) in order to avoid any branching that may be dangerous to
people.
6. Do not connect the fan’s power supply to any dimmers,potentiometers, or light switches, as it
will cause the fan tomalfunction and/or will damage the motor. The fan must be directly
connected to a properly protected installation circuit(magnetothermal differential switch with the
adequate size for the fan’s consumption and technical specifications).Only use the fan’s control
to turn it on or stop it.
7. It is recommended to not use these types of fans along with gas installations simultaneously in
the same room.
8. The fan must be not be moving and must have come to a complete stop before changing its
direction of rotation.This will prevent damage to its motor and to the control unit, when
applicable.
9. Do not insert anything that could hit the fan’s blades into its pathway while it is moving, as this
could cause damage to people, can damage the blades, and can offset the balance of the unit,
causing vibrations and wobbling.
10. After installing the fan, ensure that all fastenings aresecure and tightened in order to avoid any
noise caused by loose elements.
11. Due to the fan’s movement, certain fastenings may become loose. Check all fastenings twice
per year at a minimum in order to ensure that they are sufficiently tight. If necessary, they must
be retightened.
12. The motor housing can be cleaned with a soft brush or a lint-free cloth to avoid scratching the
surface. Clean the blades with a lint-free cloth. Important: Turn off the main power supply before
starting any maintenance. Do not clean the fans with water or a damp cloth.
Note: The important warnings and instructions indicated in this manual are not
guaranteed to cover all possible conditions and situations that may occur. It
must be understood that common sense, precaution, and care are factors that
cannot be included in all products. These factors can and must only be provided
by the user who maintains and enjoys this fan.
The information contained in the following pages has been prepared to ensure your
maximum enjoyment of your fan
Please remove the fuse or turn off the circuit breaker to cut off the power before installing
the fan. Ensure all electrical connections are in compliance with local laws, regulations
and national eletrical codes. If you are not familiar with electrical installation and wiring,
please hire a qualified electrician or consult the wiring manual.
.3.
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at
time of shipment from the factory for a period of lifetime after the date of purchase by the original purchas-
er. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship
and material at the time of shipment from the factory for a period of three years after the date of purchase
by the original purchaser. The manufacturers also warrants that all other fan parts, excluding any glass or
acrylic blades, to be free from defects in workmanship and material at the time of shipment from the
factory for a period of one year after the date of purchase by the original purchaser. We agree to correct
such defects without charge or at our option replace with a comparable or superior model if the product
is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by
accident, misuse, improper installation or by affixing any accessories, is not covered by this warranty.
Because of varying climatic conditions this warranty does not cover any changes in brass finish, including
rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give the longest useful life
when protected from varying weather conditions. A certain amount of “wobble” is normal and should not
be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid.
There is no other express warranty. We hereby disclaim any and all warranties, including but not limited
to those of merchantability and fitness for a particular purpose to the extent permitted by law. The
duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in
the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the
above limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or
special damages arising out of or in connection with product use or performance except as may otherwise
be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so
the above exclusion or limitation may not apply to you.
This warranty gives specific legal rights, and you may also have other rights which vary from state to
state.
This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim
on the warranty must be paid by the customer.
Tools Needed
Warranty
Pre-Installation
.4.
Installation kit
Blade balancing kit
Pre-Installation
AA
AA
BB
BB
CC
CC DD
DD
Blade attachment screw with lock washer
Wire nut
Screws A
Screws B
Part Description
3
7
2
4
Quantity
.5.
Specification
Pre-Installation
Part
A
B
C
D
E
F
G
H
Quantity
1
1
1
1
3
1
1
2
Description
Bracket
Body/motor
Light kit
Light cover
Blades
Remote control
Receptor
Battery
A
F
G
H
C
D
E
B
AAA 1.5V
.6.
Installation
Step 1 (Ceiling bracket installation and fan into the installed Bracket.)
OFF

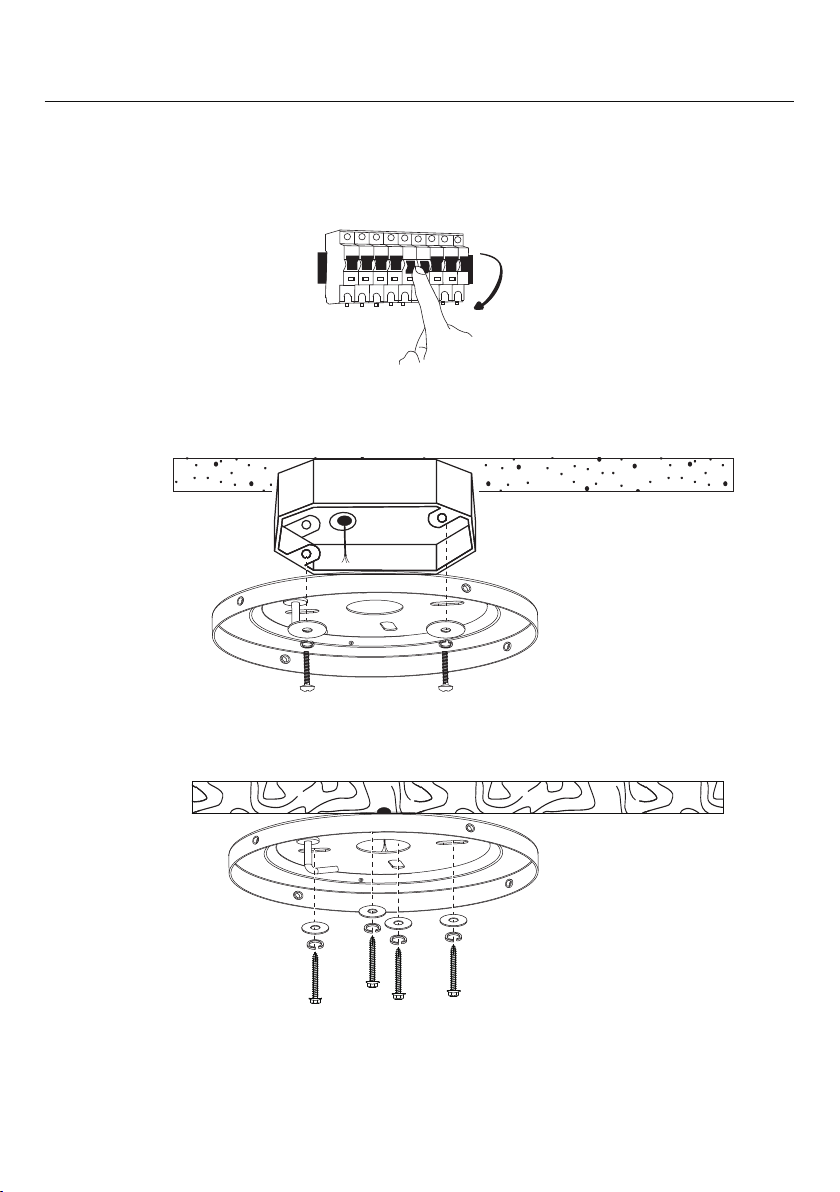

①Turn off the fan power supply at the circuit breaker box and the wall switch.
Choose the following installation methods according to the actual situation of the roof.
②
Electrical
Outlet Box
ACCEPTABLE FOR
FAN SUPPORT
or
Solid wood roof
Step 2 (Wiring and fan into the installed Bracket.)
take out
②③
Put the receiver into the Bracket and
arrange the wires
Remove two separated pre-lock
screws from Bracket, and loosen the
other two (no need to take them out)

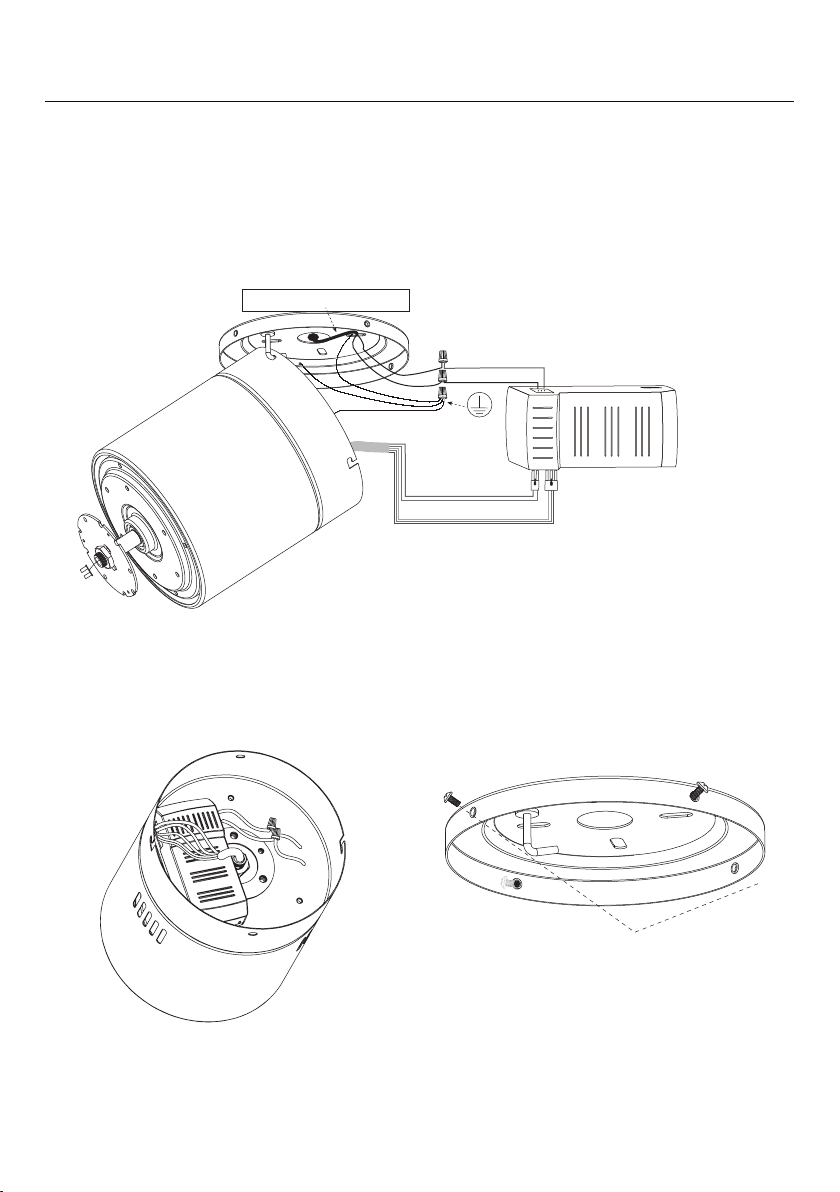

①Connect the wires according to the polarity (the color of the House power cord may be
different if the color is the same).
Installation
.7.
House power wire
To motor
To light
AC IN L(
Black
)
AC IN N(
White
)
④Remove the body from the Bracket hook, lift and rotate the it to make the seven-character
slot of the body is hung on the two nails on the Bracket
Tighten the screws
⑤
Installation
.8.
Insert

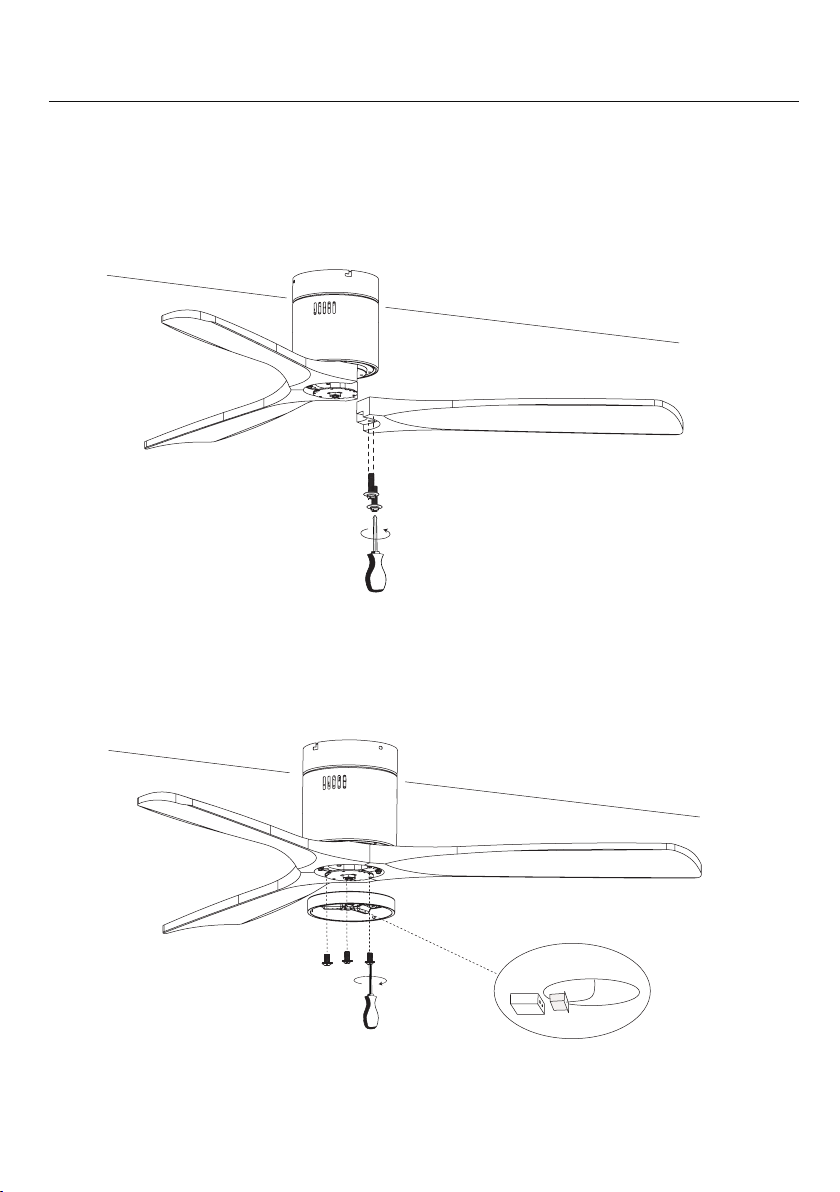

Step 3 (Blades and Light kit installation)
②Remove the pre-installed screws.
Connect the light kit cable, and then lock the light kit.
①Align the connected blade with the mounting hole, and then fix it with screws.
Installation
.9.
