Z GRILLS ZPG-1000D4E Manuale utente

VN102023

WOOD PELLET GRILLS

ZPG-1000D4E

OWNER’S MANUAL

MON TO FRI, 8:00 A.M. - 5:00 P.M. PACIFIC STANDARD TIME

SERVICE CONTACT: 1-833-947-4557/1-833-ZGRILLS

EMAIL: suppo[email protected]

WEBSITE: www.zgrills.com

CONTENTS

IMPORTANT SAFETY INFO 3

COMPONENT LIST 6

ASSEMBLY INSTRUCTIONS 8

INITIAL FIRING INSTRUCTIONS 18

SUBSEQUENT START-UP 19

OPERATING TIPS 20

MAINTENANCE & CLEANING 21

TROUBLESHOOTING 23

DIGITAL THERMOSTAT CONTROL WIRING DIAGRAM 25

Z GRILLS SUPPORT 27

3-Y LIMITED WARRANTY 28

SAVE THIS MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFETY INFO

GENERAL WARNINGS

Please read this entire manual before installation and use of the pellet fuel-burning

appliance. Failure to follow these instructions could result in property damage, bodily

injury or even death.

Contact local building or fire officials about restrictions and installation inspection

requirements in your area.

This grill is for outdoor use only. DO NOT use it in any enclosed area.

DO NOT store or use combustible materials or liquids near this appliance.

Keep children away while it is in use.

Maintain a safe distance between your grill and any combustible material.

DO NOT move your grill while operating or while it is hot. Wait until the grill is

completely cold.

If a grease fire occurs, turn “off”and leave lid closed until the fire is extinguished. DO

NOT unplug the power cord. DO NOT throw water on it. DO NOT try to smother the

fire.

Clean and maintain your grill after each use.

DO NOT use your grill on rainy days.

DO NOT touch any part of your grill while it is hot. Serious bodily injury could result.

We suggest the use of heat-resistant gloves when operating this grill.

We suggest that you should wrap the Grease Drain Pan with heavy-duty aluminum

foil before using because it is easy to clean.

For convenient and safe assembly, use at least two people to assemble the grill.

Make sure the power cord is disconnected before performing any service or

maintenance.

DO NOT place anything heavy on top of hopper lid. It is not a shelf and is a tip hazard.

Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or

similar liquids to start or ‘freshen up’ a fire in this appliance. Keep all such liquids

well away from the appliance when in use.

Do not use accessories not specified for use with this appliance.

NOTE: A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED

CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF

UTMOST IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY IN

ACCORDANCE WITH THESE INSTRUCTIONS.

PELLET RESTRICTIONS

This grill is designed for use of wood pellets only designed for burning in wood pellet

grills. Do Not Use Pellet Fuel Labeled As Having Additives.

We suggest that you use Z GRILLS BBQ WOOD PELLETS, which are specifically

made to work in our grills. There is no guarantee that other brands of pellets are

suitable for use in Z GRILLS. And Z GRILLS assumes no liability for any loss, damage

or injury caused by the use of any other brands of pellets.

Always keep the Pellet Hopper dry, the wood pellets will expand greatly, break apart

and even jam the feed system if the pellets get wet or are exposed to high humidity.

CARBON MONOXIDE WARNING

Follow these guidelines to prevent this colorless, odorless gas from poisoning you,

your family or others.

Know the symptoms of carbon monoxide poisoning: headache, dizziness, weakness,

nausea, vomiting, sleepiness, and confusion. Carbon monoxide reduces the blood’s

ability to carry oxygen. Low blood oxygen levels can result in loss of consciousness

and death.

See a doctor if you or others develop cold or flu-like symptoms while cooking or in

the vicinity of this appliance. Carbon monoxide poisoning, which can easily be

mistaken for a cold or flu, is often detected too late.

Alcohol consumption and drug use increase the effects of carbon monoxide

poisoning.

Carbon monoxide is especially toxic to mother and child during pregnancy, infants,

the elderly, smokers, and people with blood or circulatory system problems, such as

anemia, or heart disease.

COMPONENT LIST

1 1 Grill Chamber 33 1 Hopper Burner Gasket

2 1 Lid Handle 34 1 Left Plate

3 1 RTD Temperature Probe 35 2 Left Door Upper Pivot

4 1 Heat Baffle 36 1 Left Door

5 1 Top Warming 37 2 Bottom Pivot

6 2 Middle Warmiing 38 1 Magnet Fixing Plate

7 2 Porcelain Grills 39 1 Beam

8 1 Body Frame 40 2 Magnet

9 1 Grease Drain 41 1 Back Board

10 1 Grease Bucket 42 1 Platform

11 1 Side Shelf 43 2 Door Handle

12 1 Ash Tray 44 1 Right Door

13 1 Ash Tray Handle 45 1 Right Plate

14 1 Smoke Stack Gasket 46 2 Wheels(with brake)

15 1 Smoke Stack 47 2 Whees (without brake)

16 1 Chimney Cap 48 1 Hopper Top Assembly

17 1 Hopper Lid 49 1 Hopper Handle

18 1 Hopper Guard 50 1 Hopper Bottom Assembly

19 1 Hopper Bottom Shell 51 1 Grease Drain Pan Support

20 1 Digital Control 52 1 Hopper Top Shell

21 1 Hopper Bottom Cover 53 2 Lid Hinge

22 1 Power Cord Collector 54 2 Chamber Hinge

23 1 Auger Drive Motor 55 2 Nut

24 1 Auger Tube Bushing 56 2 Axle

25 1 Power Cord 57 1 Front decoration

Auger 58 1 Lid

27 1 Thick Gasket 59 2 Lid Guide

28 1 Hot Rod(Ignitor) 60 1 Winding Handle

29 1 Firepot Assembly 61 1 Pellet Cleanout Door

30 1 Hopper Burner Assembly 62 1 Botter Opener

Fan 63 1 WIFI Antenna

Visible Window

ITEM QTY

DESCRIPTION ITEM

QTY

DESCRIPTION

HARDWARE PACKAGE LIST

ITEM

QTY

DESCRIPTION

ITEM

QTY

DESCRIPTION

Bolt1/4-20×1/2

StepScrew 8#-32

Hexagon Bolt1/4-20×1/2

FlangeBolt1/4-20

Bolt8#-32×4/17

Bolt8#-32×3/8

HexagonKepNut8#-32

Open End Wrench

HexagonBolt1/4-20×3/4

Screwdriver

Gasket(OD0.79×ID0.33)

HexagonBolt1/4-20×3/5

HexNut1/4-20

ASSEMBLY INSTRUCTIONS

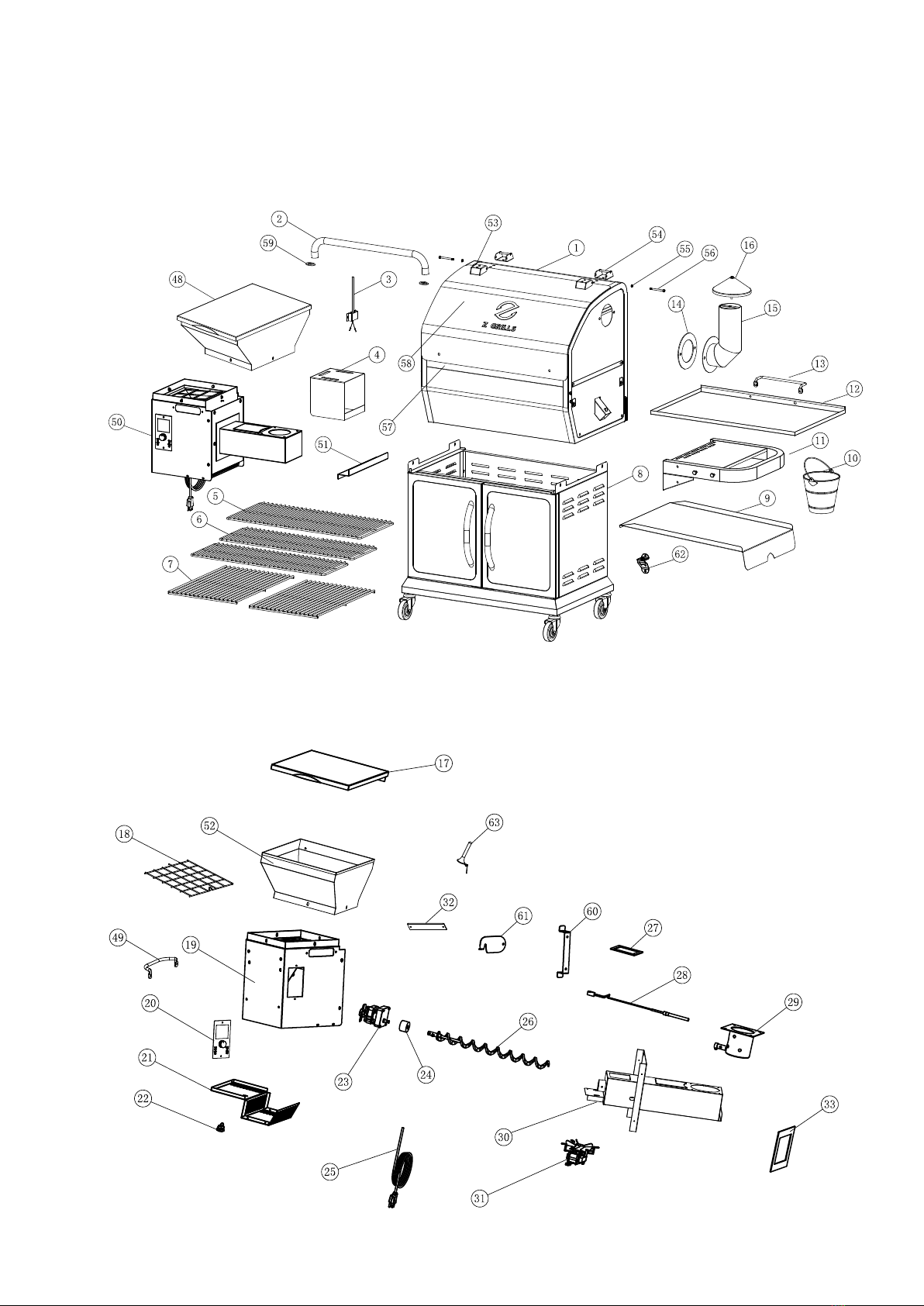

PARTSDIAGRAM

HOPPERBURNERASSEMBLY
