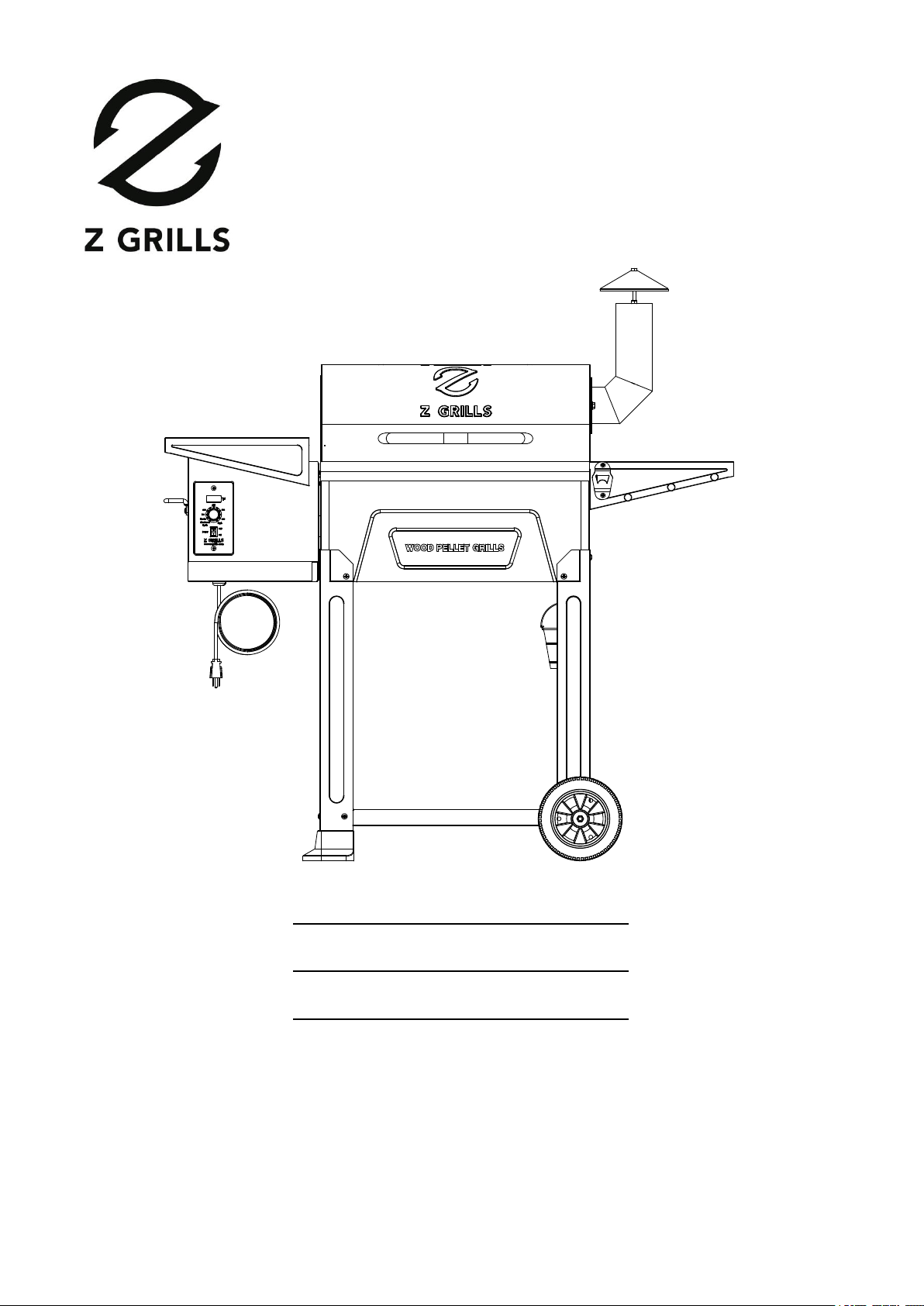

Z GRILLS ZPG-6002B3 Manuale utente

VN092023

WOOD PELLET GRILLS

ZPG-6002B3

OWNER’SMANUAL

MONTOFRI,8:00A.M.-5:00P.M.PACIFICSTANDARDTIME

SERVICECONTACT:1-833-947-4557/1-833-ZGRILLS

EMAIL: support@zgrills.com

WEBSITE: www.zgrills.com

CONTENTS

IMPORTANTSAFETYINFO

COMPONENTLIST

ASSEMBLYINSTRUCTIONS

INITIALFIRINGINSTRUCTIONS

SUBSEQUENTSTART-UP

OPERATINGTIPS

MAINTENANCE&CLEANING

TROUBLESHOOTING

DIGITALTHERMOSTATCONTROLWIRINGDIAGRAM

ZGRILLSSUPPORT

3-YLIMITEDWARRANTY

SAVE THIS MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFETY INFO

GENERAL WARNINGS

Please read this entire manual before installation and use of the pellet fuel-burning

appliance. Failure to follow these instructions could result in property damage, bodily

injury or even death.

Contact local building or fire officials about restrictions and installation inspection

requirements in your area.

This grill is for outdoor use only. DO NOT use it in any enclosed area.

DO NOT store or use combustible materials or liquids near this appliance.

Keep children away while it is in use.

Maintain a safe distance between your grill and any combustible material.

DO NOT move your grill while operating or while it is hot. Wait until the grill is

completely cold.

If a grease fire occurs, turn “off”and leave lid closed until the fire is extinguished. DO

NOT unplug the power cord. DO NOT throw water on it. DO NOT try to smother the

fire.

Clean and maintain your grill after each use.

DO NOT use your grill on rainy days.

DO NOT touch any part of your grill while it is hot. Serious bodily injury could result.

We suggest the use of heat-resistant gloves when operating this grill.

We suggest that you should wrap the Grease Drain Pan with heavy-duty aluminum

foil before using because it is easy to clean.

For convenient and safe assembly, use at least two people to assemble the grill.

Make sure the power cord is disconnected before performing any service or

maintenance.

DO NOT place anything heavy on top of hopper lid. It is not a shelf and is a tip hazard.

Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or

similar liquids to start or ‘freshen up’ a fire in this appliance. Keep all such liquids

well away from the appliance when in use.

Do not use accessories not specified for use with this appliance.

NOTE: A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED

CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF

UTMOST IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY IN

ACCORDANCE WITH THESE INSTRUCTIONS.

PELLET RESTRICTIONS

This grill is designed for use of wood pellets only designed for burning in wood pellet

grills. Do Not Use Pellet Fuel Labeled As Having Additives.

We suggest that you use Z GRILLS BBQ WOOD PELLETS, which are specifically

made to work in our grills. There is no guarantee that other brands of pellets are

suitable for use in Z GRILLS. And Z GRILLS assumes no liability for any loss, damage

or injury caused by the use of any other brands of pellets.

Always keep the Pellet Hopper dry, the wood pellets will expand greatly, break apart

and even jam the feed system if the pellets get wet or are exposed to high humidity.

CARBON MONOXIDE WARNING

Follow these guidelines to prevent this colorless, odorless gas from poisoning you,

your family or others.

Know the symptoms of carbon monoxide poisoning: headache, dizziness, weakness,

nausea, vomiting, sleepiness, and confusion. Carbon monoxide reduces the blood’s

ability to carry oxygen. Low blood oxygen levels can result in loss of consciousness

and death.

See a doctor if you or others develop cold or flu-like symptoms while cooking or in

the vicinity of this appliance. Carbon monoxide poisoning, which can easily be

mistaken for a cold or flu, is often detected too late.

Alcohol consumption and drug use increase the effects of carbon monoxide

poisoning.

Carbon monoxide is especially toxic to mother and child during pregnancy, infants,

the elderly, smokers, and people with blood or circulatory system problems, such as

anemia, or heart disease.

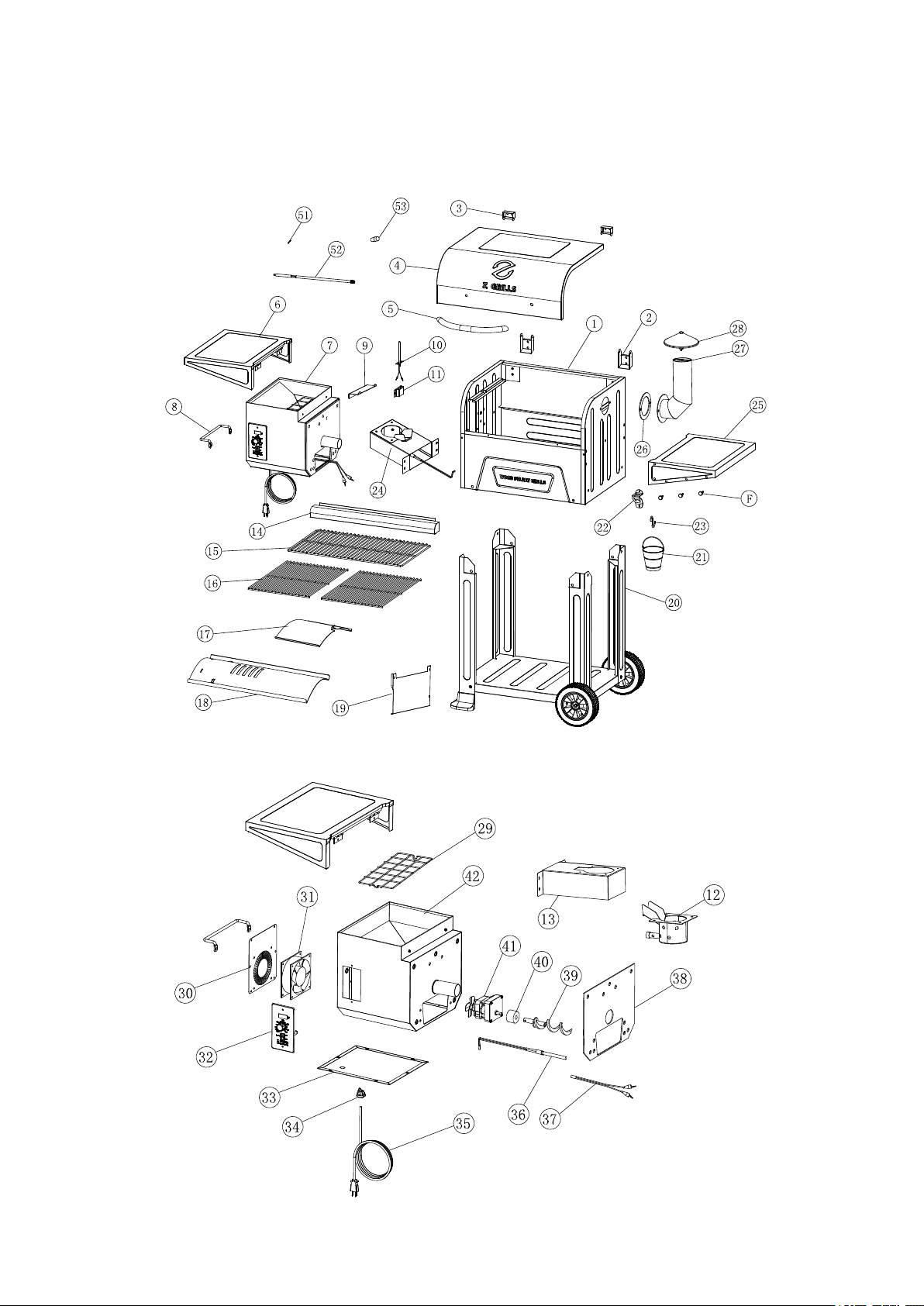

COMPONENT LIST

ITEM QTY DESCRIPTION ITEM QTY DESCRIPTION

1 1 Grill Chamber Assembly 28 1 Chimney Cap Assembly

2 2 Furnace Hinge 29 1 Upper Hopper Safety Grate

3 2 Lid Hinge 30 1 Fixed Plate

4 1 Lid 31 1 Fan

5 1 Lid Handle 32 1 Digital Control

6 1 Hopper Burner Lid 33 1 Lower Hopper Safety Grate

7 1 Hopper Assembly 34 1 Cable Clip

8 1 Hopper Handle 35 1 Power Cord

9 1 Grease Drain Pan Left Support 36 1 Hot Rod (Ignitor)B

10 1 RTD Temperature Probe 37 1 Hot Rod (Ignitor)A

11 1 Stator 38 1 Hopper Insulation Gasket

12 1 Firepot Assembly 39 1 Auger

13 1 Burner Box Assembly 40 1 Auger Tube Bushing

14 1 Decorating Plate 41 1 Auger Drive Motor

15 1 Warming Rack 42 1 Hopper Burner Assembly

16 2 Porcelain Cooking Grates 43 1 Left Rear Leg

17 1 Grease Drain Pan Cover 44 1 Left Front Leg

18 1 Grease Drain Pan 45 2 Foot pad

19 1 Grease Drain Pan Bottom Support 46 1 Bottom Plate

20 1 Body Frame 47 2 Wheel

21 1 Grease Bucket 48 1 Axle

22 1 Bottle Opener 49 1 Right Rear Leg

23 1 Hook 50 1 Right Front Leg

24 3 Feeder Assembly 51 1 R Pin

25 1 Side Table 52 1 Pull rod,Grease Drain Pan Handle

26 1 Smoke Stack Gasket 53 1 Pull rod cover ,Grease Drain Pan

handle

27 1 Smoke Stack Assembly

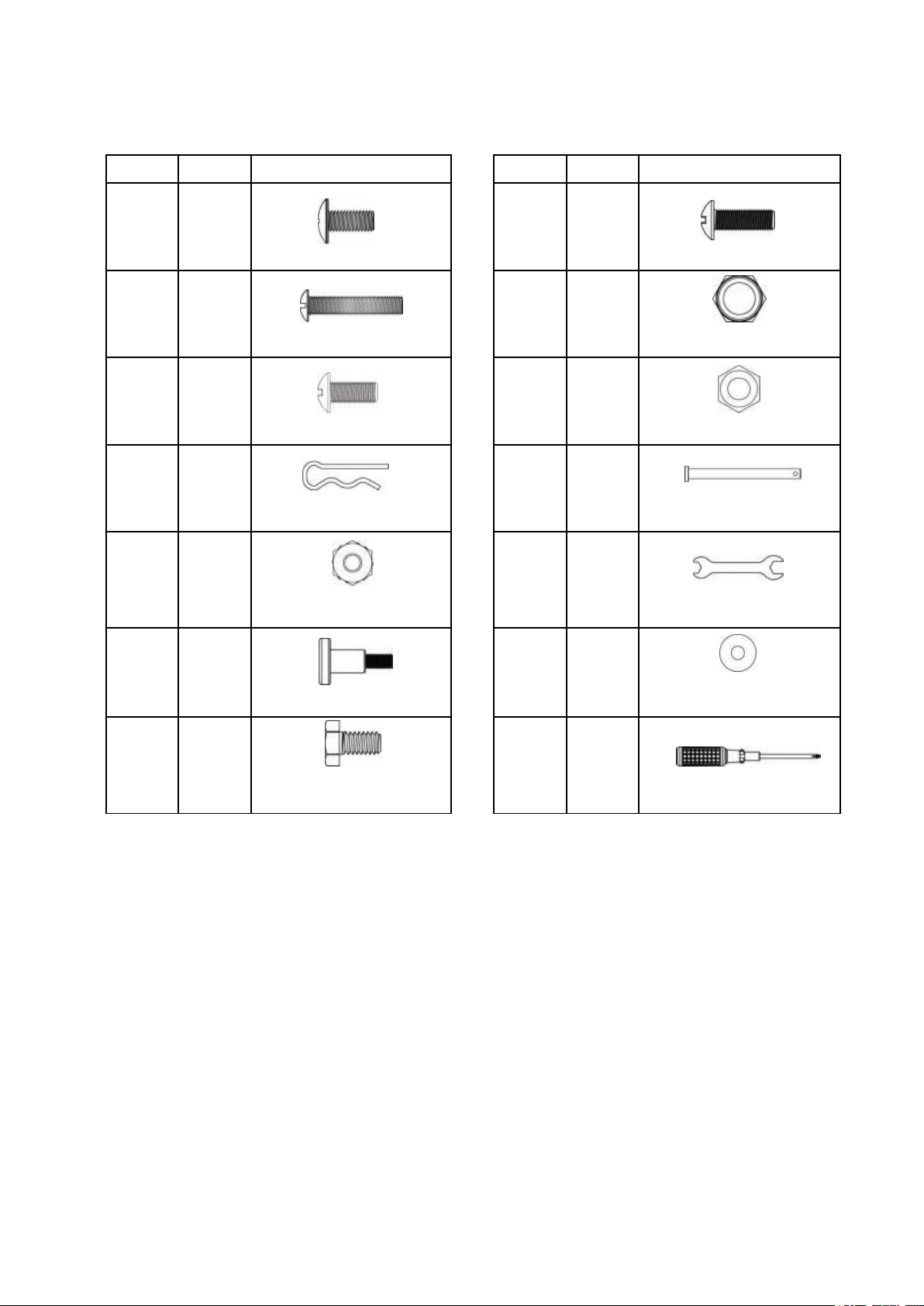

HARDWARE PACKAGE LIST

ITEM QTYDESCRIPTION ITEM QTY DESCRIPTION

A29

Bolt 1/4-20* 1/2

H 4

Bolt 8#-32* 1/2

Bolt 1/4-20* 1- 1/4

Cap Nut 5/ 16- 18

Bolt 8#-32*3/8

Hexagon Nut 1/4-20

D 2 Pin L 2 Pin Shaft

Hexagon Kep Nut 8#-32

Open End Wrench

Step Screw8#-32

Hexagon Bolt

1/4-20* 1/2

Screwdriver

Gasket

(OD0.79* ID0 .26)

ASSEMBLYINSTRUCTIONS

PARTSDIAGRAM

HOPPERBURNERASSEMBLY
