Z GRILLS ZPG-450A Manuale utente

VN082020

WOOD PELLET GRILLS

ZPG-450A/ZPG-450APro

OWNER’S MANUAL

MON TO FRI, 8:00 A.M. - 5:00 P.M. PACIFIC STANDARD TIME

SERVICE CONTACT: 1-833-947-4557/1-833-ZGRILLS

EMAIL: support@zgrills.com

WEBSITE: www.zgrills.com

CONTENTS

IMPORTANT SAFETY INFO

COMPONENT LIST

ASSEMBLY INSTRUCTIONS

INITIAL FIRING INSTRUCTIONS

SUBSEQUENT START-UP

OPERATING TIPS

MAINTENANCE & CLEANING

TROUBLESHOOTING

DIGITAL THERMOSTAT CONTROL WIRING DIAGRAM

Z GRILLS SUPPORT

3-Y LIMITED WARRANTY

SAVE THIS MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFETY INFO

GENERAL WARNINGS

Please read this entire manual before installation and use of the pellet fuel-burning

appliance. Failure to follow these instructions could result in property damage, bodily

injury or even death.

Contact local building or fire officials about restrictions and installation inspection

requirements in your area.

This grill is for outdoor use only. DO NOT use it in any enclosed area.

DO NOT store or use combustible materials or liquids near this appliance.

Keep children away while it is in use.

Maintain a safe distance between your grill and any combustible material.

DO NOT move your grill while operating or while it is hot. Wait until the grill is

completely cold.

If a grease fire occurs, turn “off”and leave lid closed until the fire is extinguished. DO

NOT unplug the power cord. DO NOT throw water on it. DO NOT try to smother the

fire.

Clean and maintain your grill after each use.

DO NOT use your grill on rainy days.

DO NOT touch any part of your grill while it is hot. Serious bodily injury could result.

We suggest the use of heat-resistant gloves when operating this grill.

We suggest that you should wrap the Grease Drain Pan with heavy-duty aluminum

foil before using because it is easy to clean.

For convenient and safe assembly, use at least two people to assemble the grill.

Make sure the power cord is disconnected before performing any service or

maintenance.

DO NOT place anything heavy on top of hopper lid. It is not a shelf and is a tip hazard.

Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or

similar liquids to start or ‘freshen up’ a fire in this appliance. Keep all such liquids

well away from the appliance when in use.

Do not use accessories not specified for use with this appliance.

NOTE: A MAJOR CAUSE OF FIRES IS FAILURE TO MAINTAIN REQUIRED

CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF

UTMOST IMPORTANCE THAT THIS PRODUCT BE INSTALLED ONLY IN

ACCORDANCE WITH THESE INSTRUCTIONS.

PELLET RESTRICTIONS

This grill is designed for use of wood pellets only designed for burning in wood pellet

grills. Do Not Use Pellet Fuel Labeled As Having Additives.

We suggest that you use Z GRILLS BBQ WOOD PELLETS, which are specifically

made to work in our grills. There is no guarantee that other brands of pellets are

suitable for use in Z GRILLS. And Z GRILLS assumes no liability for any loss, damage

or injury caused by the use of any other brands of pellets.

Always keep the Pellet Hopper dry, the wood pellets will expand greatly, break apart

and even jam the feed system if the pellets get wet or are exposed to high humidity.

CARBON MONOXIDE WARNING

Follow these guidelines to prevent this colorless, odorless gas from poisoning you,

your family or others.

Know the symptoms of carbon monoxide poisoning: headache, dizziness, weakness,

nausea, vomiting, sleepiness, and confusion. Carbon monoxide reduces the blood’s

ability to carry oxygen. Low blood oxygen levels can result in loss of consciousness

and death.

See a doctor if you or others develop cold or flu-like symptoms while cooking or in

the vicinity of this appliance. Carbon monoxide poisoning, which can easily be

mistaken for a cold or flu, is often detected too late.

Alcohol consumption and drug use increase the effects of carbon monoxide

poisoning.

Carbon monoxide is especially toxic to mother and child during pregnancy, infants,

the elderly, smokers, and people with blood or circulatory system problems, such as

anemia, or heart disease.

COMPONENT LIST

ITEM

QTY

DESCRIPTION

ITEM

QTY

DESCRIPTION

Hinge Assembly

Hopper Lid Handle

Wheels

Fan

Firepot Welding Assembly

Lid

Axle Bolt

Name Plate

Wheeled Leg Base

Lid Handle

Footed Leg Base

Grill Chamber Assembly

Heat Baffle

Hopper Assembly

Grease Drain Pan

Chimney Cap Assembly

Porcelain Grills

Smoke Stack Assembly

Warming Rack

Smoke Stack Gasket

Hopper Bottom Cover

RTD Temperature Probe

Hopper Guard

Foot Pad

Hopper Shell

Front Shelf Left Bracket

Cable Box

Hot Rod (Ignitor)

Power Cord

Feeder Assembly

Digital Control

Front Shelf Right Bracket

Auger Drive Motor

Front Table

Auger Nylon Ring

Grease Bucket

Auger

Leg A

Hopper Handle

Leg B

Hopper Lid

Side Table

Insulation

Cable Clip

Heat Insulation Foam

HARDWARE PACKAGE LIST

ITEM

QTY

DESCRIPTION

ITEM

QTY

DESCRIPTION

Hexagon Bolt 1/4-20×1/2

Hexagon Nut 1/4-20

Bolt 1/4-20×1/2

Gasket (OD0.75×ID0.4)

Step Screw 1/4-20

Gasket (OD0.6×ID0.25)

Cap Nut 1/4-20

Screwdriver

Spring Washer

(OD0.4×ID0.25)

Open End Wrench

Bolt 8#-32×4/17

Cap Nut 5/16-18

Gasket (OD0.73×ID0.25)

ASSEMBLY INSTRUCTIONS

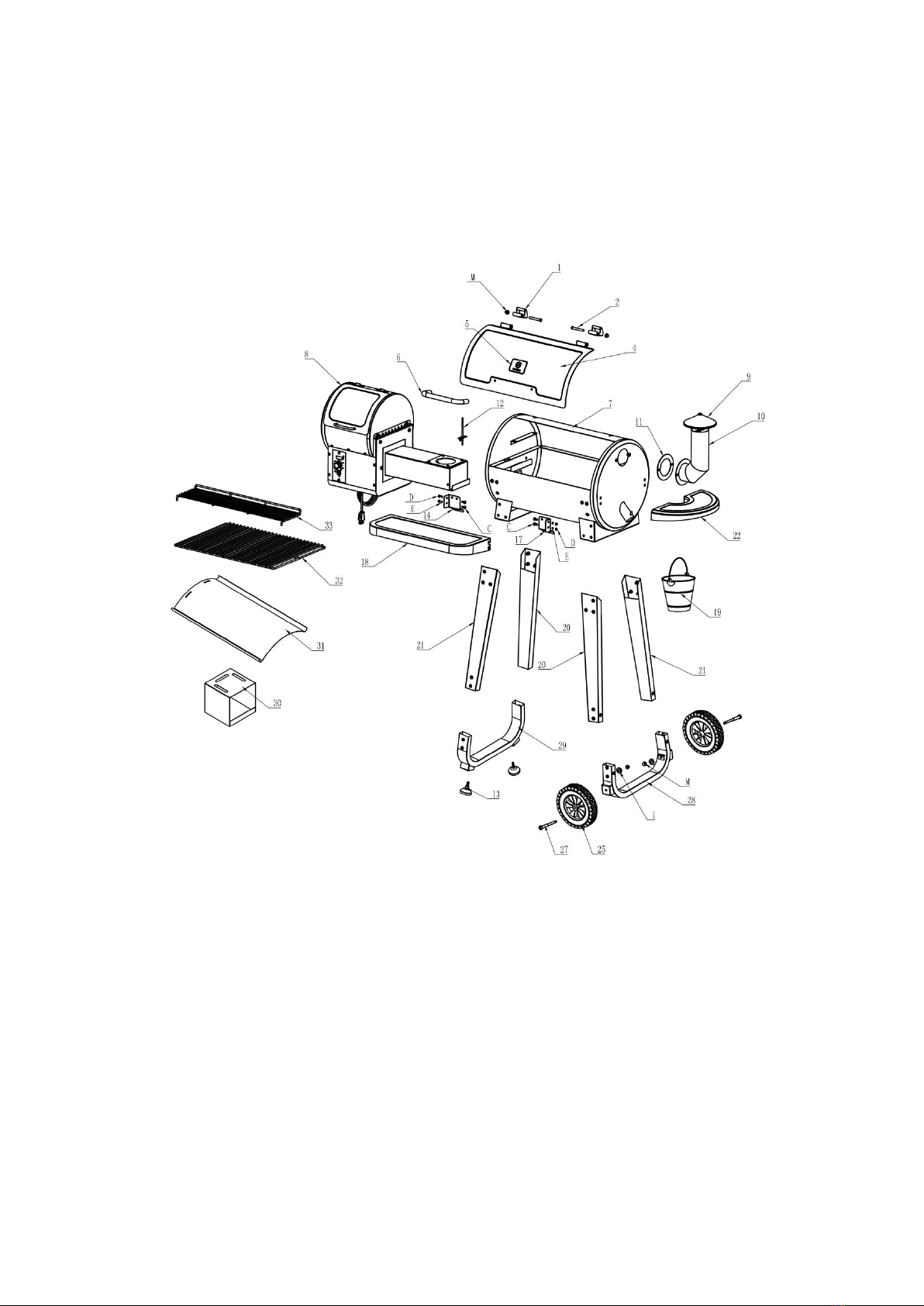

PARTS DIAGRAM
