ZALMAN HD135 Manuale utente

ENGLISH

Ver. 1.0

ENGLISH

ඞPlease read this manual thoroughly before installation.

ඞVisit our website and watch the HD135 installation video first to assist

you in the installation process.

E-mail: [email protected]

www.zalman.co.kr www.zalmanusa.com

HD135

English

HD135

The specifications of any product may change without prior notice to improve performance.

ඟIntroduction

Congratulations on your purchase of Zalman's HD135 Home Theatre PC

Enclosure! You are now about to experience Zalman's world of silent computing.

The HD135 is designed for ultra quiet home theatre PC operation, utilizing opti-

mized ventilation and anti-vibration reinforcements, making it ideal for environ-

ments that require silence such as living rooms, bedrooms, educational facilities,

and offices.

ඟContents

1. Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3. Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4. Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

5. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6. Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7. Recommended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

8. Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

9. Zalman Enclosures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

10. Trademarks and Copyright Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

ENGLISH

1. Safety Notices

1) Avoid inserting finger or any objects into the system while the power is ON. It

may harm the user or cause product damage.

2) Make sure to check the manual when connecting the cable. Improper connec-

tion can cause fire resulting from short circuit.

3) Always shut down the operating system and switch the power to OFF before

disassembling.

4) The air vents on four sides of the unit must not be blocked.

5) Use in a flat, stable, and well-ventilated area.

6) Keep this unit away from heat sources and direct sunlight.

7) If this unit is to be transported a long distance, then place it in the original

packaging box or a custom made hard case.

8) Do not drop or expose this unit to shock while it is in transit.

9) Check the condition of the unit and its components before installation. If there

is a problem with the unit and/or its components, please contact the retailer for

a replacement.

ඞDisclaimer

Zalman Tech Co., Ltd. is not responsible for any damages due to external

causes, including but not limited to, improper use, problems with electrical

power, accident, neglect, alteration, repair, improper installation, or improp-

er testing.

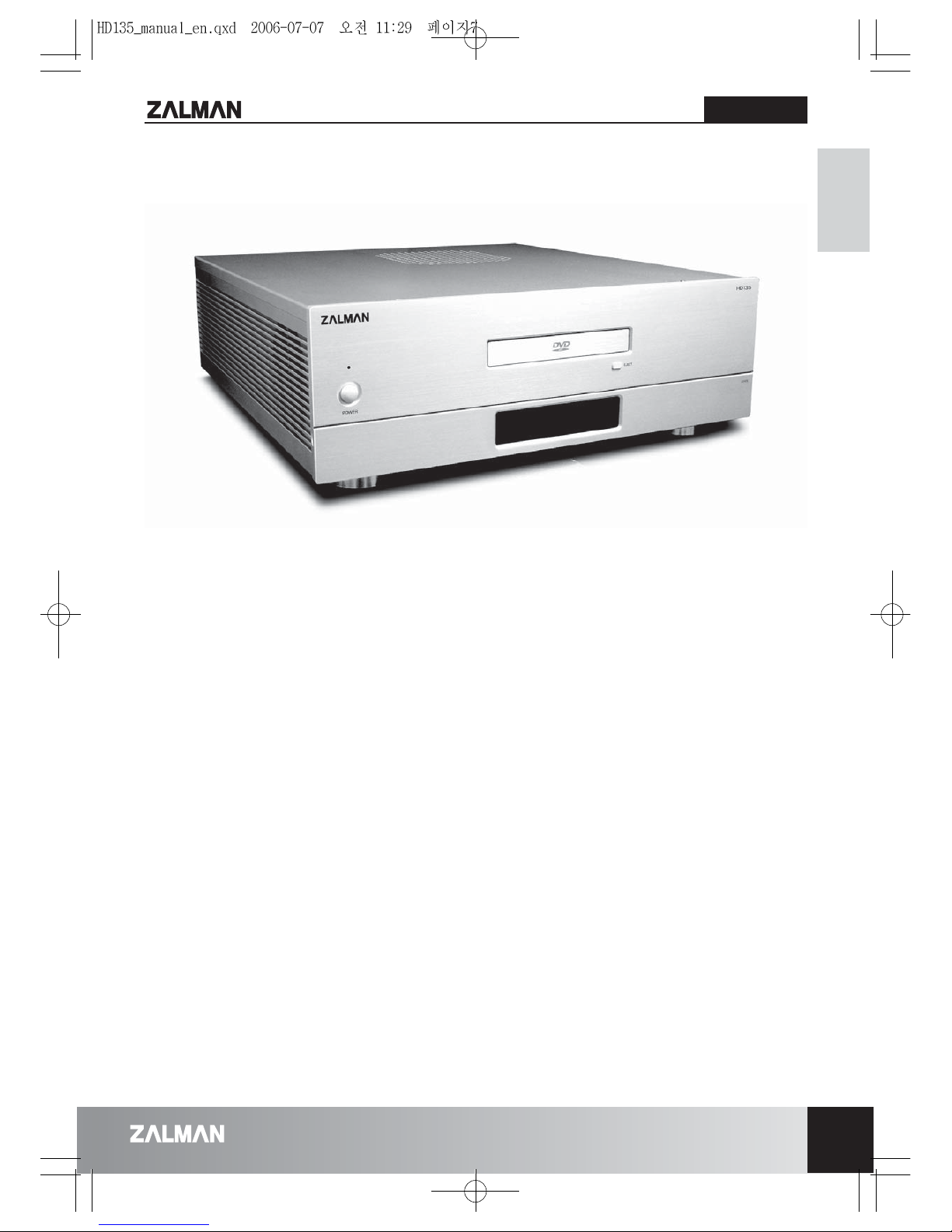

2. Design

Korean Design Application No. 06-0020894

International design applications pending in the EU, USA, Japan, and 30+ other

countries.

The specifications of any product may change without prior notice to improve performance.

HD135

The specifications of any product may change without prior notice to improve performance.

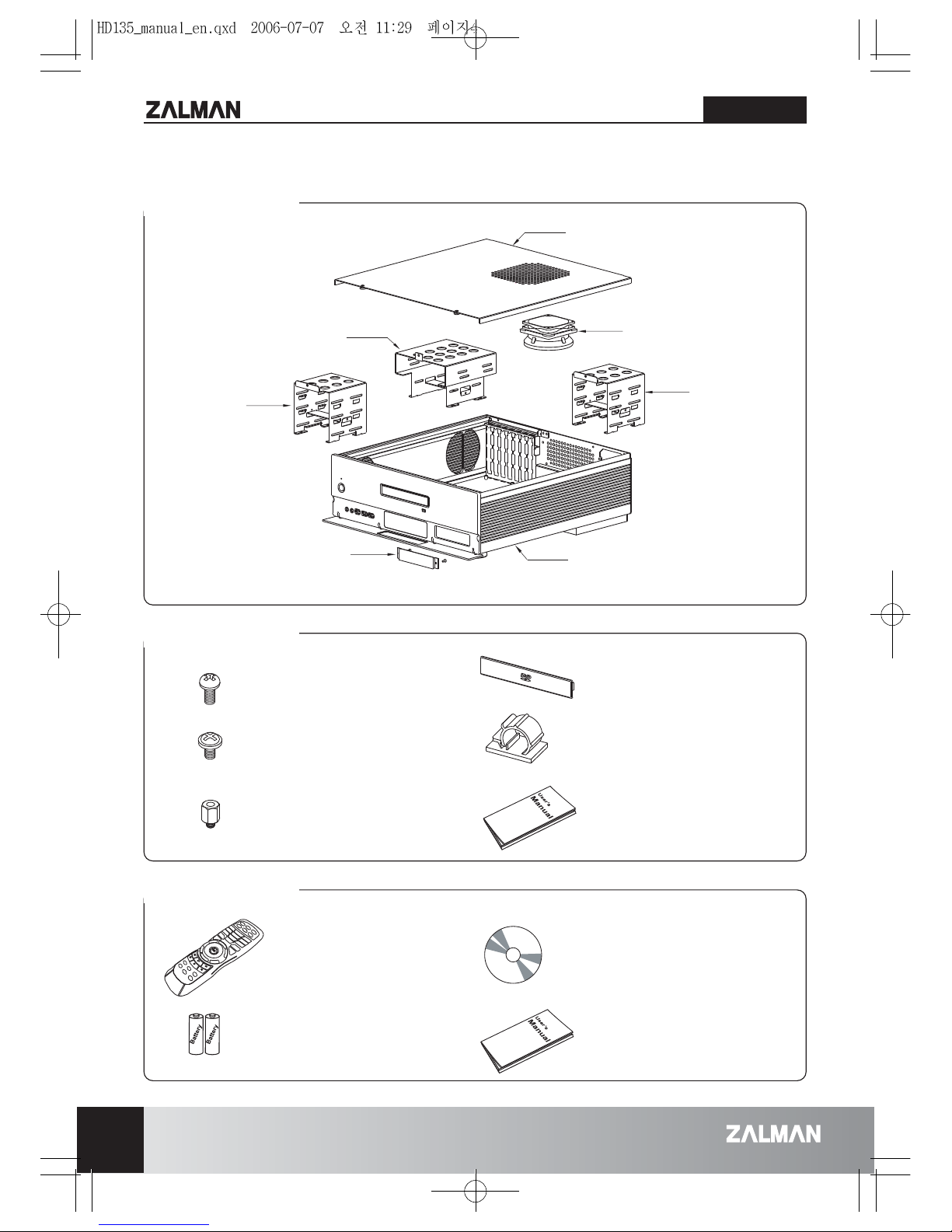

3. Components

Top Cover

ODD Bracket

Body

External

Drive Cover

HDD

Bracket

HDD

Bracket

Fan & Air Duct

1) HD135 Body

2) Case Parts

3) M-Play Parts

24 HDD / Power Supply Bolts

(PH #6-32X6) 24

ODD / FDD / Motherboard

Bolts (PWH M3X5)

2 microATX Standoffs (M3)

1 ODD Aluminum Bezel

1 Clamp

1 User's Manual

1 Remote Controller

2 Batteries (AAA)

1 Installation CD

1 User's Manual

ENGLISH

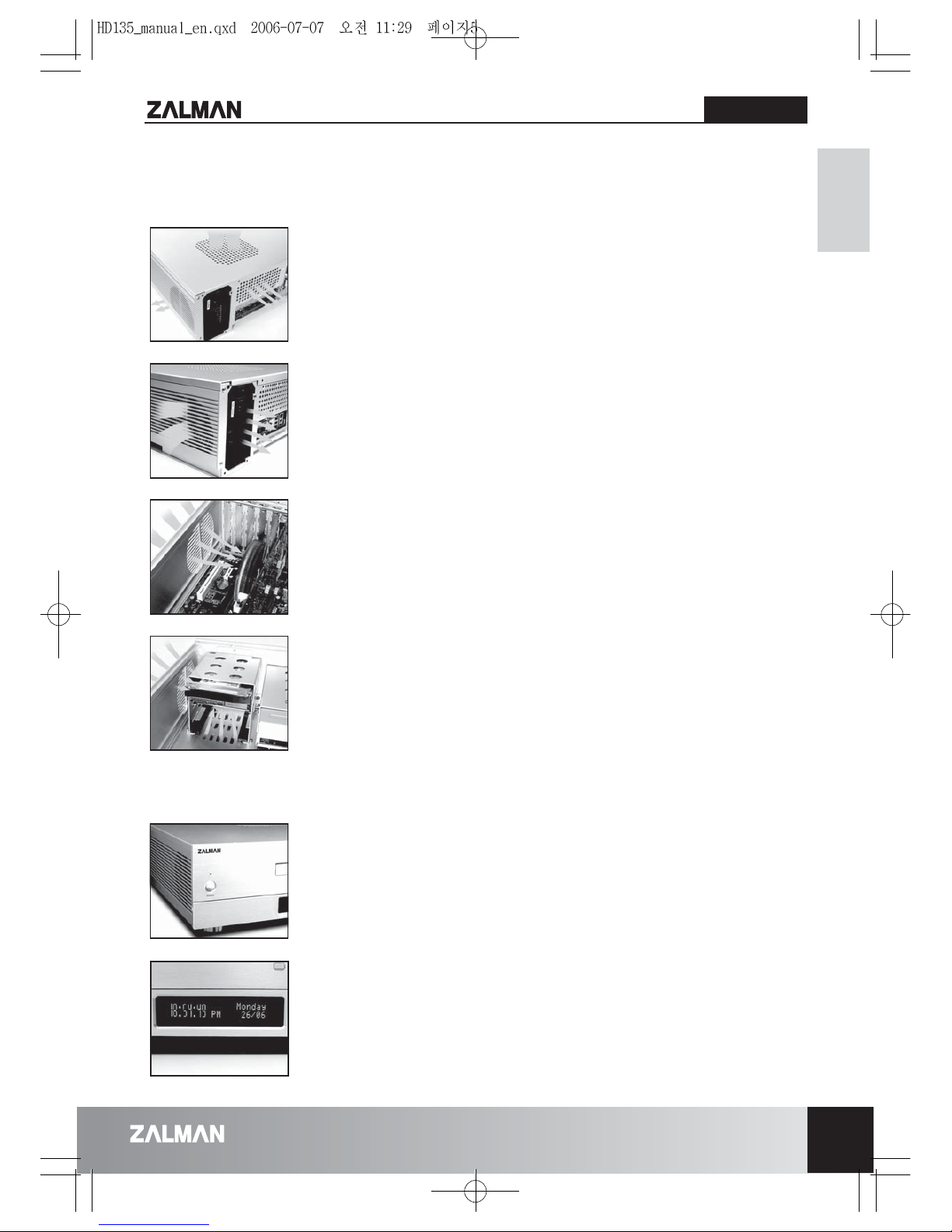

1) Optimized Design for Silence

A. Designed for High TDP Processors:

Air Duct and two Fans allow quiet cooling of up to 130W

TDP CPU processors (Intel Pentium D 830, 840, 940,

950, 960 etc.).

B. Designed for High Performance Power Supply:

Air Vents allow cold air intake from outside the PC direct-

ly into the Power Supply to minimize its noise level and

to achieve highest possible efficiency.

C. Designed for VGA Cards:

Air Vents around the VGA card allow optimal operation

of VGA card by offering maximum cooling capability.

D. Designed for Hard Disks:

Air Vents located on the bottom and sides of the HDD

Bracket allow efficient release of heat generated by the

hard disks.

A. Pure aluminum surface provides an elegant addition to

other Home Theatre and A/V equipments.

B. VFD installed on the front panel of the enclosure provides

the user with various information such as the operating

software status, time display when the power is OFF,

and fan speed.

2) Elegant Design

4. Features

The specifications of any product may change without prior notice to improve performance.

HD135

The specifications of any product may change without prior notice to improve performance.

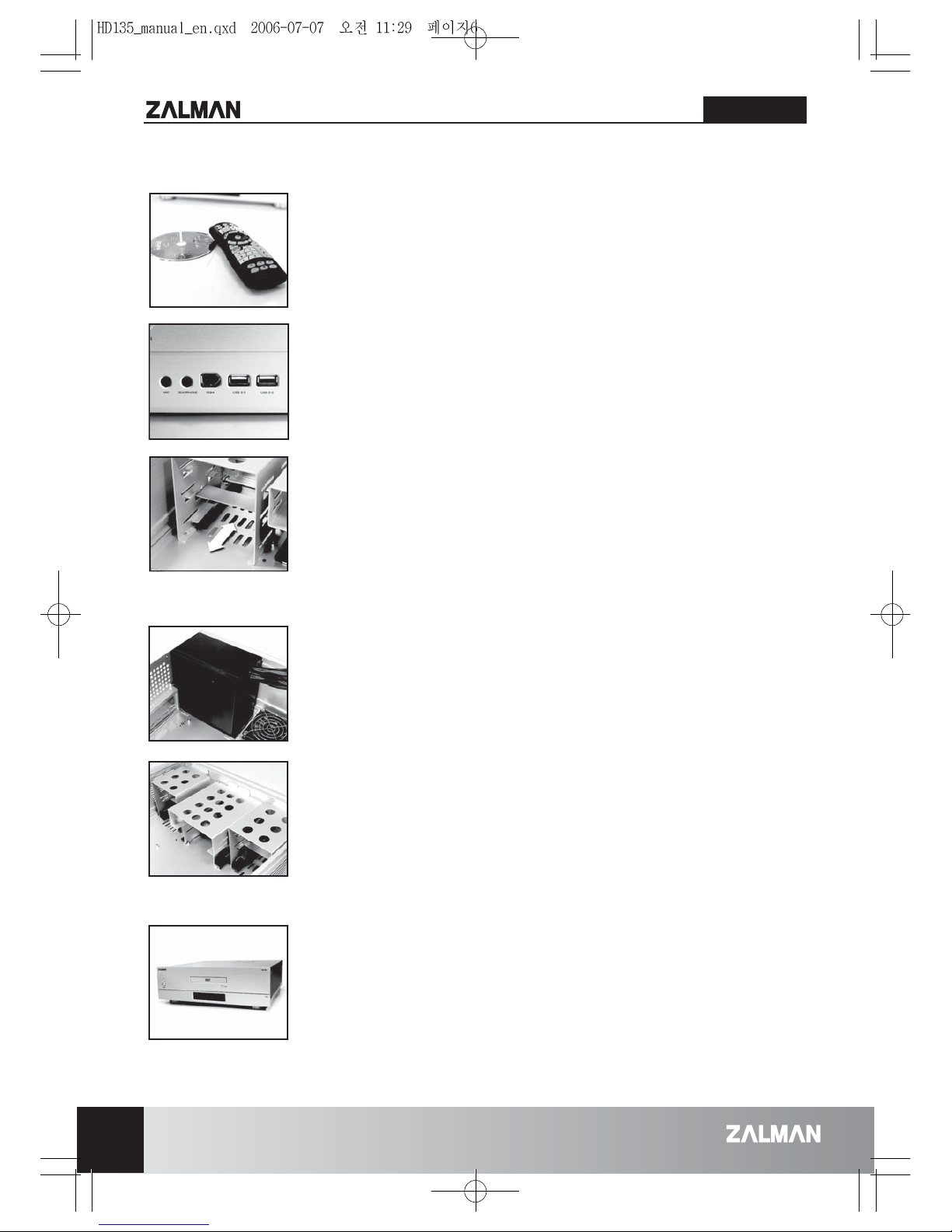

3) Diverse Functions and Accommodations

A. Microsoft MCE-compatible remote control and multimedia

software are provided. This enables the user to easily

control the PC and execute various multimedia software.

B. USB2.0 ports on the front panel and the IEEE1394

(Firewire) I/O Port allows easy access to connections.

A headphone and microphone can also be conveniently

connected to the audio ports in the front.

C. Sliding-type HDD and ODD Brackets provide easy instal-

lation/removal.

4) Excellent Expandability

A. Six 3.5" bays and one 5.25" bay provide the user with

maximum expandability compared to other enclosures of

identical size.

B. Accommodation for ATX/ATX 12V power supplies

despite the unit's height being identical to that of a com-

mon audio device.

5) Ideal Home Theatre PC

A quiet and stable Home Theatre PC can be assembled

when used with Zalman's CPU Cooler, VGA Cooler, Power

Supply, and Northbridge Cooler (CNPS8000, VF700,

VF900, ZM460B-APS, ZM-NBF47 etc.).

ENGLISH

½Enclosure Type - Desktop

½Dimensions (LXWXH) - 435mm X 425mm X 135mm

(17.1inch X 16.7inch X 5.31inch)

½Weight - 5.2kg (11.5lb)

½Material - Aluminum

½Motherboard Compatibility - ATX / microATX

½Power Supply Support - ATX / ATX 12V

½PCI/AGP Card Support - Full Size

½Drive Bays - 5 X 3.5" Internal Drive Bays

- 1 X 3.5" External Drive Bay

- 1 X 5.25" External Drive Bay

½Cooling Components - 1 X 80mm Exhaust Fan

- 1 X 80mm Inflow Fan and Air Duct

½Expansion Slots - 7 Slots

½Front I/O Ports - 2 X USB Ports

- 1 X IEEE1394(Firewire) Port

- 1 X MIC

- 1 X Headphone

½Available Colors - Silver / Black

½Display Type - VFD (Vacuum Fluorescent Display)

5. Specifications

The specifications of any product may change without prior notice to improve performance.

HD135

The specifications of any product may change without prior notice to improve performance.

6. Installation Guide

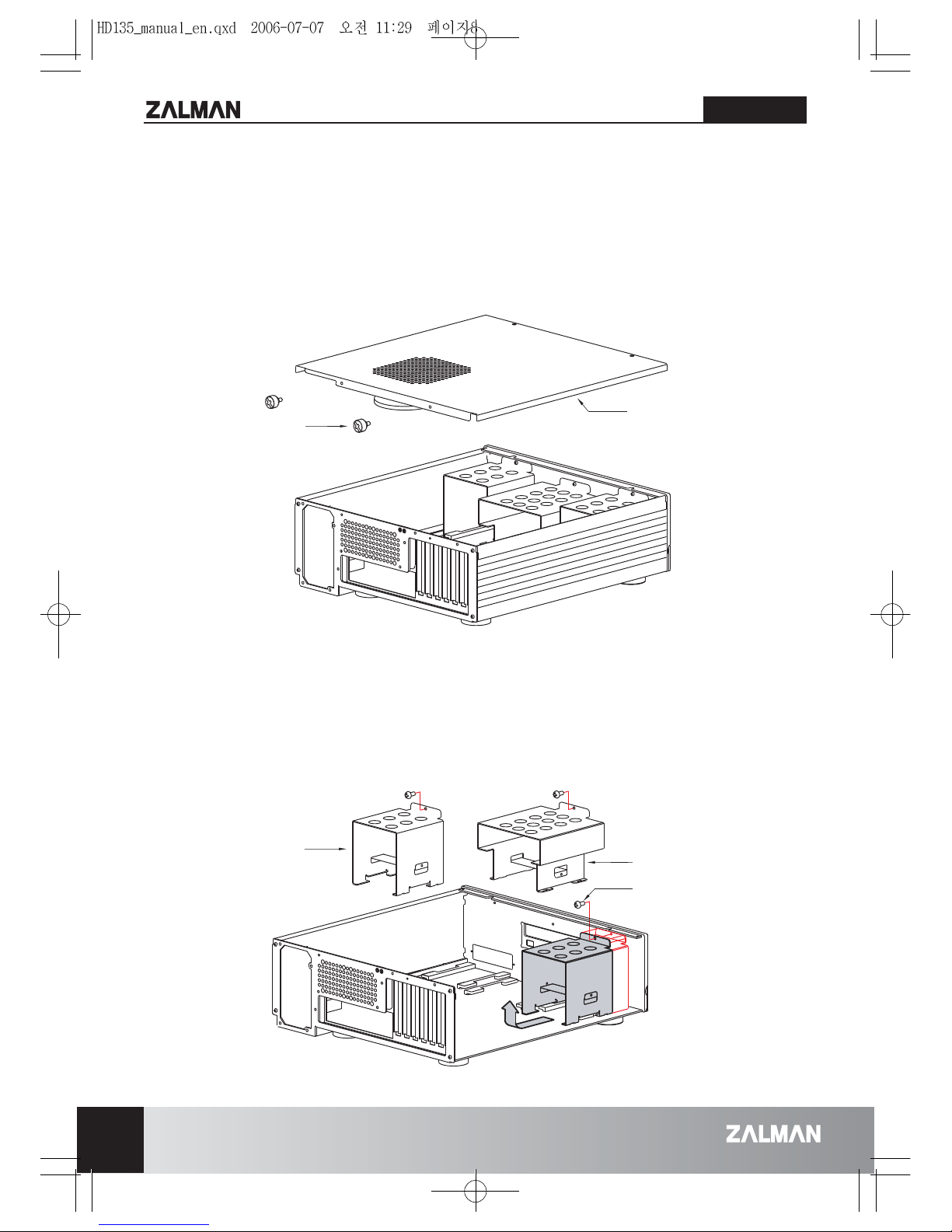

1) Opening the Enclosure

To remove the lid of the enclosure, unscrew the two Bolts (Finger Bolt, #6-32)

and slide backwards and lift the Top Plate as shown in the figure below.

2) Removing the ODD and HDD Brackets

Remove the Fixing Bolts (Bolt, PH M4x5), and push the ODD and HDD Brackets

towards the back of the enclosure by approximately 15mm(0.6inch). Now lift the

Brackets.

Finger Bolt

(#6-32)

TOP Plate

okkGi vkkGi

i

OwoGt[\P

ENGLISH

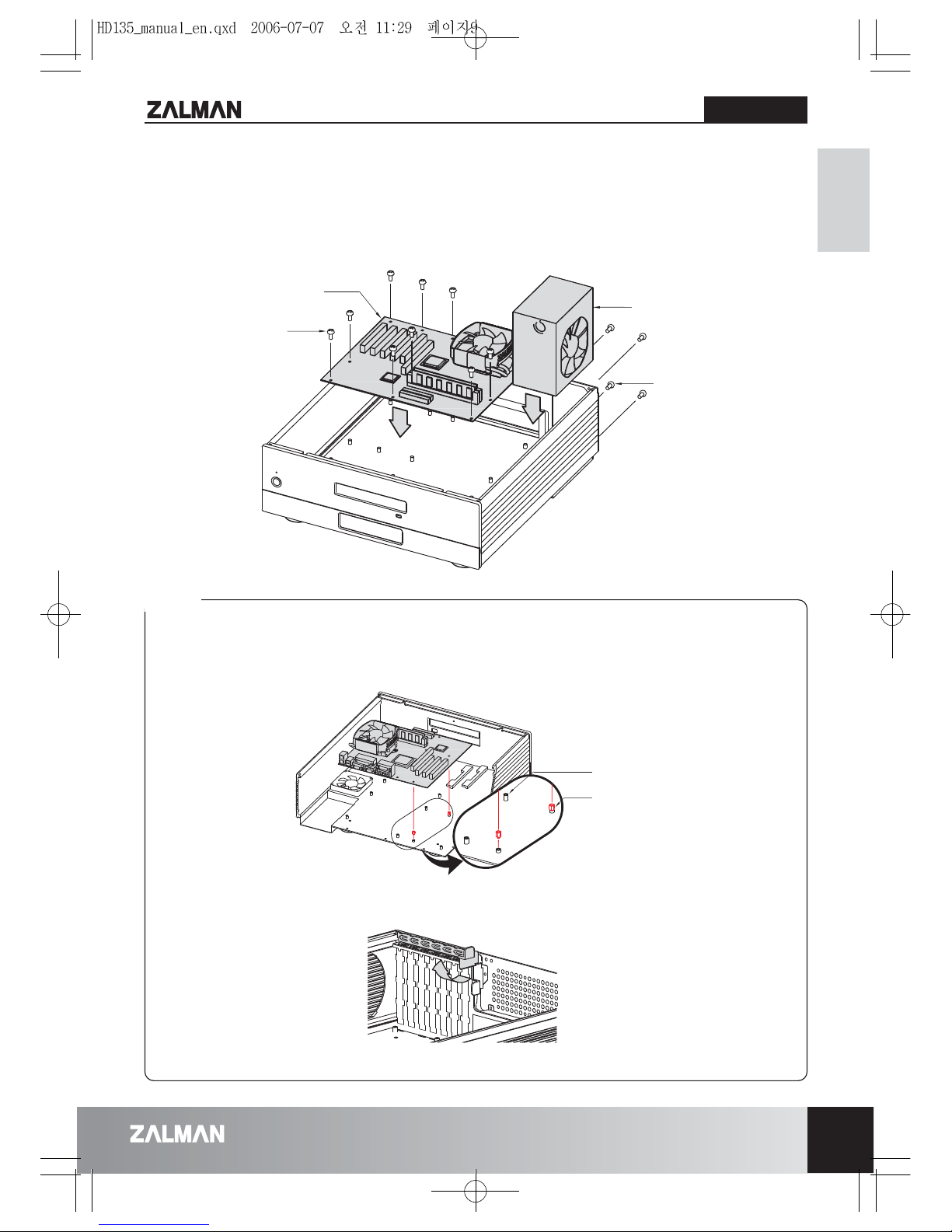

3) Assembling the Motherboard and Power Supply

Mount the motherboard and power supply by using appropriate bolts. Mount the

computer components (CPU, VGA, RAM etc.) onto the motherboard.

The specifications of any product may change without prior notice to improve performance.

HD135

Bolt

(PH #6-32X6)

Power Supply

Bolt

(PWH M3x5)

Motherboard

1. To mount a microATX motherboard, first attach the two provided microATX

Standoffs and align them with the height of the ATX Standoffs.

2. Rotational direction of the PCI Card Fixing Bracket

ATX Standoff

microATX Standof

Note)
