ZALMAN MS800 Manuale utente

ATXMidTowerPCCase

MS800Series

MS800 MS800Plus

Ver. 130130

(QJOLVKଞ)UDQoDLV6SDQLVK

All manuals and user guides at all-guides.com

all-guides.com

ENGLISH

All manuals and user guides at all-guides.com

ENG

MS800 Series

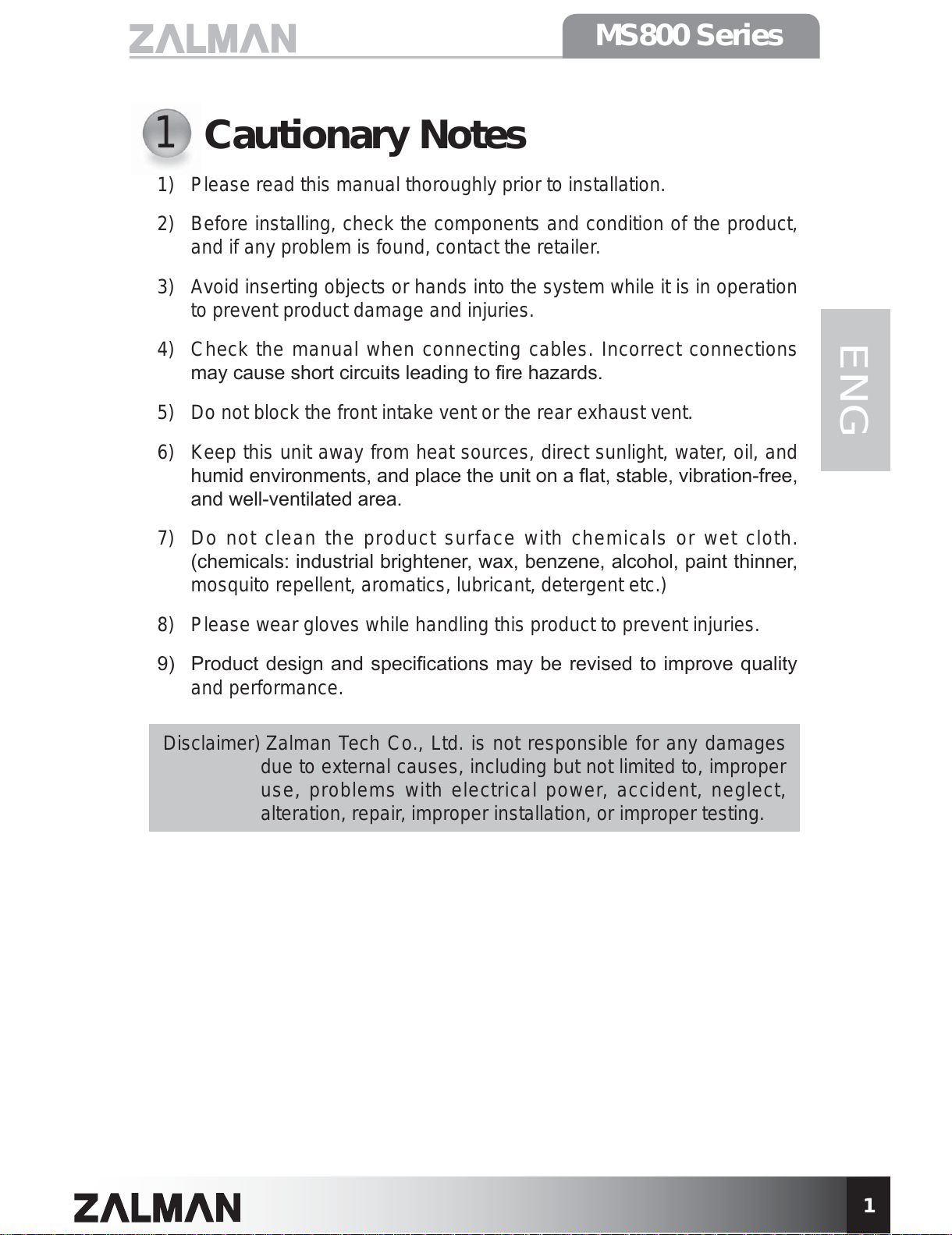

1) Please read this manual thoroughly prior to installation.

2) Before installing, check the components and condition of the product,

and if any problem is found, contact the retailer.

3) Avoid inserting objects or hands into the system while it is in operation

to prevent product damage and injuries.

4) Check the manual when connecting cables. Incorrect connections

PD\FDXVHVKRUWFLUFXLWVOHDGLQJWR¿UHKD]DUGV

5) Do not block the front intake vent or the rear exhaust vent.

6) Keep this unit away from heat sources, direct sunlight, water, oil, and

KXPLGHQYLURQPHQWVDQGSODFHWKHXQLWRQDÀDWVWDEOHYLEUDWLRQIUHH

DQGZHOOYHQWLODWHGDUHD

7) Do not clean the product surface with chemicals or wet cloth.

FKHPLFDOVLQGXVWULDOEULJKWHQHUZD[EHQ]HQHDOFRKROSDLQWWKLQQHU

mosquito repellent, aromatics, lubricant, detergent etc.)

8) Please wear gloves while handling this product to prevent injuries.

 3URGXFWGHVLJQDQGVSHFL¿FDWLRQVPD\EHUHYLVHGWRLPSURYHTXDOLW\

and performance.

Cautionary Notes

Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages

due to external causes, including but not limited to, improper

use, problems with electrical power, accident, neglect,

alteration, repair, improper installation, or improper testing.

All manuals and user guides at all-guides.com

MS800 Series

2Product Details

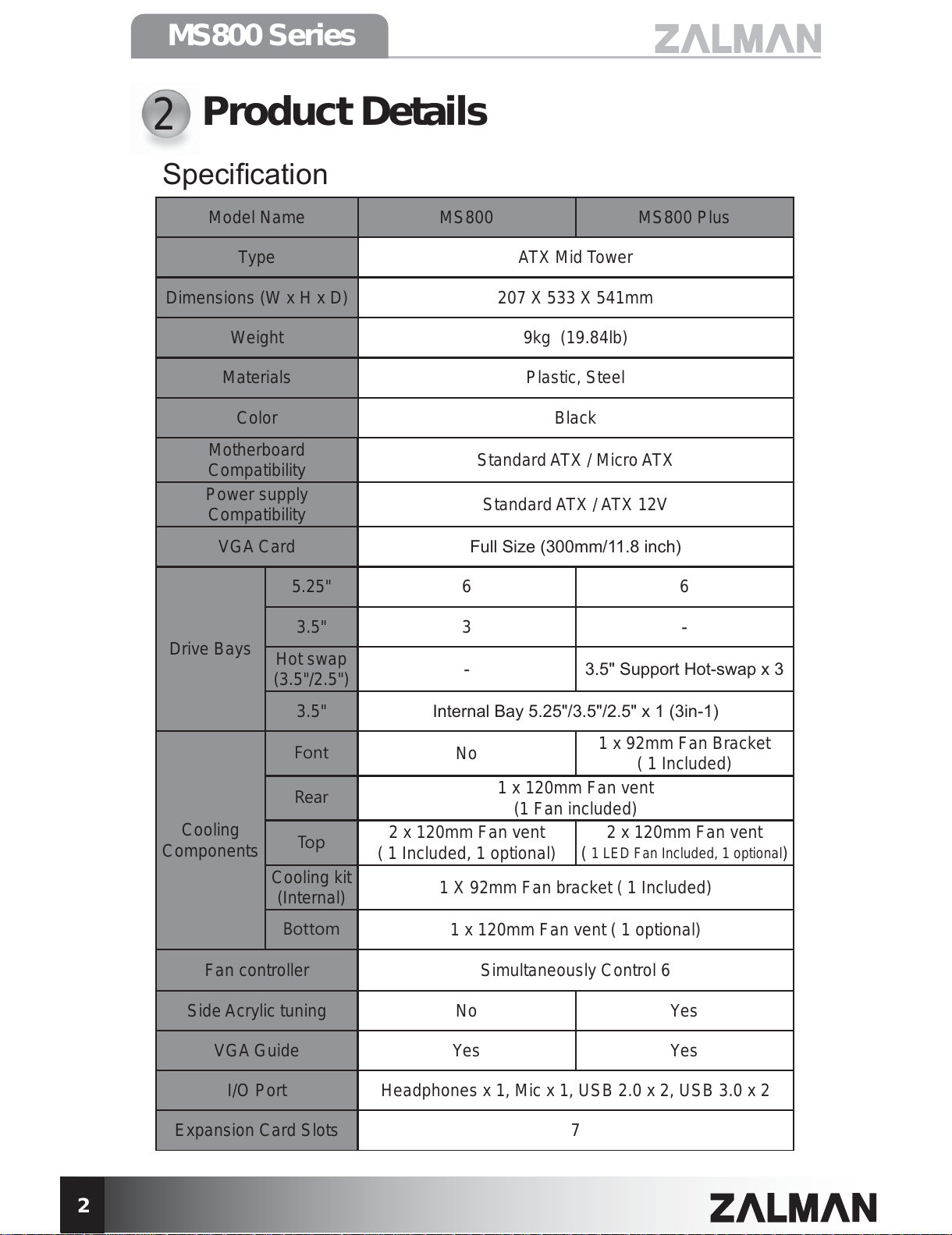

6SHFL¿FDWLRQ

Model Name MS800 MS800 Plus

Type ATX Mid Tower

Dimensions (W x H x D) 207 X 533 X 541mm

Weight 9kg (19.84lb)

Materials Plastic, Steel

Color Black

Motherboard

Compatibility Standard ATX / Micro ATX

Power supply

Compatibility Standard ATX / ATX 12V

VGA Card )XOO6L]HPPLQFK

Drive Bays

5.25" 6 6

3.5" 3 

Hot swap

(3.5"/2.5")  6XSSRUW+RWVZDS[

3.5" ,QWHUQDO%D\[LQ

Cooling

Components

)RQW No 1 x 92mm Fan Bracket

( 1 Included)

5HDU 1 x 120mm Fan vent

(1 Fan included)

7RS 2 x 120mm Fan vent

( 1 Included, 1 optional) 2 x 120mm Fan vent

(

1 LED Fan Included, 1 optional

)

Cooling kit

(Internal) 1 X 92mm Fan bracket ( 1 Included)

%RWWRP 1 x 120mm Fan vent ( 1 optional)

Fan controller Simultaneously Control 6

Side Acrylic tuning No Yes

VGA Guide Yes Yes

I/O Port Headphones x 1, Mic x 1, USB 2.0 x 2, USB 3.0 x 2

Expansion Card Slots 7

All manuals and user guides at all-guides.com

ENG

MS800 Series

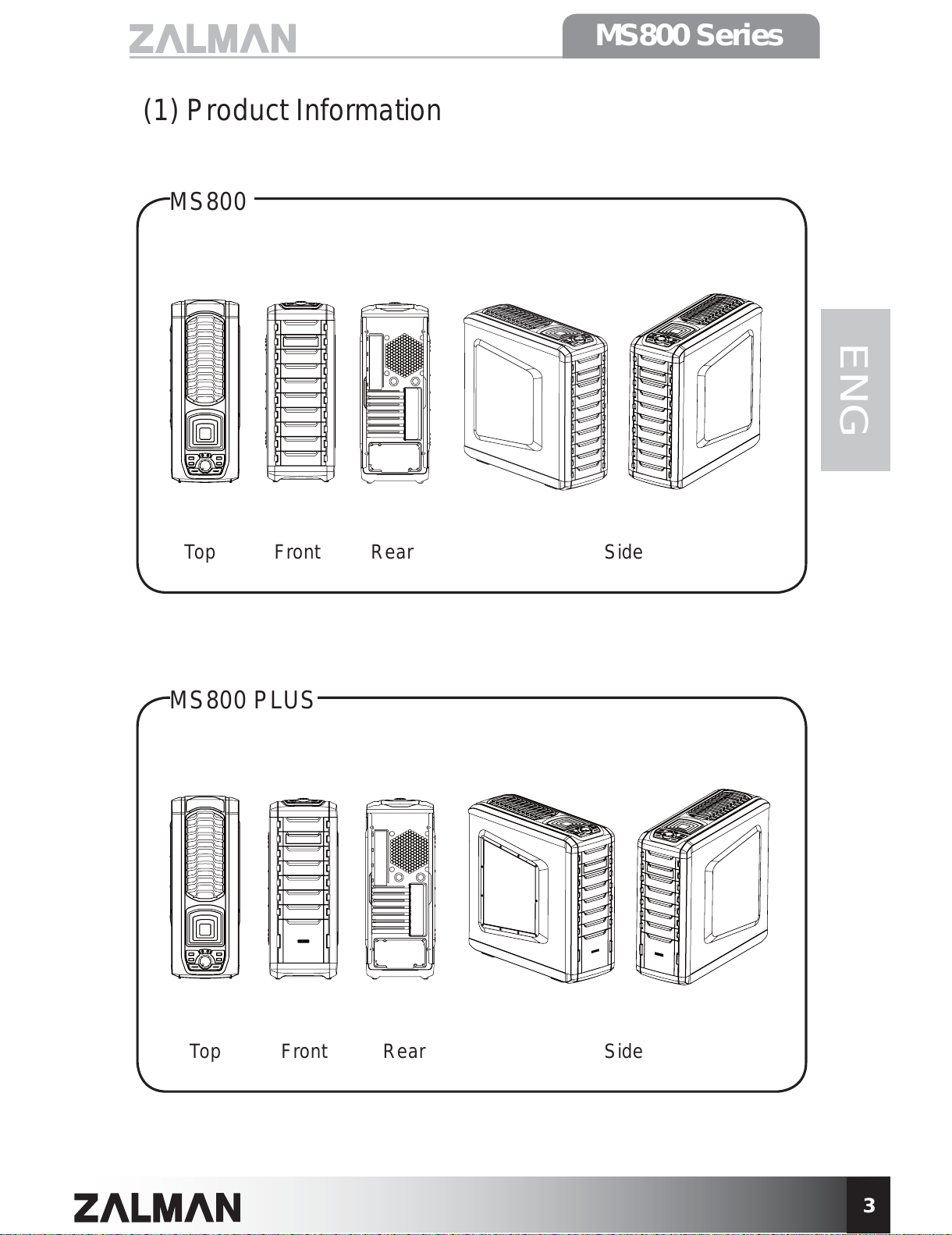

(1) Product Information

Front

Top

Rear

Side

MS800

MS800 PLUS

All manuals and user guides at all-guides.com

MS800 Series

(2) Parts

[MS800] [MS800 Plus]

$BCMF5JF × 5 Guide Clip x 3CPU 12V Extension Cable × 1

6WDQG2IIî

C Bolt [FAN]

(FH Tap5*10mm X 2) FAN 92mm x1 VGA Guide x 1

A Bolt

PPî

B Bolt( M3*5mm) × 55

[M/B, FDD, SSD, ODD]

Manual

All manuals and user guides at all-guides.com

all-guides.com

ENG

MS800 Series

(3) Front I/O Ports

Fan Cotroller

Low High

# Part Name

˝Power Button

˞HDD LED

˟Reset Button

ˠUSB 2.0

ˡUSB 3.0

ˢFan Controller

ˣHeadphones

ˤMIC

86% 86%

63.

0,&

˝˞ ˟ˠˡ

ˣˤ

All manuals and user guides at all-guides.com

MS800 Series

# Part Name Units

˝Chassis 1

˞Top Cover 1

˟Side Panel (Right) 1

ˠSide Panel (Left) 1

ˡFan Filter 1

ˢBottom Cover 1

# Part Name Units

ˣ3.5”/2.5” to 5.25"Tray 4

ˤFront I/O Panel 1

˥Front Cover 1

˦5.25” Bay Covers 10

˧VGA Guide 1

(4) Exploded View (MS800)

ˠˡˢ

*Acrylic Side Panel is only available on the MS800 Plus.

All manuals and user guides at all-guides.com

ENG

MS800 Series

# Part Name Units

˝Chassis 1

˞Top Cover 1

˟Side Panel (Right) 1

ˠSide Panel (Left) 1

ˡFan Filter 1

ˢBottom Cover 1

# Part Name Units

ˣ3.5”/2.5” to 5.25"Tray

6XSSRUW+RWVZDS[ 4

ˤFront I/O Panel 1

˥Front Cover 1

˦5.25” Bay Covers 10

˧VGA Guide 1

˨HDD Module 1 set

(4) Expolded View (MS800 Plus)

*Acrylic Side Panel is only available on the MS800 Plus.

ˠˡˢ

All manuals and user guides at all-guides.com

MS800 Series

Installation

(1) Side Panel Removal

(2) Motherboard Installation

6WDQG2II

B Bolt

"59 ."59

)RUVWDQGDUG$7;PRWKHUERDUGVVFUHZGRZQ¿YHVWDQGRIIVWRWKHFDVHDVFLUFOHG

RQWKHOHIW)RU0LFUR$7;PRWKHUERDUGVVFUHZGRZQIRXUVWDQGRIIVWRWKHFDVH

DVFLUFOHGRQWKHULJKW7KHQSODFHWKHPRWKHUERDUGRQWRSRIWKHVWDQGRIIVDOLJQ

WKHPRWKHUERDUGPRXQWLQJKROHVWRWKHVWDQGRIIVDQGVHFXUHWKHPRWKHUERDUGE\

screwing down B Bolts.

All manuals and user guides at all-guides.com
