Zavio M511E Istruzioni per l’uso

M511E User Manual

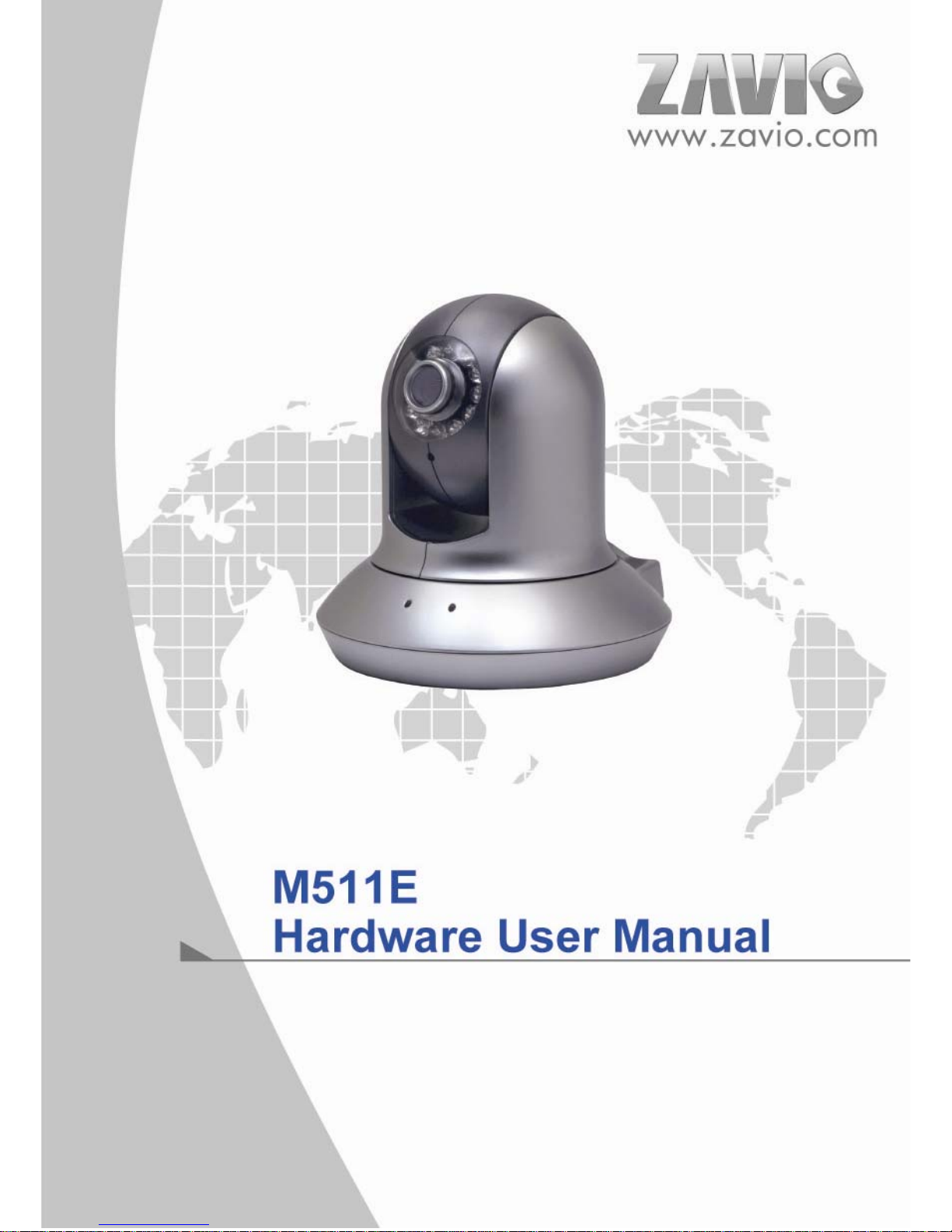

M511E Day/Night Pan/Tilt IP Camera

Hardware User Manual

-Contents-

CHAPTER 1. SAFETY INSTRUCTION........................................................................................2

CHAPTER 2. INTRODUCTION.....................................................................................................4

CHAPTER 3. PACKAGE CONTENTS ..........................................................................................5

CHAPTER 4. PHYSICAL DESCRIPTION....................................................................................6

CHAPTER 5. BASIC CONNECTION ............................................................................................8

5.1WITHOUT POECONNECTION .................................................................................................................................8

5.2WITH POECONNECTION ........................................................................................................................................8

CHAPTER 6. APPLICATION..........................................................................................................9

M511E User Manual

Hardware User Manual

Chapter 1. Safety Instruction

Before you use this product

This product has been designed with safety in mind. However, the electrical products can cause

fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to

heed the following.

Legal Caution

Video and audio surveillance can be forbidden by laws that vary from country to country. Check the

laws in your local region before using this product for surveillance purposes.

Don't open the housing of the product

Don't try to open the housing or remove the covers which may expose yourself to dangerous voltage

or other hazards.

Don't use the accessories not recommend by the manufacturer

Heed the safety precautions

Be sure to follow the general safety precautions and the “Operation Notice.”

Operation Notice - Operating or storage location

Avoid operating or storing the camera in the following locations:

Extremely hot or cold places

(Operating temperature: 0 °C to + 50 °C [32 °F to 122°F] )

Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters)

Close to water (e.g.,near a bathtub, kitchen sink, laundry tub)

Close to sources of strong magnetism

Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters

Locations subject to strong vibration or shock

M511E User Manual

In case of a breakdown

In case of system breakdown, discontinue use and contact your authorized dealer.

In case of abnormal operation

If the unit emits smoke or an unusual smell,

If water or other foreign objects enter the cabinet, or

If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2

Contact your authorized dealer or the store where you purchased the product.

Transportation

When transporting the camera, repack it as originally packed at the factory or in materials of equal

quality.

Ventilation

To prevent heat buildup, do not block air circulation around the device.

Cleaning

Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be

removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry.

Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the

surface.

M511E User Manual

Chapter 2. Introduction

The M511E Day/Night Pan/Tilt IP Camera provides full overview and true day/night capabilities to

be the perfect solution for indoor applications that need to cover everything at anytime, but still be

cost-effective.

Key Features:

Simultaneous MPEG-4 and Motion JPEG video stream

Excellent Image Quality up to flexible 30 fps in all resolution for optimum bandwidth use

Automatic-changeable IR-cut filter with adjustable threshold

Synchronized Two-way Audio with built in Microphone

12 pcs Infrared LEDs for night use up to 10 working distance

Optimal Synchronization of Audio and Video

Support Live Video Viewing on Windows Live Messenger (WLM )

Control panel add-in, i.e. snapshot, image setup and PT control

Support Mac OS Browser

Support iPhone through Safari Browser

Power over Ethernet IEEE 802.3af Class 0 suppliers power to the camera via the network

Digital Input / Output Port for External Alarm & Sensor

Mobile Phone Streaming Live Video through 3GPP / ISMA / RTSP

Mobile Phone Live Image through 2.5 WAP

Multi-level Password Protection for Restricting Camera Access

Built-In Multi-Window Motion Detection (3 detection areas)

Video Buffer makes the Streaming Smoother

UPnP and Bonjour for Fast and Easy Installation

DDNS Supported

Bundled 16 Channel Surveillance Software

User-friendly & Multi-lingual UI

M511E User Manual

Chapter 3. Package Contents

Quick Installation Guide Software CD

Component Pack

Camera

Camera – M511E Day / Night Pan / Tilt IP Camera

Quick Installation Guide -To provide brief product information and quick installation and

wireless setting

Software CD - To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and

Language Packs

Component Pack -Camera mount Kit & Pads (one bracket and two packs of screws)

Adaptor - 12V DC, max 6W

M511E User Manual

Chapter 4. Physical Description

Overview

Focus Adjustment Ring - Adjust focus manually to achieve the best image quality

Infrared LEDs -Infrared LEDs for night use up to 10 working distance

Built-In Microphone - Built-In Microphone for Two-way Audio

Power LED indicator - Power LED will light up after completing the boot process

Network LED indicator - Network LED will light up after connecting with network.

Power Connector - For connection of 12V DC input.

Reset - When the device is empowered, press the Reset Button to reboot the device, or

hold the Reset Button for 10 seconds to set the device settings back to factory default

Audio In -To support audio in with Microphone for two way audio

Audio Out - To support audio out with earphones or speakers for two way audio

Network Connector - For connection to the Ethernet via RJ-45 standard with PoE

I / O Terminal Connector - 1Input / 1Output to support External Alarm and Sensor used

for motion detection, event triggering and alarm notification…etc.

M511E User Manual

DI / DO Terminal connector diagram

Please refer the following illustration below for connection method.

D+ D- COM NO

Ground

12V

Max. 30W

Ground

Alarm out device

12V

Switch

M511E User Manual

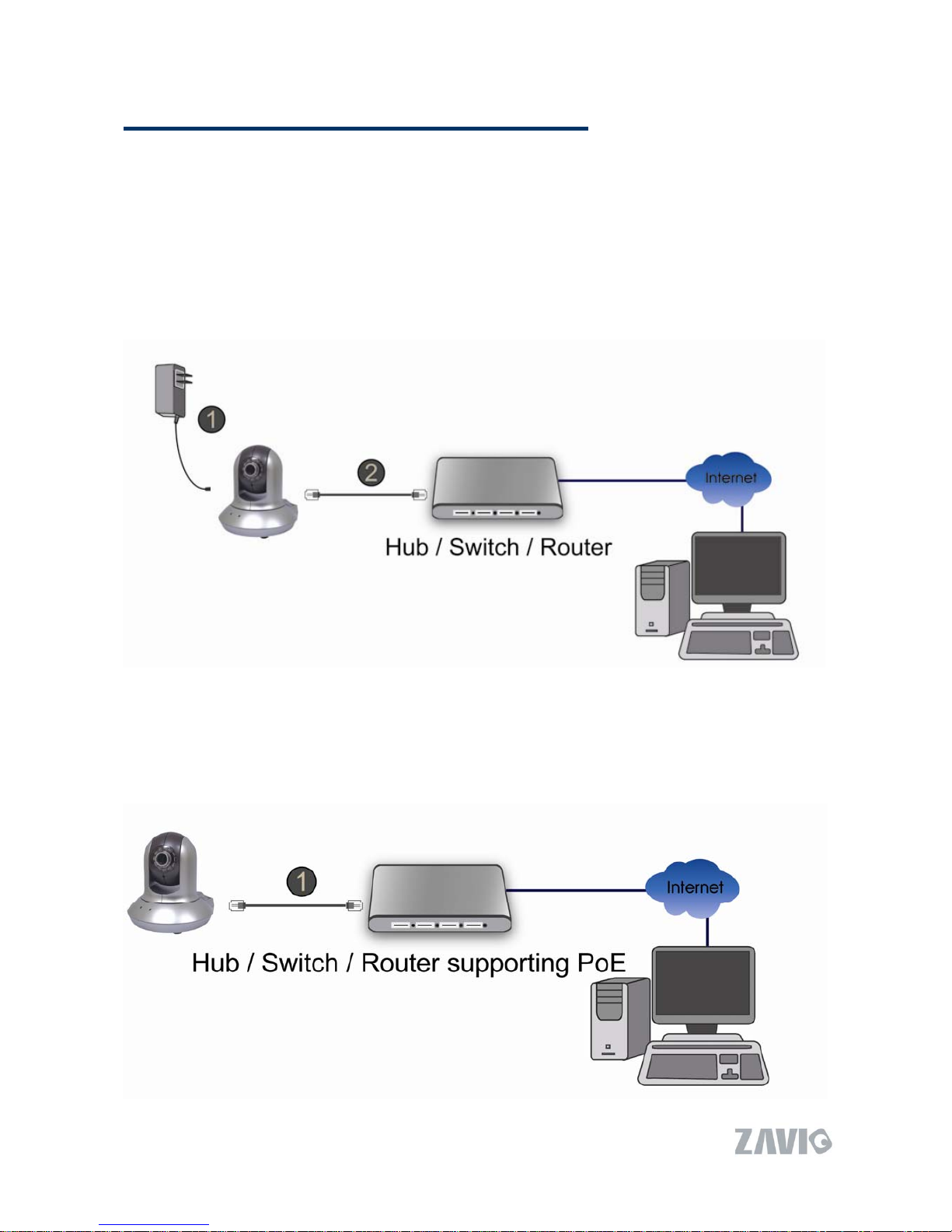

Chapter 5. Basic Connection

M511E offers Power over Ethernet (PoE) connection. However, you still can use M511E with PoE

or without PoE connection. You can follow the procedure below to connect the IP Camera for both

applications.

5.1 Without PoE Connection

1. Connect IP Camera’ Ethernet port to your Hub / Switch / Rout supporting PoE

5.2 With PoE Connection

1. Connect the power adaptor to IP Camera.

2. Connect IP Camera’ Ethernet port to your Hub / Switch / Router

M511E User Manual

Chapter 6. Application
