Z-3501 Installation Guide and User Manual
2
Iveda Z-3501 Installation Guide and User Manual
Please use this guide to set up your Z-3501 IP Camera
Package Contents
Check the package contents against the list below.
Camera Z-3501 Day / Night Outdoor IP Camera
Software CD
Installation Guide and User Manual
Accessories 1. Wall / Ceiling mounting bracket
2. Screws and anchors for wall / ceiling mounting
3. Sun shield
4. Screws for sun shield
5. Cat 5e female coupler
Adaptor 12VDC, max 12W
Ethernet Cable 1 meter ( 3 feet )
Physical Overview

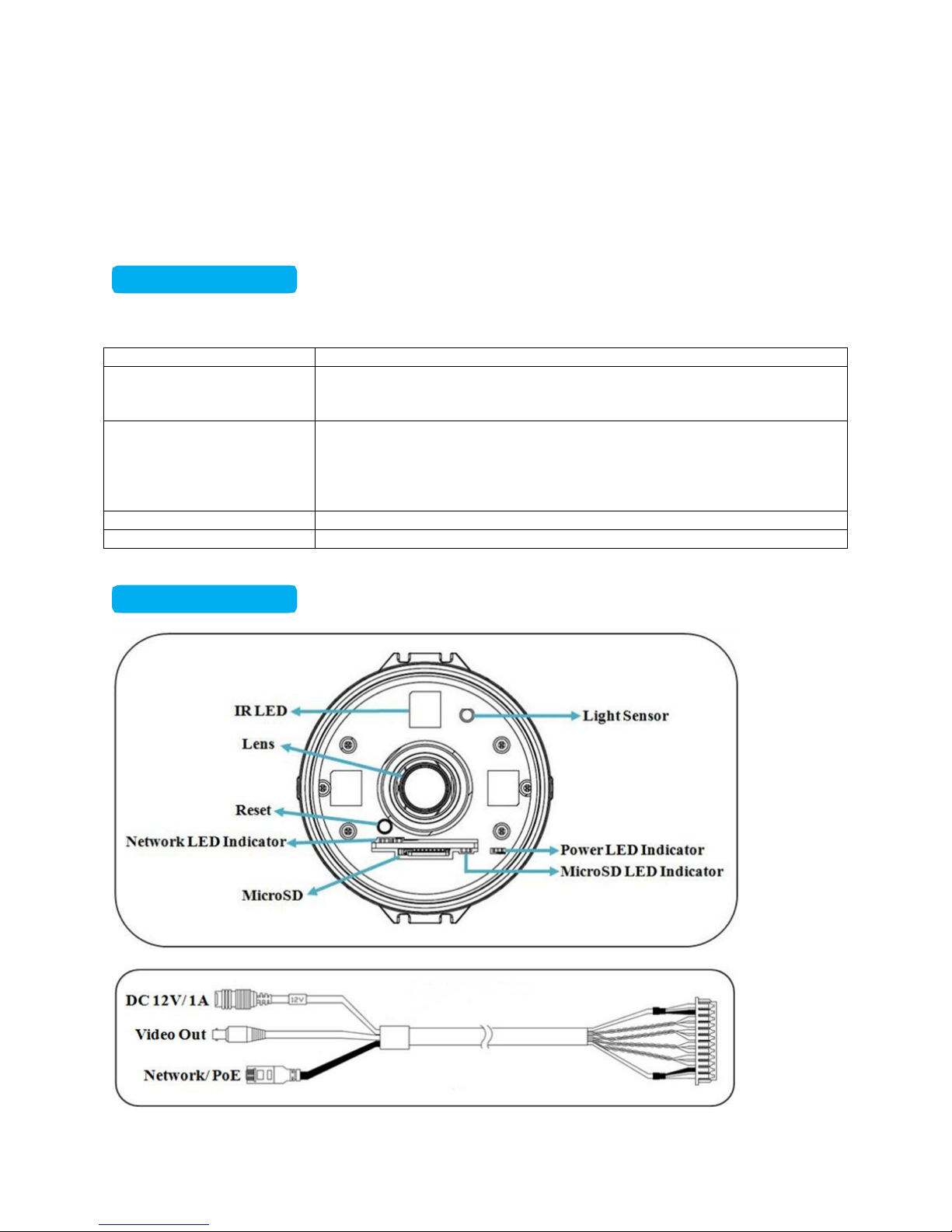

3
Infrared LEDs: Infrared LEDs for night use up to 10m working distance.
Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset
Button for 5 seconds to set the settings back to factory default.
MicroSD Card: For IP camera local storage
LED Indicator Definition
LED Color Indication
Network
Yellow Flash yellow during Network activity
Power Red Steady red for booting up process; Steady red 30
seconds when WPS configure
Blue Steady blue for booting up completion
Purple Flash purple during firmware upgrade
MicroSD Card Yellow Steady yellow means MicroSD card ready
Yellow Flash yellow while accessing MicroSD card
4
Install the Hardware and Connect All Cables
Wall mounting
1. Use the supplied screws to fix the base plate to a flat surface.
2. Loosen the screws on the bracket to aim the viewing area.
3. Tighten the screws at the two joint of the bracket.
Note on installation location
If you plan to install the IP camera outdoors, we recommend you set up the camera in an area where it
will be blocked from direct sunlight and rain.
Cable connection:
With Power over Ethernet
Using standard RJ-45 network cable, connect the IP camera to a PoE-enabled Hub/Switch /
Router.
Without Power over Ethernet
Connect the 12V power adaptor to the IP Camera.
Using a standard RJ45 network cable, connect the IP camera to a normal Hub / Switch / Router.
5
System Specifications
CPU
Intel Atom 330 or above
(1M cache, 1.6GHz, 533MHz FSB)
RAM
1G or above
Screen Resolution
1280 x 720 recommended
Browser
IE, Firefox, Chrome, Safari. Version as below
Java Version
Java 7u11 or above
Adding Your Camera
1. Connect IP Camera to a network router via network cable.
6
2. Power on IP camera.
Please also ensure your router’s DHCP is activated.
3. Visit the hosting URL of your service provider given when you purchased your camera.
4. If you do not have an account, click on “Create Account”.
5. After filling out the form, click “Apply”. An email confirmation will be sent to your email address.
6. Login with account and password.
7
7. If no cameras have been added, you will be prompted to add a camera. Otherwise, click “Settings” at
the bottom of the page.
8. Clicking will pop up a reminder to ensure the IP camera you are going to bind has already been
connected to the network properly. Then follow the binding method via browser by filling the MAC
address and activation code of the camera.
8
9. A table will then display for filling in the IP camera’s MAC address and activation code after clicking
“Next”. Click “Apply” when finished providing required information. Cameras can also be added by
using the Smart phone APP provided by your service provider.
10. “Success” shows when finished adding properly. The IP camera is now displayed on the setting table.
11. Clicking “Config” button will lead to a “Modify” page which listed each device’s registration
information where users can alter its device name for easy recognition.
12. Sharing your Camera. Clicking the “Share” button . In the “Share” field, type in the user account
name that the camera will be shared with. If the individual you are sharing the camera with does not
already have an account, they can create one on the home page.
9
Clicking on the “Share” button at the bottom of the screen will show all cameras that belong to other
accounts that are shared with your account.
13. Watching your Cameras
Click the “Matrix” at the bottom of the page and you will view the cameras in RTSP streaming.
10
Basic Functions

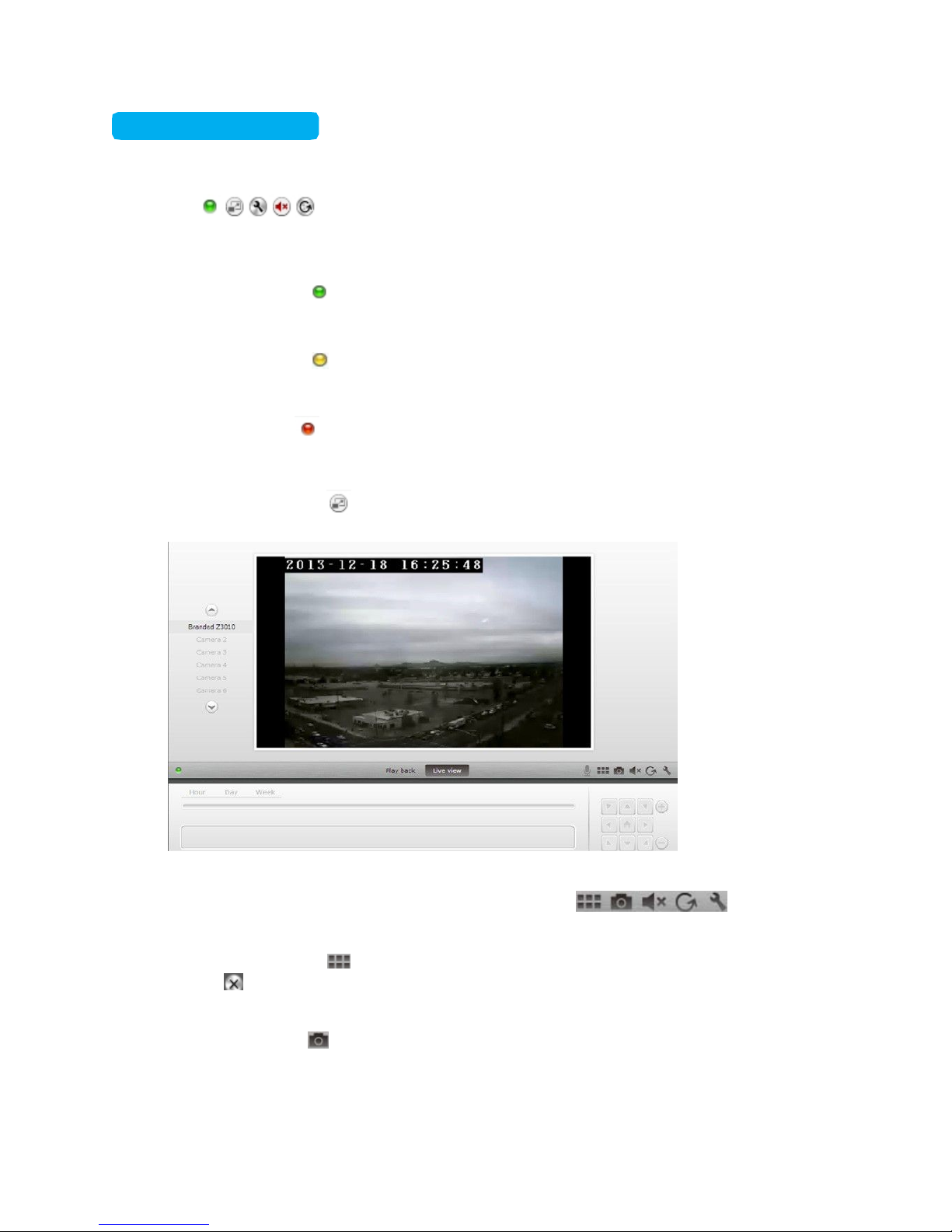

Tool Bar
The tool bar is located in the upper right hand side of each IP cam view for easy
management.
1. Lights Indicators
Green Light
The green light means the IP camera is online and streaming video, therefore its video is
successfully displayed on the screen.
Yellow Light
The yellow light means the IP camera is online but not yet streaming video, therefore, its
video is not displayed on the screen.
Red Light
The red light means the IP camera is offline, therefore, the screen is blank.
2. Full Screen
The Full screen button is to lead you to a new screen layer where the video is displayed in full
screen for larger image and event play back function.
Control buttons
When viewing video in full screen, function buttons are located on
the lower right hand side of the screen.
By clicking the button, it will take you to the matrix view page. Or you can click on the
button located on the top right hand side of the screen to exit the full screen function
and back to the matrix view as well.
Clicking the button allows you to take a snapshot from the camera you are currently
monitoring. You can name the snapshot file and select the directory to store it at your
preference.
