Zephyr Typhoon AK2100 Guida all'installazione
USE, CARE AND INSTALLATION GUIDE
Read all instructions before installing and operating this appliance
IMPORTANT SAFETY NO TICE
Installation
The installation instruction in this manual is intended for qualified installers, service
technicians or persons with similar qualified background. DO NOT attempt to install this
appliance yourself. Injury could result from installing the unit due to lack of appropriate
electrical and technical background.
All electrical wiring should be properly installed, insulated, and grounded. Overly
accumulated grease on old duct work should be cleaned out or duct work should be
replaced if necessary to avoid the possibility of grease fire. Check all sections and joints
on duct work to insure proper connection and all joints should be properly taped.
Operations
Read all instructions in this manual before operating the appliance. Save these
instructions for future reference.
ALWAYS leave safety grills attached in place at all times. Operating blowers could catch
on to hair, fingers, and loose clothing.
Keep unit and residue containers clean from grease accumulation from time to time.
NEVER dispose foreign substances into the blowers. Do not dispose cigarette ashes or
ignitable substances into the blowers.
Cleaning
Use with extreme caution while performing the Self Cleaning Function and safety grills
are removed. Beware of fingers, hair, loose clothing from getting in the blowers and
NEVER leave children unattended.
NEVER disassemble parts to clean without proper instructions. Disassembly are
recommended to be performed by qualified personnel only. We are not responsible for
injury due to negligence and the warranty of the unit automatically expires due to
improper maintenance. Call our Service Center for removal instructions.
WARNING
MODEL: TYPHOON AK2100, AK2136
CONTROLS
2
Controls Overview
delay off
510 15
lowminutes high on/off lamp
(A) turns blowers on/ off
(B) adjust to higher speed level (1 to 6)
(D) turns lights on/off and dim (night light)
(C) adjust to lower speed level (6 to 1)
(E) shuts off hood in 5, 10 or 15 minutes
(F) Indicator: indicates 5, 10, or 15 minutes delay when lit
(G) Indicator: indicates level of blower speed from 1 to 6
Level 1(low) -Indicator 1 flashing
Level 2 - Indicator 1 lit
Level 3 - Indicator 2 flashing
Level 4 - Indicator 2 lit
Level 5 - Indicator 3 flashing
Level 6 (high) - Indicator 3 lit
1 2 3
Zephyr Model AK2100 & AK2136
Touch Control Module
Blower Controls
Turn on the blowers by pressing “on/off” once.
Adjust level of speed (1 to 6) by pressing
“high” or “low”.
Speed Indicator
The speed indicator will show the speed the
blowers are operating at as follow:
Level 1(low) -Indicator 1 flashing
Level 2 - Indicator 1 lit
Level 3 - Indicator 2 flashing
Level 4 - Indicator 2 lit
Level 5 - Indicator 3 flashing
Level 6 (high) - Indicator 3 lit
Note: The control is equipped with a speed
setting memory module. When turning on the
blowers, the speed level will start at the speed
setting last memorized.
Turn off the blowers by pressing “on/off” again.
Lights Controls
Turn on halogen lamps by pressing “lamp”.
Press 2nd time will dim to night light.
Press again to turn lamps off.
Note: Use type HR16 (E27) halogen bulbs
only. Max 35W
CONTROLS
press:
turns blowers on
on/ off
highlow
adjust speed from low to
high (1 to 6)
high
low
1 2 3
turns blowers off
on/ off
indicator:
press:
press:
turns lights on
lamp
press:
turn lights down
(night light)
lamp
press again:
turns lights off
lamp
press again:
3
Timed Delay Off
Press “delay off” once to turn all range hood
operation off in 5 minutes.
Indicator “5” will be lit
Press “delay off” twice to turn all range hood
operation off in 10 minutes.
Indicator “5” & “10” will be lit
Press “delay off” the third time to turn all range
hood operation off in 15 minutes.
Indicator “5”, “10” & “15” will be lit
CONTROLS
press once:
turns off in 5 minutes
delay off
Indicator
indicator “5” will be lit
5 10 15
delay off
press twice:
turns off in 10 minutes
delay off
Indicator
indicator “5” & “10” will
be lit
5 10 15
delay off
press again:
turns off in 15 minutes
delay off
Indicator
indicator “5”, “10” &
“15” will be lit
5 10 15
delay off
4
INSTALLATION
MIN. 18” MAX 30”
net width
CLEARANCES
Minimum clearance above range should be no
less than 18“ from the range surface to the
range hood’s base. Maximum height are
recommended not to exceed 30” for maximum
efficiency.
Net width on all models are call out width less
1/4”.
Note: Refer Manufacturers’ height clearance
requirements on all high btu and professional
ranges.
5
DUCT REQUIREMENT
Minimum duct size should be no less than 7”.
Smaller duct size, long duct run and turns will
reduce hood performance and efficiency.
Use single wall ridgit type galvanized pipes only,
do not use flexible type ducts.
Generally, use minimum duct size
recommended (7”). Reduce the number of
turns and bends. If long duct run (beyond 20’
vertical and 35’ horizontal) is required, increase
Duct Type Round
Duct Size 7” Minimum
Duct opening Vertical
size of duct to 8 or 9”.
If a reducer is required, use a long reducer
instead of a short pancake reducer. Install
reducers as far away from duct opening as
possible.
If turns are required:
Install first elbow as far away from opening as
possible.
Between elbows, install as far as possible.
Use two 45 elbow (installed as far apart as
possible), instead of one 90 elbow.
Increase duct size.
Call Out Size Net Width
30” 29-3/4”
36” 35-3/4”
INSTALLATION
6

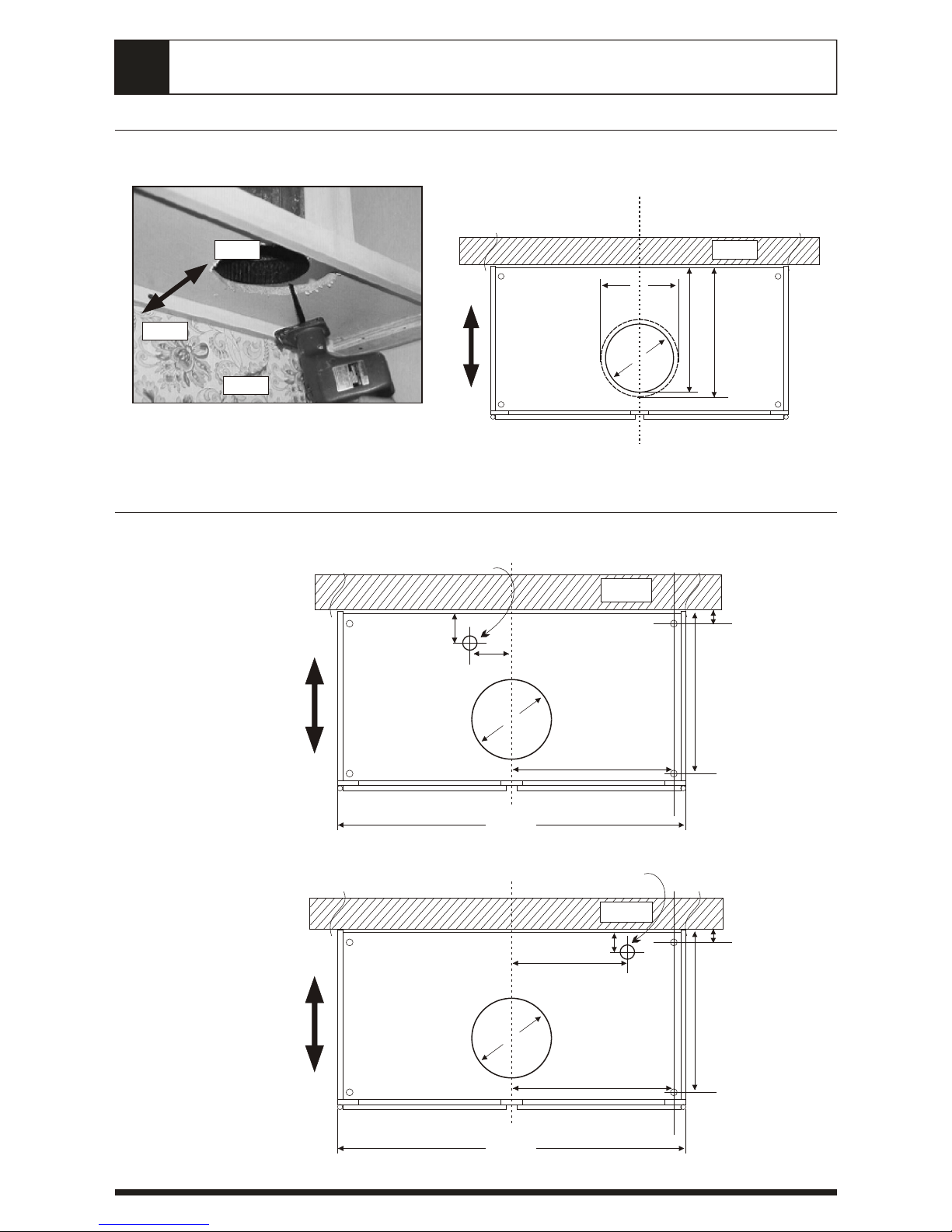

DUCT OPENING
Front
Rear
Front
Rear
Wall
7”
8”
(min. cutout)
C/L
C/L
ELECTRICAL & DRILL LOCATIONS
Front
Rear
7”
C/L
Electrical K/O (3/4”)
1-3/8”
3-3/4”
1-13/16”
10-5/16”
13-7/8”
C/L
9”
30” & 36” models (AK2100, AK2136)
30” models (AK2100)
Front
Rear
7”
C/L
Electrical K/O (3/4”)
2”
13-1/8”
1-13/16”
10-5/16”
16-7/8”
C/L
36” models (AK2136)
30”
36”
9-1/2”
Wall
Wall
Wal l
INSTALLATION 7
Preparing with Template
Use template provided, fold/ or cut along inside edges.
CABINET FRONT
CABINET REAR
Fold and align this edge to cabinet base and wall corner
WALL
CABINET FRONT
CABINET REAR
Fold and align this edge to cabinet base and wal lcorner
WALL
Fold along line marked “Fold and align this edge to cabinet base and wall
corner”.
**Note: Do not mistake with edge marked “Cabinet Rear”.
(A)
(B)(B)
(A)
hanging bolt
drill location
wall bracket
drill location

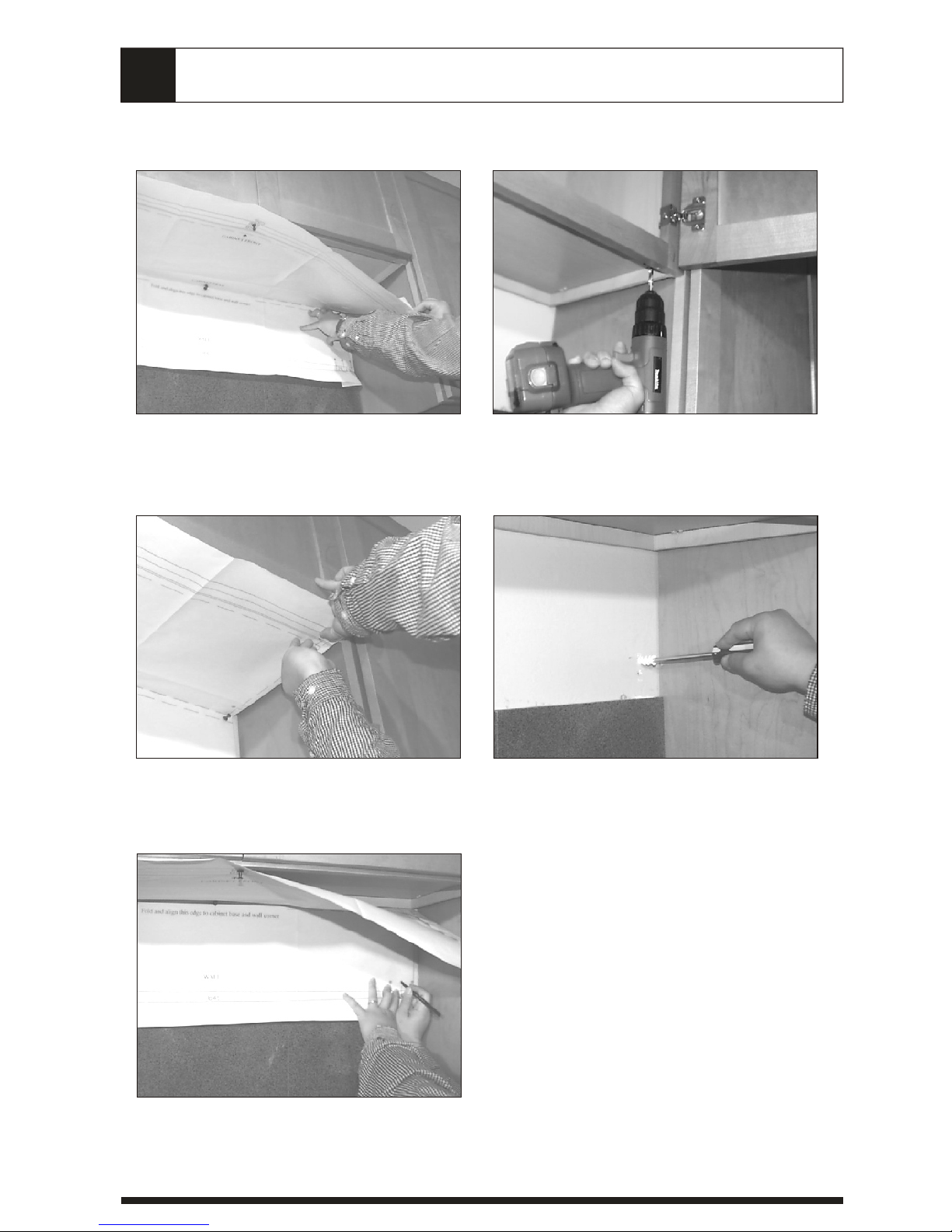

INSTALLATION
8
1. Align folded edge to cabinet base and
wall corner
2. Mark 2 hanging bolt drill locations (A) on
cabinet (see template on page 7).
4. Remove template and drill location (A)
with 1/4” or 3/8” drill bit.
5. Install EZ anchors to (B) as marked.
(see next diagram for EZ anchor
installation).
3. Mark 2 bracket drill locations (for
anchors) (B) on wall.

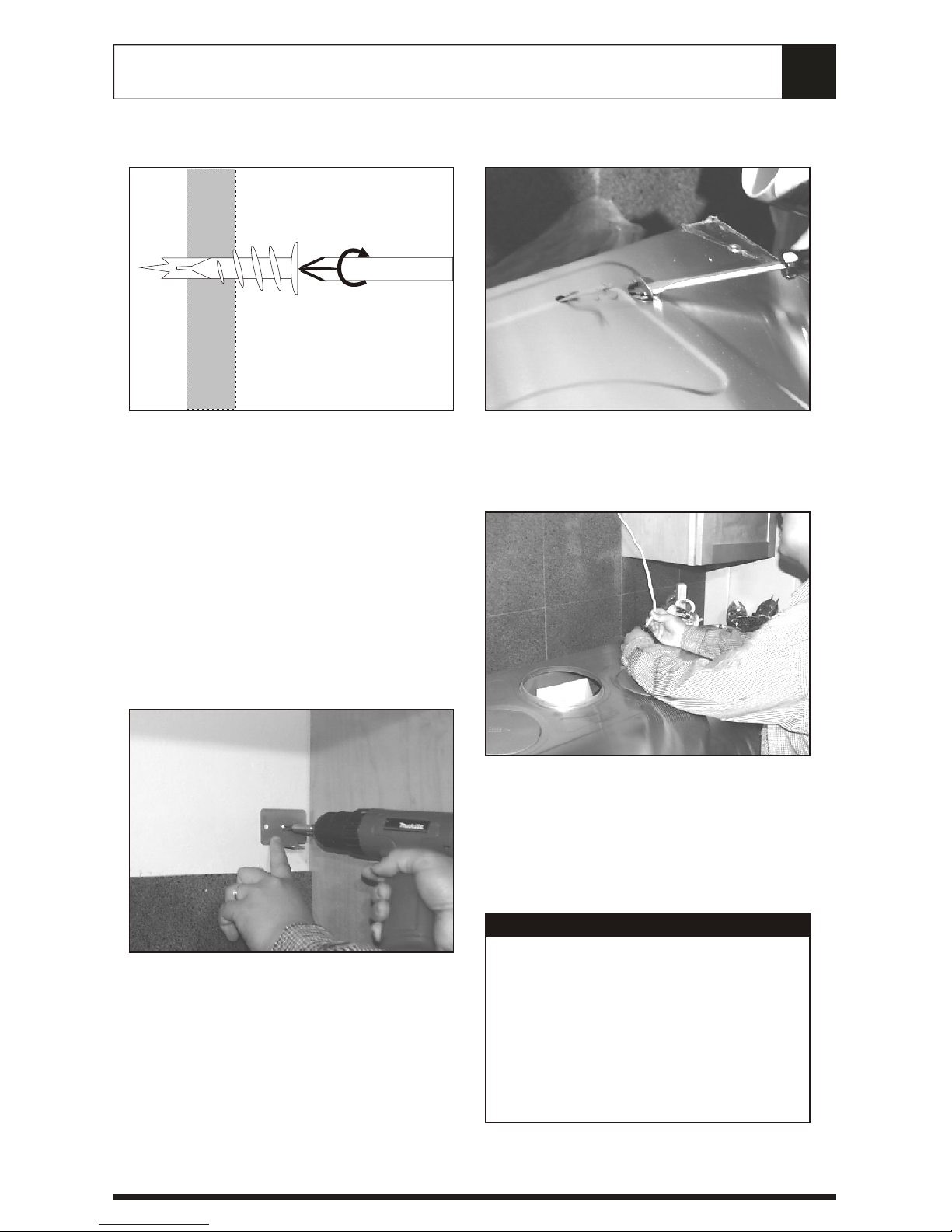

INSTALLATION 9
EZ Anchors
6. Tap EZ anchor tip into marked drywall
locations, turn with screwdriver until seated
flush.
Note: use EZ anchors provided only on
hollow drywall applications (minimum
drywall thickness 1/2”). If a stud or wood
surface is present, fasten anchors with
screws directly into stud or plywood. For all
other wall types (concrete, brick, tiles etc.),
use appropriate anchors for mounting.
7. Fasten 2 wall brackets provided onto
anchors
8. Pry open 3/4” electrical knock out
9. Connect power source to hood (make
sure power source is turned off).
DANGER
All electrical work must be performed by
qualified electricians only. Do not attempt to
wire the appliance if you are inexperience
with and/ or without proper electrical
working background and qualifications.
All electrical work must meet local codes and
requirements for safety.
Electrical Connection
INSTALLATION
10
Electrical Connection
Front
Rear
A cable locking connector (not supplied) is also required by local codes. Check with local requirements and codes,
purchase and install the appropriate connector in order to meet all mandatory codes.
Cable lock
10. Insert bolts w/ washers provided
through drill out (A)
11. Lift hood and hook rear opening slots
onto 2 rear brackets previously installed on
wall
12. Tilt hood up and fasten left and right
bolts onto hood
13. Connect duct to hood opening, tape all
joints with aluminum duct tape and inspect
for leakage
Wall
