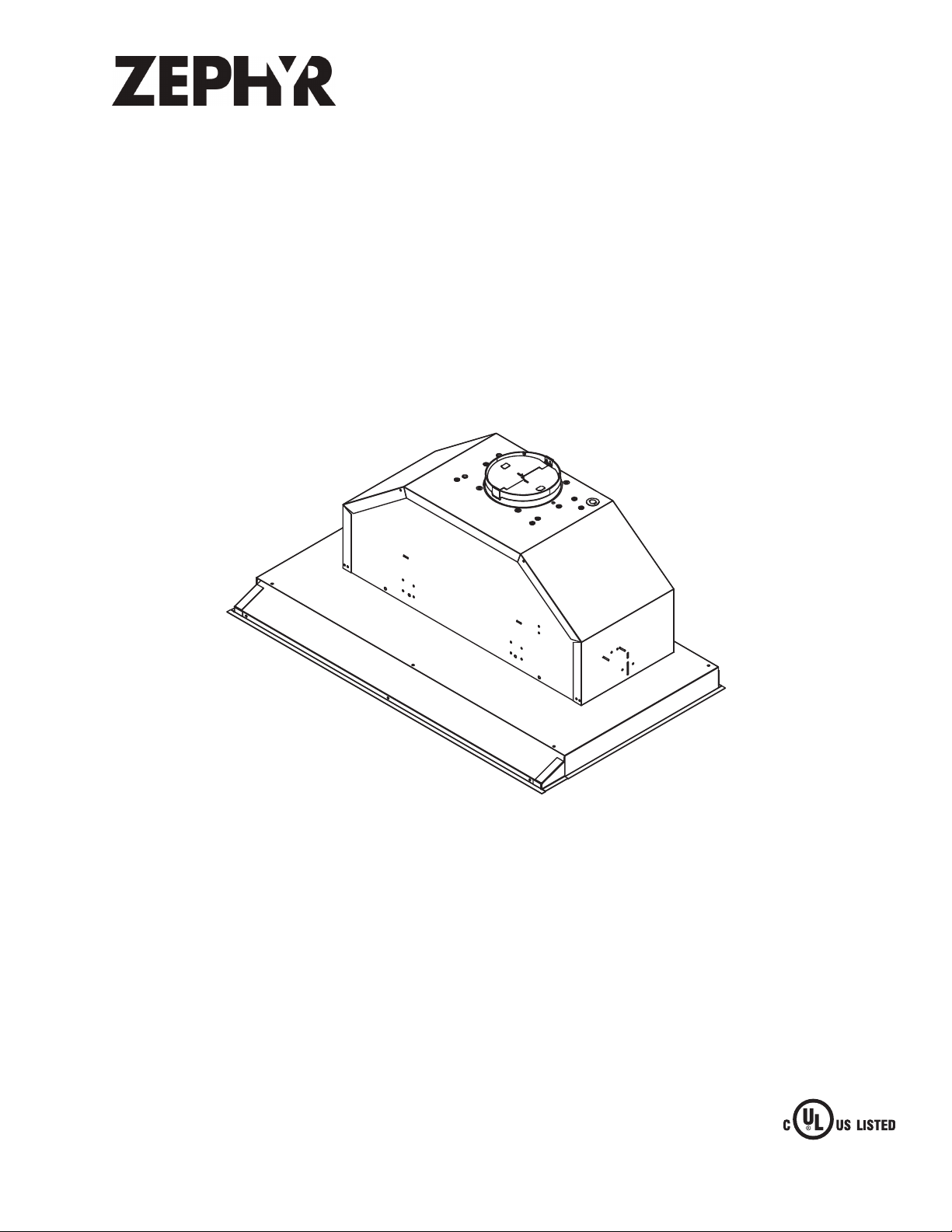

Zephyr Vortex AK9028BS Guida all'installazione

WWW.ZEPHYRONLINE.COM

APR21.0101

Vortex

AK9028BS, AK9034BS

EN Use, Care, and Installation Guide

FR Guide d’utilisation, d’entretien et d’installation

2Vortex Use, Care, and Installation Guide

VORTEX

INSERT

CORE

Vortex Use, Care, and Installation Guide

ZEPHYRONLINE.COM

Contents

Page

Safety Information ............................................................................ 4-6

Types of Safety Warnings................................................................... 4

General Safety ..................................................................................4-5

Operation........................................................................................... 6

Electrical Requirements ...................................................................... 6

List of Materials................................................................................... 7

Installation Instructions.....................................................................8-15

Ducting Calculation Sheet.................................................................. 8

Mounting Height, Clearance, & Ducting ............................................. 9

Ducting Options .................................................................................10

Hood Speciﬁcations............................................................................11

Electrical Supply.................................................................................12

Cable Lock .........................................................................................12

Hood Preparation & Installation..........................................................13

Mounting the Hood.............................................................................14

Ductless Recirculation ........................................................................15

Features & Controls............................................................................ 16

Slide Controls .....................................................................................16

Maintenance .................................................................................... 17-18

Hood & Filter Cleaning......................................................................17-18

LumiLight LED ....................................................................................18

Wiring Diagram.................................................................................. 19

Troubleshooting................................................................................20-21

List of Parts & Accessories..................................................................22

Limited Warranty ...............................................................................23

Product Registration...........................................................................24

4Vortex Use, Care, and Installation Guide

VORTEX

INSERT

CORE

Safety Information

Your safety and the safety of others are very important.

We have provided many important safety messages in this

manual for your appliance. Always read and obey all safety

messages.

This is the Safety Alert Symbol. This symbol alerts you to

potential hazards that can cause severe bodily injury or death.

All safety messages will follow the Safety Alert Symbol and either

the words “DANGER” “WARNING” or “CAUTION”

DANGER

Danger means that failure to heed this safety statement may

result in severe injury or death.

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,

OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a) Use this unit only in the manner intended by the

manufacturer. If you have questions, contact the manufacturer.

b) Before servicing or cleaning unit, switch power o at service

panel and lock the service disconnecting means to prevent

power from being switched on accidentally. When the service

disconnecting means cannot be locked, securely fasten a

prominent warning device, such as a tag, to the service panel.

General Safety

WARNING

Warning means that failure to heed this safety statement

may result in extensive product damage, serious personal

injury, or death.

CAUTION

Caution means that failure to heed this safety statement

may result in minor or moderate personal injury, property or

equipment damage.

WARNING

To reduce the risk of ﬁre or electric shock, do not use this fan

with any solid-state control device.

WARNING

CAUTION

For General Ventilating Use Only. Do Not Use To Exhaust

Hazardous Or Explosive Materials And Vapors. Take care

when using cleaning agents or detergents. Suitable for use in

household cooking area.

WARNING

WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE

FIRE:

a) Never leave surface units unattended at high settings.

Boilovers cause smoking and greasy spillovers that may ignite.

Heat oils slowly on low or medium settings.

b) Always turn hood ON when cooking at high heat or

when ﬂambeing food. (i.e. Crepes Suzette, Cherries Jubilee,

Peppercorn Beef Flambe’).

c) Clean ventilating fans frequently. Grease should not be

allowed to accumulate on fan or ﬁlter.

d) Use proper pan size. Always use cookware appropriate for

the size of the surface element.

Vortex Use, Care, and Installation Guide

ZEPHYRONLINE.COM

Safety Information

WARNING

READ AND SAVE THESE INSTRUCTIONS

WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS

IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE

FOLLOWING:

a) SMOTHER FLAMES with a close-ﬁtting lid, cookie sheet, or

metal tray, then turn o the burner. BE CAREFUL TO PREVENT

BURNS. If the ﬂames do not go out immediately, EVACUATE AND

CALL THE FIRE DEPARTMENT.

b) NEVER PICK UP A FLAMING PAN – You may be burned.

c) DO NOT USE WATER, including wet dishcloths or towels – a

violent steam explosion will result.

d) Use an extinguisher ONLY if:

1) You know you have a Class ABC extinguisher, and you

already know how to operate it.

2) The ﬁre is small and contained in the area where it

started.

3) The ﬁre department is being called.

4) You can ﬁght the ﬁre with your back to an exit

Based on “Kitchen Firesafety Tips” published by NFPA.

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

CAUTION

To reduce risk of ﬁre and to properly exhaust air outside, do

not vent exhaust air into spaces within walls, ceilings, attics,

crawl spaces, or garages.

WARNING

WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,

OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by

qualiﬁed person(s) in accordance with all applicable codes and

standards, including ﬁre-rated construction.

b) Sucient air is needed for proper combustion and

exhausting of gases through the ﬂue (chimney) of fuel burning

equipment to prevent back drafting. Follow the heating

equipment manufacturer’s guideline and safety standards such

as those published by the National Fire Protection Association

(NFPA), and the American Society for Heating, Refrigeration

and Air Conditioning Engineers (ASHRAE), and the local code

authorities.

c) When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

d) Ducted fans must always be vented to the outdoors.

e) If this unit is to be installed over a tub or shower, it must be

marked as appropriate for the application and be connected

to a GFCI (Ground Fault Circuit Interrupter) - protected branch

circuit.

WARNING

Prop. 65 Warning for California Residents: This product may

contain chemicals known to the State of California to cause

cancer, birth defects, or other reproductive harm.

6Vortex Use, Care, and Installation Guide

VORTEX

INSERT

CORE

Safety Information

Operation

ŹAlways leave safety grilles and ﬁlters in place. Without these components, operating blowers could catch onto hair, ﬁngers and

loose clothing.

ŹThe manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,

maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and

the warranty of the unit automatically expires due to improper maintenance.

NOTE: Please check www.zephyronline.com for revisions before doing any custom work.

Electrical Requirements

Important:

ŹObserve all governing codes and ordinances.

ŹIt is the customer’s responsibility to be aware of these below:

ŹTo contact a qualiﬁed electrical installer.

ŹTo assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest

edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes

and ordinances.

ŹIf codes permit and a separate ground wire is used, it is recommended that a qualiﬁed electrician determine that the ground path

is adequate.

ŹDo not ground to a gas pipe.

ŹCheck with a qualiﬁed electrician if you are not sure the range hood is properly grounded.

ŹDo not have a fuse in the neutral or ground circuit.

ŹThis appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected

by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram

on product.

ŹA cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and

install appropriate connector if necessary.

* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

READ AND SAVE THESE INSTRUCTIONS

Vortex Use, Care, and Installation Guide

ZEPHYRONLINE.COM

List of Materials

Wire Caps (3)

#8 x 1/2” (8) 3/16 x 3/8” (2)

Parts Not Supplied

Ducting, conduit and all installation tools

Cable locking connector (if required by local codes)

Optional recirculating kit (ZRC-9000)

Parts Supplied

Quantity Part

1 Power pack

1 Adjustable front panel

1 Bae ﬁlter

2 LumiLight LED, 6W (pre-installed)

1 Single internal blower (pre-installed)

1 Hardware package

8Vortex Use, Care, and Installation Guide

VORTEX

INSERT

CORE

Installation Instructions

Duct pieces To t al

Equivalent number

length x used =

3-1/ 4” x 10”

Rect.,

straight

1 Ft. x ( ) =Ft.

3-1/ 4” x 10”

Rect. to

6” round

transition

5 Ft. x ( ) = Ft.

3-1/ 4” x 10”

Rect. to

6” round

transition

900 elbow

20 Ft. x ( ) = Ft.

6”, 7”, 8”, 10”

Round,

900

15 Ft.

x ( ) = Ft.

6”, 7”, 8”, 10”

Round,

450

9 Ft. x ( ) = Ft.

Ft.

6”, 7”, 8”, 10”

Round,

straight

1 Ft. x ( ) =Ft.

Subtotal column1 =

Duct pieces To t al

Equivalent number

length x used =

6”, 7”, 8”, 10”

Round, wall

cap with

damper

30 Ft. x ( ) = Ft.

Ft.

6”, 7”, 8”, 10”

Round

roof cap

30 Ft. x ( ) = Ft.

Subtotal column2 =

Subtotal column1 =

Total ductwork =

Maximum Duct Length: For satisfactory air movement,

the totalductlength

should not exceed 150 equivalent feet.

6” roundto

3-1/ 4” x 10”

rect.

transition

1 Ft. x ( ) = Ft.

6” roundto

3-1/ 4” x 10”

rect.

transition

900 elbow

16 Ft. x ( ) = Ft.

7” roundto

3 1/ 4” x 10”

rect.

transition

8 Ft. x ( ) = Ft.

7” roundto

3-1/ 4” x 10”

rect.

transition

900 elbow

23 Ft. x ( ) = Ft.

elbow

7” to 6” or

8” to 7” Round

tapered

reducer

25 Ft. x ( ) = Ft.

3-1/ 4” x 10”

Rect. 900

elbow

15 Ft. x ( ) =Ft.

3-1/ 4” x 10”

Rect. 450

elbow

9 Ft. x ( ) =Ft.

3-1/ 4” x 10”

Rect. 900

ﬂatelbow

24 Ft. x ( ) = Ft.

3-1/ 4” x 10”

Rect.

wall cap

with damper

30 Ft. x ( ) = Ft.

Ft. x ( ) = Ft.

6”, 7“, 8”

Round

in-line

damper

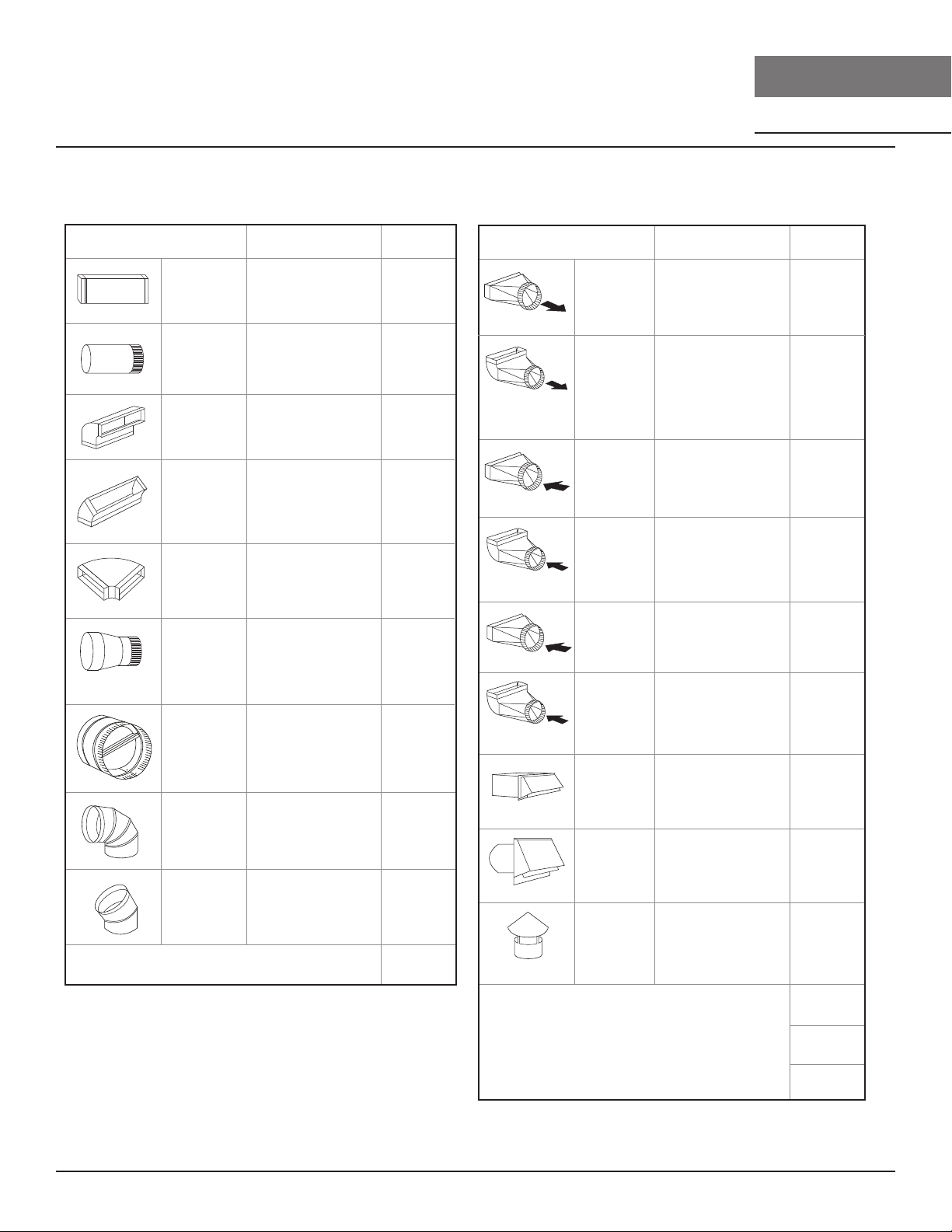

Ducting Calculation Sheet

Vortex Use, Care, and Installation Guide

ZEPHYRONLINE.COM

Installation Instructions

Mounting Height, Clearance, & Ducting

A minimum of 6” round vertical or horizontal duct must be used

to maintain maximum air ﬂow eciency.

Always use rigid type metal ducts only. Flexible ducts could

restrict air ﬂow by up to 50%.

Also use calculation (on page 8) to compute total available duct

run when using elbows, transitions and caps.

ALWAYS, when possible, reduce the number or transitions and

turns. If long duct run is required, increase duct size.

If turns or transitions are required; install as far away from hood

duct output and as far apart, between the two as possible.

Minimum mount height between range top to hood bottom

should be no less than 24” above gas cooktops and 20” above

electric cooktops.

Maximum mount height should be no higher than 36”.

It is important to install the hood at the proper mounting height.

Hoods mounted too low could result in heat damage and ﬁre

hazard; while hoods mounted too high will be hard to reach and

will lose its performance and eciency.

Electric Cooktop: Min 20” - Max 36”

36”

Gas Cooktop: Min 24” - Max 36”

If available, also refer range manufacturer’s height clearance requirements and recommended hood

mounting height above range.

For shipment and installation damages:

ŹPlease fully inspect unit for damage before installation.

ŹIf the unit is damaged in shipment, return the unit to the store in which it was bought for repair or

replacement.

ŹIf the unit is damaged by the customer, repair or replacement is the responsibility of the customer.

ŹIf the unit is damaged by the installer (if other than the customer), repair of replacement must be

made by arrangement between customer and installer.

10 Vortex Use, Care, and Installation Guide

VORTEX

INSERT

CORE

Installation Instructions

Ducting Options

ŹUse single wall rigid metal ductwork only.

ŹFasten all connections with sheet metal screws and tape all joints w/ certiﬁed Silver Tape or Duct

Tape.

Fire Hazard: NEVER exhaust air or terminate ductwork into

spaces between walls, crawl spaces, ceilings, attics, or garages.

All exhaust must be ducted to the outside, unless using the

recirculating option.

WARNING

Sot or crawl space

Roof Pitch w/

Flashing & Cap

Rear ducting

side wall cap

w/ gravity

damper

ductless

recirculating

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Zephyr Cappa di ventilazione

Zephyr

Zephyr Pisa ZPI-E30AG Guida all'installazione

Zephyr

Zephyr Pisa ZPI-E30AG290 Guida all'installazione

Zephyr

Zephyr Venezia ZVE-E30BS Guida all'installazione

Zephyr

Zephyr ZRG-E30AS Guida all'installazione

Zephyr

Zephyr Pyramid ZPY-E30S Guida all'installazione

Zephyr

Zephyr ESSENTIALS Monsoon I AK9228AS290 Guida all'installazione

Zephyr

Zephyr Milano Wall ZMI-M90BS Guida all'installazione

Zephyr

Zephyr Luce ZLU-E30BS Guida all'installazione

Zephyr

Zephyr AK9440AS Guida all'installazione

Zephyr

Zephyr Titan AK7754BS Guida all'installazione

Zephyr

Zephyr ZSL-E42BS Guida all'installazione

Zephyr

Zephyr CACHE CCA-E30ASX Use Guida all'installazione

Zephyr

Zephyr ZMD-M90AS Guida all'installazione

Zephyr

Zephyr Cypress AK7836BS Guida all'installazione

Zephyr

Zephyr Luce ZLU-E30AS Guida all'installazione

Zephyr

Zephyr ACT Siena Pro ZSP-E36CS Guida all'installazione

Zephyr

Zephyr Breeze II Guida all'installazione

Zephyr

Zephyr Roma Island ZRM-E36CS Guida all'installazione

Zephyr

Zephyr LAYERS WALL DLA-E42ASSX Manuale utente

Zephyr

Zephyr Pisa ZPI-E24AG Guida all'installazione

Zephyr

Zephyr Lux ALU-E43CSX Guida all'installazione

Zephyr

Zephyr Okeanito COK-E36CSX Guida all'installazione

Zephyr

Zephyr Typhoon AK2100CS Guida all'installazione

Zephyr

Zephyr Cypress AK7836CS Guida all'installazione

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente

Nibe

Nibe S Series Guida utente
