Zephyr ZTO-M79S Guida all'installazione

2EADALL)NSTRUCTIONSBEFORE)NSTALLINGANDOPERATINGTHISAPPLIANCE

-/$%,:4/-3



)MPORTANT3AFETY.OTICE

5SE#AREAND)NSTALLATION'UIDE

2EADANDSAVETHESEINSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS

FAN WITH ANY SOLID-STATE CONTROL DEVICE.

WARNING

TO REDUCE THE RISK OF FIRE< ELECTRIC SHOCK, OR INJURY TO

PERSONS, OBSERVCE THE FOLLOWING:

a. Use this unit only in the manner intended by the manufacturer, if you have questions,

contact the manufacturer.

b. Before servicing or cleaning unit, switch power off at service panel and lock panel

to prevent power from being switched on accidentally. When the service disconnecting

means cannot be locked, securely fasten a prominent warning device, such as a tag,

to the service panel.

CAUTION

For general ventilating use only. Do not use to exhaust cigarette ashes, hazardous

or explosive materials and vapors.

WARNING

TO REDUCE THE RISK OF RANGE TOP GREASE FIRE:

a. Never leave surface units unattended at high settings. Boilovers cause smoking

and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

b. Always turn hood ON when cooking at high heat or when flambeing food (ie:

Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe)

c. Clean ventilating fans frequently. Grease should not be allowed to accumulate

on fan or filter.

d. Use proper pan size. Always use cookware appropriate for the size of the surface

element.

rev:0505 www.zephyronline.com

)MPORTANT3AFETY.OTICE

2EADANDSAVETHESEINSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS,

OBSERVE THE FOLLOWING:

a. Installation worka nd electrical wiring must be done by qualified person (s) in

accordance with all applicable codes and standards. Including fire-rated construction.

b. Sufficient air is needed for power combustion and exhausting of gases through the

flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating

equipment manufacturer’s guideline and safety standards such as those published

by teh National Fire Protection Association (NFPA) and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code

authorities.

c. When cuttig or drilling into wall or ceiling, do not damage electrical wiring and other

hidden utilities.

d. Ducted fans must always vent to the outdoors.

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

CAUTION

To reduce risk of fire and to proerly exhaust air outside - Do not vent exhaust air into

soaces within walls, ceilings, attics, crawl spaces or garages.

WARNING

TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED WITH AN

ISOLATING WALL CONTROL/SWITCH.

OPERATION

Always leave safety grills and filters in place. WIthout these components, operating

blowers could catch onto hair, fingers and loose clothing.

The manufacturer declines all responsibility in the event of failure to observe the

instructions given here for installation, maintenance and suitable use of the product.

The manufacturer further declines all responsibility for injury due to negligence and

the warranty of the unit automatically expires due to improper maintenance.

*NOTE: Please check www.zephyronline.com for revisions before doing any custom

work.

-/$%,ZTO-M79S

CONTENTS

INSTALLATION

Mount heights & clearance

Ducting

Specifications

Electrical

Mounting the hood

EZ Anchors

Ductless Conversion

Carbon Filters

1,2,3

5,6

8,9

8,10

FEATURES & CONTROLS

Touch controls & features

Advance display functions

Filter change indicator

Filter clean indicator

MAINTENANCE

Cleaning

Lights replacement

WARRANTY

Coverage & exceptions

!MINIMUMOFROUNDORX

RECTANGULARDUCTMUSTBEUSEDTOMAINTAIN

MAXIMUMAIRFLOWEFFICIENCY

!LWAYSUSERIGIDTYPEMETALDUCTSONLY

&LEXIBLEDUCTSCOULDRESTRICTAIRFLOWBYUPTO



!LSOUSECALCULATIONONRIGHTTOCOMPUTE

TOTALAVAILABLEDUCTRUNWHENUSINGELBOWS

TRANSITIONSANDCAPS

!,7 !93WHENPOSSIBLEREDUCETHENUMBER

ORTRANSITIONSANDTURNS)FLONGDUCTRUNIS

REQUIREDINCREASEDUCTSIZEFROMTOOR

)FAREDUCERISUSEDINSTALLALONGREDUCER

INSTEADOFAPANCAKEREDUCER2EDUCEDUCT

SIZEASFARAWAYFROMOPENINGASPOSSIBLE

)FTURNSORTRANSITIONSAREREQUIRED

)NSTALLASFARAWAYFROMOPENINGANDASFAR

APARTBETWEENASPOSSIBLE

).34!,,!4)/. 

-/5.4(%)'(43#,%!2!.#%

$5#4).'

-INIMUM$UCT3IZE

2OUNDMINIMUM

2ECTANGULARXMINIMUMREQUIRESA

TOXADAPTORNOTSUPPLIED

$UCT2UN#ALCULATION

-AXIMUMRUN

ORXDUCT &4

&4

&4

&4

&4

&4

$EDUCT

EACH%LBOWUSED

EACHELBOWUSED

EACHTOX

TRANSITIONUSED

EACHXTO

TRANSITIONUSED

3IDE7ALL#APWDAMPER

2OOF#AP

EGROOFCAPXELBOWSELBOWUSED

ggggUSEDgAVAILABLEFOR

STRAIGHTDUCTRUNS

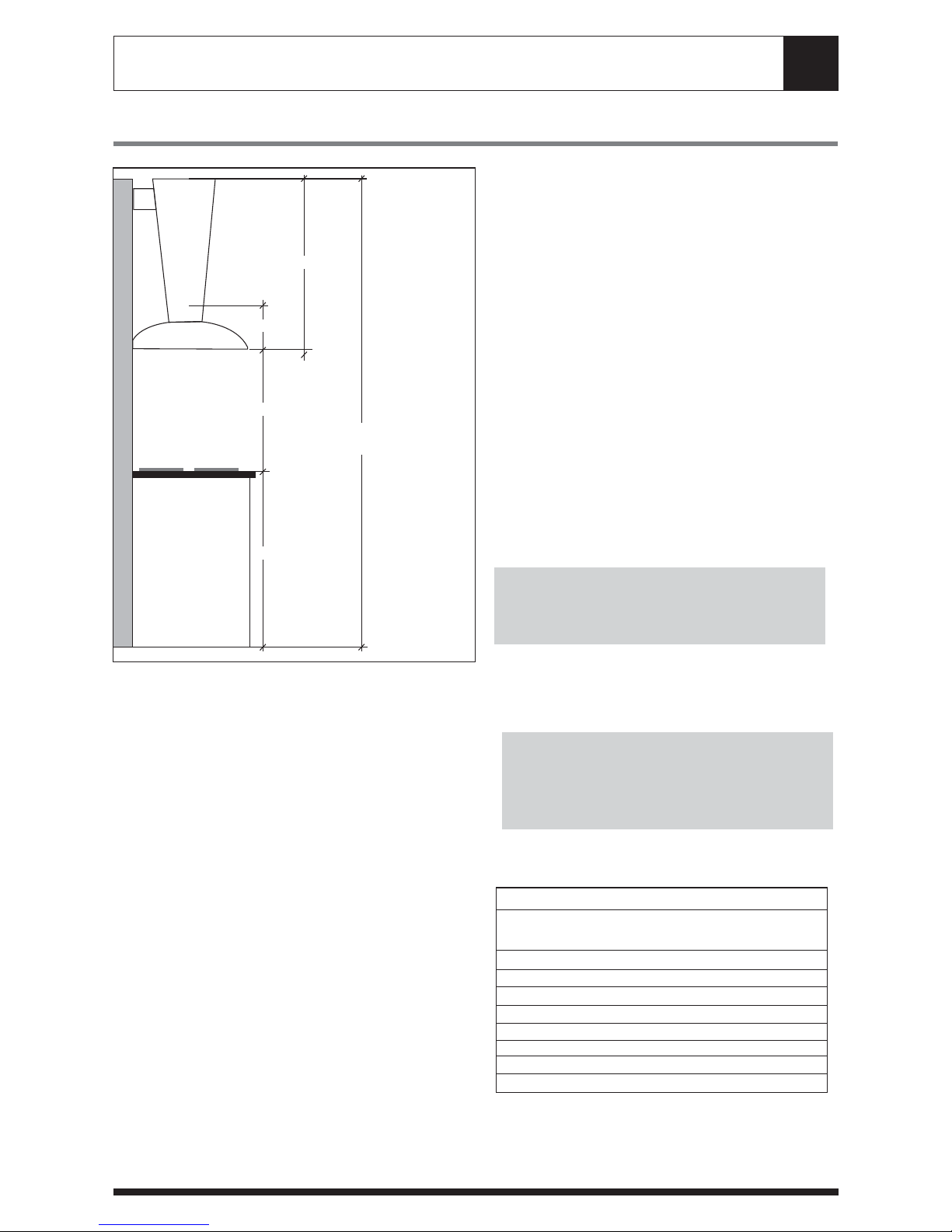

-INIMUMMOUNTHEIGHTBETWEENRANGETOPTO

HOODBOTTOMSHOULDBENOLESSTHAN

-AXIMUMMOUNTHEIGHTSHOULDBENOHIGHER

THAN

)TISIMPORTANTTOINSTALLTHEHOODATTHE

PROPERMOUNTINGHEIGHT(OODSMOUNTEDTOO

LOWCOULDRESULTINHEATDAMAGEANDFIRE

HAZARDWHILEHOODSMOUNTEDTOOHIGHWILL

BEHARDTOREACHANDWILLLOOSEITS

PERFORMANCEANDEFFICIENCY

)FAVAILABLEALSOREFERRANGEMANUFACTURERgS

HEIGHTCLEARANCEREQUIREMENTSAND

RECOMMENDEDHOODMOUNTINGHEIGHTABOVE

RANGE

-INIMUMCEILINGCLEARANCEATHOOD

MOUNTINGHEIGHT

-AXIMUMCEILINGCLEARANCEATHOOD

MOUNTINGHEIGHT

h









INSTALLATION

DUCTING

NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling,

attics or garages. All exhaust must be ducted to the outside.

Use Metal ductwork only.

Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or

Duct Tape.

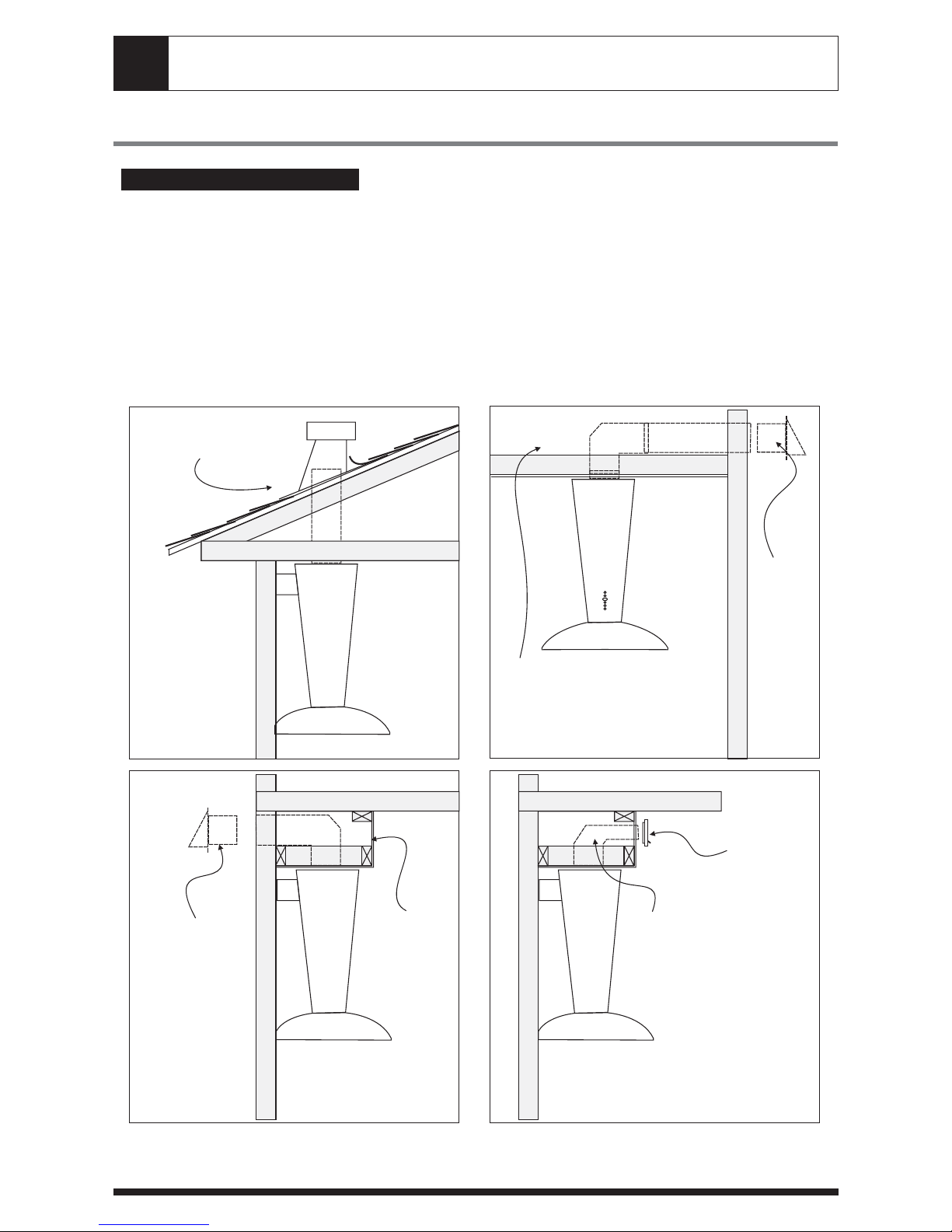

Some Ducting Options:

WARNING: FIRE HAZARD

side wall cap

w/ gravity damper

Soffit or crawl space

Roof Pitch w/

Flashing & Cap

side wall cap

w/ gravity damper

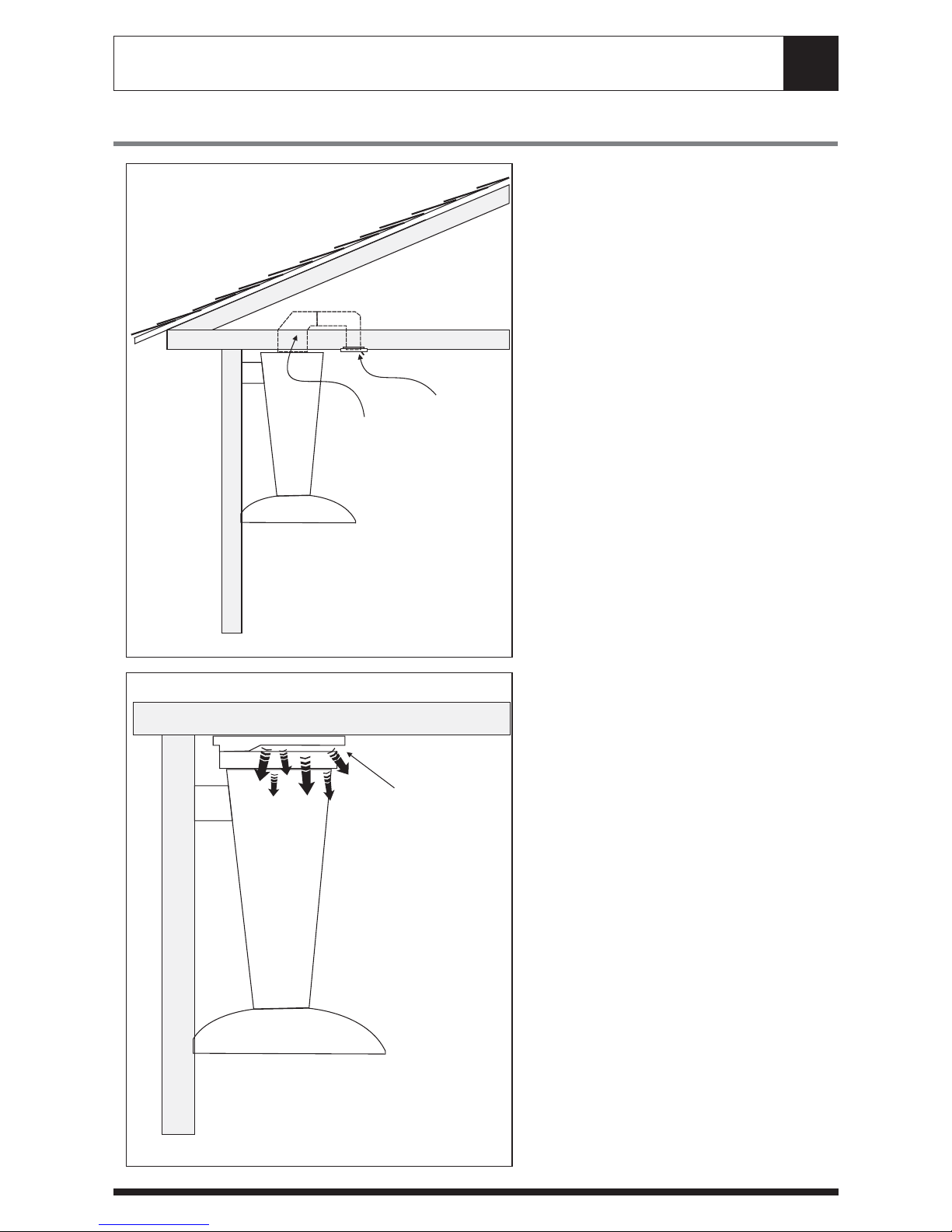

Soffit 6" to 3-1/4 x 10" elbow

adaptor.

Air register

Ductless Re-circulating option

INSTALLATION

DUCTING

6" to 3-1/4 x 10" elbow

adaptor.

Air Diverting Kit

Air register

Ductless Re-circulating option

Crawl space

INSTALLATION

SPECIFICATIONS

ELECTRICAL

Cable Lock

WARNING:

All Electrical work must by performed by qualified electrician or person with similar

technical know how and background.

For personal safety, remove house fuse or open circuit breaker before beginning installation.

Do not use extension cord or adapter plug with this appliance. Follow National electrical

codes or prevailing local codes and ordinances.

Electrical Supply:

This appliance requires a 120V 60Hz electrical supply., and connected to an individual,

properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay

fuse. Wiring must be 2 wire w/ ground. Please also refer Electrical Diagram labeled on

product.

Cable Lock:

A cable locking connector (not

supplied) might also required by

local codes. Check with local

requirements and codes, purchase

and install appropriate connector if

necessary.

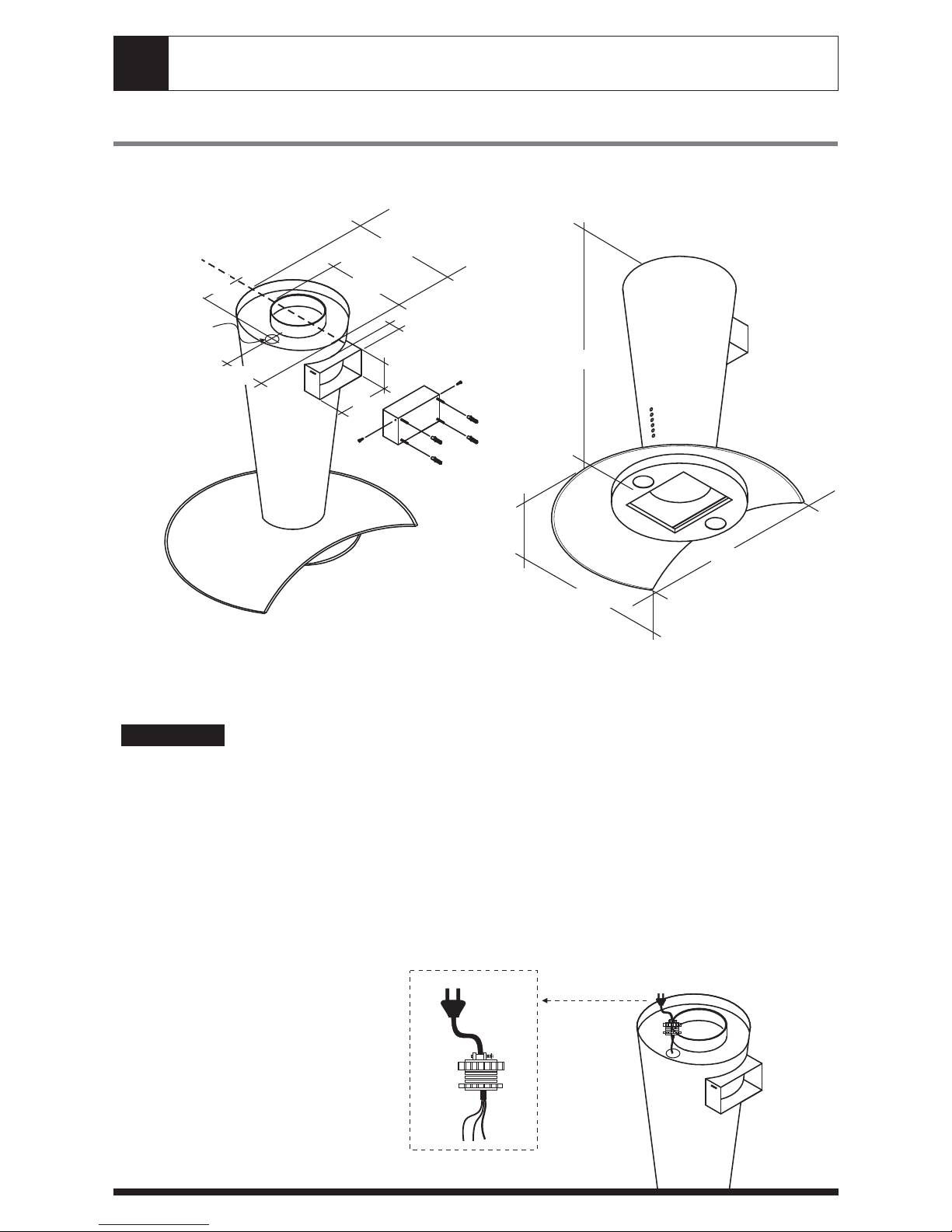

13-3/4"

C/L

8-1/2"3-5/8"

7-3/4"

33.89"

23.11"

31.1"

3/4" Elec. K.O.

Wall mount bracket

Mounting the Range Hood

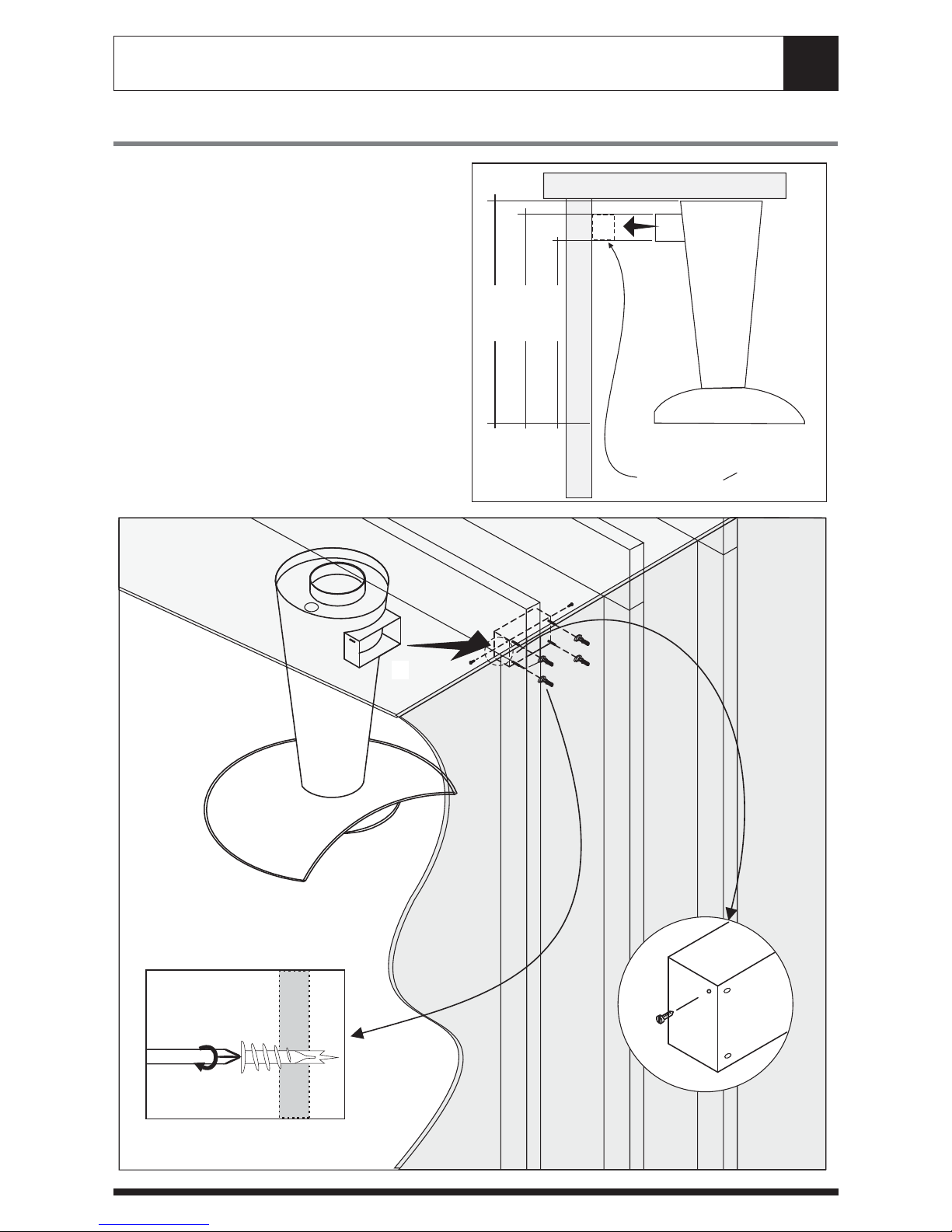

1. Mark hood center on Center hood on wall.

2. Mark and Install Wall Mount Bracket to

Wall. (For hollow drywall, use E-Z

Anchors, please see next page)

3. Fasten hood onto Wall Mount Bracket

with screws provided.

INSTALLATION

33-7/8"

31-7/8"

27-7/8"

Wall Mount Bracket

EZ ANCHORS (See next page)

INSTALLATION

EZ ANCHORS

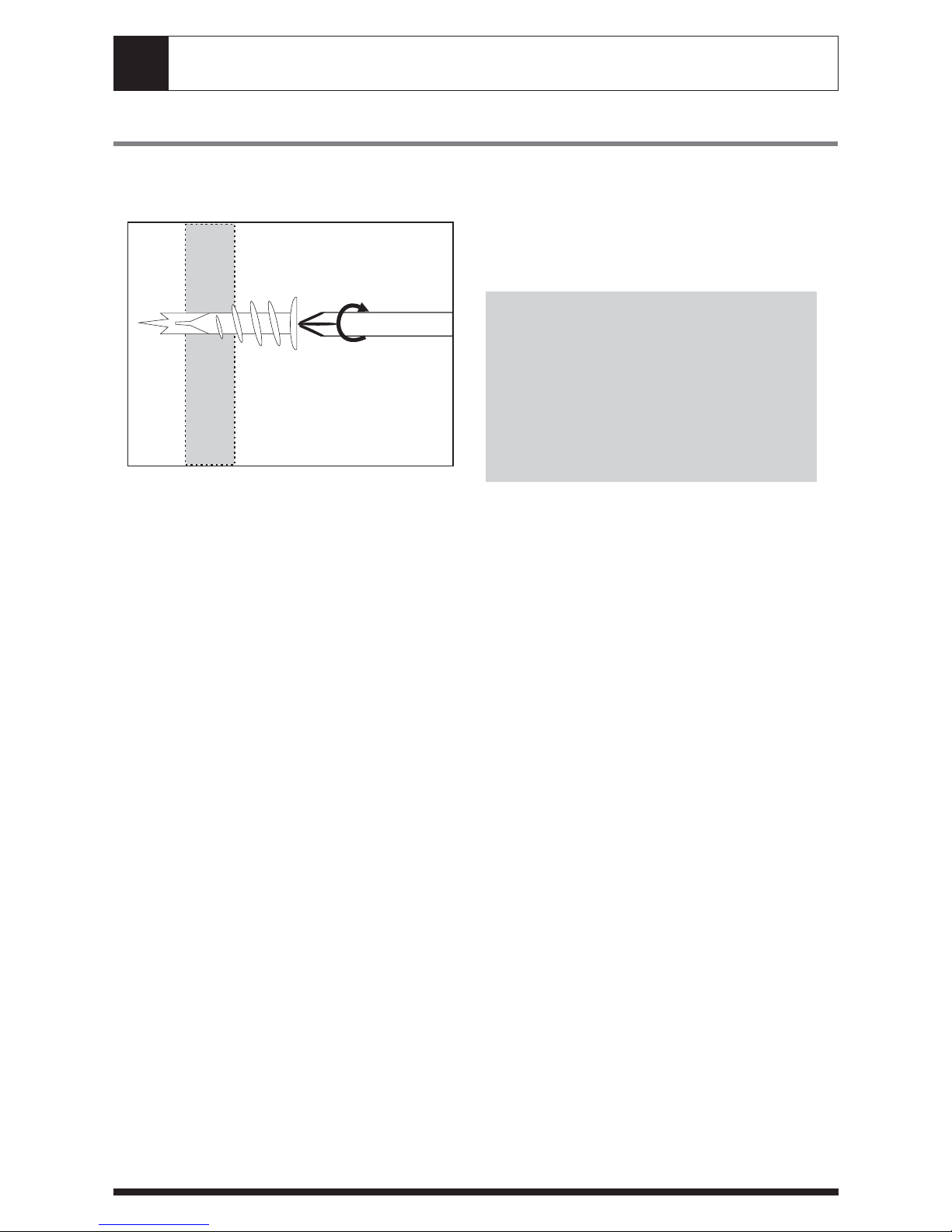

Tap EZ anchor tip into marked drywall

locations, turn with screwdriver until seated

flush.

Note: Whenever possible, the hood should

be secured to wall studs.

Use EZ anchors provided only on hollow

drywall applications (minimum drywall

thickness ½”). If a stud or wood surface is

present, fasten anchors with screws directly

into stud or plywood. For all other wall

types (concrete, brick, tiles etc.), use

appropriate anchors for mounting.

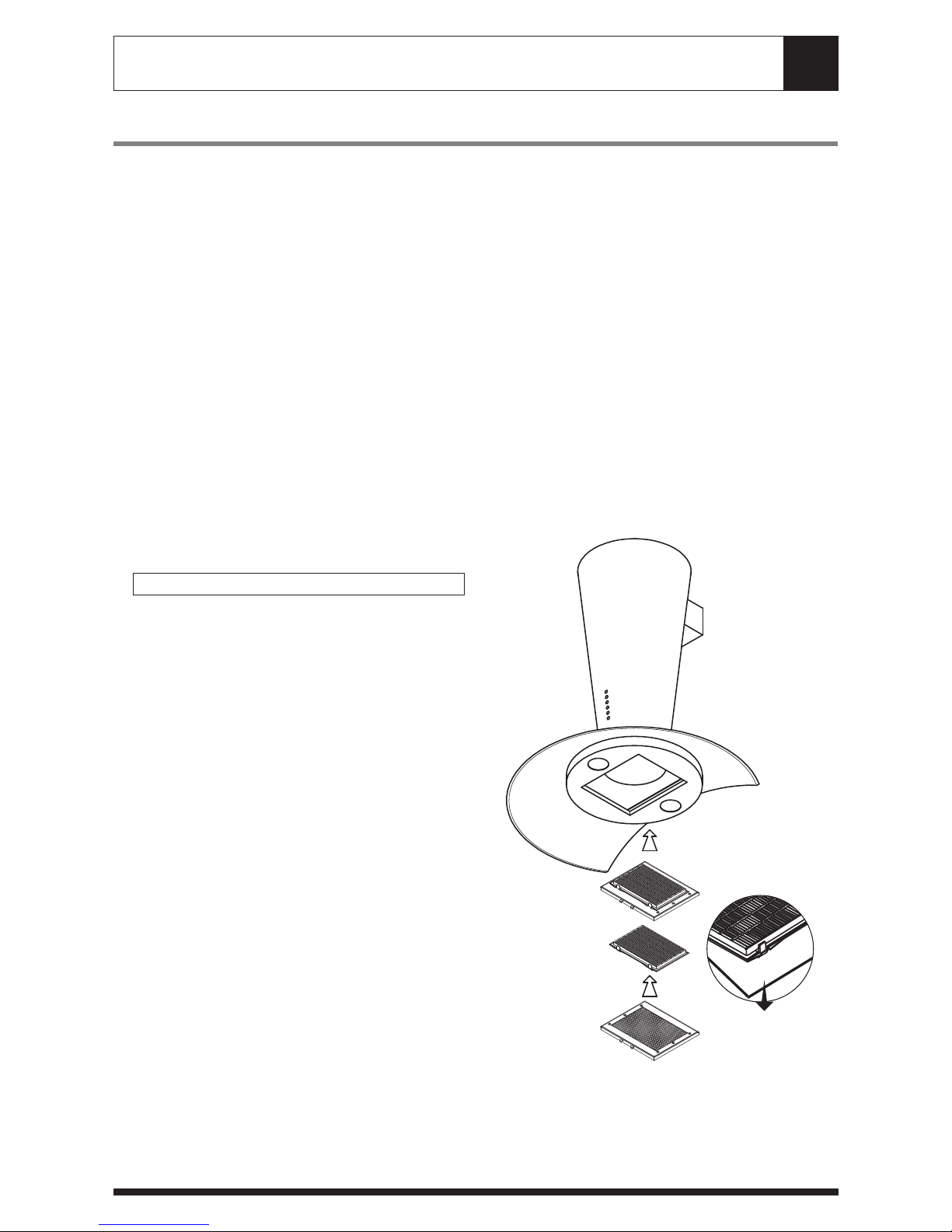

#ARBON&ILTERS2EQUIRED

 0URCHASEDUCTLESS#HARCOAL&ILTERSAS

FOLLOW

 2EMOVEMETALFILTERSONHOOD#LIP

CARBONFILTERSONTOEACHSLOTOPENING

 2EINSTALLMETALFILTERS

 4URNON&ILTER#HANGE)NDICATORON

CONTROLPANELREFERDETAILSPG

 #ARBON&ILTERSMUSTBEREPLACEAFTEREVERY

HOURSOFUSEORAPPROXIMATELYEVERY

TOMONTHSBASEDONTHEAVERAGEOF

HRSOFDAILYCOOKINGTIME4HE

MICROPROCESSORINTHECONTROLSWHENSET

WILLELAPSEDANDCOUNTUSAGETIMEAND

INDICATEWHENCARBONFILTERREPLACEMENTIS

REQUIREDEVERYHRS

$UCTING

 2EFER0AGEFORDUCTLESSRECIRCULATING

OPTIONS

).34 !,,! 4)/.

$5#4,%33#/.6%23)/.

$UCTLESSCONVERSIONISINTENDEDFORAPPLICATIONSWHEREANEXHAUSTDUCTWORKISNOTPOSSIBLETOBE

INSTALLED7HENCONVERTEDTHEHOODFUNCTIONSASAPURIFYINGHOODRATHERTHANANEXHAUSTHOOD

&UMESANDEXHAUSTFROMCOOKINGISDRAWNANDFILTEREDBYASETOFOPTIONAL#ARBON&ILTERS4HEAIR

ISTHENPURIFIEDANDRECIRCULATEDBACKWITHINTHEHOME

7ERECOMMENDTO!,7!93EXHAUSTAIROUTSIDEOFTHEHOMEBYEMPLOYINGEXISTINGORINSTALLING

NEWDUCTWORKIFPOSSIBLE4HEHOODISMOSTEFFECTIVEANDEFFICIENTASAN%XHAUSTUNIT/NLYWHEN

THEEXHAUSTOPTIONISNOTPOSSIBLESHOULDYOURECOURSETOCONVERTINGTHEHOODINTOAPURIFYING

UNIT

7HENCONVERTEDTOBEAPURIFYINGUNITASETOF#ARBON&ILTERSAREREQUIREDONTOPOFITSSTANDARD

-ETAL&ILTERSET/RDERACCORDINGTOITS0ARTNUMBERBELOW4HESTANDARD-ETAL&ILTERSAREINTENDED

TOCAPTURERESIDUEFROMCOOKINGANDTHEOPTIONAL#ARBON&ILTERSHELPTOPURIFYFUMESEXHAUSTED

FROMCOOKINGFORRECIRCULATION

(OOD-ODEL

:4/-3

0ART.O

:&#

&ILTERSINPKG





Indice

Altri manuali Zephyr Cappa di ventilazione

Zephyr

Zephyr Bogart EBO-E42ASX Guida all'installazione

Zephyr

Zephyr AK6500 series Use Guida all'installazione

Zephyr

Zephyr ZRC-00AL Manuale del proprietario

Zephyr

Zephyr ACT Siena ZSI-E30BS-ES Guida all'installazione

Zephyr

Zephyr ALL-E42ABX Manuale utente

Zephyr

Zephyr ZMI-M90G Guida all'installazione

Zephyr

Zephyr Monsoon Mini II Guida all'installazione

Zephyr

Zephyr AK6536 Guida all'installazione

Zephyr

Zephyr Monsoon II AK9340AS Guida all'installazione

Zephyr

Zephyr ZPY-E30AB Guida all'installazione

Zephyr

Zephyr Monsoon DCBL AK9428AS Guida all'installazione

Zephyr

Zephyr ZML-M90BG Guida all'installazione

Zephyr

Zephyr ACT Siena Pro ZSP-E36CS Guida all'installazione

Zephyr

Zephyr ESSENTIALS Monsoon I AK9228AS290 Guida all'installazione

Zephyr

Zephyr ZTR-M90S Guida all'installazione

Zephyr

Zephyr Ravenna ZRV-E30AGC Guida all'installazione

Zephyr

Zephyr SAVONA ZSA-M90AS Guida all'installazione

Zephyr

Zephyr Willow AK8800AG Manuale tecnico

Zephyr

Zephyr ZPY-E36AB Guida all'installazione

Zephyr

Zephyr ZML-M90S/G Guida all'installazione

Zephyr

Zephyr Verona ZVO-M90AG Guida all'installazione

Zephyr

Zephyr Tempest II AK7500ASX Guida all'installazione

Zephyr

Zephyr Range Hood APN-M90AWX Manuale utente

Zephyr

Zephyr Okeanito COK-E36SX Guida all'installazione

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente

Nibe

Nibe S Series Guida utente
