ZK Technology MA300 Manuale utente

MA300 User Manual

Version: 1.1

User Manual V1.1

About This Document:

This document introduces the operations of the access control device. For

the product installation, see related installation guide. For the software

operation, see the software user manual.

Notational Conventions:

This document includes such notational conventions as tips, important

notices and precautions. The notations contained in this manual include:

: Indicates important information, including precautions, which must be

read carefully to achieve the optimal equipment performance.

: Indicates the voice prompt generated by the device. In the event of

discrepancy between the voice prompts in this document and those

generated by the actual products, the latter shall prevail.

Table of Contents
I
Table of Contents
Instruction for Use ..................................................................... 1
1 Finger Placement................................................................. 1
2 Instruction for Card Swipe ................................................... 2
3 Precautions.......................................................................... 2
Introduction of Device................................................................ 3
1 Overview of Device Functions............................................. 3
2 Product Appearance ............................................................ 4
3 Use of an External USB Keyboard...................................... 6
4 Verification State .................................................................. 7
5 Management Card............................................................... 7
6 System Password................................................................ 8
7 Operation Timeout ............................................................... 9
Device Operations................................................................... 10
1 Management Card............................................................. 10
1.1 Enroll a Management Card..............................................10
1.2 Enroll an Ordinary User....................................................11
1.3 Delete a Single User.........................................................17
2 USB Keyboard Operations ................................................ 20
2.1 Set Keyboard Password ..................................................20
2.2 Enroll a User Through Keyboard ....................................21
2.3 Delete a Specified User....................................................25
2.4 Delete All Users.................................................................27
2.5 Restore Factory Defaults .................................................27
3 Access Control Function.................................................... 28
4 User Verification................................................................. 30

User Manual V1.1

3.5 U-disk................................................................................. 33

3.6 Tamper Switch ................................................................... 35

4. Appendix.................................................................................. 36

4.1 List of Parameters.............................................................. 36

4.2 Anti-Pass Back ★............................................................. 37

4.3 Statement on Human Rights and Privacy.......................... 40

4.4 Environment-Friendly Use Description.............................. 42

MA300 User Manual ZkTechnologyEU

1. Instruction for Use

1.1 Finger Placement

Recommended fingers: The index finger, middle finger or the ring finger; the

thumb and little finger are not recommended (because they are usually

clumsy on the fingerprint collection screen).

1. Proper finger placement:

2. Improper finger placement:

Slanting

Off-center

Not flat to the surface

Off-center

The finger is flat to the surface

and centered in fingered guide.

Please enroll and verify your fingerprint by using the proper finger

placement mode. We shall not be held accountable for any

consequences arising out of the degradation in verification

performance due to improper user operations. We shall reserve the

right of final interpretation and revision of this document.

User Manual V1.1

1.2 Instruction for Card Swipe

Integrated with a non-contact RF card reader module, this device supports

the ID cards and MIFARE cards (optional and only used as ID cards). By

offering multiple verification modes such as fingerprint, RF card and

fingerprint + RF card verification, this device can accommodate to diversified

user needs.

Swipe your card across the sensor area after the voice prompt and remove

your card after the device has sensed it. For the swipe area, see 2.2 Product

Appearance.

1.3 Precautions

Protect the device from exposure to direct sunlight or strong beam as strong

beam greatly affects the fingerprint collection and leads to fingerprint

verification failure.

It is recommended to use the device under a temperature of 0–50°C so as to

achieve the optimal performance. In the event of exposure of the device to

the outdoors for long periods of time, it is recommended to adopt sunshade

and heat dissipation facilities because excessively high or low temperature

may slow down the device operation and result in high false rejection rate

(FRR) and false acceptance rate (FAR).

When installing the device, please connect the power cable after connecting

other cables. If the device does not operate properly, be sure to shut down

the power supply before performing necessary inspection. Note that any

live-line working may cause damage to the device and the device damage

arising out of live-line working falls beyond the scope of our normal warranty.

For matters that are not covered in this document, please refer to related

materials including the installation guide, access control software user

manual.

MA300 User Manual ZkTechnologyEU

2. Introduction of Device

2.1 Overview of Device Functions

As an integrated fingerprint & access control device, our product can be

connected with either an electronic lock or an access controller. This device

features simple and flexible operations and supports the use of management

cards. With a management card, you can perform such functions as offline

enrollment, deletion and U-disk management. The voice prompts will guide

you through all the operations without screen display. This device allows you

to connect an external keyboard and offers multiple operation modes. It

supports access control function for a security management. It is supports

multiple communication modes. The U-disk features simple and convenient

operations. The waterproof design and metal case of the device allow it to

withstand a heavy impact without damage.

Featuring a compact and simple design, this device allows users to connect

several devices through a PC and perform real-time monitoring.

User Manual V1.1

LED Indicator

Swipe Card Area

FP Sensor

2.2 Product Appearance

Front view:

LED indicator: The LED indicator is used to display device operation

results and exceptional statuses which are defined as follows:

Common rules: If an operation succeeds, the green indicator is solid on for

one second; otherwise, the red indicator is solid on for one second.

Enrollment state: The green LED blinks three times every other three

second.

Single user deletion: The red LED blinks three times every other three

second.

Verification state: The green LED blinks once every other two second.

Card Swipe area: Refers to the area in the red dashed-line box as

shown in the figure above.

Fingerprint sensor: Used to collect and match fingerprints and delete

users.

MA300 User Manual ZKTechnology EU

Wiring terminals

TCP/IP Interface

Tamper Switch

DIP Switch

USB Interface

Reset Button

Speaker

Bottom view:

USB interface: Used to connect with a U-disk or a keyboard.

Reset button: Used to restart the device.

Speaker: Used to play the BEEP sound and voice prompts. If a user

passes the verification, the speaker beeps once; if the user fails to pass the

verification, the speaker beeps twice. The default prompts during operation:

beep + voice prompts.

Rear view:

Wiring Terminal: Connects with locks and power supply through

cables.

TCP/IP Interface: The TCP/IP interface connects with a PC through a

network cable (for detailed connection, see the installation guide).

User Manual V1.1

Shift Key

Operational Notation

Backspace

Enter key

Number keys 0-9

Tamper Switch: Used to generate a tamper alarm. For details, see 3.6

Tamper Switch.

DIP Switch: The DIP switch has four pins numbered 1, 2, 3 and 4. In

the RS485 communication mode, the first 1, 2 and 3 pins are used to set

hardware device number and the fourth pin is used to select the status of

terminal resistance. For detailed settings, see the installation guide.

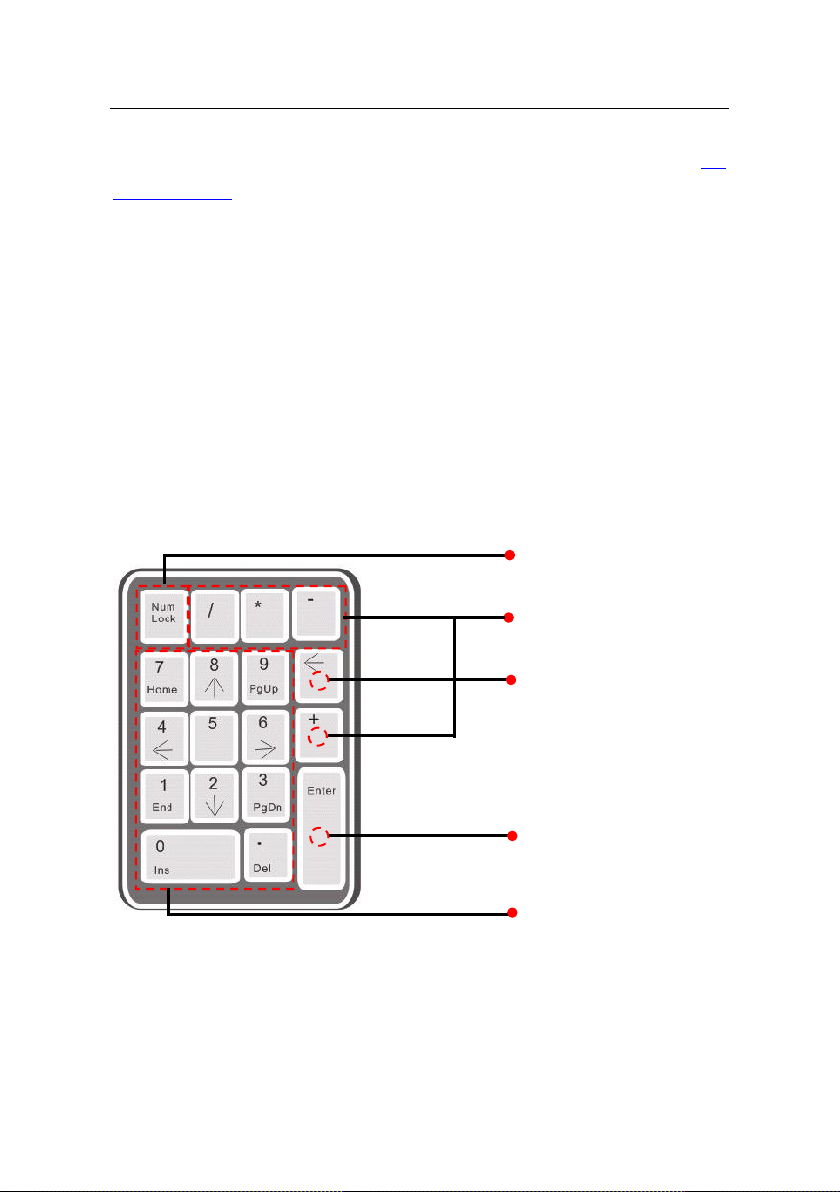

2.3 Use of an External USB Keyboard

To facilitate device operations, you can connect the device with an external

USB keyboard (purchased by users) and conveniently perform such

operations as user enrollment, deletion and restoring factory defaults,

especially when specifying user IDs during user enrollment and deletion

An external USB keyboard is shown above (please refer to the actual

product):

NumLock is a numeric keypad toggle key. It is activated by default. If it is

Indice
