ZKTeco FaceDepot-7BL Manuale utente

Quick Start Guide

FaceDepot-7BL

Version: 1.2

Date: May 2020

Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the

actual product and the written information in this manual.

Power

GN D

+12V

Overview

Flash

Camera &

Palm Collector

7" Touch Screen

Microphone

Fingerprint Sensor

Card Reading Area

Magnetic

Tamper Switch

Speaker

FP & RFID Reader (Optional)

Connection

Interface

Lock

AUX

Alarm

Exit

Button

Sensor

AL+

AL-

COM

BU T

GN D

SEN

GN D

Auxiliary

input

Wiegand

Out

+12V

GN D

INWD0

INWD1

WD0

WD1

RS232

RS485

12V

485A

GN D

TXD1

RXD1

GN D

TXD2

RXD2

RS232

485B

Connection Interface

Reset Button

USB Port

Network Interface

Device Installation

1.5m

123

①

② Attach the device to the backplate.

③ Fasten the device to the backplate with a security screw.

Method 1: Installation on the wall

Please pass the wire through the bracket before installation.

1. Drill a hole on the barrier gate.

2. Insert the bracket to the hole and fix it with a nut.

3. Adjust the angle of the device.

Method 2: Installation on the barrier gate

Adjust the device

1. Adjust the angle of the device.

2. Fix the screws.

Note: If you want to install FP & RFID readers, please install the readers after step ①.

Attach the mounting template sticker to the wall and drill holes according to the

mounting paper. Fix the backplate on the wall using the wall mounting screws.

TCP/IP

Alarm Smoke

Detector

Lock

Exit Button

Door Sensor

Card

Reader

ZKBioSecurity

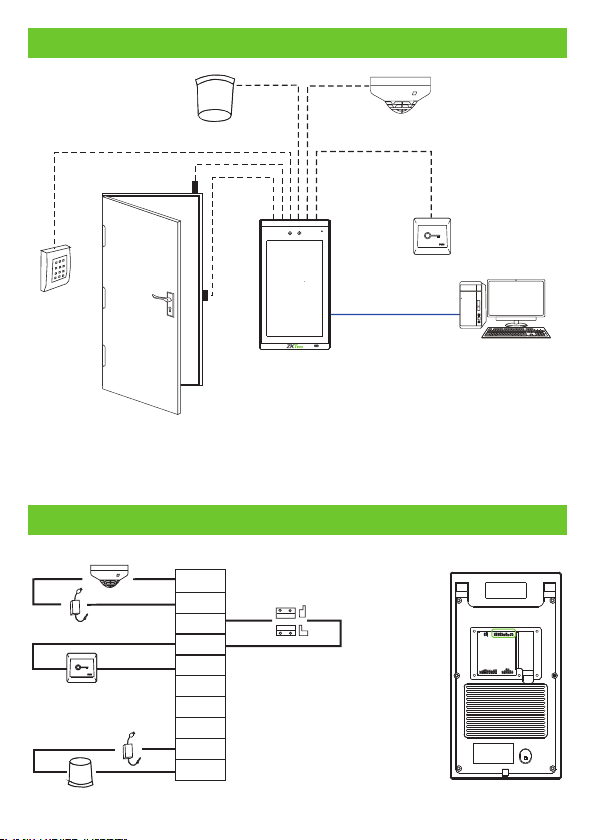

Standalone Installation

AUX

AL+

AL-

COM

BUT

GND

SEN

GND

Door Sensor, Exit Button & Alarm Connection

Door Sensor

Alarm

Alarm's Power Switch

ExitButton

Smoke Detector

Note: Here, we guide you to connect only the necessary components. If you want

more details regarding the connection of SRB, external fingerprint reader and so on,

please refer the User Manual.

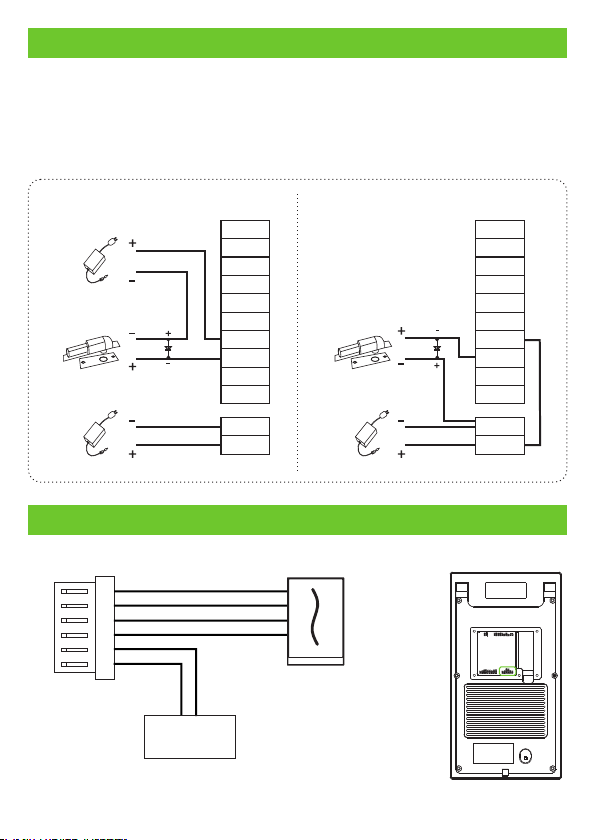

Lock Relay Connection

Wiegand Reader Connection

The system supports Normally Opened Lock and Normally Closed Lock.

FR107

AUX

GND

SEN

GND

BUT

COM

AL-

AL+

The NO LOCK (normally opened at power on) is connected with 'NO' and 'COM'

terminals; and the NC LOCK (normally closed at power on) is connected with

'NC'and 'COM' terminals. Take NC Lock as an example, as shown below:

Normally Closed Lock

1) Device is not sharing power with the lock

WD0

WD1

+12V

GND

Wiegand Reader

+12V

IW D1

IW D0

GN D

WD0

WD1

Access Controller

GND

+12V

DC12V

2) Device is sharing power with the lock

FR107

AUX

GND

SEN

GND

BUT

COM

AL-

AL+

GND

+12V

DC12V

Normally Closed Lock

Barrier Connection

Ethernet Connection

Default IP Address: 192.168.1.201

Subnet mask: 255.255.255.0

Click [COMM.] > [Ethernet] > [IP Address], enter the IP address and click [OK].

IP Address: 192.168.1.130

Subnet mask: 255.255.255.0

6RJ 45

Barrier Gate

ZKBioSecurity

AUX

GND

SEN

GND

BUT

COM

AL-

AL+

GND

Note: In LAN, the IP addresses of the server (PC) and the device must be in the same

network segment when connecting to the ZKBioSecurity software.

User Registration

GND

12V DC

Recommended power supply

1) 12V ± 10%, at least 3000mA.

2) To share the power with other devices, use a power

supply with higher current ratings.

Power Connection

Method 1: User registration on the device

Click     > [User Mgt.] > [New User] to register a new user. The user parameters

include User ID, Name, User role, Palm, Fingerprint (optional), Face, Password, Badge

(optional), User Photo, and Access Control Role.

When the Super Administrator is not configured in the device, click to open the

menu.

After setting the Super Administrator, the system will request for the administrator’s

verification before entering the menu. For security purpose, it is recommended to

Method 2: User registration on ZKBioSecurity software

Please set the IP address and cloud service server address on the device.

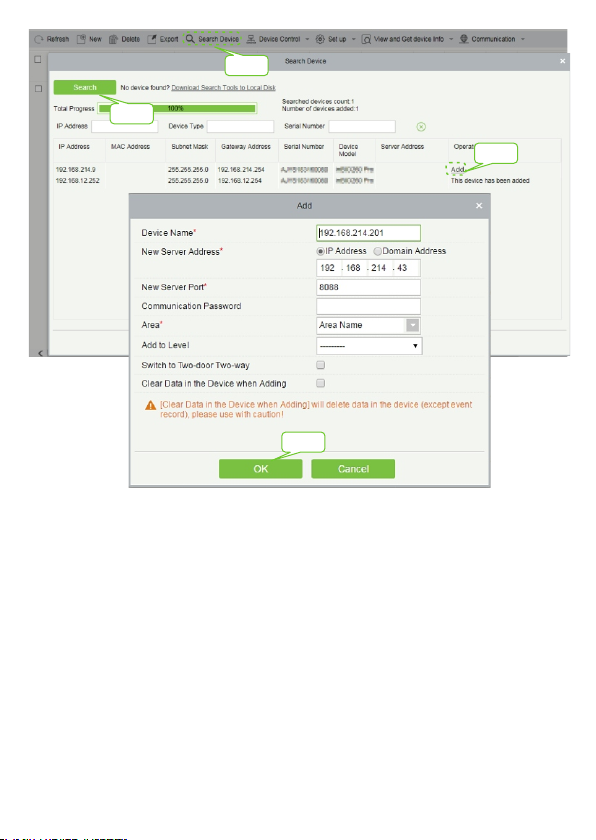

1. Click [Access] > [Access Device] > [Device] > [Search Device] to add the device

to the software. When the server address and port has been set on the device, it can

be added automatically.

Enroll Palm

NewUser

User ID 3

Name

Password

User Role Normal User

Palm 0

Fingerprint 0

Face 0

Access Control Role

Badge

User Photo 0

2. Click [Personnel] > [Person] > [New] to register a new user in the software.

3. Set the user access levels.

4. Click [Access] > [Device] > [Device Control] > [Synchronize All Data to Devices].

For more details, please refer the ZKBioSecurity User Manual.

Step1

Step2

Step3

Step4

Method 3: User registration on a mobile phone

Once the ZKBioSecurity software is installed, users could enroll via a browser on their

mobile phone.

1. Click [Personnel] > [Parameters], enter ‘’http: //Server address: Port’’ in the QR

Code UGL bar. The software will automatically generate a QR code. Scan the QR

code or log in to ‘’http: //Server address: Port/app/v1/adreg’’ from your mobile

phone to register users.

2. Click [Personnel] > [Temporary Personnel] > [Review] to view the user details.

Click> [COMM.] > [Ethernet] to set the network parameters. If the TCP/IP

communication of the device is successful, the icon will be displayed in the

top right corner of the standby interface.

Ethernet and Cloud Server Settings

Click > [COMM.] > [Cloud Server Setting] to set the server address and server

port, that is, the IP address and port number of the server after the software is

installed. If the device communicates with the server successfully, the icon will

be displayed in the top right corner of the standby interface.
