ZKTeco FaceKiosk-H10A Manuale utente

Quick Start Guide

FaceKiosk-H10A

Version: 1.0

Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the

actual product and the written information in this manual.

1. Components

Bottom

Front

Rear Side

193.87mm

241.87mm

26.8mm

28mm

182mm

30mm

16mm 78mm

Φ5mm

Speaker

10.1-inch Touch Screen

Status Indicator

Binocular Camera

Card Reading Area

BUT SEN GND COM NO NC Ethernet

Port

Power In

Lock

Door Sensor

Exit Button

Status LED Description:

Green-The meeting room is available.

Red-The meeting room is occupied.

USB

Status Indicator

Microphone

2. Installation Procedure

Preparation before Installation

Prepare the necessary tools.

Network Cable Marker Pen Small Cross

Screwdriver

6mm Expansion

Rubber Plugs

and Screws

Knife Large Cross

Screwdriver

Tape Measure 6mm Impact

Drill

Power Strip Level Ruler

Unpacking and Device Testing: Take out the power adapter, power cable and device from

the packing from the box one at a time. Connect the power cable to the device and turn it

on; check the device appearance for scratches and other defects.

Turn on the device and make sure that the touch and other functions work properly.

Knock on the wall to see whether the load-bearing wall is stable.

Installation

Choose the Installation Location: Use a measuring tape to measure the installation

height of the device (it is recommended that the bottom of the device be 1.4m above the

ground), and use a marker to mark the installation position of the device.

1.4m

l No reserved wiring hole position:

Mark the installation position of the rear hanging plate and the outlet position of the

network cable and power cable in parallel using a level ruler (the distance between the

device edge and the rear hanging plate ﬁxing hole, the green mark in the ﬁgure is the rear

hanging plate ﬁxing hole and the outlet position of the network cable and power cable,

unit: mm).

8236

Drill holes at the wall marking point using a 6mm impact drill, then dig a hole between the

four hole positions (for network cable and power cable routing).

Insert 6mm expansion rubber plugs into the mounting holes.

Align the rear hanging plate with the wall and the installation holes and attach the rear

hanging plate with four tapping screws.

Pull the network cable and power cable out of the rear hanging board from the cable

outlet and connect them into the device. Then align the device to the wall hanging holes

with the hooks on the rear hanging plate and hang it on the rear hanging plate.

After aligning the bottom hook screw, insert and tighten the hook screw. Then connect the

power cable into the power strip and turn on the device.

l Reserved wiring hole position:

Align the outlet hole of the rear hanging plate with the reserved outlet hole of the wall, use

the level ruler to make sure that the rear hanging plate parallel to the ground, and use a

marker to mark the position of the ﬁxing holes of the rear hanging plate on the wall.

For the rest of the installation steps, refer to Step 3 to 7 in the “No reserved wiring hole

position“ section.

3. Door Sensor, Exit Button and Lock Connection

Door Sensor

ExitButton

FR107

ElectricLock

Power

BUT SEN GND COM NO NC

4. Home Screen

The device has two theme styles for the home page. It can be set in [Meeting Management] >

[Meeting Theme]. The default is technology style.

Technology Style

Business Style

Click the or button in the upper right corner to access the main menu.

Note: If the Super Administrator is not registered for the device, then tap to access the main menu.

If the device has a Super Administrator, then his/her veriﬁcation is required to access the main

menu. For security purposes, it is advisable to register the Administrator while using the device for

the ﬁrst time.

LAN Connection

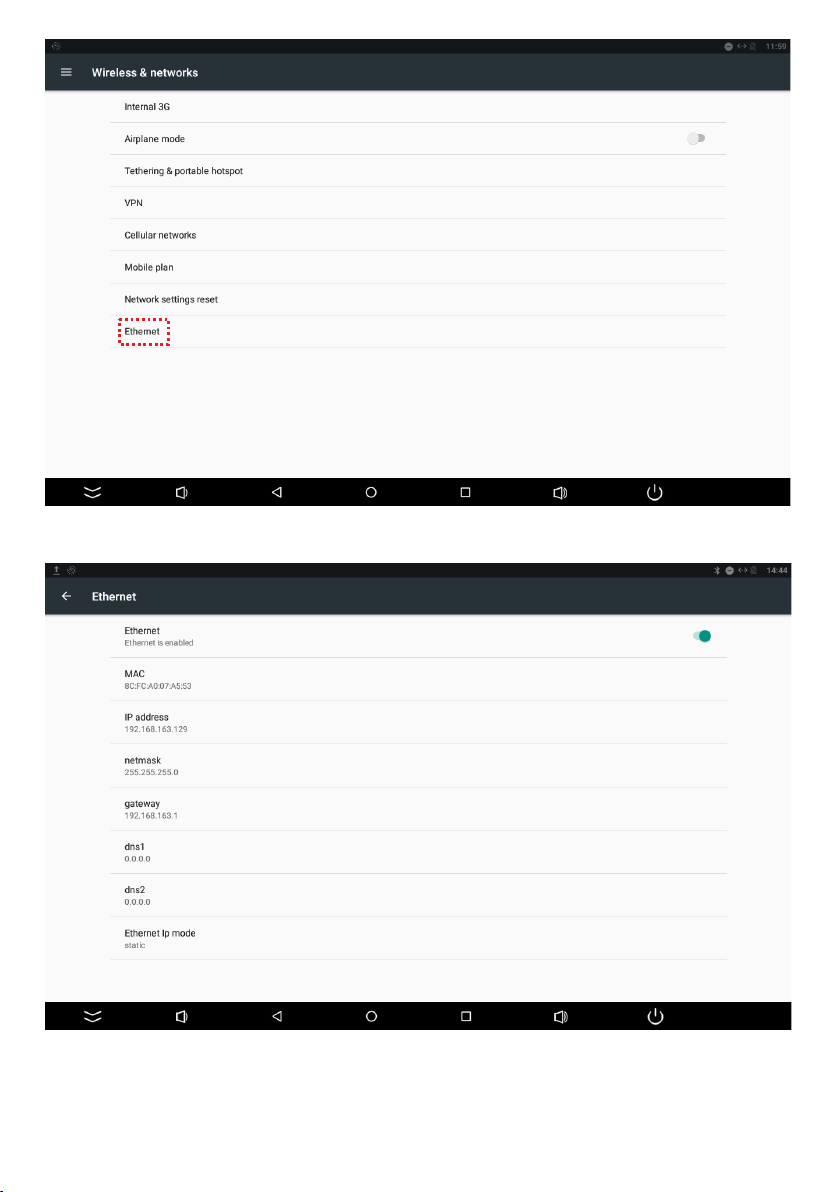

Connect the network cable. On the main menu, tap on [Communication Setting] > [Ethernet

Setting] > [Ethernet] to set the network parameters.

5. Ethernet and Wi-Fi Connection
