Zopu SL122 Manuale utente

Digital Trail Camera

SL122

USER MANUAL

V2.0

TABLE OF CONTENT

1. IMPORTANT NOTE...................................................1

2. INTRODUCTION........................................................1

2.1. ABOUT THE CAMERA................................... 1

2.2. APPLICATIONS...............................................3

3. PARTS AND CONTROLS......................................... 3

4. INSTALLING THE BATTERIES AND SD CARD.. 6

4.1. LOADING BATTERIES................................... 6

4.2. INSERTING THE SD CARD............................7

5. USING THE CAMERA...............................................8

6. THE OFF, ON, AND SET MODES............................9

6.1. OFF MODE..................................................... 9

6.2. ON MODE........................................................9

6.3. SET MODE.................................................... 10

6.4. PLAYBACK ON THE CAMERA SCREEN.... 10

7. ADVANCED SETTINGS......................................... 12

8. MOUNTING AND POSITIONING THE CAMERA16

8.1.MOUNTING....................................................16

8.2. SENSING ANGLE AND DISTANCE TEST... 17

8.3. SWITCHING ON THE CAMERA.................. 18

9. REVIEW PHOTOS OR VIDEOS............................. 18

10. TROUBLESHOOTING / FAQ................................19

11. TECHNICAL SPECIFICATIONS.......................... 24

12. WARRANTY...........................................................26

13. FCC COMPLIANCE STATEMENT...................... 27

1. IMPORTANT NOTE

Congratulations on your purchase of one of the best trail cameras

on the market! We appreciate your business and want to earn your

trust. Please refer to the notes below and the instructions in this

manual to ensure that you are completely satisfied with this

product.

If your camera does not seem to be functioning properly or if

you are having photo/video quality issues, please check the

Troubleshooting/FAQ section.

Problems are often due to something simple that was overlooked,

or require only changing one setting to solve.

We recommend using eight good quality alkaline AA batteries in

this camera to obtain maximum battery life.

Do not mix old and new batteries

Rechargeable batteries are NOT recommended

We recommend using high quality SDHC Cards(up to 32GB

capacity) in the camera

2. INTRODUCTION

2.1. ABOUT THE CAMERA

The camera is a digital scouting camera, it can be triggered by any

movement of game in a location, detected by a highly sensitive

Passive Infra-Red (PIR) motion sensor, and then take high quality

pictures (up to 16MP still photos), or video clips.

The camera consumes very little power (less than 0.15mA) in a

stand-by (surveillance) state. This means it can deliver up to six

months standby operation time when the device is powered by

eight AA alkaline batteries. Once motion in the monitored area is

detected, the digital camera unit will be triggered at once

(typically approx. 0.2~0.6 second) and then automatically take

photos or videos according to previously programmed settings.

The camera is equipped with built-in infrared LEDs that function

as a flash (invisible to human eyes), so that it delivers clear photos

or videos (in black & white) even in the dark, and it can take color

photos or videos under sufficient daylight. The camera is designed

for outdoor use and is resistant against water and snow.

Main features:

Deliver high quality pictures (up to 16MP still photos) or full

HD video clips. The came is equipped with dedicated large

aperture, full glass lens and deep imaging optimization, take

color photos or videos under sufficient daylight

Clear Night Vision, up to 20M/65ft distance. The camera is

equipped with 38pcs built-in high efficiency infrared LEDs

that function as a flash (invisible to human eyes), delivers clear

photos or videos (in black & white)

Easy to use/program with unique well-designed keypad and

built-in 2.4-inch LCD color screen, easy to review pictures and

videos on the screen

3 optional live working modes - Camera only, Video Only,

Camera + Video

Fast trigger time approx. 0.2~0.6 second, Long trigger distance

up to 25M/82ft, Wide detection angle 120°when side motion

sensors enabled, Wide view angle 90°

Date, Time, Temperature & Moon Phase Imprint in the

pictures

Timer, Time Lapse, Serial Number, Lockable and password

protected, Loop Recording

Waterproof. The camera is designed for outdoor use and is

resistant against rain and snow

Support SD Card up to 32GB (user supplied)

Extremely long in-field battery life up to six months in standby

mode with 8 AA batteries (user supplied)

2.2. APPLICATIONS

The camera can be used as follows:

For hunting, trail animals’ trace or habit

For wildlife observing and researching, captures pictures and

videos of wild animals

As sports camera, for riding, driving, camping or exploring

As Motion-Triggered security camera, for home, office and

community

All other indoor & outdoor surveillance where invasion

evidence needed

3. PARTS AND CONTROLS

The camera is equipped with 38pcs built-in high efficiency

infrared LEDs, LED Indicators, Lens, PIR Sensors, Lock Holes in

front view(Figure 1).

Figure 1: Front View

LED

Indicators

IR LEDs

LockHole

Side PIR

Motion Sensor

Lens

Center PIR

Motion Sensor

Side PIR

Motion Sensor

The camera provides the following connections for external

devices: Mini USB port and SD card slot (Figure 2).

Figure 2: Bottom View

The camera has two strap holes on the back. The strap can be put

through the strap holes and fastened securely around the tree trunk

by pulling the end of the strap firmly(Figure 3).

Figure 3: Back View

The camera has a 2.4inch built-in LCD screen, which can be used

for reviewing pictures or videos and menu displaying, and unique

keypad design for easy program and operation, 8 AA batteries slot

Tripod Screw Nut

SD Card Slot

DC Port

Strap Hole

Lock

Buckle

Mini USB Port

supported (Figure 4).

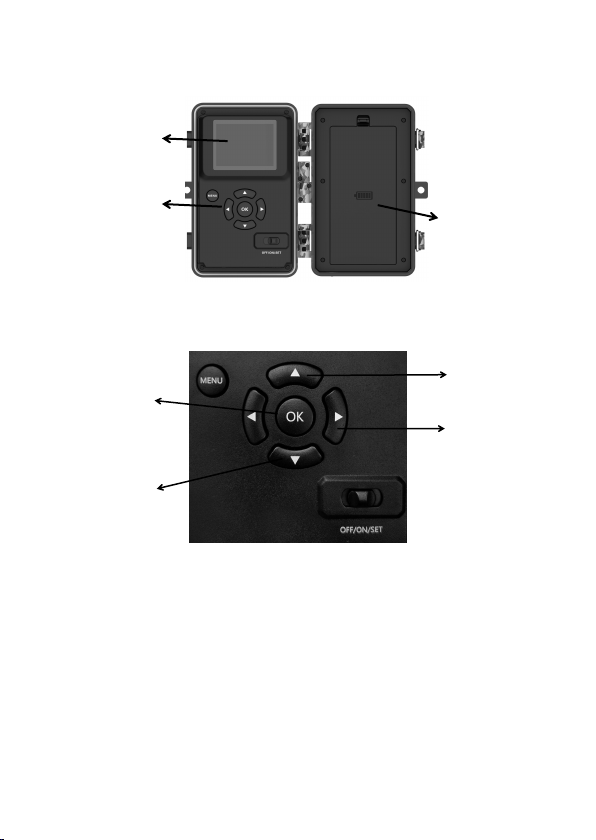

Figure 4: Inside View

Figure 5: Keypad and Shortcut

A 3-way power switch is used to select the main operating modes:

OFF,ON,and SET(Figure 5).

A control key interface with six keys is primarily used in SET

mode to select operational functions and parameters. As shown in

Figure.5, these keys are: UP,DOWN,LEFT,RIGHT,OK and

MENU. Four of the keys can also perform a second function

(shortcut operations in SET mode) in addition to their main

function: The DOWN key can be used to set the camera to

Camera mode, and the UP key can set the camera to Video mode.

The RIGHT key also serves as the manual shutter ("SHOT")

LCD Screen

Battery Slot

Keypad

RIGHT Key as

Manual Shutter

("SHOT")

UP Key as

Video Mode

DOWN Key as

Camera Mode

OK Key as

Playback Mode

button of the camera and the OK key switches the camera to the

Playback ("REPLAY") mode. These secondary functions are

indicated by icons or text above the key as show in Figure 5.

4. INSTALLING THE BATTERIES AND SD CARD

Before you begin learning how to use your camera, you will first

need to install a set of batteries and insert an SD card. Although

that may only take you a minute, there are some important notes

about both batteries and SD cards you should be aware of, so

please take the time to read the following directions and

cautions:

4.1. LOADING BATTERIES

After opening the cover of the battery slot, you will see that the

camera has eight battery slots(Figure 6). A full set of four or eight

batteries must be installed for the camera to operate. Be sure to to

insert each battery with correct polarity (negative or "flat" end

against the long spring of each battery slot).

We recommend using eight new alkaline AA batteries.

On SET mode when battery power level gets low, the message

"Low Battery" will show on the screen, please replace the

batteries. And if the message "Night vision is unavailable in low

voltage" shown on the screen, that means the batteries don’t have

enough power to driver IR LEDs working, you have to replace the

batteries if you want the camera take pictures or videos at night,

but the camera still can works at daytime.

Figure 6: Loading the Batteries

4.2. INSERTING THE SD CARD

Insert the SD card (with the camera's power switch in the OFF

position) before beginning to operate the camera. Don't insert or

remove the SD card when the power switch is in the ON position.

The camera uses a standard SD (Secure Digital) memory card to

save photos (in .jpg format) and/or videos (in .avi format). SD and

SDHC (High Capacity) cards up to a maximum 32GB capacity are

supported(Figure 7).

Figure 7: Inserting the SD Card

一

Please make sure that the write-protect switch on the side of the

card is "OFF" (NOT in the "Lock" position). The following

describes how to insert and remove the SD card:

Insert the SD card into the card slot with its label side upwards.

A "click" sound indicates that the card is installed successfully.

If the wrong side of the card is facing up, you will not be able

to insert it without force-there is only one correct way to insert

cards. If the SD card is not installed correctly, the device will

not display an SD card icon on the LCD in SET mode (the SD

card icon displayed after switching to SET mode will have a

"lock" symbol inside it in it if the card is locked). Formatting

the SD card by using the camera's "Format" parameter before

using it for the first time is recommended, especially when a

card has been used in other devices.

To take out the SD card, just gently push in the card (do not try

to pull it out without pushing in first). The card is released

from the slot and ready to be removed when you hear the click.

Be sure the camera's power is switched OFF before inserting

or removing SD cards or batteries.

5. USING THE CAMERA

Once you've prepared your camera by properly installing batteries

and an SD card, you could simply take it outside, strap it to a tree

(or not-according to your application scenario), switch it ON and

leave-and you might get some great photos that are exactly what

you wanted. However, we highly recommend that you first spend

some additional time indoors with this manual and your camera

until you know a bit more about what the 3-way switch and those

control keys do. If nothing else, you'll probably want to at least set

the date and time so the camera will imprint them (or not-it's your

option) on your photos as they are taken, learn how to set the

camera to shoot video clips instead of still photos if you like, and

read some tips about mounting it on a tree.

Indice

Altri manuali Zopu Telecamera da ricognizione

Zopu

Zopu SL122M Manuale utente

Manuali Telecamera da ricognizione popolari di altre marche

Nestbox

Nestbox C13 Manuale utente

Wildview

Wildview STC-TGL1 Manuale utente

Stealth Cam

Stealth Cam CORE STC-Z3IRTL Manuale utente

Suntek

Suntek HC-800M Manuale utente

Spypoint

Spypoint G4 Manuale utente

Duramaxx

Duramaxx 10029765 Manuale utente

Brecom

Brecom C2400 Manuale utente

BlazeVideo

BlazeVideo A280W Manuale utente

Bestok

Bestok 5210GM Manuale utente

GardePro

GardePro X60P Manuale utente

Delta-Opti

Delta-Opti HC-SG880MK-18MHD Manuale utente

PNI

PNI HUNTING 280C Manuale utente

Muddy

Muddy Pro-Cam 14 Manuale utente

Bresser

Bresser 3310006 Manuale utente

Recon Outdoors

Recon Outdoors HS410 Manuale utente

Braun

Braun 57660 Manuale utente

Wildgame

Wildgame Shadow Manuale utente

Spypoint

Spypoint FLEX Manuale utente
