ZOSI ZR08JP Manuale utente
Wireless Security Camera System
Quick Start Guide
For more informaon of your new system, please refer to www.zositech.com
V2.P.08.Z
EN
ES
01
12
Contents
1
1Gallery & Specs
1.1 Grabador NVR
1.2 Cámara
Puerto HDMI
Puerto VGA
Puerto de red
AntenaAntena
Puerto del
ratón USB
Puerto de
respaldo USB
Puerto de alimentación
Antena
Lente
LED IR
CDS
2
2System Connecon

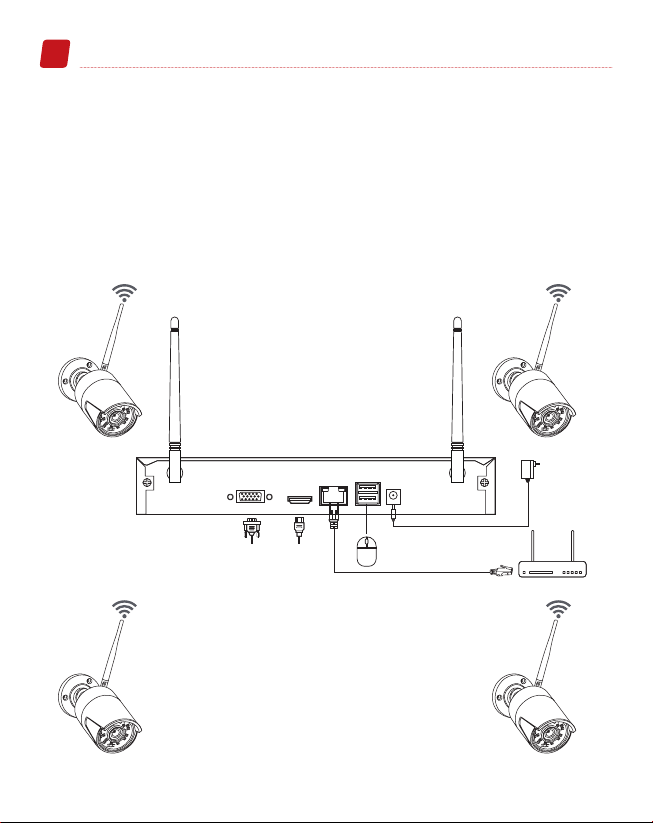

2.1 Connect NVR to the Internet
(1) Connect NVR to router using a network cable.
(2) Connect monitor to NVR via HDMI or VGA port.
(3) Connect the included USB mouse to the top USB port of NVR.
(4) Connect NVR to 12V power supply.
(5) Aer the system starts, pair and connect IPC and camera to the system (maximum support 8
channels).
(6) The monitor will show the real-me monitoring picture of the camera.
3
A: Camera Installaon Diagram
B: How to test the network status of NVR?

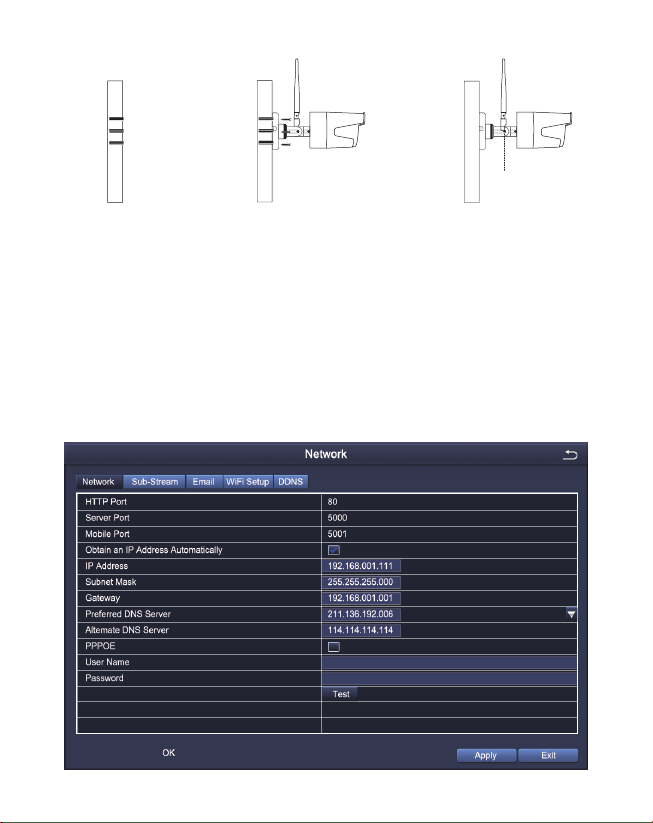

(1) Right click Mouse > Go to Main Menu > Seng > Network
(2) Tick 'Obtain IP address automacally'
Click 'Test', if 'OK' is displayed, ck ‘DHCP’ and apply, the device will automacally assign the
corresponding network segment and IP address. Aer clicking Test, if the page is displayed
successfully, it is successfully connected to network.
NOTE: Please make sure that the DHCP of the connected router is enabled at the same me.
Drill 3 holes on the wall
according to the mounng
hole template, install the
wall plug.
Align hole site of the camera
to wall plug, twist and lock the
screws.
Aer adjustment, twist and
lock the adjusng screw.
Adjusng Screw
4
C: WiFi Setup
Right-click the main interface - Main Menu - Setup - Network - Wireless Network, default seng and
apply.
2.2 Download ZOSI Smart App
Zosi Smart App (IOS/Android) App video operaon link
5
3AVSS PC Client
3.1 Install AVSS on PC

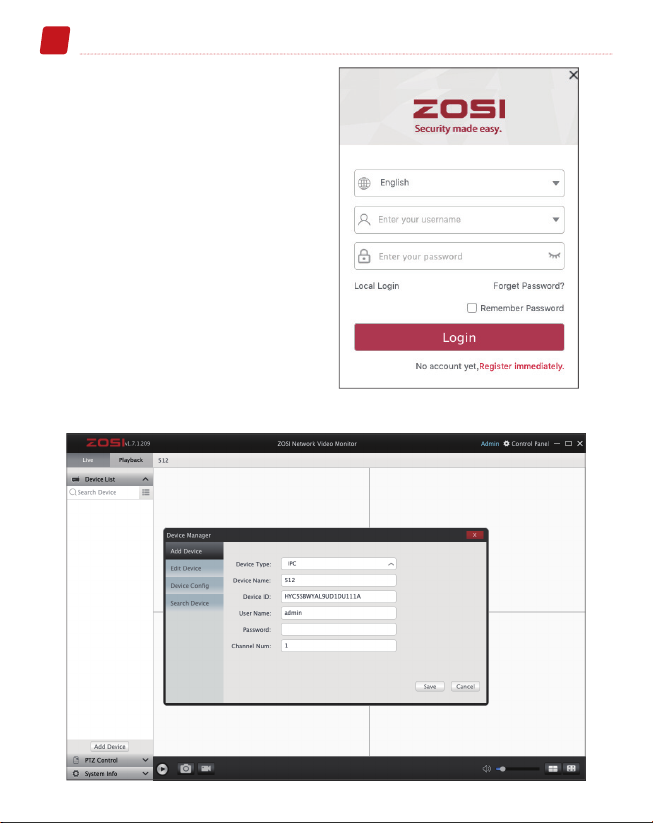

Get the AVSS soware from www.
zositech.com or from your agent.
Double-click the icon AVSS to open,
select the language and click Login.
Note: You can log in with the default
username and password, or register a
new account.
The user name is the account an
password registered on the App in 2.3.
3.2 Device Management
Click the Add Device buon in the device list to add/edit/configure/search for the device.
6
3.3 Live View 3.4 Video Playback
Select channel to watch live streaming. Select ‘Playback’, select device, channel, date,
me, click the play buon to start replaying
recorded video.
4Add Device
4.1 Add IPC to wireless camera system
(1) Connect IPC and NVR in the same wireless network.
(2) Right-click the mouse on the live channel page and get the main menu.
(3) Click IPC Channel Config to enter the configuraon page.
(4) Click the search buon to search for IP cameras.
7
(5) Tick the IPC channel, click WiFi add.
(6) The IPC device is successfully added and it can be displayed in live view channel and operated.
8
5Hard Drive/ Micro SD Card
Some camera kits may not contain hard drives, depending on the camera kit you
purchase. This kit support most 3.5” HDD.
NOTE: Please skip this step if your recorder has a pre-installed hard drive.

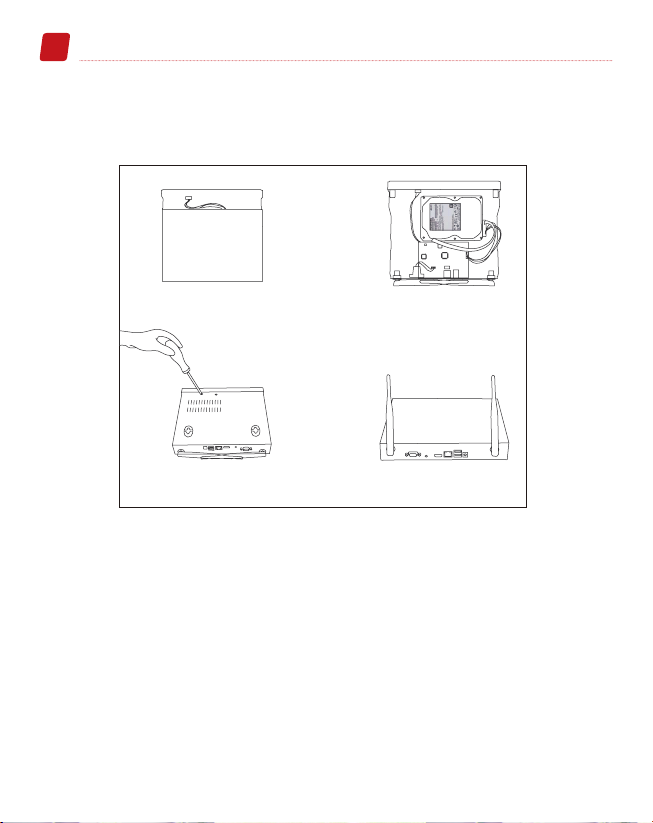

① Power off the NVR, unscrew and remove the top cover of recorder.
② Connect the power cable and data cable of the hard drive to the corresponding
ports in the recorder.
③ Put the hard disk into the recorder. All wires should cross up over the hard drive.
④ Hold the hard disk and the NVR, gently turn it over and line up the holes on the
hard disk with the holes on the NVR. Use a Phillips screwdriver, screw the included
screws into the holes.Assemble the cover.
You need to format the hard drive before recording. Right click mouse> Main
Menu> Hard Disk Management> select Hard Disk> Format> Apply.
1. Remove the top cover
3. Fix Hard drive 4. Assemble the cover
2. Hard disk wiring
