Zte R570 Manuale utente



Thank you for purchasing this mobile. For the best performance, we recommend

that you read the manual carefully.



R570

Quick Start Guide



Chapter 1 Phone overview

Main Display 160*128px

Phonebook capacity SIM according to cardʼs type; 100 in the mobile

Hands free Supported

SMS Supported

Incoming number Display Supported

Alarm clock/Calendar Supported

System Used GSM900+DCS1800

Camera/ video record Supported

MP3/Recorder Supported

Call waiting Supported

USB Mode/Memory Card Supported (Micro-SD card) up to 16GB



Chapter 2 Key Instruction

Key Name Function Description

Menu key 1. To enter the main menu in idle mode

2. To answer a call

Send key 1. Make or answer a call

2. Press Send key in standby mode to show the entire call log.

Left soft key 1. To enter Menu in idle mode.

2. To execute the operation in left bottom of display

Right soft key 1.To enter phonebooks in idle mode

2. To execute the operation in right bottom of display

End key

1. End an active call or reject a call

2. Hold this key to power on/off

3. Exit form any interface to idle mode

Navigation keys

1. Scroll the cursor up/down/left/right

2. Up key for user-defined shortcuts

3. Down key for Alarm

4. Left key for User profiles

5. Right key for Message

Number keys

1. Enter numbers or characters while editing text

2. Press 0 key to insert a space while editing message, excluding the

number input mode

1.Hold 0 key to turn on, turn off the flashlight

2.Press 1 key to insert common symbols while editing text, excluding the

numbers input mode

#key / *key 1.Press # key to change the input mode while editing text

2.Press * key to display the symbols window in the text input mode



Chapter 3 Insert SIM card

1. Power off the phone and remove the external power.

2. Take off the back cover and remove the battery of the phone.

3. Insert SIM card into the slot in the phone.

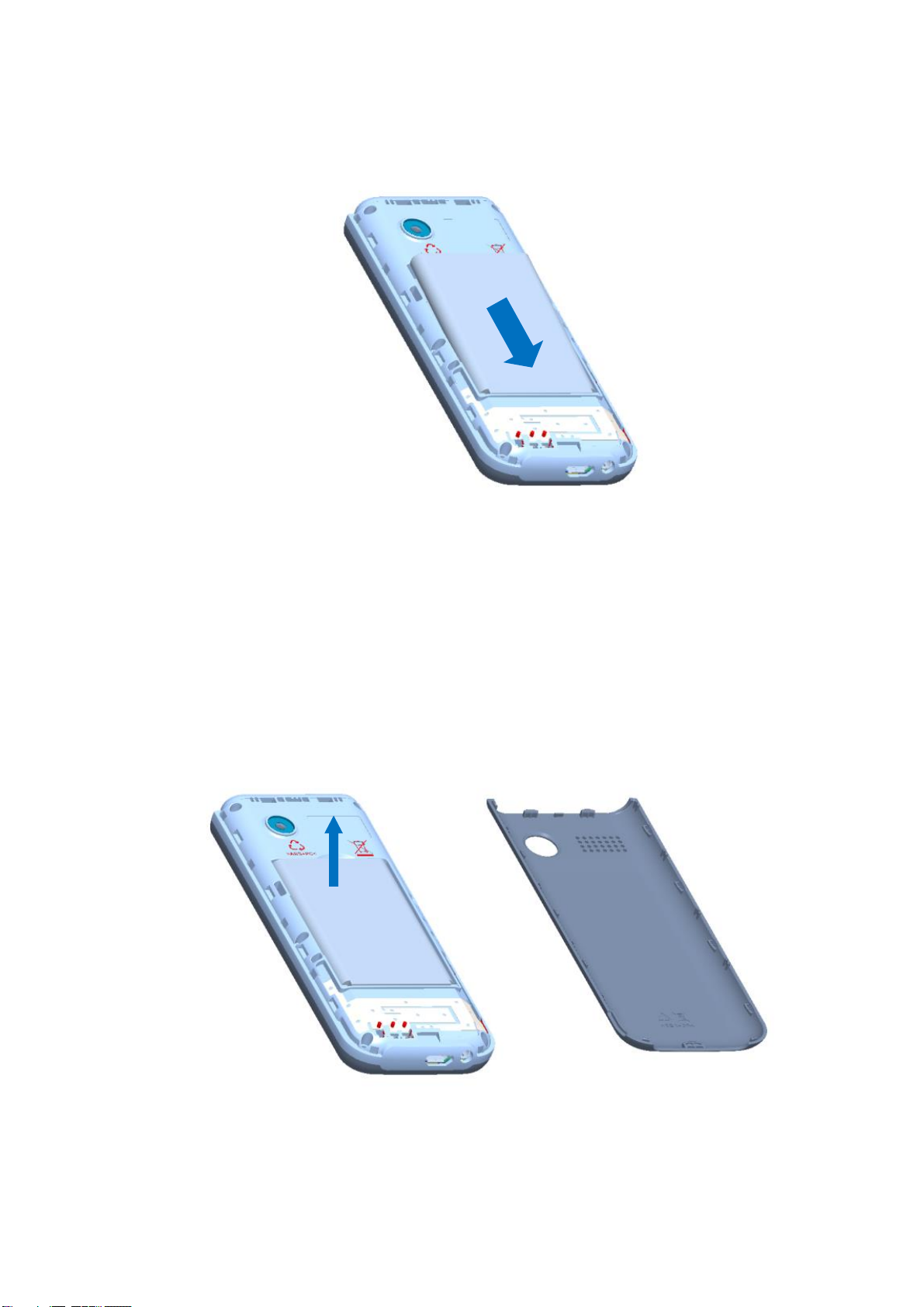

Chapter 4 Install and Remove the battery

The attached Li-ion battery can be used after unpacking. For the first

three times, please use the charger to charge fully for new battery

activation completely.

Install the battery

1. Put the battery in the battery compartment; note that the metal end

of the battery should be firstly inserted.

2. Put on the back cover.



Remove the Battery

1. Take off the back cover.

2. Lift up the battery from the finger slot to remove the battery.



Chapter 5 Power on/Off your phone

1. Hold the End key to power on the phone. The phone will

automatically search for the network.

2. When the phone is powered on, hold the End key to power off the

phone.

Chapter 6 Charging Your Phone

1. Connect the phone charger to the wall socket/outlet.

2. Connect the charger to the device.

3. After charging completely (battery indicator shows fully), disconnect

the charger from the device.



Chapter 7 Interface Icons

Icon Description

GSM system signal strength

Profiles-General

Bluetooth

New message

Power indicator

Alarm

Chapter 8 Messages

Messaging is a service provided by your network provider; you may

need to apply to your network operator before sending and receiving

messages.

Write message:

[Text message]

You create SMS messages in this menu. You can:

Please click on the # key to switch the current input method.

Please click on the * key punctuation into the symbol.



Your phone supports the texts messaging function. If the message

content is too long meaning more than the allowed 160 characters, it

will be divided into two or more text messages.

In the options menu you can select the following:

Send to：Edit the recipient, and then choose to send, edit recipient,

remove the recipient, remove all the recipients, or save to the

Drafts.

Input method：You can use this menu to set the required input

method and to insert symbols.

Insert template: You can insert common language in a text

message.

Advanced: In this submenu you can insert number or insert name.

Save: The edited message can be saved to the draft box through

this menu.

Inbox

Select Inbox to view message received

Click the options you can:

View: check the received SMS

Reply: reply the sender via text message.

Call sender: You can call the sender's phone number



Forward: Forwards the original message or modified message to others

selected or inputted contacts.

Delete: deletes the current message.

Delete all: delete all messages in the inbox.

Mark several: You can SMS bulk delete, copy, move.

Advanced: SMS can batch Copy, move and Use number, Use USSD, Use

URL.

Drafts

View the draft you saved.

Outbox

View the unsent message.

Sent messages

View the sent message.

View: check the received SMS

Forward: Forwards the original message or modified message to others

selected or inputted contacts.

Delete: deletes the current message.

Delete all: delete all messages in the inbox.

Mark several: You can SMS bulk delete, copy, move.



Advanced: SMS can batch Copy, move and Use number, Use USSD, Use

URL.

SMS templates

You can insert common language in a text message.

SMS settings

Set the message configuration and can be view the memory information

of message box.



SMSCnumberoriginNumberretrievedfromSIM

SMS‐TypeTex t

SMS–ValidityperiodThedefault6hours

SMS–ReadreceiptsOff

Chapter 9 Phonebook

When you enter phonebook press up/down key to select quick search,

Search Contact, Add New Contact, Delete, phonebook Settings etc.

Press soft right key to enter phonebook in standby mode. Select a

number, then you can view, send message, call, edit, delete, copy, Add

to Blacklist, Mark several and phonebook settings.

For each telephone recording, press the "Options" button, you can do

the following:

View: View the content of the telephone records.
