Zte E1200 Manuale utente

Wi-Fi 5 Wireless Router

E1200

1

2

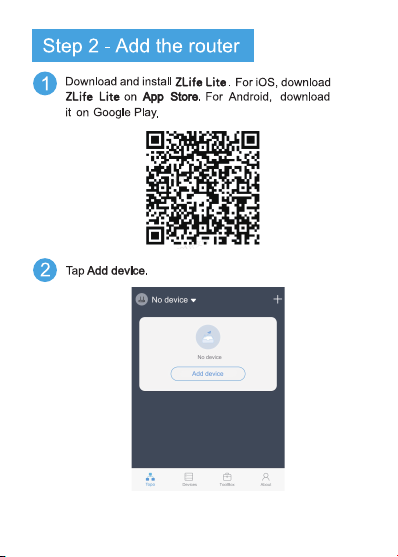

Tap Wi-Fi Router.

3

Scan the QR code found at the bottom of the router.

If no QR code is present, enter your wireless account

and password.

Note：

4

If the operating system of your mobile phone is

Android, you must connect to Wi-Fi manually after

scanning the QR code. If you do not want to enter the

password manually, tap copy the password. This

operation arises from Android rather than ZLife Lite

because of Android security requirements.

Note：

5

LED indicator/WPS

E1200

Note：

6

7

The Power indicator on the front panel is off after the power button

is pressed.

Power switch does not turn on.

The power adapter is not correctly connected to the device. Be sure

to use the power adapter supplied with the device.

The LAN indicator on the front panel is off after the device is

powered on.

The corresponding LAN link is not established.

The Ethernet cable is not correctly connected to the LAN interface.

The network device connected to the LAN interface is not powered

on.

The WAN indicator on the front panel is red after the device is

powered on.

The WAN link is not established.

The Ethernet cable is not correctly connected to the WAN interface.

Please contact the service provider for help.

Unable to connect to the network.

Check that the Ethernet cable is correctly connected to the WAN

interface and the Ethernet cable is correctly connected to the LAN

interface.

Check that the WAN indicator on the front panel is on and the

Internet indicator on the front panel is solid green or flashing green.

Restore the factory default settings.

After the power is on, use a needle to press the button for over 5

seconds to restore the default factory settings.

8

E1200

E1200

ZTE_Polar

E1200

9
