ZTE SEC IPv4 instructions

Table of Contents

EQUIPMENTS FOR CERTIFICATION......................................................................................................4

TEST INSTRUCTION FOR 5900E ...........................................................................................................5

TEST INSTRUCTION FOR ZXR10 8900 ..................................................................................................9

Equipments for Certification

The certified equipments are ZTE two types of Switches: ZXR10 5900E and ZXR10 8900 series.

ZXR10 5900E series MPLS Easy-Maintenance switch adopts high-speed ASIC forwarding chips.

It supports complete family of Ethernet protocols, complete L3/MPLS protocols, efficient QOS

priority mechanisms and flexible management mechanisms. Providing high-density GE ports, it

provides the required access and aggregation features of GE interface for IP MAN or campus

networks or IP RAN.

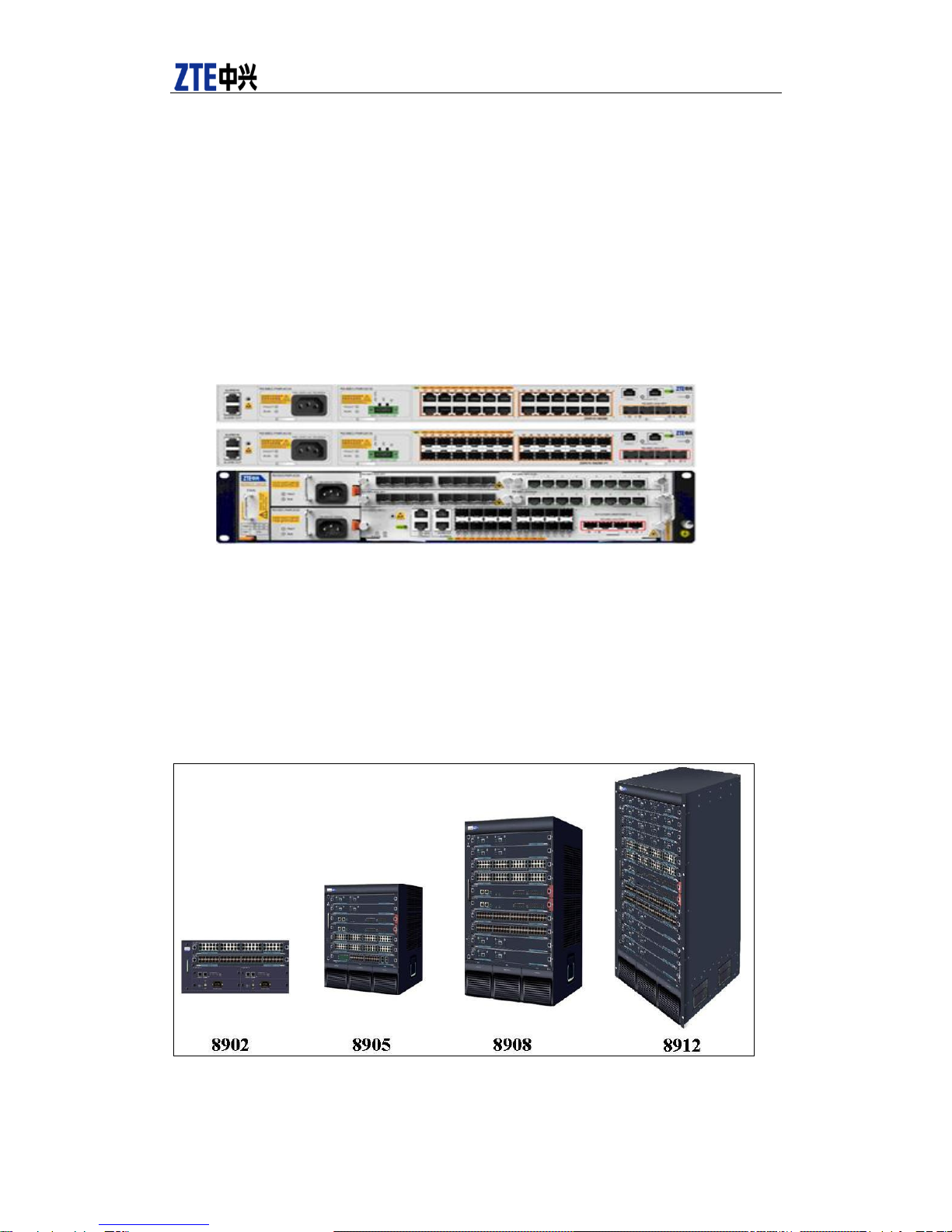

Figure 1 ZXR10 5900E series

ZXR10 8900 series Terabit MPLS routing switches are the latest introduced products by ZTE

with high capacity and performance for the core/aggregation layer of the network. The series has

the following models: ZXR10 8912, 8908,8905 and 8902 among which ZXR10 8912 reaches up

to 2.88Tbps for the bandwidth of the backplane, 1152Gbps switching capacity, 857Mpps packet

forwarding rate. ZXR10 8900 family supports L2/L3/L4 wire speed switching capability, mainly

positioned at the core/aggregation layer of carrier’s IP MAN, campus, e-government and corporate

network.

Figure 2 ZXR10 8900 series

Test instruction for 5900E

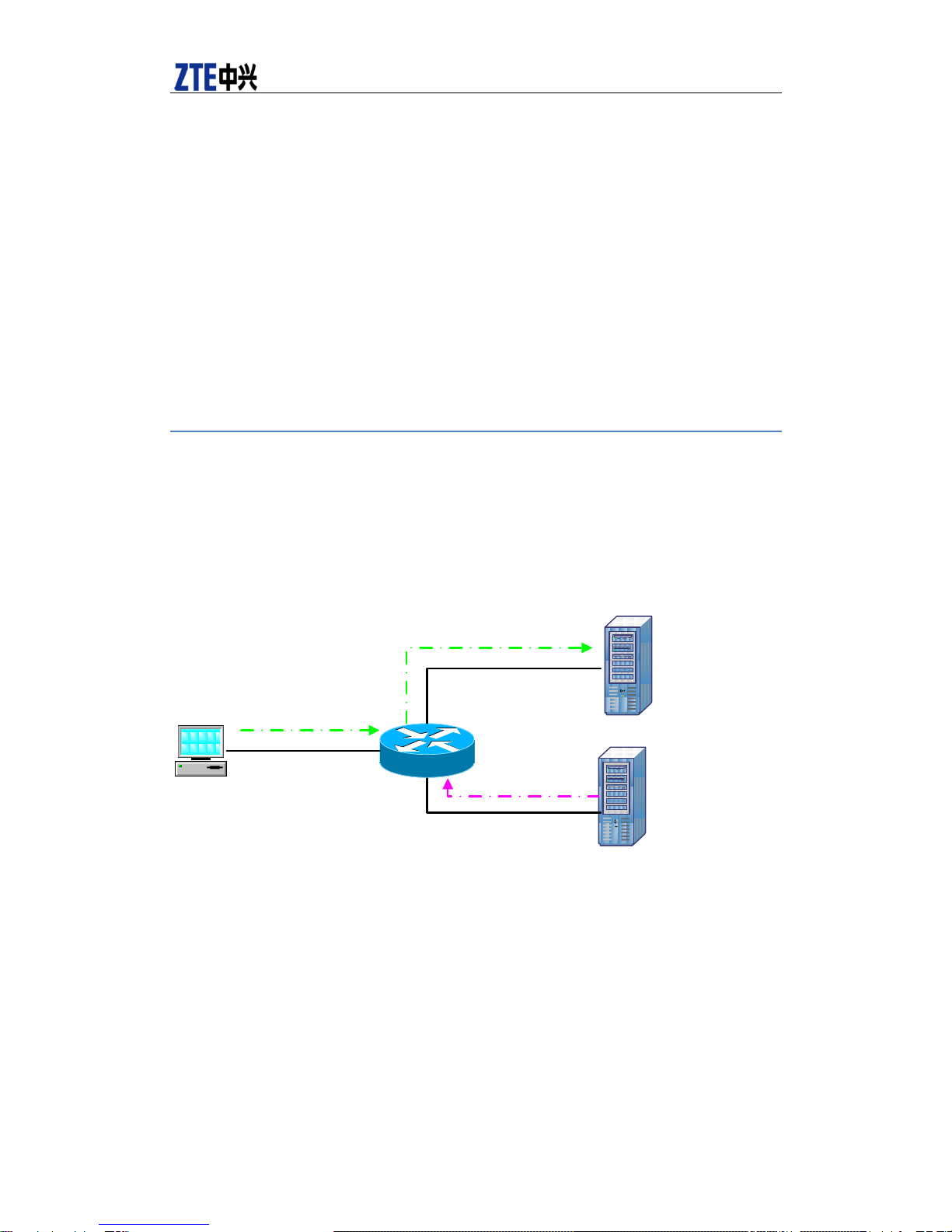

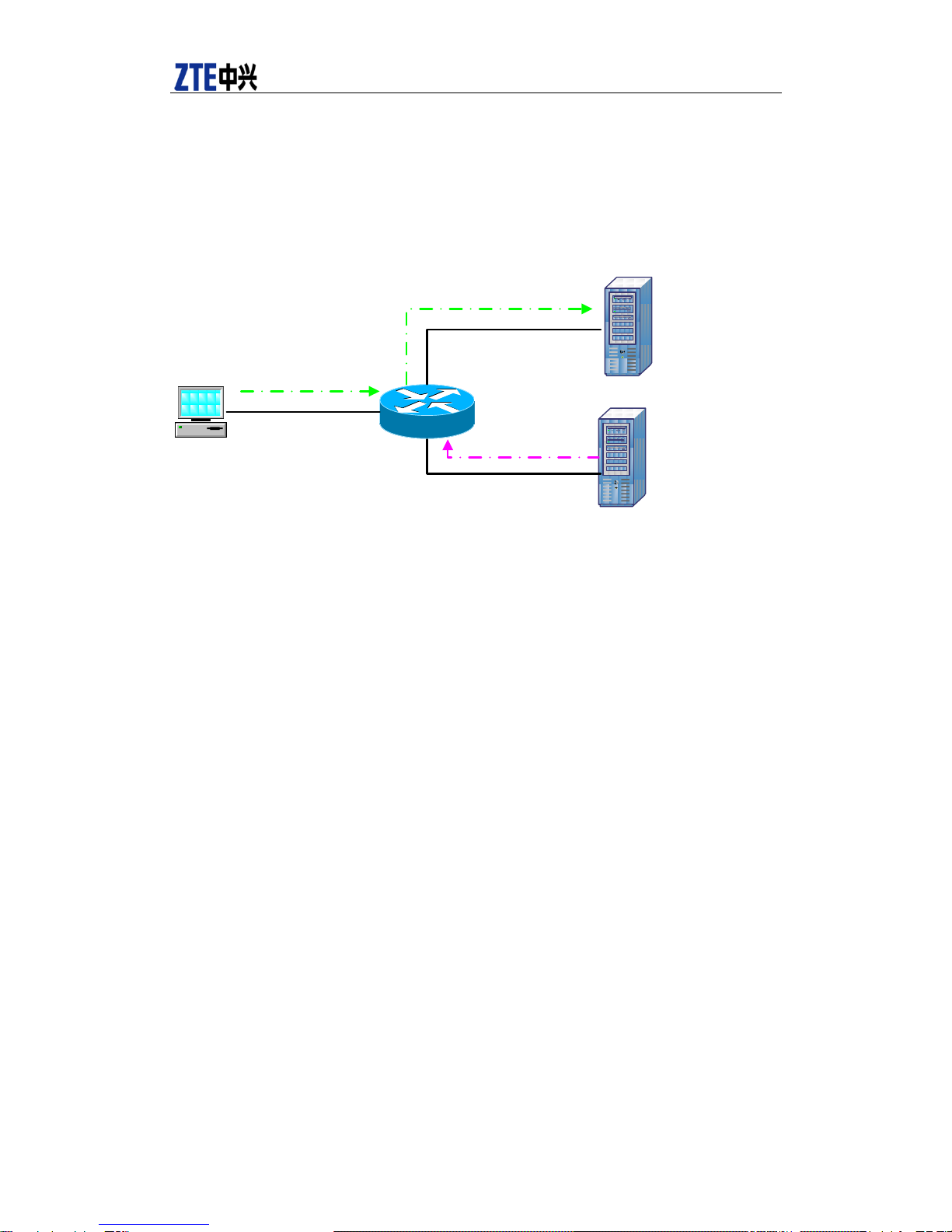

A.DHCP Snooping Configuration Procedure

_ Topology

DHCP server

Fake server

DHCP Ack

DHCP Require

_ Setup

Step1: configure vlan

ZXR10(config)#interface gei_1/1

ZXR10(config-gei_1/1)#switch access vlan 100

ZXR10(config-gei_1/1)#exit

ZXR10(config)#interface gei_1/2

ZXR10(config-gei_1/2)#switch access vlan 100

ZXR10(config-gei_1/2)#exit

Step2：Enable dhcp-snooping on global

ZXR10(config)#ip dhcp snooping enable

Step3：Enable DHCP snooping on vlan and assign Uplink port as trusted port

ZXR10(config)#ip dhcp snooping vlan 100

ZXR10(config)#ip dhcp snooping trust gei_1/1

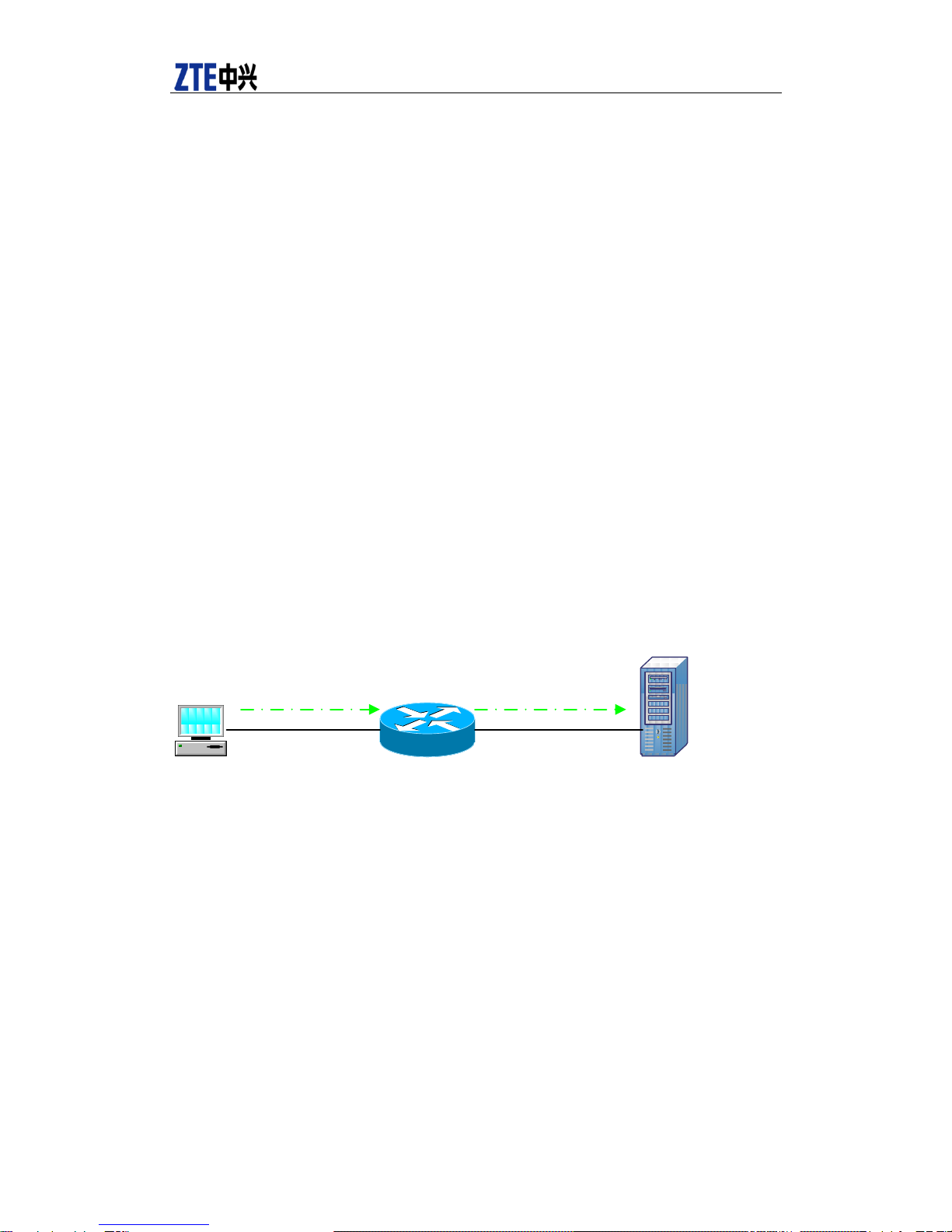

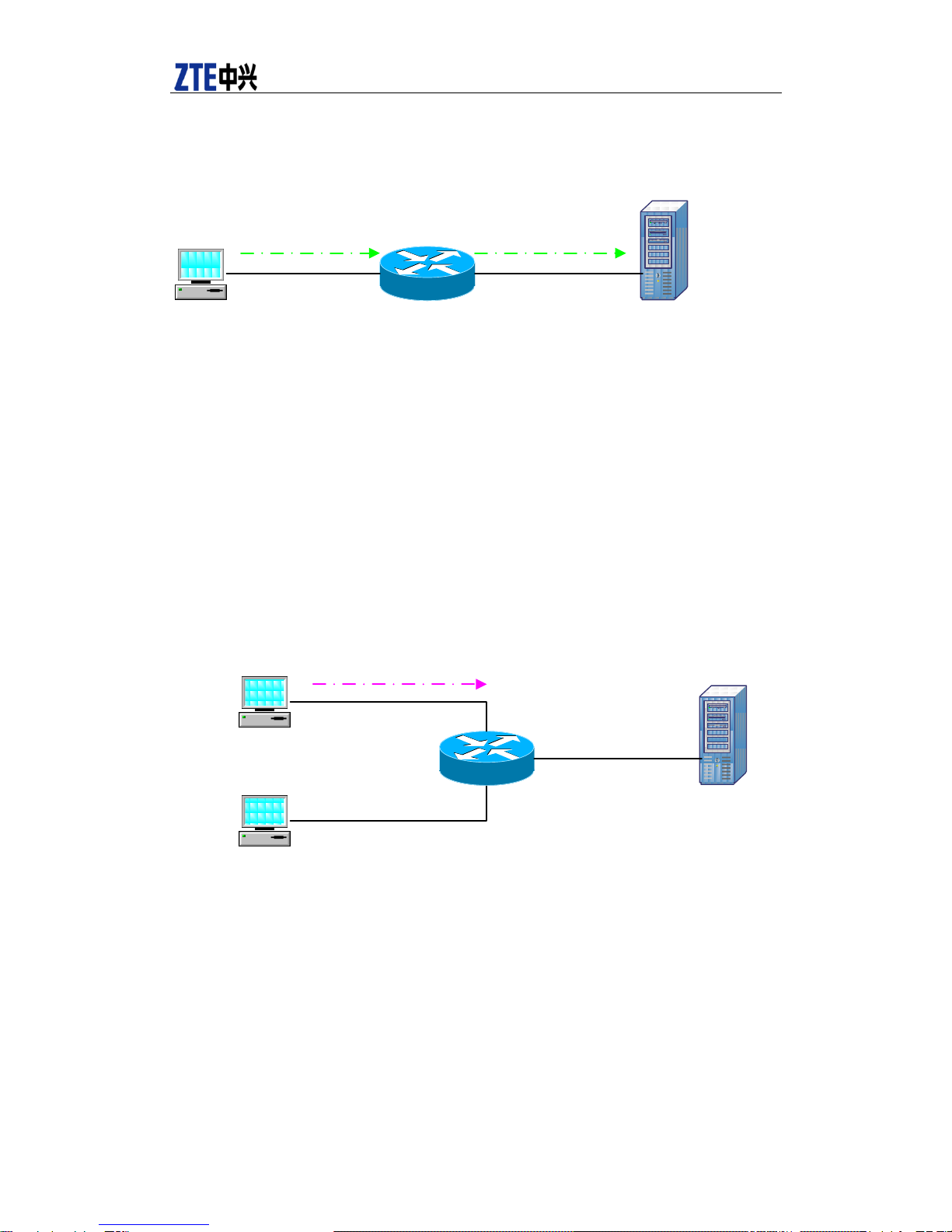

B. DHCP option82 Configuration Procedure

_ Topology

DHCP server

DHCP Require

DHCP Option82

_ Setup

Step1 enable DHCP snooping function same as Case A

Step2：enable option 82 on global

ZXR10(config)#ip dhcp snooping information option

C. ARP source check Configuration Procedure

_ Topology

DHCP server

Ip:10.1.1.5

MAC:0017.314c.0001 1

Fake ARP Require

IP: 10.1.1.15

MAC:0022.3245.0005

IP:10.1.1.15

MAC:0056.3200.0002

Discard

_ Setup

Step1 :Enable DHCP Snooping function same as case A

Step2: Enable ARP inspection on vlan

ZXR10(config)#vlan 100

ZXR10(config-vlan100)#ip arp inspection

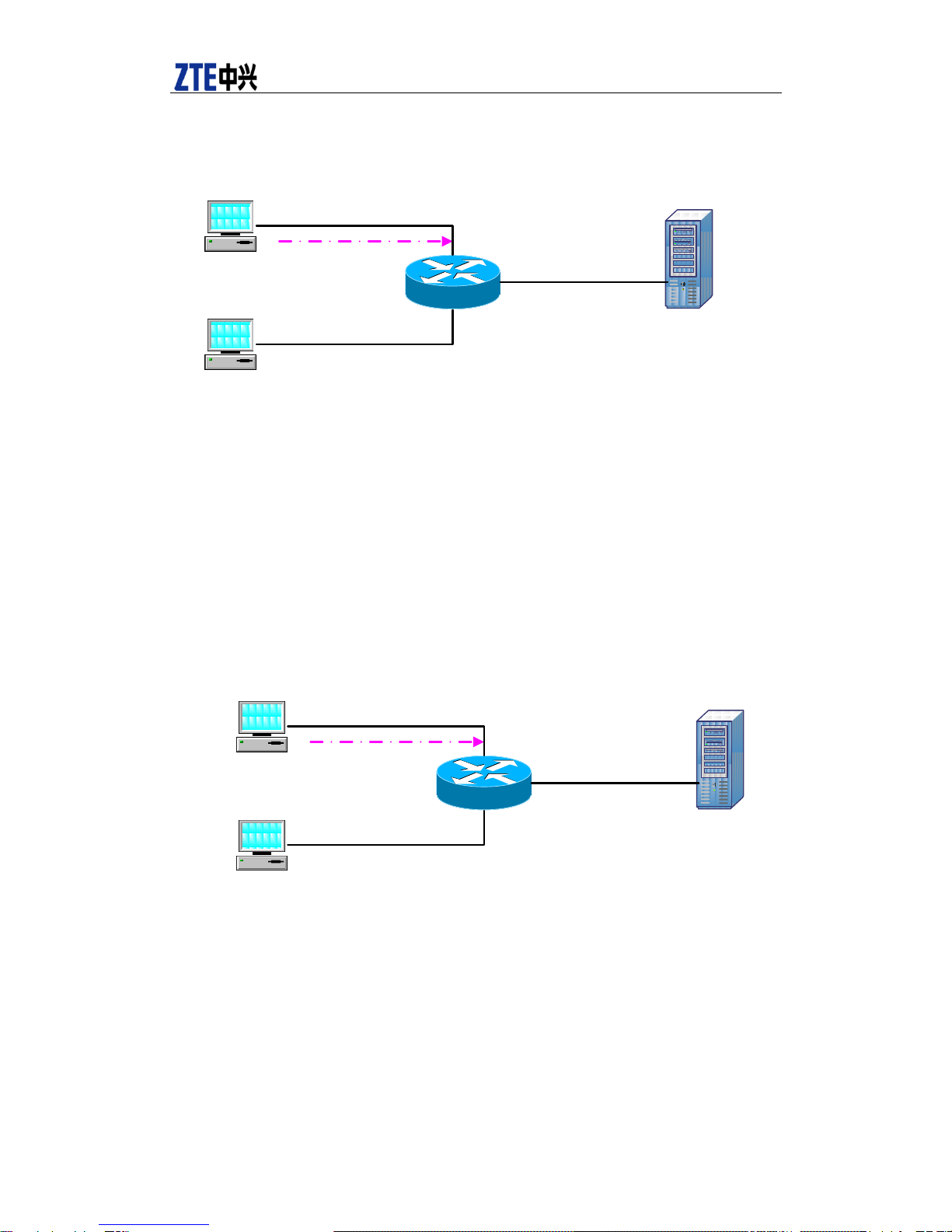

D. IP source check Configuration Procedure

_ Topology

DHCP server

Inlegal host

IP:10.1.1.15 1

Legal host

IP:10.1.1.15

Discard

_ Setup

Step1:Enable DHCP snooping function same as Case A

Step2: Enable IP Souce guard on port

ZXR10(config-gei_1/2)#ip dhcp snooping ip-source-guard ip-base

E. Static user binding Configuration Procedure

_ Topology

DHCP server

No defined static user

Static user

Discard

_ Setup

Step1：Enable DHCP snooping function same as case A.

Step2: Enable IP Souce guard on port

ZXR10(config-gei_1/2)#ip dhcp snnoping ip-source-guard mac-ip-base

Step3: Configure Static user binding table entry on vlan

ZXR10(config)#ip dhcp snooping binding 001f.c674.15a8 vlan 10

10.10.40.100 gei_1/3 expiry 3600

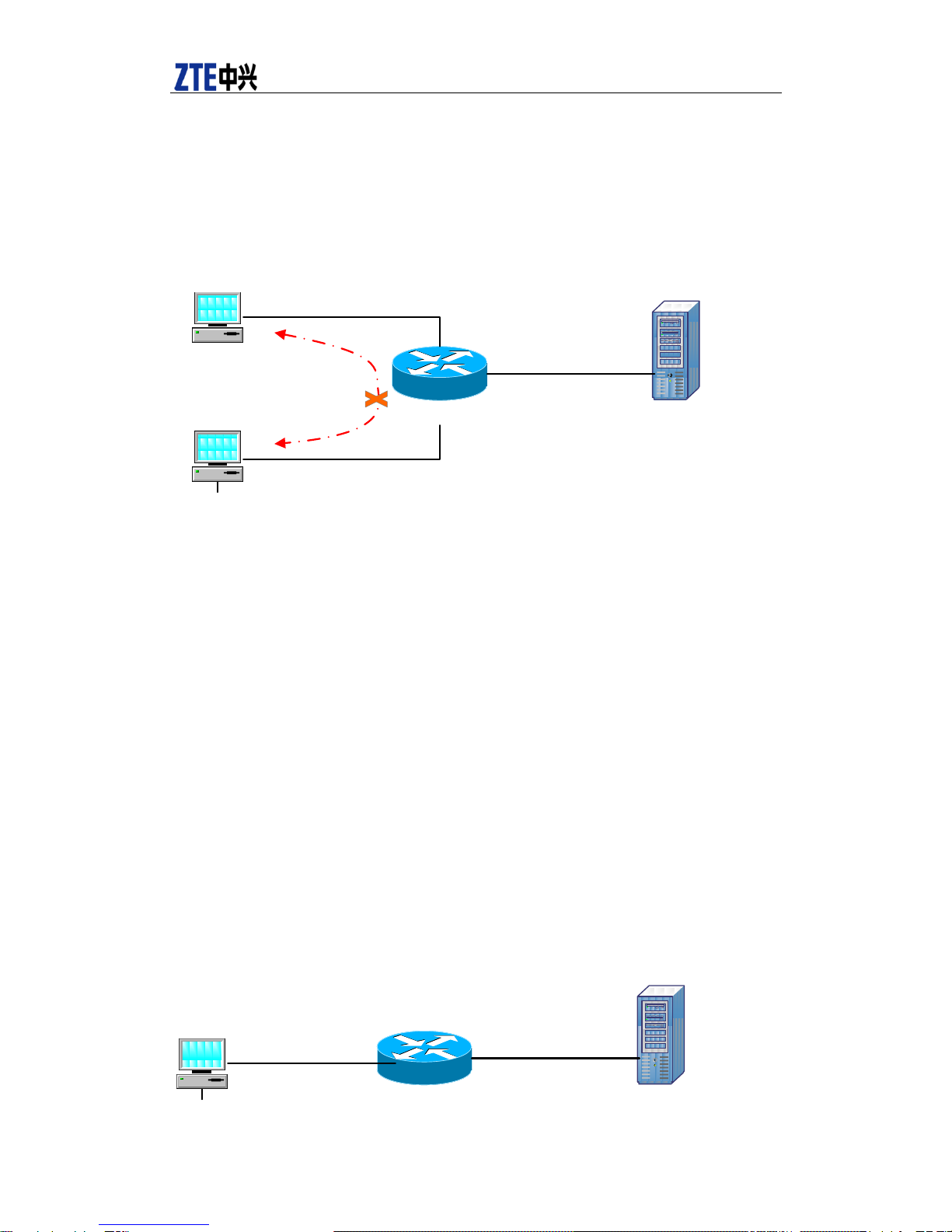

F. Port isolation Configuration Procedure

_ Topology

DHCP server

Uer1

User2

No traffic

directly

between Users

_ Setup

Step1: Configure port isolation session on global

ZXR10(config)#vlan private-map session-id 1

isolate gei_1/1, gei_1/3

G. ACLs

The ZTE Series has full support port-based advanced ipv4/ipv6/L2 header

ACLs

The following example describes how to utilize on acl to block inbound

special Source ip address;

_ Topology

DHCP server

User

_ Setup

Step1：configure ACL

ZXR10(config)#acl standard number 10

ZXR10(config-std-acl)#rule 1 deny 192.168.1.100 0.0.0.0

Step2：enable ACL on port inbind

ZXR10 (config-fei_1/2)#ip access-group 1 in

Test Instruction for ZXR10 8900

A.DHCP Snooping Configuration Procedure

_ Topology

DHCP server

Fake server

DHCP Ack

DHCP Require

_ Setup

Step1: configure vlan

ZXR10(config)#interface gei_1/1

ZXR10(config)#ipv4 protocol-protect mode dhcp enable

ZXR10(config-gei_1/1)#switch access vlan 100

ZXR10(config-gei_1/1)#exit

ZXR10(config)#interface gei_1/2

ZXR10(config)#ipv4 protocol-protect mode dhcp enable

ZXR10(config-gei_1/2)#switch access vlan 100

ZXR10(config-gei_1/2)#exit

Step2：Enable dhcp-snooping on global

ZXR10(config)#ip dhcp snooping enable

Step3：Enable DHCP snooping on vlan and assign Uplink port as trusted port

ZXR10(config)#ip dhcp snooping vlan 100

ZXR10(config)#ip dhcp snooping trust gei_1/1

B. DHCP option82 Configuration Procedure

_ Topology

DHCP server

DHCP Require

DHCP Option82

_ Setup

Step1 enable DHCP snooping function same as Case A

Step2：enable option 82 on global

ZXR10(config)#ip dhcp snooping information option

C. ARP source check Configuration Procedure

_ Topology
