ZWO T7C Manuale utente

T7C/M Astro Camera Astronomy Planetary

Quick Guide

This guide is brief summary of theŝŶƐƚĂůůĂƚŝŽŶƉƌŽĐĞĚƵƌĞƚŽŐĞƚǇŽƵƵƉĂŶĚƌƵŶŶŝŶŐǁŝƚŚǇŽƵƌŶĞǁĐĂŵĞƌĂ

WůĞĂƐĞďĞƐƵƌĞƚŽread the user manual for more complete instructions.

ϭDriver and software installation (Windows)

1. Download and install “Cameras driver”from our website

https://astronomy-imaging-camera.com/software/ or CD-ROM.

After plugging in the camera, you will see your ZWO camera model listed

under the “imaging devices” category of the Device Manager if the driver

is installed successfully.

2. Download and install SharpCap (image capture software) from our

website or CD-ROM. Choose your camera modelfrom the cameramenu.

Then you can see the preview video. Keep in mind that you will only see

some brightness in the preview video without lens or scope.

More detailed user manual can be found at our website:

https://astronomy-imaging-camera.com/manuals/

Adjust the resolution

Adjust the exposure

time

Adjust the gain

Adjust the USB traffic

Here is the current FPS

1

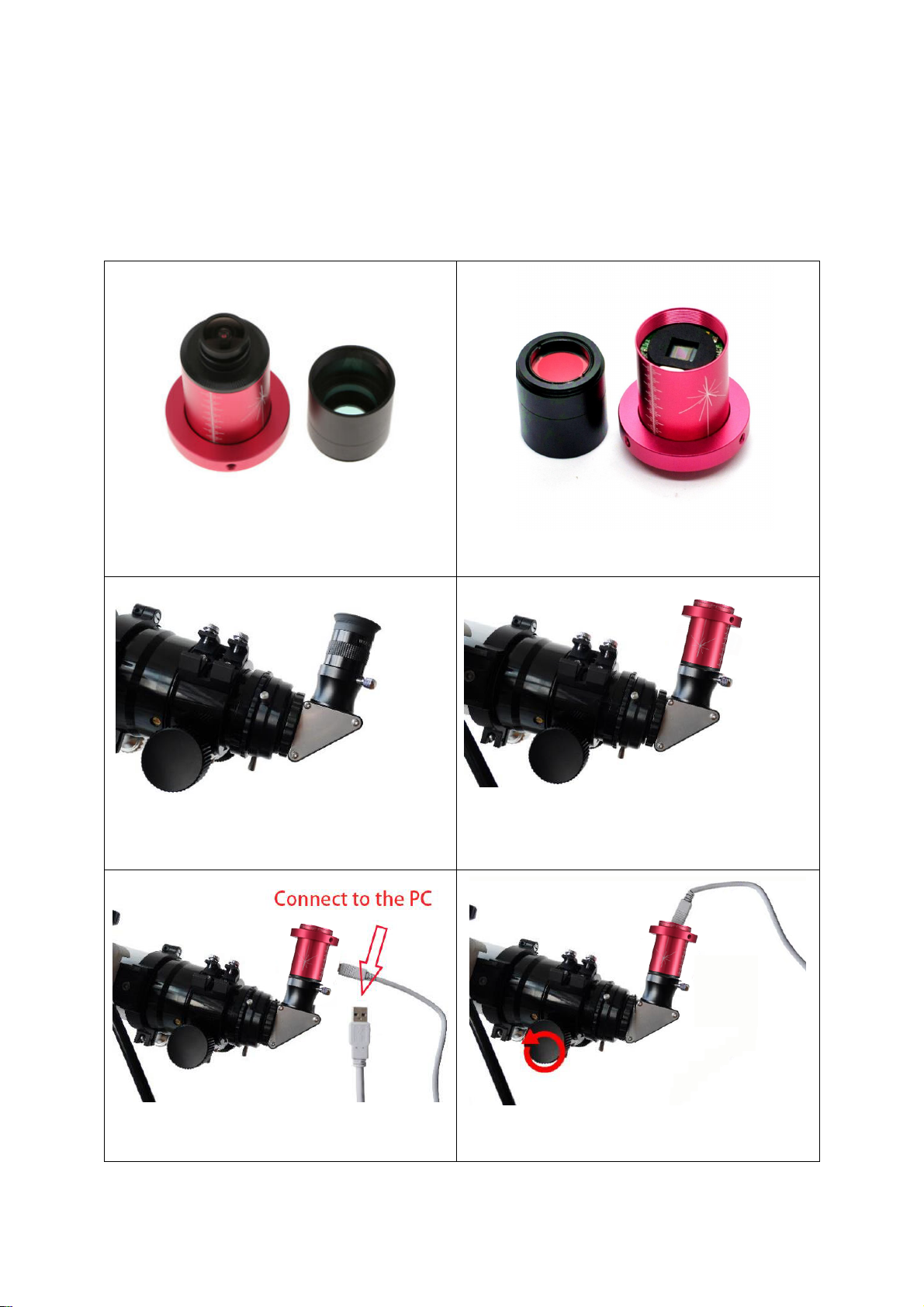

Connecting the camera to the telescope

The following cameras include an all sky lens:

Please remove the lens before attaching the camera to your telescope.

Take off the lens

Screw the 1.25”nose-piece

Focusthrough the eyepiece

Replace the eyepiece with camera

Connect the USB2.0/3.0 cable

Refocus so camera image is sharp

2

Trouble shooting:

1. The preview image is completely white but the fps is normal.

The camera is over exposed, please reduce the exposure and/or gain.

Keep in mind that you can only see brightness without lens or scope

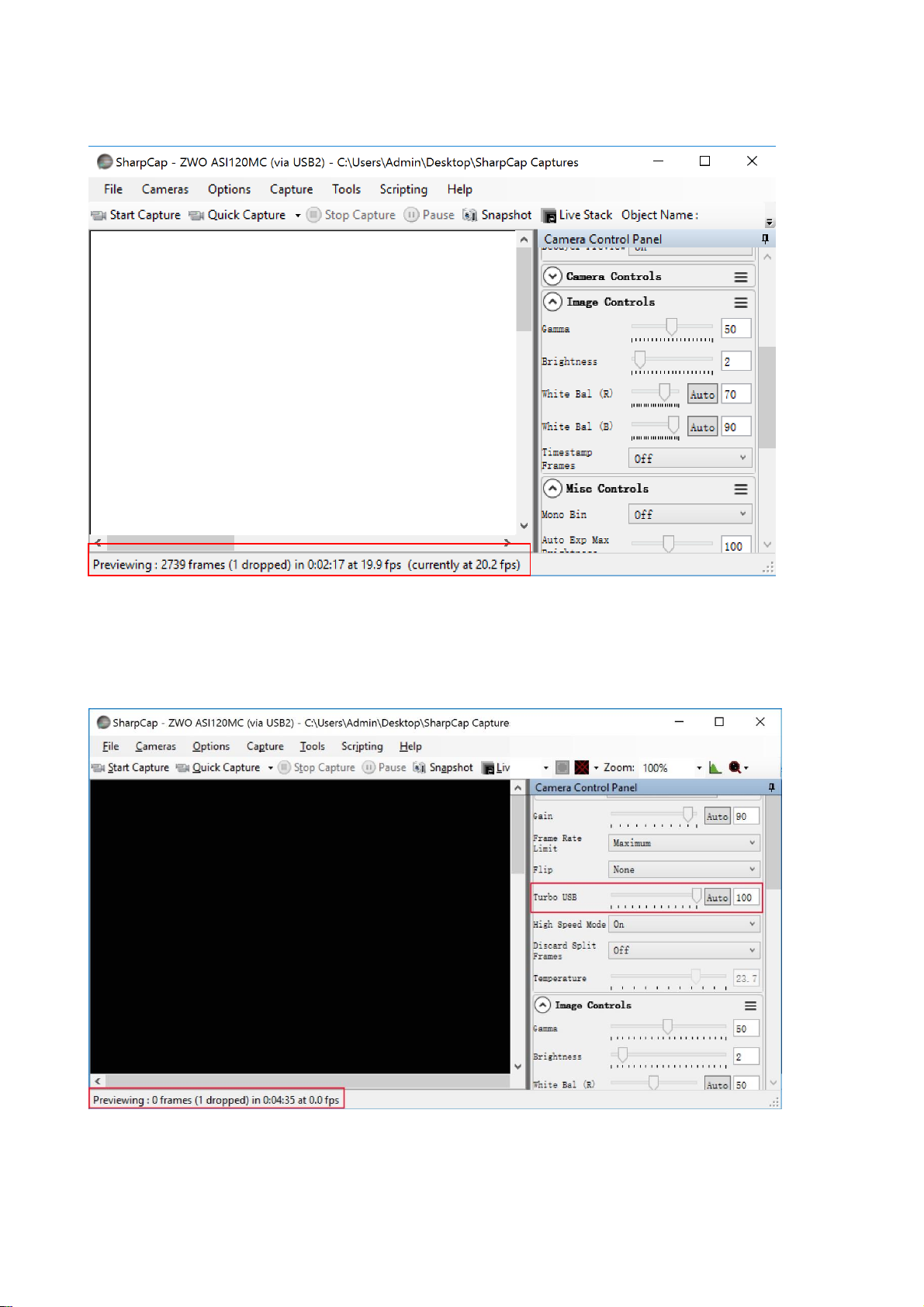

2. The preview screen is black and the fps is “0”.

Please try to slow down the capture speed by reducing the “Turbo USB”.

Also try connecting the camera to your PC directly without a USB hub or

extender if reducing “Turbo USB” still does not work.

3

3. The camera can`t preview at the FPS declared in the specifications.

1) Please make sure the camera is connected to USB3.0 host if it’s a

USB3.0 camera. Check that the camera is recognized as “via USB3.0”.

Please try to update the computer`s USB Host Controller driver if not.

2) Make sure that the “High Speed Mode” is On.

3) Adjust “Turbo USB”, we recommend 80-90%. This value depends on

your computer, higher means faster.

4) Don`t forget the exposure time affects FPS too. In general your

exposure time needs to be shorter than 1/FPS rate. For example, the

FPS will decrease to 1FPS when the exposure time is 1 second.

4. The camera can preview at 60fps but drops to 20fps when recording.

This is because your hard disk drive cannot match the speed of the

camera. Most ASI cameras are very fast and require up to 400M/s data

transfer speed. But most hard disk driver can only run at 40-50M/s.

We recommend you can exchange your HDD with one fast SSD and try

to capture the data in raw format instead of RGB24 if you use one color

camera.

4

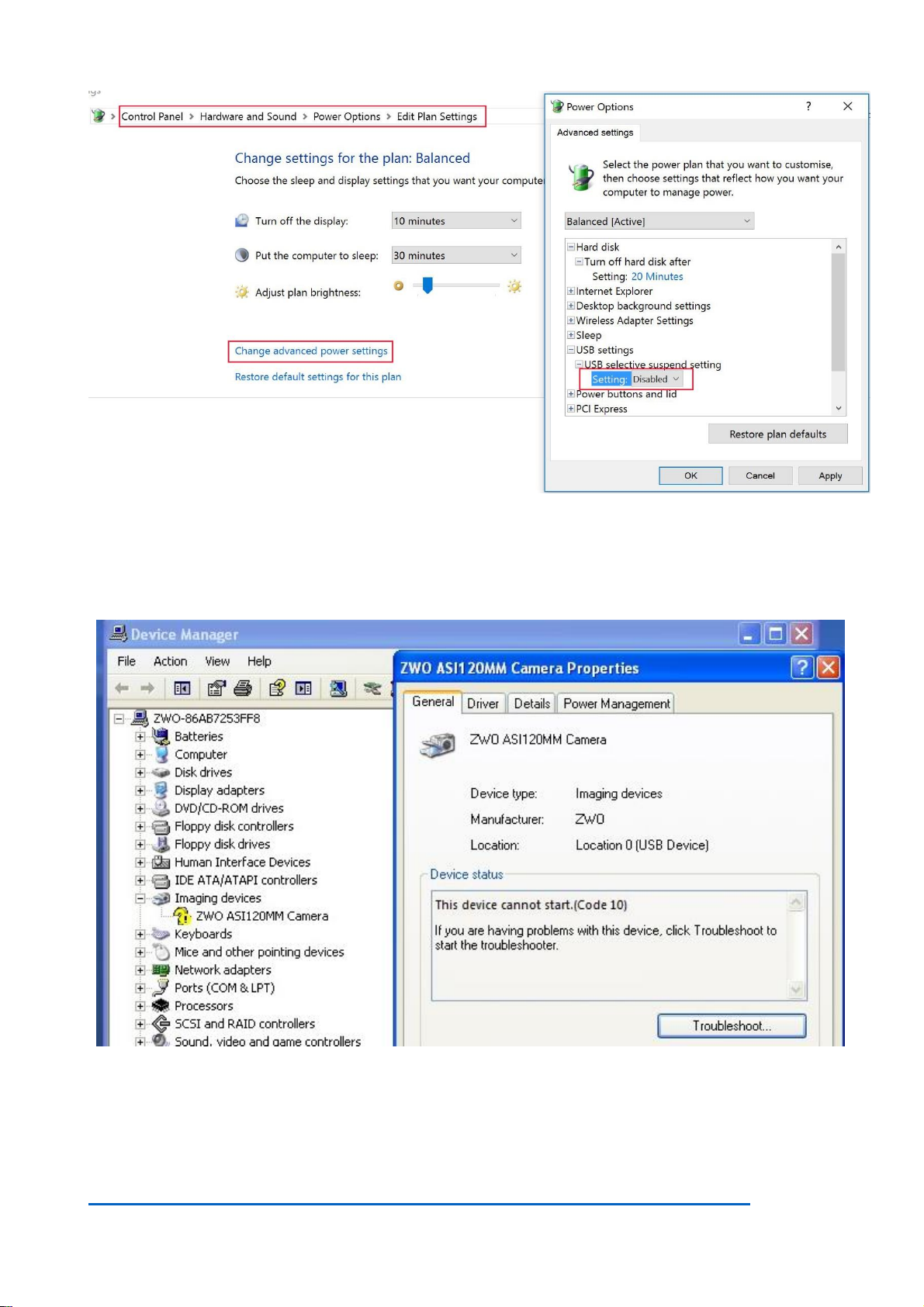

5. The camera cannot run continually on a laptop without external power

This is because of the power save mode of your laptop, you need to

disable power saving of USB port.

6. There is a yellow hint with the camera model name and error code 10.

You may have this problem with our USB2.0 cameras, please try

another USB Port or PC, then you can upgrade the firmware of this

camera onthe good PC. The original firmware is more stable and faster.

Download this upgrade tool from our website

http://astronomy-imaging-camera.com/software/FWTool.zip

5

7. Unknown device shown under the device manager after plugging in the

camera.

This is because the driver in not installed or installed properly, please try

to close all anti-virus software and re-install the driver.

You can also update the driver manually if re-installation still does not

work.

Right click the “Unknown device”, choose the “Update Driver Software”

and point to the driver directory. Normally the driver directory is :

C:\Program Files (x86)\ZWO Design\ZWO_USB_Cameras_driver.

6

7

2. Camera Models and Sensor Type

There are 2 types of T7 Camera Astronomy Planetary models:

Models

Mono or Color

Interface

Sensor

70

Mono

USB2.0

AR0130CS

7&

Color

USB2.0

AR0130CS

Why do I choose T7 Camera Astronomy Planetary?

It is mostly used for planetary imaging. It can also be used for deep sky imaging up to a certain

level. This new version comes with an ST4 Auto guider Port, so you may now use it both for

imaging and guiding.

Monochrome camera sensors are capable of higher details and sensitivity than color sensors, but

you need additional accessories such as filters. The post-processing is more complicated too. So

color camera is often recommended for beginner of astrophotographer.

3. What's in the box?

T7 Camera Astronomy Planetary

–T7C Color 1.2 Mega Pixel Astronomy Camera

–150° Lens Adapter for use as an all-sky camera

–C-Mount and Extend Tube

–1 m long USB cable

–1 m long ST4 guider cable

–Quick guide

T7 Camera Astronomy Planetary

8
