ZyWALL 10

Internet Security Gateway

Quick Start Guide

Version 3.52

March 2003

ZyWALL 10

Introducing the ZyWALL

The ZyWALL 10 is the ideal secure gateway for all data passing between the Internet and the LAN. By

integrating NAT, firewall and VPN capability, ZyXEL’s ZyWALL 10 is a complete security solution that

protects your Intranet and efficiently manages data traffic on your network. The embedded web configurator

is easy to operate and totally independent of the operating system platform you use.

You should have an Internet account already set up and have been given most of the following information.

Internet Account Information

Your device’s WAN IP Address (if given): __________________

DNS Server IP Address (if given): Primary __________________, Secondary _________________

Encapsulation:

 Ethernet Service Type: _______________________

User Name: ____________ Password: ____________

 PPTP User Name: ____________ Password: ____________

Your WAN IP Address: ____________ PPTP Server IP Address: ___________

Connection ID (if required): ____________

 PPPoE (PPPoE) Service Name: ____________

User Name: ____________ Password: ____________

Quick Start Overview

Hardware Installation...........................................................................................................................2

Setting Up Your Computer’s IP Address ............................................................................................4

Configuring Your ZyWALL .................................................................................................................5

ZyWALL 10

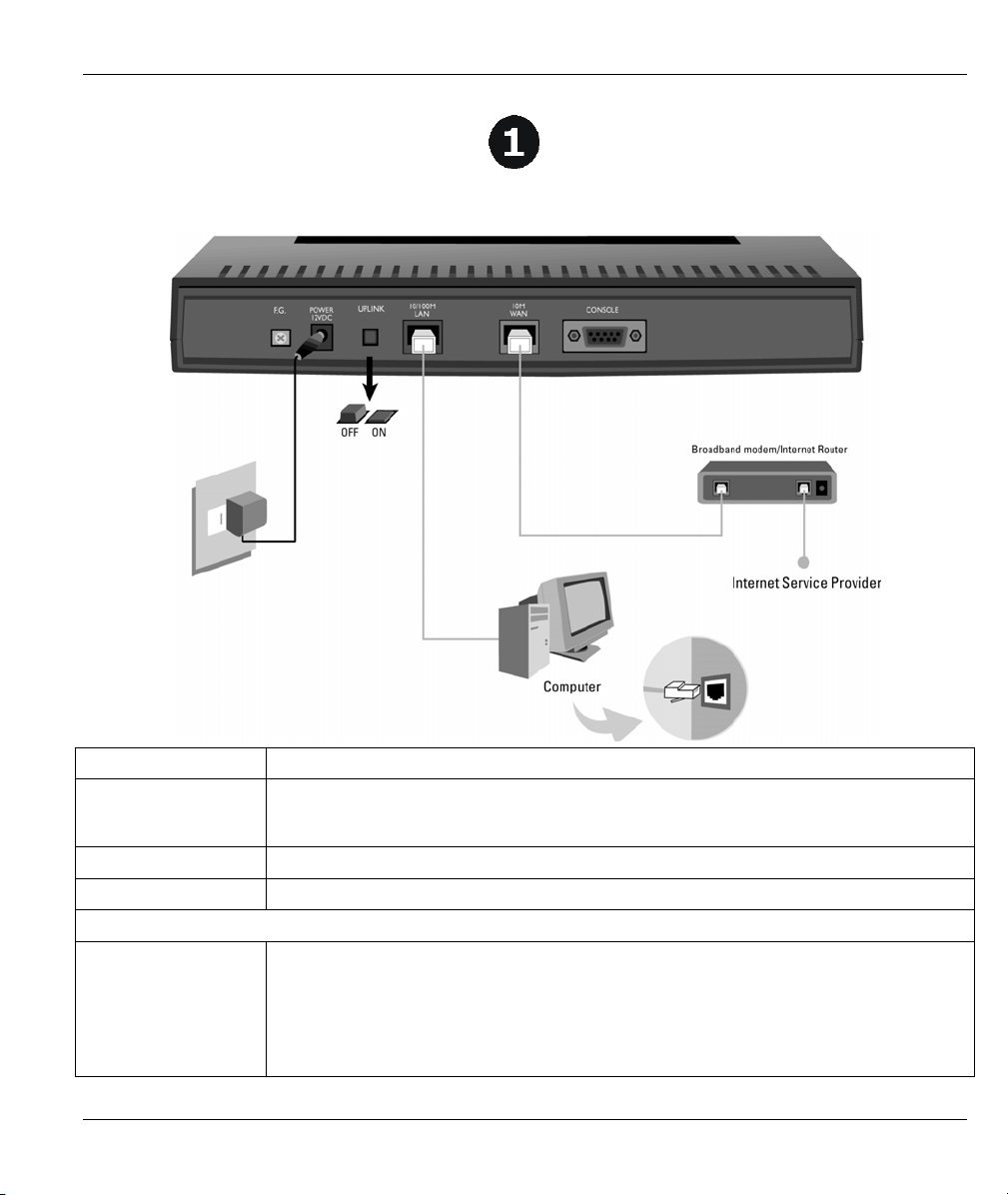

Hardware Installation

Rear Panel

LABEL DESCRIPTION

1. 10/100M LAN Connect a computer to this port with an Ethernet cable. This port is auto-negotiating (can

connect at 10 or 100Mbps). Push the UPLINK button in with a straight-through Ethernet cable or

have the UPLINK button out with a crossover Ethernet cable.

2. 10 WAN Connect your cable/DSL modem to this port with the Ethernet cable that came with your modem.

3. POWER 12VDC Connect the included power adaptor (use only this adapter) to this power socket.

After you’ve made the connections, connect the power cable to a power supply and look at the front panel LEDs.

CONSOLE Only connect this port if you want to configure the ZyWALL using the SMT via console port; see

your User’s Guide for details.

Connect the male end of the console cable to the console port of the ZyWALL and the other end

to a serial port (COM1, COM2 or other COM port) on your computer. Your computer should have

a terminal emulation communications program (such as HyperTerminal) set to VT100 terminal

emulation, no parity, 8 data bits, 1 stop bit, no flow control and 9600 bps port speed.

ZyWALL 10

LABEL DESCRIPTION

RESET You only need to use this button if you’ve forgotten the ZyWALL’s password. It returns the

ZyWALL to the factory defaults (password is 1234, LAN IP address 192.168.1.1, terminal

emulation settings as described above etc.; see your User’s Guide for details).

The Front Panel LEDs

The PWR LED turns on when you connect the power. The SYS LED blinks while performing system testing

and then stays on if the testing is successful. The LAN and WAN LEDs turn on if they are properly

connected. Refer to the following table for detailed LED descriptions.

LED COLOR STATUS MEANING

On The ZyWALL is turned on.PWR Green

Off The ZyWALL is turned off.

SYS Green Off The ZyWALL is not ready or failed.

On The ZyWALL is ready and running.

Flashing The ZyWALL is rebooting.

Red On The power to the ZyWALL is too low.

Green Off The 10M LAN is not connected.

On The ZyWALL is connected to a 10M LAN.

LAN 10M

Flashing The 10M LAN is sending or receiving packets.

Off The 100M LAN is not connected.

On The ZyWALL is connected to a 100Mbps LAN.

LAN 100M Orange

Flashing The 100M LAN is sending or receiving packets.

Off The 10M WAN link is not ready, or has failed.

On The 10M WAN link is OK.

WAN 10M Green

Flashing The 10M WAN link is sending or receiving packets.

ZyWALL 10

Setting Up Your Computer’s IP Address

Skip this section if your computer is already set up to accept a dynamic IP

address. This is the default for most new computers.

The ZyWALL is already set up to assign your computer an IP address. Use this section to set up your

computer to receive an IP address or assign it a static IP address in the 192.168.1.2 to 192.168.1.254 range

with a subnet mask of 255.255.255.0. This is necessary to ensure that your computer can communicate with

your ZyWALL.

Your computer must have an Ethernet card and TCP/IP installed. TCP/IP should already be installed on

computers using Windows NT/2000/XP, Macintosh OS 7 and later operating systems.

Windows 2000/NT/XP

1. In Windows XP, click start, Control Panel. In Windows 2000/NT, click Start, Settings, Control Panel.

2. In Windows XP, click Network Connections.

In Windows 2000/NT, click Network and Dial-up Connections.

3. Right-click Local Area Connection and then click Properties.

4. Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and click Properties.

5. The Internet Protocol TCP/IP Properties screen opens (the

General tab in Windows XP).

- To have your computer assigned a dynamic IP address, click

Obtain an IP address automatically.

-To configure a static IP address, click Use the following IP

Address and fill in the IP address (choose one

from192.168.1.2 to 192.168.1.254), Subnet mask

(255.255.255.0), and Default gateway (192.168.1.1) fields.

ZyWALL 10

6. Click Advanced. Remove any previously installed gateways in

the IP Settings tab and click OK to go back to the Internet

Protocol TCP/IP Properties screen.

7. Click Obtain DNS server address automatically if you do

not know your DNS server IP address(es).

If you know your DNS server IP address(es), click Use the

following DNS server addresses, and type them in the

Preferred DNS server and Alternate DNS server fields.

If you have more than two DNS servers, click Advanced, the

DNS tab and then configure them using Add.

8. Click OK to close the Internet Protocol (TCP/IP) Properties

window.

9. Click OK to close the Local Area Connection Properties

window.

Checking Your Computer’s IP Address

1. In the computer, click Start, (All) Programs, Accessories and then Command Prompt.

2. In the Command Prompt window, type "ipconfig" and then press ENTER. Your computer’s IP address must be in

the correct range (192.168.1.2 to 192.168.1.254) with subnet mask 255.255.255.0 in order to communicate with

the ZyWALL.

Refer to your User’s Guide for detailed IP address configuration for other Windows and Macintosh computer

operating systems.

Configuring Your ZyWALL

Choose one of these methods to access and configure the ZyWALL. This Quick

Start Guide shows you how to use the web configurator wizard only. See your

User’s Guide for background information on all ZyWALL features and SMT

configuration. Click the web configurator online help for screen-specific web help.

 Web Configurator

 SMT (System Management Terminal). Access the SMT via:

o Console port using terminal emulation software

o LAN or WAN using Telnet

ZyWALL 10

Accessing Your ZyWALL Via Web Configurator

Step 1. Launch your web browser. Enter “192.168.1.1” as the web site address.

Step 2. The default password (“1234”) is already in the password field (in non-readable format). Click

default password in the password field.

Step 3. It is highly recommended you change the default password! Enter a new password, retype it to

confirm and click Apply; alternatively click Ignore to proceed to the main menu if you do not

want to change the password now.

Step 4. You should now see the web configurator MAIN MENU screen.

 Click WIZARD to begin a series of screens to help you configure your ZyWALL for the first time.

 Click a link under ADVANCED in the navigation panel to configure that ZyWALL feature.

 Click MAINTENANCE in the navigation panel to see ZyWALL performance statistics, upload

firmware and back up, restore or upload a configuration file.

 Click LOGOUT when you have finished a ZyWALL management session. The ZyWALL

automatically logs you out if it is left idle for five minutes; press ENTER to display the Login

screen again and then log back in. This idle timeout timer is one of the many ZyWALL features that

you may edit using the web configurator.

Web site address.

Default password.

Change default password.

ZyWALL 10

Using the Wizard to Configure for Internet Access

Step 1. Click Wizard Setup in the main menu to display the first wizard screen.

System Name is for identification purposes.

Enter your computer's "Computer Name".

The Domain Name entry is what is propagated to

the DHCP clients on the LAN. If you leave this

blank, the domain name obtained by DHCP from

the ISP is used. Click Next to continue.

WIZARD

Navigation panel

LOGOUT

ZyWALL 10

Step 2. The second wizard screen has three variations depending on what encapsulation type you use. Use

the information in Internet Account Information to fill in fields.

Choose Ethernet when the WAN port

is used as a regular Ethernet. Choose

from Standard or a RoadRunner

version. You’ll need User Name,

Password and Login Server IP

Address for some Roadrunner

versions.

Point-to-Point Protocol over Ethernet

(PPPoE) also functions as a dial-up

connection. Therefore you’ll also need

a username and password and

possibly the PPPoE service name.

Your ISP will give you all needed

information.

Choose PPTP if your service provider

uses a DSL terminator with PPTP

IP address in this case. You’ll also

need a login name, associated

password, the DSL terminator IP

address and possibly a connection ID.

Click Next to continue.

Step 3. Fill in the fields and click Finish to save and complete the wizard setup.

WAN IP Address Assignment

Select Get automatically from ISP if

your ISP did not assign you a fixed IP

address. Select Use fixed IP address

if the ISP assigned a fixed IP address

and then enter your IP address and

subnet mask in the next two fields.

Enter the gateway IP address in this

field (if provided) when you select Use

Fixed IP Address.

DNS Server Assignment

Select Get automatically from ISP if

your ISP does not give you DNS

server addresses.

If you selected the Use fixed IP

address – Primary/Secondary DNS

Server option, enter the provided

DNS addresses in these fields.

WAN MAC Address

Select Factory Default to use the factory assigned default MAC address. Alternatively, select Spoof this Computer's MAC

address - IP Address and enter the IP address of the computer on the LAN whose MAC address you are cloning.

ZyWALL 10

Test Your Internet Connection

Launch your web browser and navigate to www.zyxel.com. You don’t need a dial-up program such as Dial

Up Networking. Internet access is just the beginning. Refer to the User’s Guide for more detailed

information on the complete range of ZyWALL features.

Troubleshooting

PROBLEM CORRECTIVE ACTION

None of the

LEDs turn on

when you turn

on the ZyWALL.

Make sure that you have the correct power adapter connected to the ZyWALL and plugged in to an

appropriate power source. Check all cable connections.

If the LEDs still do not turn on, you may have a hardware problem. In this case, you should contact

your local vendor.

Cannot access

the ZyWALL

from the LAN.

Check the cable connection between the ZyWALL and your computer or hub. Refer to the Rear Panel

section for details.

Ping the ZyWALL from a LAN computer. Make sure your computer Ethernet card is installed and

functioning properly.

Cannot ping any

computer on the

LAN.

If the 10/100M LAN LEDs are off, check the cable connections between the ZyWALL and your LAN

computers.

Verify that the IP address and subnet mask of the ZyWALL and the LAN computers are in the same

IP address range.

The WAN IP is provided after the ISP verifies the MAC address, host name or user ID.

Find out the verification method used by your ISP and configure the corresponding fields.

If the ISP checks the WAN MAC address, you should clone the MAC address from a LAN computer.

Click WAN and then the MAC tab, select Spoof this Computer's MAC address - IP Address and

enter the IP address of the computer on the LAN whose MAC address you are cloning.

If the ISP checks the host name, enter your computer’s name (refer to the Wizard Setup section in the

User’s Guide) in the System Name field in the first screen of the WIZARD.

Cannot get a

WAN IP address

from the ISP.

If the ISP checks the user ID, click WAN and then the ISP tab. Check your service type, user name,

and password.

Check the ZyWALL’s connection to the cable/DSL device.

Check whether your cable/DSL device requires a crossover or straight-through cable.

Cannot access

the Internet.

Click WAN to verify your settings.

Altri manuali per PPC 10

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ZyXEL Communications Portale

ZyXEL Communications

ZyXEL Communications VDSL2 Manuale utente

ZyXEL Communications

ZyXEL Communications USG-100@USG-200 - V2.20 ED 2 Manuale utente

ZyXEL Communications

ZyXEL Communications ZYWALL USG CLI Manuale utente

ZyXEL Communications

ZyXEL Communications P-661HNU-FX Manuale utente

ZyXEL Communications

ZyXEL Communications P-660HN-5x Series Manuale utente

ZyXEL Communications

ZyXEL Communications ZyWALL USG 2000 Manuale utente

ZyXEL Communications

ZyXEL Communications Prestige 316 Manuale utente

ZyXEL Communications

ZyXEL Communications VSG-1200 Manuale utente

ZyXEL Communications

ZyXEL Communications VMG8029 Manuale utente

ZyXEL Communications

ZyXEL Communications ZyWALL USG100-Plus Manuale utente

ZyXEL Communications

ZyXEL Communications ZyWALL USG 100 Series Manuale utente

ZyXEL Communications

ZyXEL Communications P-660HW-T - V2 Manuale utente

ZyXEL Communications

ZyXEL Communications UAG4100 Manuale utente

ZyXEL Communications

ZyXEL Communications P-661HNU-FX Manuale dell'operatore

ZyXEL Communications

ZyXEL Communications ZyWALL 10 Manuale utente

ZyXEL Communications

ZyXEL Communications P-660HW-DX V2 - V3.40 Manuale utente

ZyXEL Communications

ZyXEL Communications P-792H v2 Manuale utente

ZyXEL Communications

ZyXEL Communications VMG1312-T20B Manuale utente

ZyXEL Communications

ZyXEL Communications VMG9827-B50A Manuale utente

ZyXEL Communications

ZyXEL Communications VSG1435-B101 Manuale utente

ZyXEL Communications

ZyXEL Communications P-793H 601156 Guida di riferimento

ZyXEL Communications

ZyXEL Communications ZyXEL ZyAIR B-220 Manuale utente

ZyXEL Communications

ZyXEL Communications ZyWall1 Manuale utente

ZyXEL Communications

ZyXEL Communications ZyXEL ZyWALL 5 Manuale utente

Manuali Portale popolari di altre marche

LST

LST M500RFE-AS Manuale utente

Kinnex

Kinnex Media Gateway Manuale utente

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuale utente

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuale utente

Telsey

Telsey CPVA 500 - SIP Manuale utente

RTA

RTA 460A-NNA4 Scheda tecnica

Shaw

Shaw Gateway HDPVR Manuale utente

ABB

ABB VSN900 Guida rapida

Commander

Commander Pulse Manuale utente

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuale utente

NETGEAR

NETGEAR C6300BD Manuale utente

Amit

Amit CDW531AM Manuale utente

HMS

HMS Netbiter EasyConnect EC150 Manuale utente

Huawei

Huawei EchoLife HG620 Manuale utente

AT&T

AT&T U-verse 3801 Manuale per l'uso e la cura

Logic IO

Logic IO RTCU MX2 turbo Manuale utente

Suttle

Suttle MediaMAX MXM-521 Manuale utente

RTA

RTA 460MCBC-N2E Scheda tecnica
