Omni 56K USB Modem

Quick Start Guide

Contents

1. MAKING CONNECTION VIA USB .....................2

HARDWARE INSTALLATION 2

SOFTWARE INSTALLATION FOR WINDOWS® OS 3

INSTALL USB DRIVER AND PPP SETUP FOR MAC

OS 6

2. BITWARE INSTALLATION................................ 12

INSTALLING BITWARE 12

ZyXEL

OTAL

NTERNET

CCESS

OLUTION

ZyXEL Omni 56K USB Modem Quick Start Guide

1. Making Connection

via USB

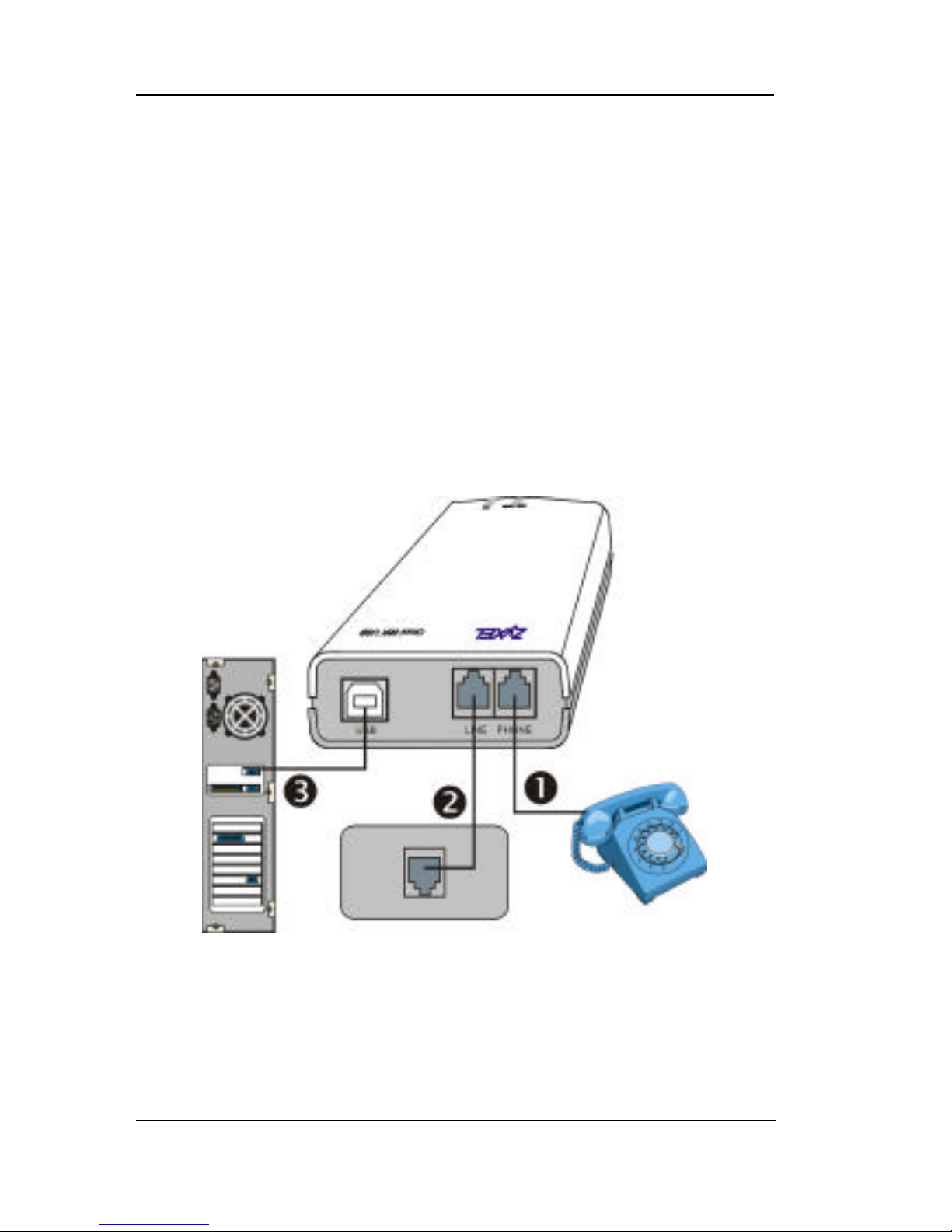

Hardware Installation

ÊConnect your modem to your analog phone or fax.

ËUse the phone cord included to connect to the

phone jack on the wall.

ÌPlug one end of your USB cable to your modem

and the other end to an available USB port on

your PC.

ZyXEL Omni 56K USB Modem Quick Start Guide

Software Installation for

Windows® OS

Follow the steps below to install your USB driver.

Step 1. Be sure your PC is

already turned on

before connecting

the USB cable from

your modem to your

PC. The plug and

play function of

Windows® 98

detects your new

device and shows

an installation

wizard as shown on

the left. Click Next

to continue.

NOTE:

If your Windows®system does not

detect your new device automatically, you may

unplug the USB cable and reboot your

Windows®system, then try Step 1 above again.

ZyXEL Omni 56K USB Modem Quick Start Guide

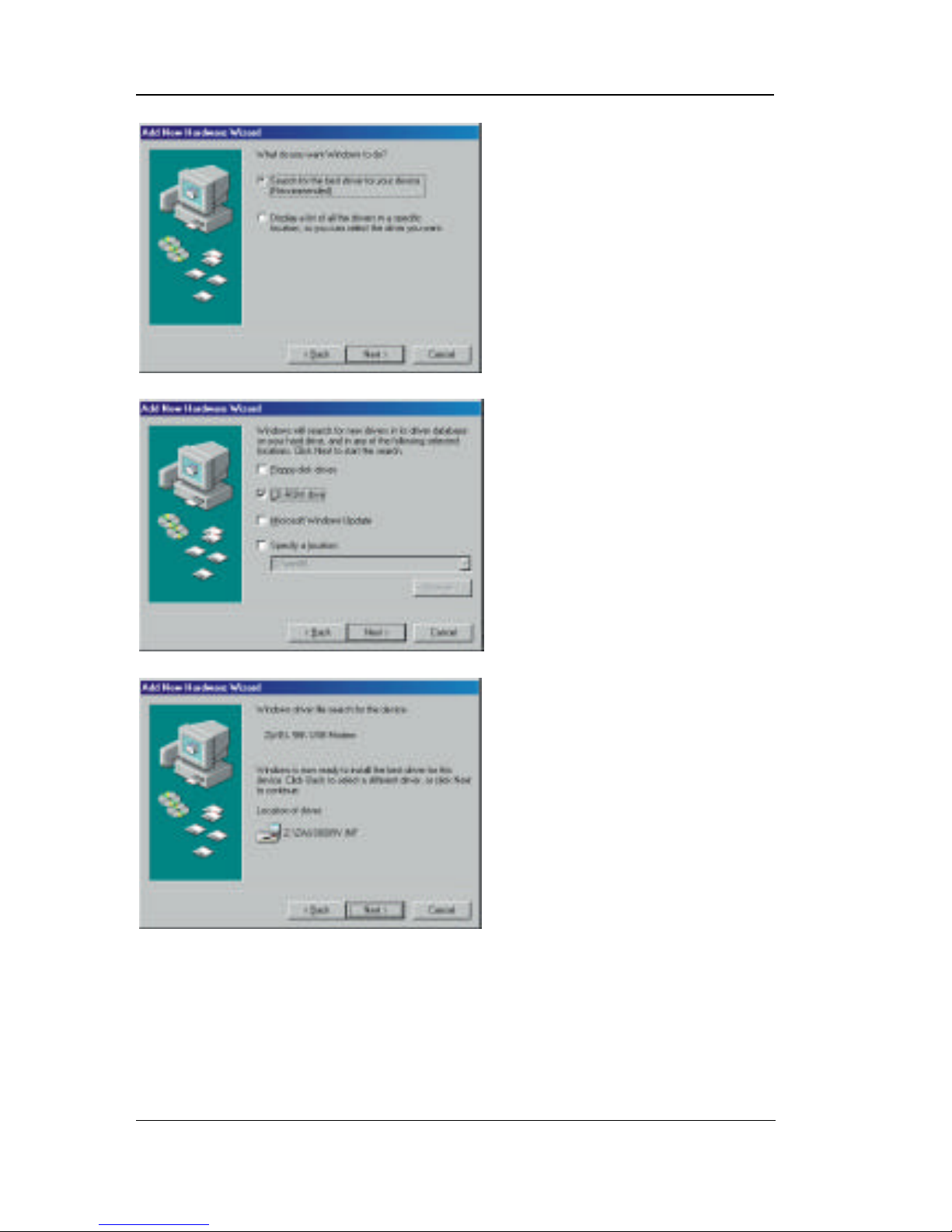

Step 4. The installation

wizard has found

the location of

your USB driver.

Click Next to

continue and

Windows® will

copy the driver

files into your

system as well as

build the driver

information

database.

Step 2. Click Next to

accept the default

selection.

Step 3. Insert the CD-

ROM disc

included into your

CD-ROM drive,

select CD-ROM

drive and then

click Next.

ZyXEL Omni 56K USB Modem Quick Start Guide

For more information on how to upgrade your

modem's firmware, please refer to the User's Guide

for ZyXEL Omni 56K USB Modem.

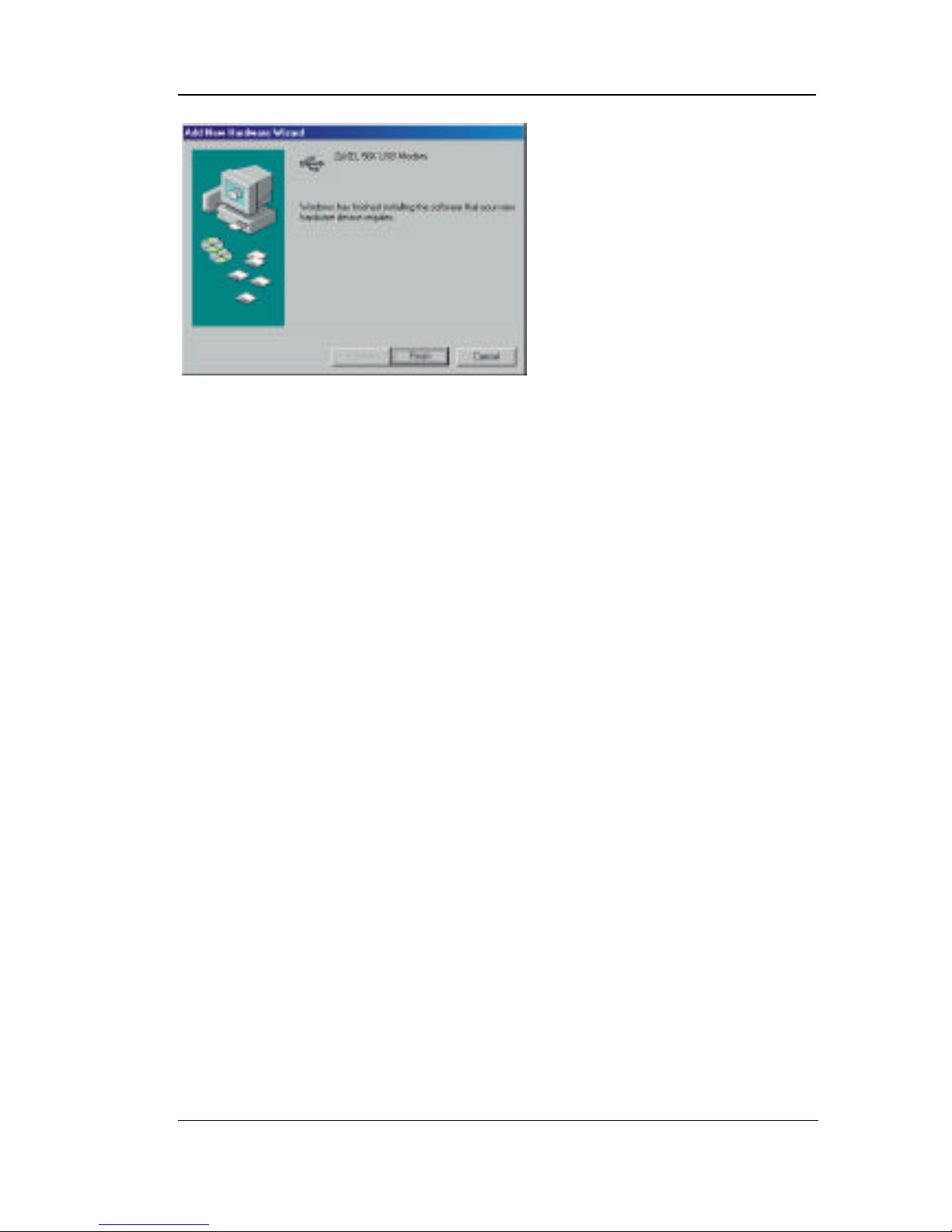

Step 5. The ZyXEL USB

modem has been

successfully

installed on your

computer. Click

Finish,then

follow the wizard

to complete the

driver installation.

ZyXEL Omni 56K USB Modem Quick Start Guide

Install USB Driver and PPP

Setup for Mac OS

This section provides step by step procedures to

install the USB device driver and setup PPP on the

Mac OS.

Install USB Driver for Mac OS

Omni56K_USB_Installer, a MindVision VISE

Installer, is used to install ZyXEL Omni 56K USB

device driver on your Macintosh. Perform the

following procedure to install the USB device driver

on your Macintosh.

Step 1. Be sure your Mac is turned on.

Step 2. Insert the CD-ROM disc attached with your

modem device into your CD-ROM drive.

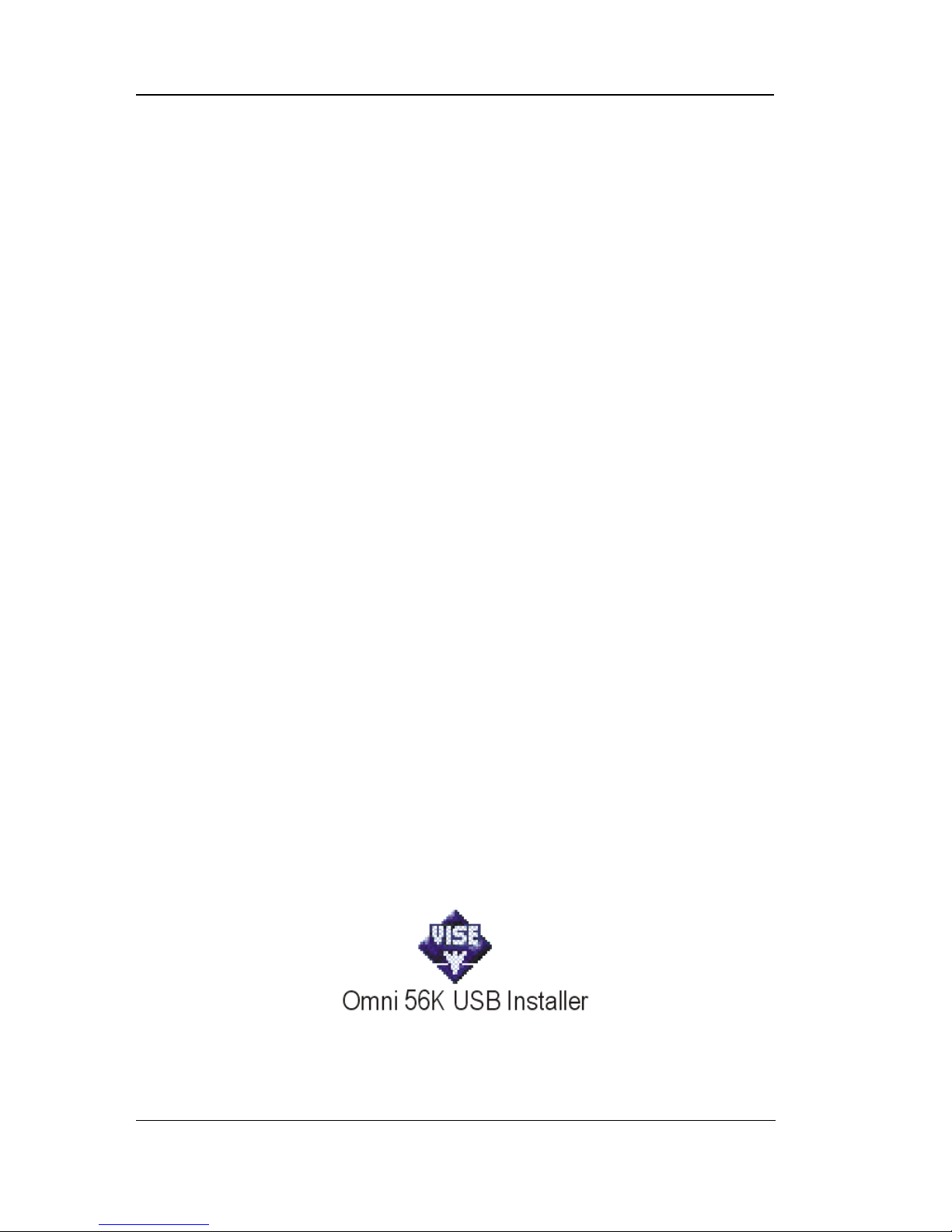

You will see the following icon:

ZyXEL Omni 56K USB Modem Quick Start Guide

Step 3. Plug the USB connector of your Omni 56K

USB into any one of your devices with a

USB port, such as your computer, display

monitor, or keyboard, etc.

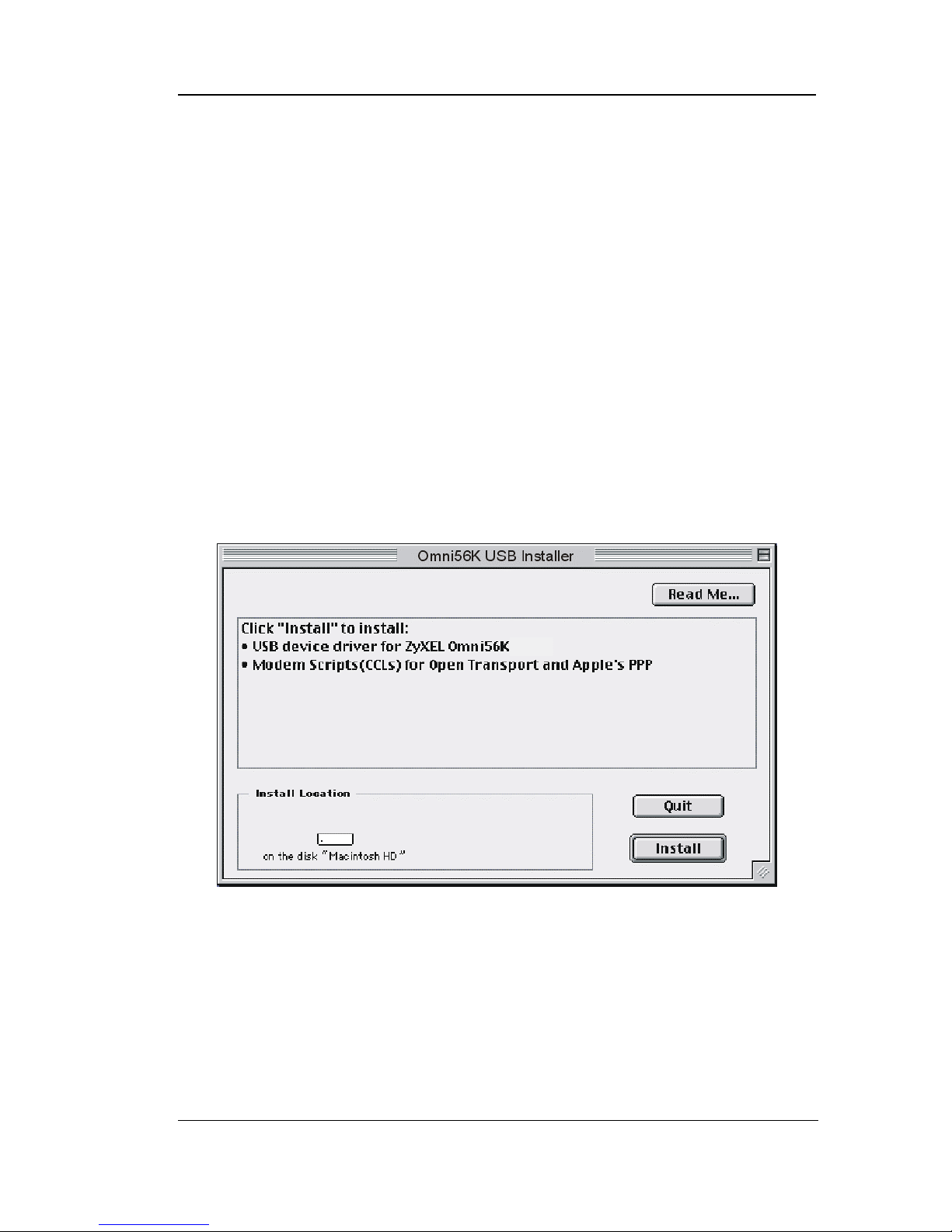

Step 4. Double click on the

Omni56K_USB_Installer icon. Then,

click Continue.

Step 5. Click on the Install button. The ZyXEL

USB device driver will be installed in the

extension folder of the system folder.

ZyXEL Omni 56K USB Modem Quick Start Guide

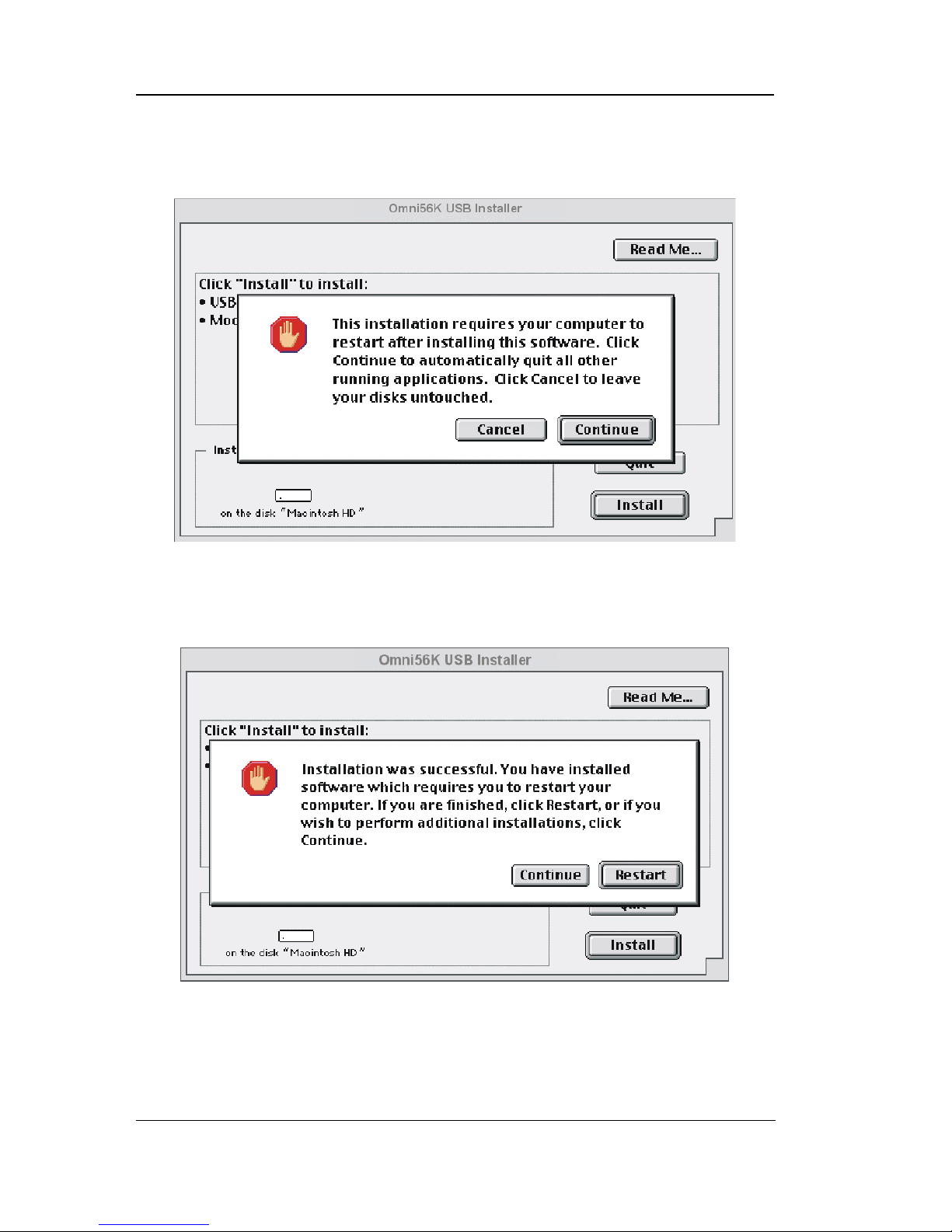

Step 6. You are required to restart your computer to

complete the installation process by

clicking on Continue.

Step 7. Click on Restart to reboot your

Macintosh.

You have finished the USB device driver installation

for your Mac OS. The following section shows you

how to set up a PPP connection for Internet access.

ZyXEL Omni 56K USB Modem Quick Start Guide

OT/PPP Setup for Mac OS

Before using OT/PPP, you must use the Control

Panels to set up modem, TCP/IP and Remote

Access (or PPP).

Setup the Modem Control Panel

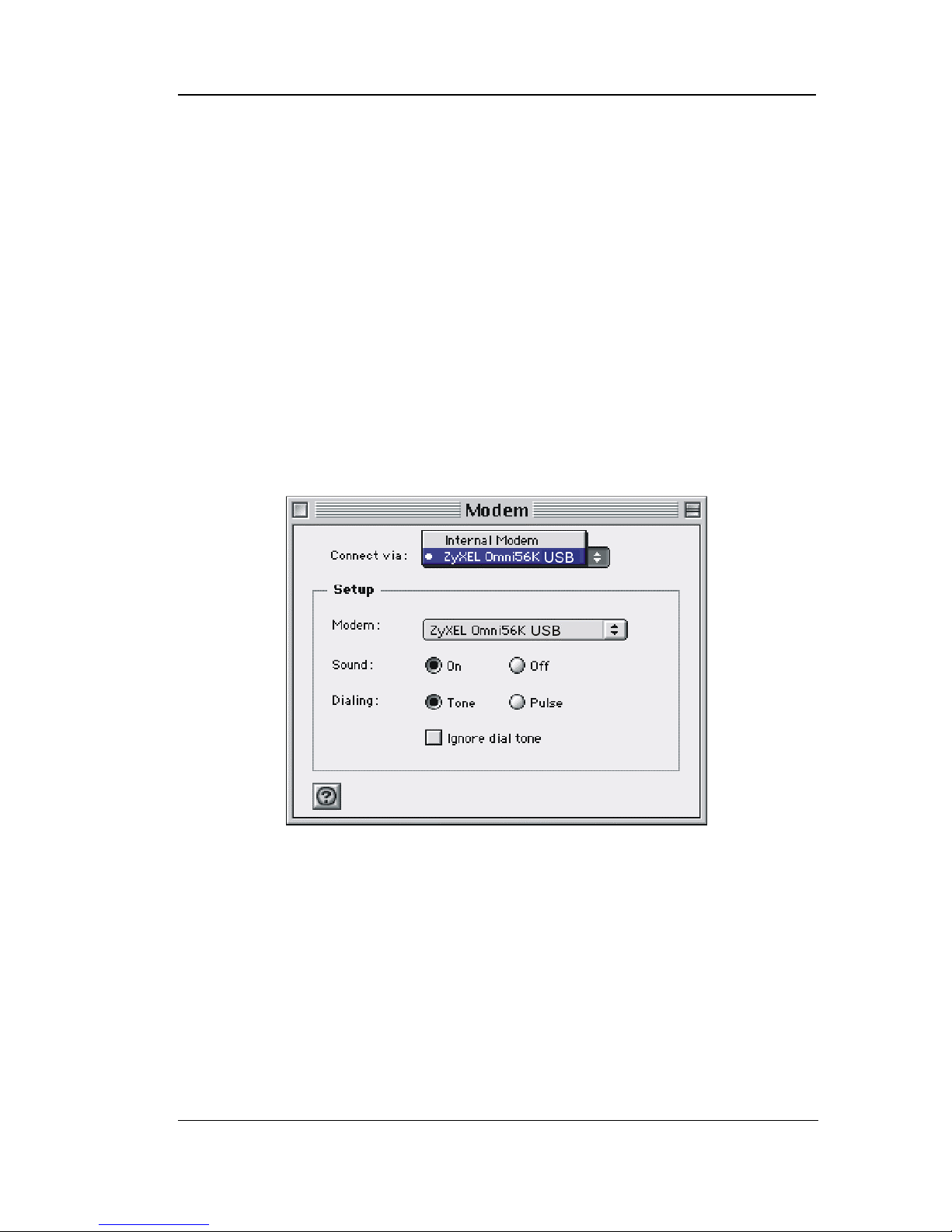

Step 1. Choose Control Panels from the

Apple Menu and open the Modem

Control Panel.You will see a window

as shown:

Step 2. Choose the port to the ZyXEL Omni 56K

USB from the Connect via pop-up

menu.

Step 3. Choose ZyXEL Omni 56K USB from the

Modem pop-up menu.

Step 4. Save and close.

ZyXEL Omni 56K USB Modem Quick Start Guide

TCP/IP Setup for PPP

Step 1. Choose Control Panels from the

Apple Menu and open the TCP/IP control

panel. You will see a window as shown:

Step 2. Choose PPP from the Connect via pop-

up menu.

Step 3. Choose your configuration method from the

Configure pop-up menu. For example,

Using PPP Server.

Step 4. The most common selection is Using PPP

Server that causes OT/PPP to request IP

address from the server when it connects.

Step 5. Enter Name server addresses.

Step 6. Save and close.
