Accessories

For more product information, visit us on the web at www.ZyXEL.com

product names, or trademarks mentioned are the property of their respective owners. All speciﬁ cations are subject to change without notice.

65-100-000042B 02/09

ZyXEL

Wireless LAN

Quick Sales Guide

2009

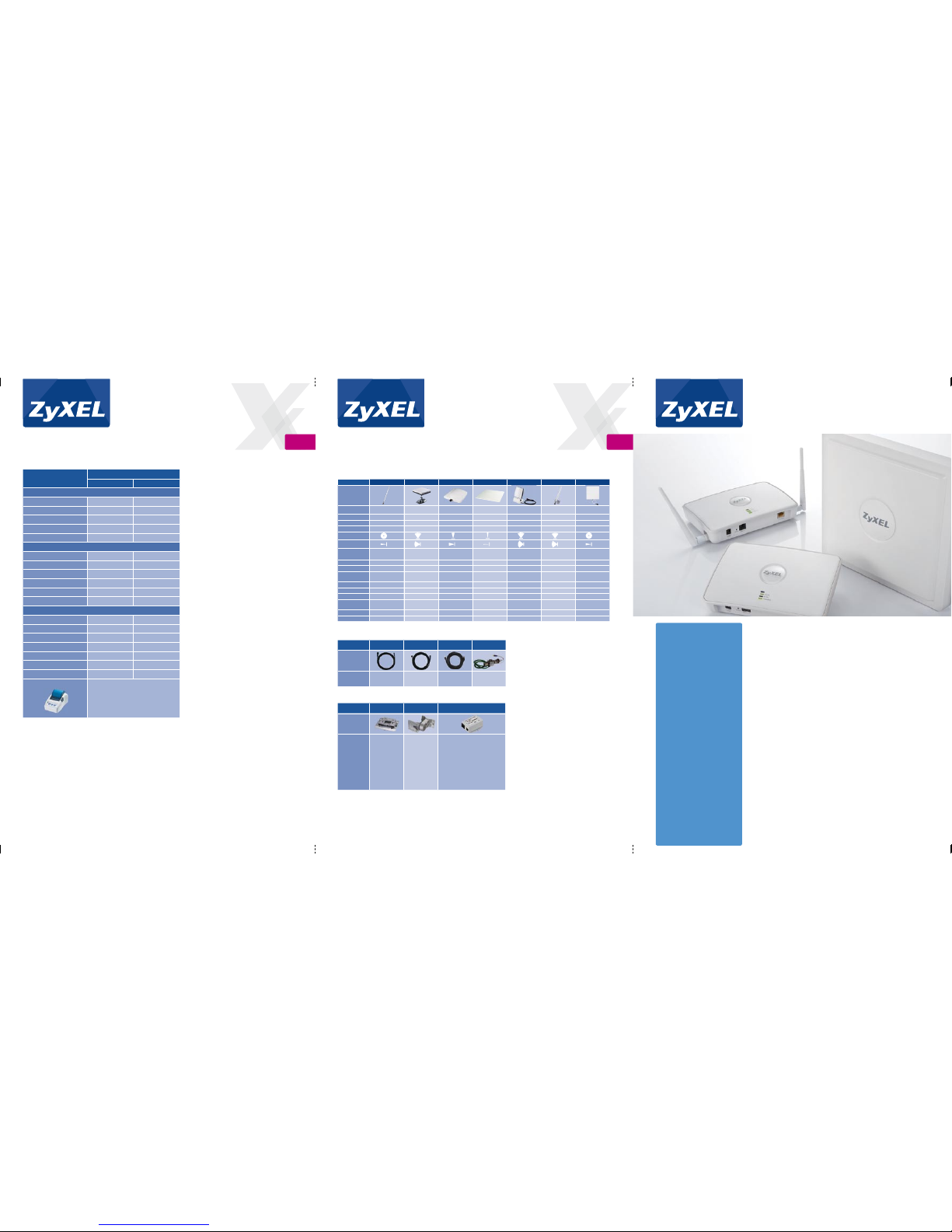

Model EXT-108 EXT-109 EXT-114 EXT-118 ANT2206 ANT3108 ANT3218

Product


Frequency Band 2400 ~ 2500 MHz 2400 ~ 2500 MHz 2400 ~ 2500 MHz 2400 ~ 2500 MHz 2400 ~ 2500 MHz 2400 ~ 2500 MHz 2400 ~ 2500 MHz

Gain1 8 dBi 9 dBi (peak) 14 dBi 18 dBi 6 dBi 8 dBi 8 dBi

VSWR 2.0:1 Max 1.5:1 Max 1.5:1 Max 1.5:1 Max 2.0:1 Max 2.0:1 Max 2.0:1 Max

Polarization Linear, vertical Linear, vertical Linear, vertical Linear, vertical Linear, vertical Linear, vertical Linear, vertical

HPBW/

Horizontal 360° 65° 30° 15° 65° 50° 360°

HPBW/Vertical 15° 60° 30° 5° 75° 50° 20°

Front to Back

Ratio N/A 15 dB 15 dB 26 dB 12 dB N/A 25dB

Impedance 50 Ω50 Ω50 Ω50 Ω50 Ω50 Ω50 Ω

Connector N type jack N type jack N type female N type female RP SMA Plug N type female N type Jack

Survival Wind

Speed 216 km/hr 216 km/hr 216 km/hr 180 km/hr 216 km/hr 216 km/hr

Temperature -40°C to 80°C -40°C to 80°C -40°C to 80°C -40°C to 80°C -10°C to 55°C -40°C to 80°C -40°C to 80°C

Humidity 95% at 25°C 95% at 55°C 95% at 55°C 95% at 55°C 95% at 55°C 95% at 55°C 95% at 55°C

Radome Color Gray-white Gray-white White White White, Black White Gray-white

Radome

Material Fiber glass ABS ABS, UV resistant ABS, UV resistant ABS, UV resist ABS, UV resist ABS, UV resist

Weight 337 g 107 g 407 g 1.6 kg 110 g 206 g 640 g

Dimensions f 19 x 250 mm 114 x 114 x 40 mm 200 x 200 x 50 mm 360 x 360 x 16 mm 76 x 86 x 118 mm f 20 x 260 mm 210 x 210 x 73 mm

Antenna

Cable

Product LMR 200 LMR 400 Cable Kit for

Outdoor AP EXT-300

Product


Specifications RP-SMA plug to

N-plug

N-plug to N-plug RJ-45 CAT 5e STB

Cable w/ Water-

Proof cover 15 m

Jumper Cable &

Surge Arrstor

Others

Product Ceiling

Mounting Kit

NWA3550

Mounting Kit PSE Kits

Product


Specifications For NWA-3160,

NWA-3163,

NWA-3165, NWA-

3500

For NWA3550 - Input: AC 100 V to AC 240 V

- Output:

48 Vdc/350 mA (IEEE 802.3af

compliant)

48 Vdc/500 mA

24 Vdc/800 mA

18 Vdc/1 A

- Operation Temperature -40°C to 85°C

- Storage Temperature -10°C to 70°C

- Operation Humidity 5% to 90%

Model Name

Wireless Service Gateway Series

VSG-1200v2 G-4100v2

Main Design

Wireless Technology N/A 802.11g

Number of 10/100M LAN/Switch 1 4

WAN 1 1

PoE Yes

PoE Power Draw 6 W

WLAN Features (G-4100 v2 only)

802.11b/g Yes

Number of Antenna 2

Maximum Throughput 22 ~ 24 Mbps

WEP Yes

WPA (Wi-Fi Certified) Yes

WPA2 (Wi-Fi Certified) Yes

Others Features

Built-in Authentication Yes Yes

RADIUS Authentication Support Yes Yes

IP Plug-and-play Yes Yes

Layer-2 Isolation Yes Yes

Customization Log-in Page Yes Yes

Max. Concurrent User 250 100

PMS Integration Yes

Ticket Printer-SP300E - Button x 3

- Input: 5 V DC, 2.5 A

- Paper Width: 58 (+0/-1) mm

- Paper length (max.): 50 meters

- Support 802.3af Power over Ethernet

coverback

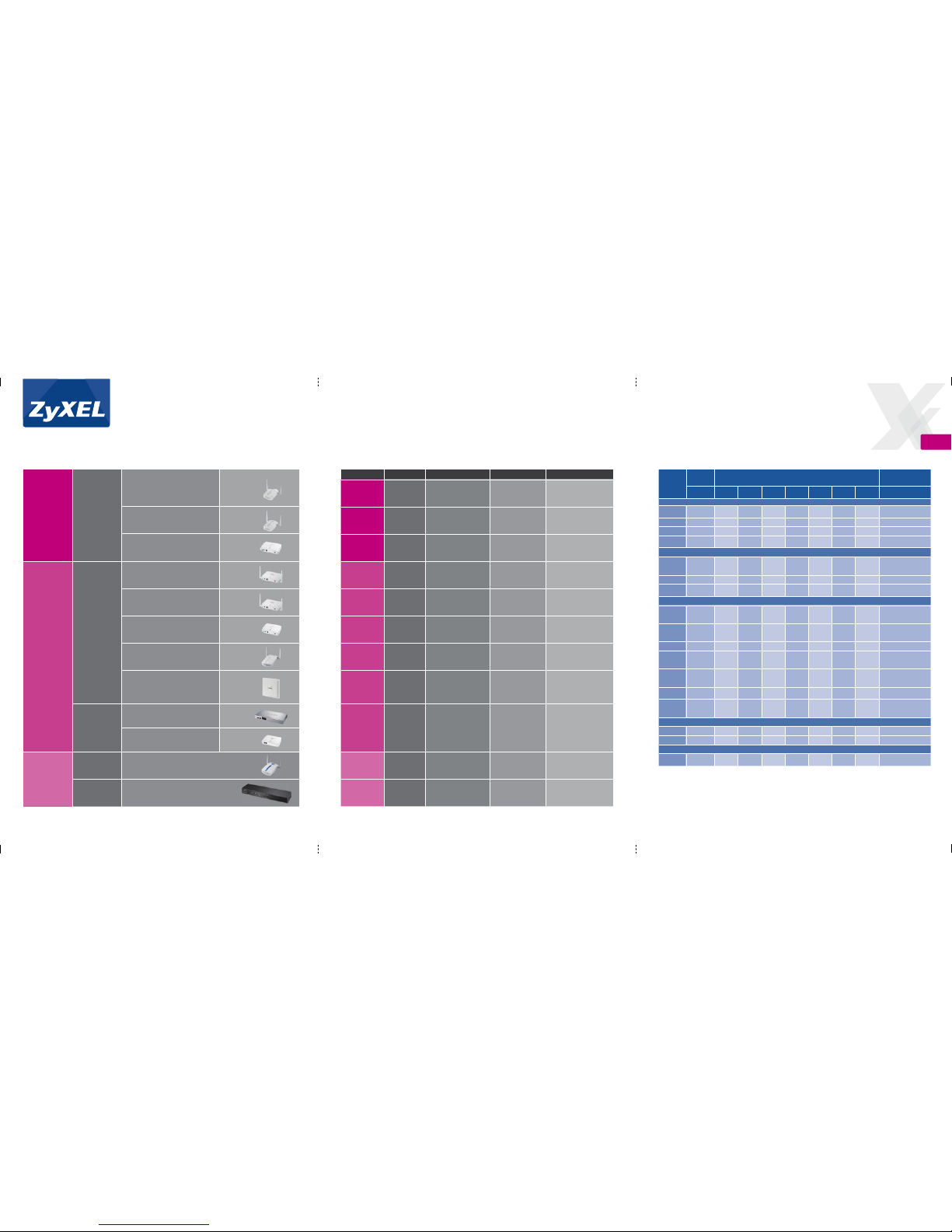

Wireless LAN Quick Finder Wireless LAN Feature Matrix

inside

Model Names Description Typical Application WLAN Features Competitive Products

NWA1100 Web-Managed AP Secure and Reliable WLAN

Connectivity for Small to

Medium Businesses

Extended Range (802.11b/g) HP ProCurve Access Point 10AG

Netgear WG102

NWA-3100 Web-Managed AP Dual-band operation with secure

and reliable WLAN networking

Single Radio (802.11a/b/g) HP ProCurve Access Point 420

3Com Wireless 7760

CISCO Aironet 1100

NWA-3165 Web-Managed AP Dead-Spot Elimination by MIMO

Technology

Single Radio (802.11b/g/n) Linksys WAP4400N

Aruba AP-125

NWA-3160 Hybrid AP World’s No.1 multi-role AP for

reliable, secure and flexible

deployment

Single Radio (802.11a/b/g) HP ProCurve Access Point 420

NWA-3163 Hybrid AP Optimized design for reaching

out the Wi-Fi service field

Extended Range (802.11b/g) HP ProCurve Access Point 420

3Com Wireless 7760

Cisco Aironet 1100

NWA-3166 Hybrid AP Advanced bandwidth and

converge with flexible scalability

Single Radio (802.11a/g/n) 3Com AirConnect 9550

Cisco Aironet 1250

NWA-3500 Hybrid AP Concurrent 2.4 & 5 GHz

Wi-Fi Convergence for Enterprise

Applications

Dual Radio (802.11a&g) HP ProCurve Access Point 530 WW

3Com Wireless 8760

Cisco Aironet 1130AG

NWA3550 Hybrid AP Outdoor AP to Extend the Wi-Fi

Coverage

Dual Radio (802.11a&g) 3Com 3CRWEASYA73

Cisco Aironet 1240AG

NXC-8160

(WLAN Switch) &

NWA-8500

(Managed AP)

WLAN Switch Unique Interference-Free

Architecture for High-Density

Deployment

802.11a/b/g (NWA-8500) Aruba MC200/800

Cisco 2100 Series

G-4100v2 Service Gateway Wi-Fi enabled HotSpot Gateway 802.11g Nomadix AG3100

IP3 NA-Xe

VSG-1200v2 Service Gateway AAA and PMS Integrate-able

Internet Service Gateway

N/A Nomadix AG5100

IP3 NA-Xi

Medium

Business

• Web Managed

• SNMP

Management

• Extended Range

• 2.4 GHz Support NWA1100

• Dual-band Support NWA-3100

• Wide Bandwidth Required NWA-3165

Medium Business

to Enterprise

• CAPWAP

Supported

• Centralized

Management
